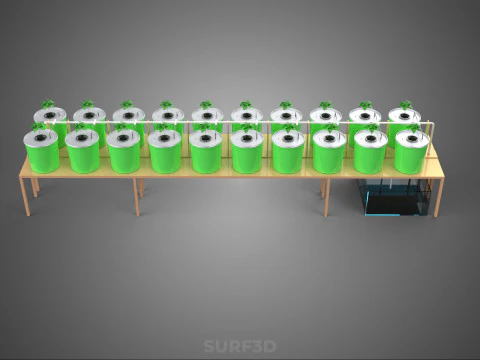

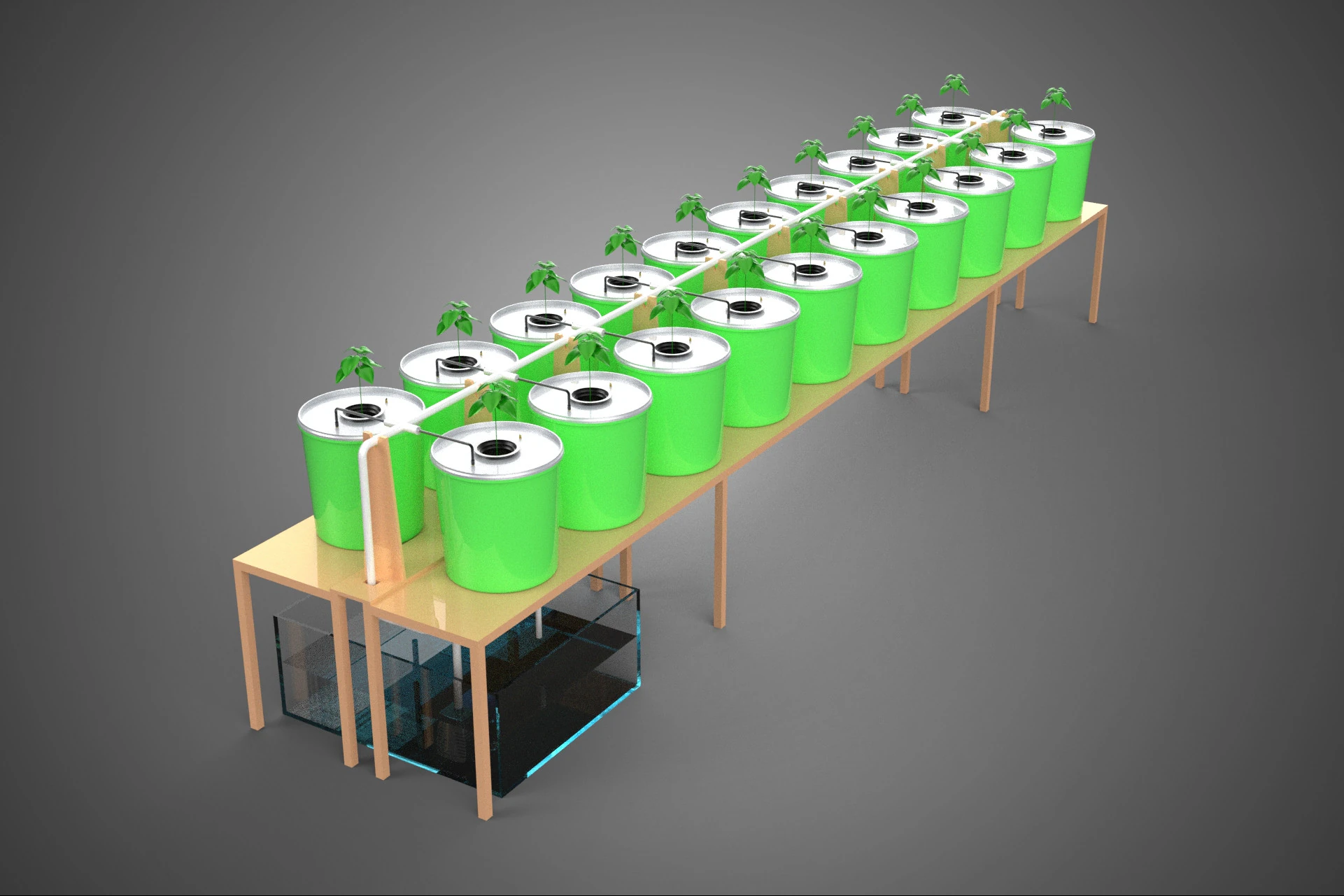

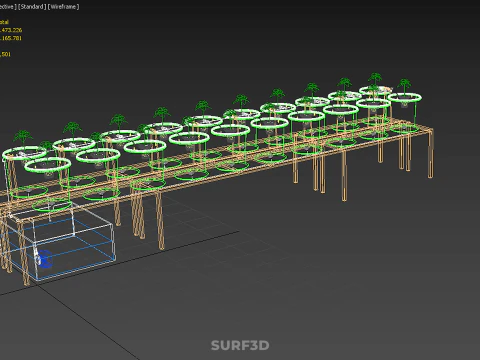

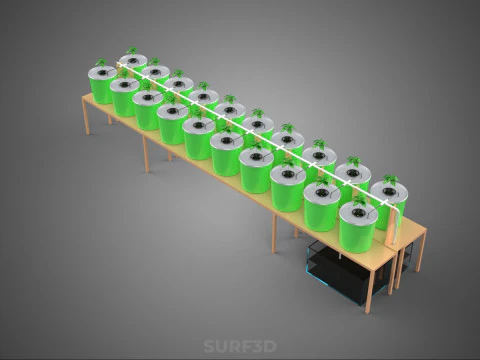

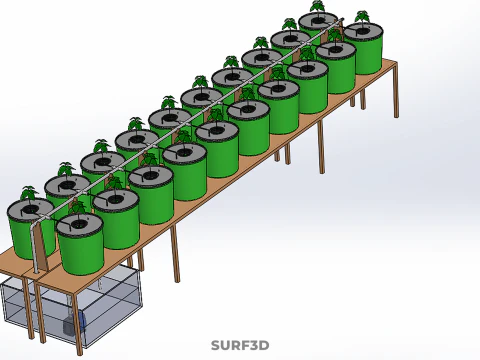

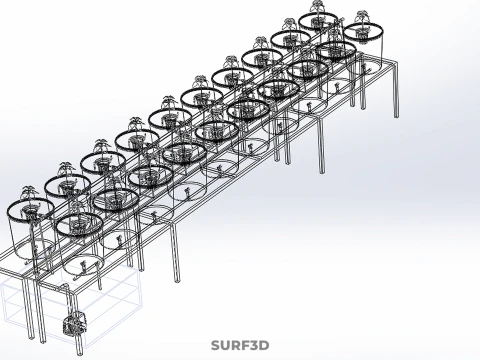

2 ROW DUTCH BUCKET SYSTEM BATO HYDROPONIC RECIRCULATING 16 PLANT 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The 2 Row Dutch Bucket System Bato Hydroponic Recirculating 16 Plant is a specialized, high-efficiency closed-loop cultivation apparatus designed for intermediate-to-large scale production of vining and high-demand crops. This system, frequently termed the Bato Bucket system after the original commercial containers, represents a synthesis of drip irrigation and hydroponic recirculation, providing highly controlled nutrient delivery and significant water conservation.

### System Definition and Nomenclature

The Bato Bucket system is a subcategory of aggregate culture hydroponics where individual containers (buckets) hold a single plant utilizing an inert growing medium, such as perlite, vermiculite, coconut coir, or rockwool. Unlike traditional deep water culture (DWC) or nutrient film technique (NFT), the Bato Bucket is optimized for plants requiring substantial root anchorage and extended vegetative/fruiting cycles, notably tomatoes, cucumbers, peppers, eggplants, and larger floral species.

The "Recirculating" designation indicates a closed-loop environment. Nutrient solution, after being delivered to the root zone, is collected and returned to a central reservoir for monitoring, replenishment, and reuse. This contrasts sharply with non-recirculating systems (such as "run-to-waste" drip systems) where excess nutrient solution is discarded.

### Physical Configuration

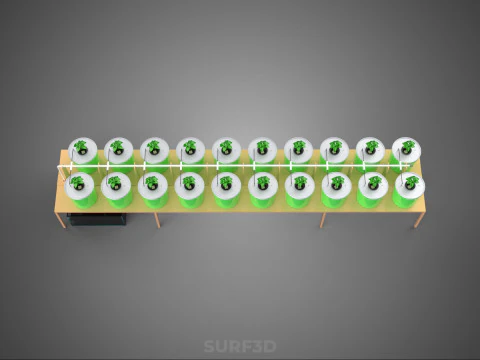

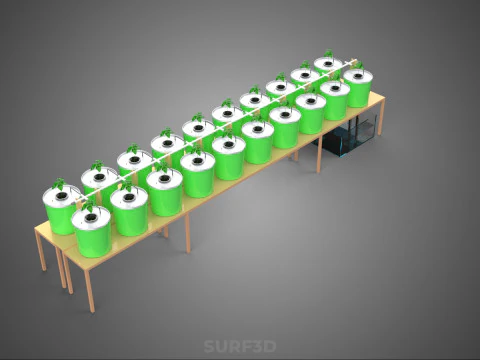

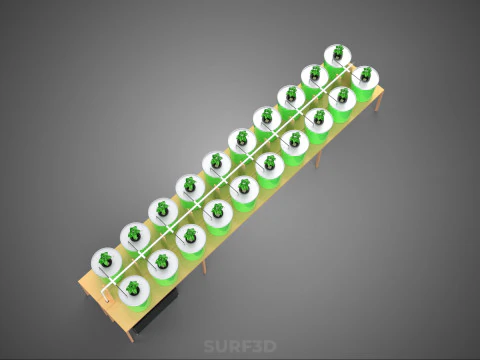

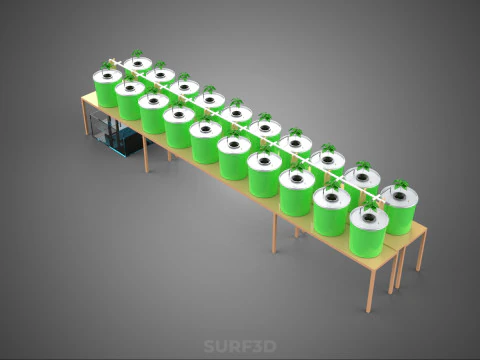

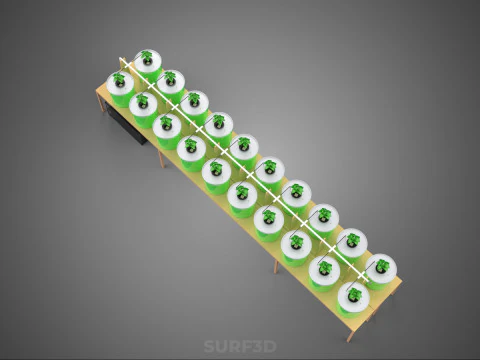

This specific configuration details a 16-plant capacity arranged across two parallel rows.

1. **Bato Buckets:** Sixteen individual polypropylene buckets serve as the growing stations. A defining feature is the specialized drain elbow (siphon elbow) positioned near the bottom of the container. This elbow prevents the complete drainage of the bucket, maintaining a shallow nutrient pool (typically 2-3 cm deep) that ensures root hydration and provides a buffer against temporary pump failures or dry cycles.
2. **Growing Medium:** An inert aggregate material supports the plant structure and facilitates capillary action for moisture retention.

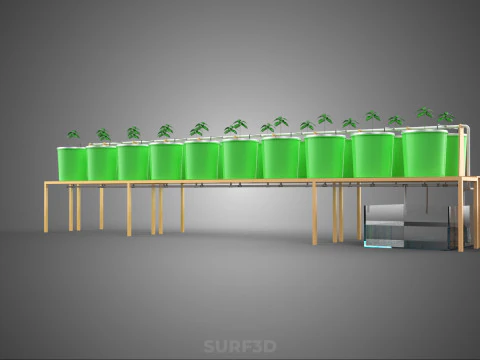

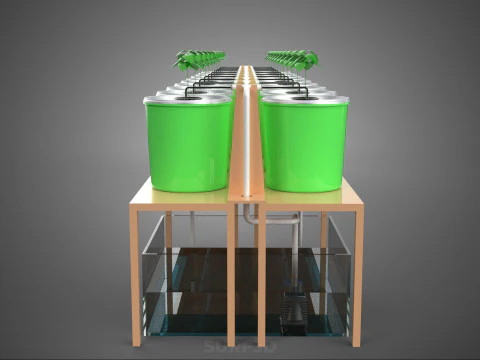

3. **Reservoir:** A large, light-proof tank stores the nutrient solution. This tank houses a submersible pump and probes for monitoring the Electrical Conductivity (EC) and pH levels.

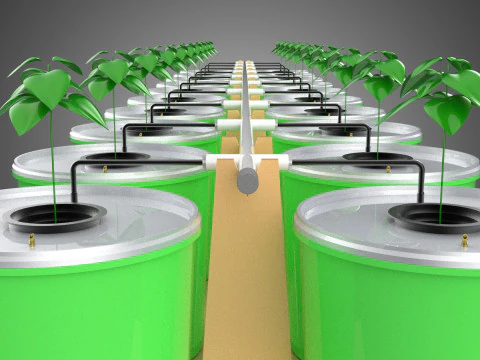

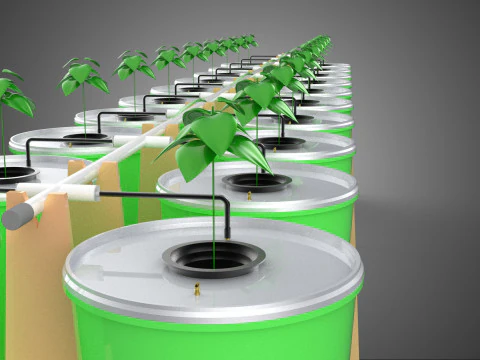

4. **Feed Manifold:** The central pump delivers the solution through a main manifold pipe, which branches into individual micro-drip lines, each equipped with an emitter to deliver precise volumes of solution directly to the base of each plant medium.
5. **Return Lines:** The drainage water exiting the specialized elbow of each bucket is collected by a sloped PVC return channel or drainage pipe. Gravity directs this spent solution back to the main reservoir, completing the recirculation cycle.

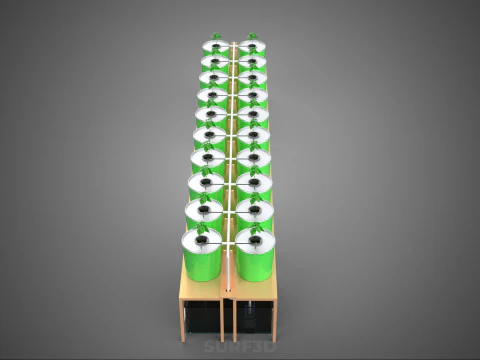

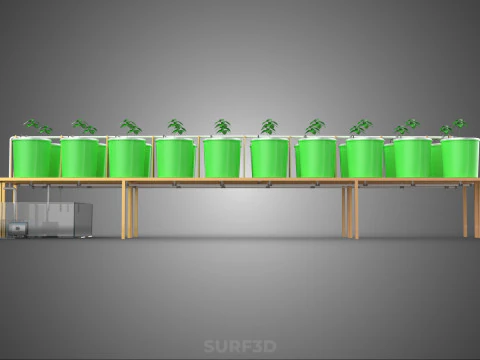

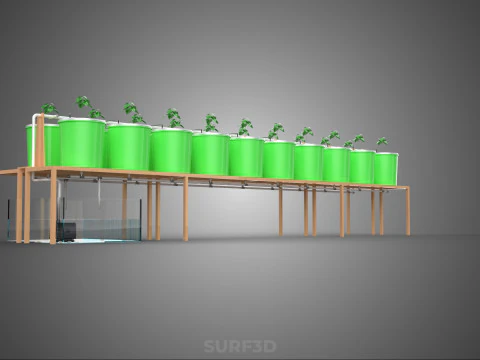

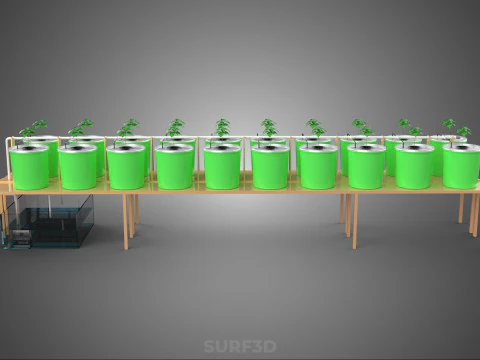

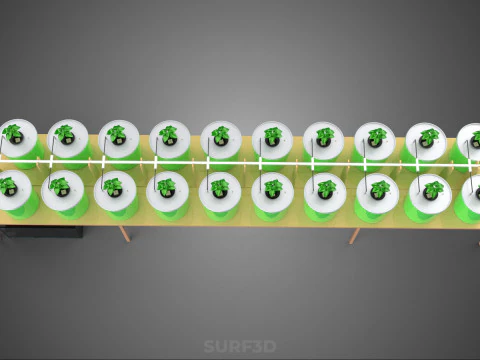

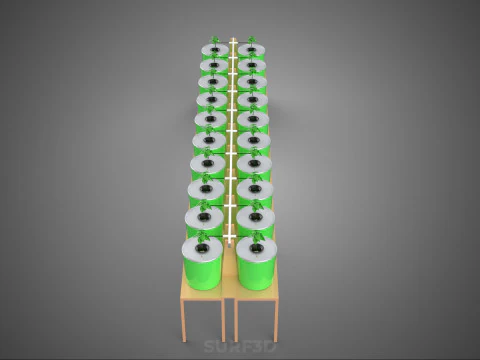

6. **2-Row Layout:** The 16 stations are typically organized in two linear arrays of eight buckets each. This two-row configuration is highly efficient for indoor operations, optimizing grow space under centralized lighting sources while ensuring adequate ventilation and accessibility for crop management and harvesting.

### Operational Mechanics

The operation is cyclical and automated, governed by pre-set timers:

1. **Irrigation Phase:** The submersible pump activates, pushing the oxygenated nutrient solution through the drip lines. The frequency and duration of irrigation are dictated by the plant stage, ambient environmental conditions, and the water retention capacity of the chosen inert medium.
2. **Nutrient Delivery:** The solution saturates the medium, delivering essential macronutrients (N-P-K) and micronutrients directly to the root zone.
3. **Drainage and Aeration:** As the solution percolates through the medium, it displaces stale air, drawing fresh oxygen into the root zone upon drainage. The excess solution drains through the siphon elbow back into the return channel.
4. **Recirculation:** The returning solution, while partially depleted, is mixed with the existing reservoir volume. Continuous monitoring of the reservoir's EC (nutrient strength) and pH (acidity/alkalinity) allows for automated or manual adjustment, ensuring optimal nutrient profiles are maintained for subsequent feeding cycles.

### Advantages

The 2 Row Dutch Bucket Bato system offers several engineering and horticultural benefits:

* **Water and Nutrient Efficiency:** High degree of nutrient capture and recycling minimizes waste compared to run-to-waste systems.
* **Disease Management:** The isolated nature of each bucket limits the potential for rapid spread of root-borne pathogens between plants compared to interconnected systems like deep water culture troughs.
* **Root Zone Control:** The utilization of inert media provides precise control over moisture levels, preventing common issues associated with saturated substrates while promoting vigorous root growth.
* **Scalability:** The modular nature of the 16-plant unit allows for easy expansion or reduction in capacity, making it versatile for both hobbyist commercial endeavors and research applications.
