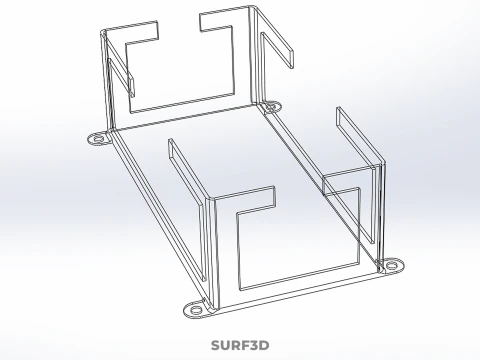

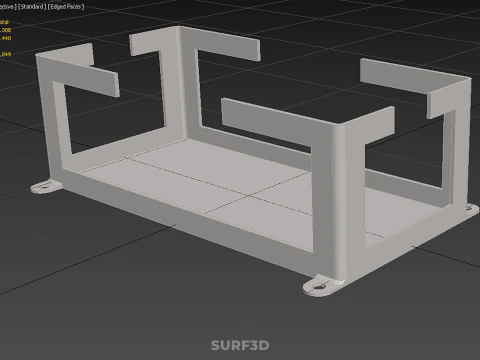

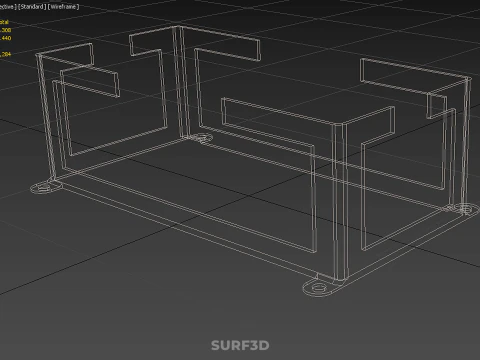

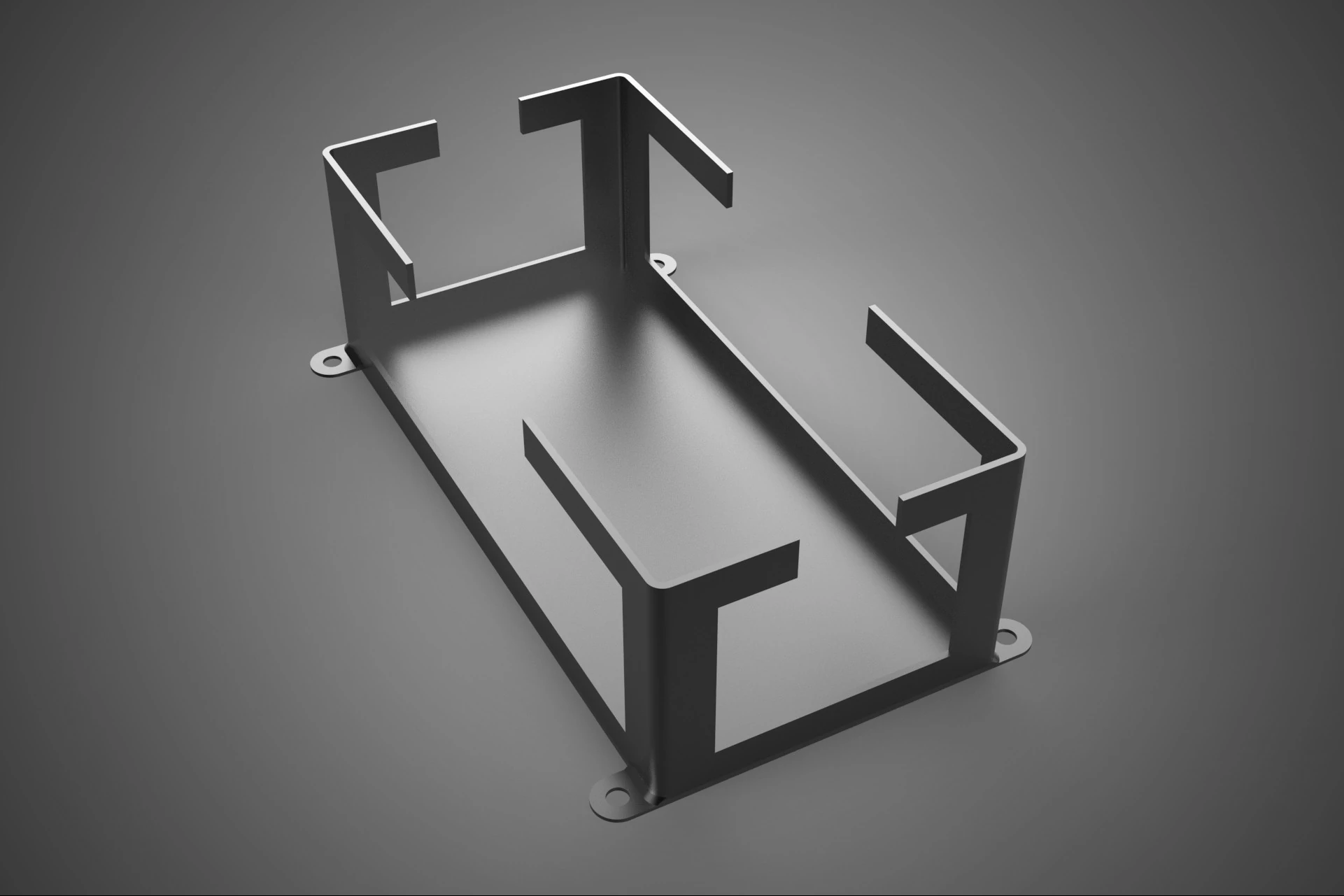

BATTERY HOUSING FRAME BRACKET ACCU CASING HOLDER MOUNTING MOUNT 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The **Battery Housing Frame Bracket**, alternatively referred to as the Accumulator Casing Holder or Mounting Mount, is a critical mechanical subsystem designed for the secure fixation, stabilization, and thermal management of electrochemical energy storage modules within an application platform. This component ensures the structural integrity and operational safety of the battery unit, particularly in dynamic environments such as automotive, industrial, and maritime applications.

### Nomenclature and Definition

The terminology associated with this component is highly application-dependent and includes synonyms such as Battery Tray, Battery Clamp, Module Mount, Accumulator Cradle, or Retention Bracket. Regardless of specific terminology, the component serves as the interface between the battery housing (casing) and the primary chassis or structural frame of the equipment. Its primary function is to resist gravitational, inertial, and vibrational forces.

### Design and Functional Requirements

The design of a battery mounting system must adhere to stringent engineering specifications related to safety, durability, and performance optimization. The requirements vary based on the battery chemistry (e.g., high-voltage Lithium-ion packs versus traditional lead-acid units) and the operational environment.

#### Structural Fixation and NVH Mitigation
The bracket system provides robust mechanical restraint, preventing displacement, rotation, or excessive movement of the battery module. This is vital for maintaining electrical connections and preventing internal damage to the cell structure. In applications subject to significant kinetic forces, such as transportation, the bracket must fulfill specific requirements for Noise, Vibration, and Harshness (NVH) mitigation, often incorporating elastomeric isolators or damping materials to absorb shock loads and high-frequency vibrations.

#### Safety and Crashworthiness
In vehicles, the mounting bracket is a crucial passive safety element. It must be engineered to retain the battery during extreme deceleration events (crashes), preventing the module from impacting passengers or rupturing, which could lead to chemical leakage, thermal runaway, or fire. Modern high-voltage battery mounts often incorporate structural features that contribute to the overall rigidity of the vehicle frame and facilitate the controlled transfer of crash energy away from the battery module.

#### Thermal Management
The bracket or tray often plays a role in the thermal management system. Depending on the material and design, it can act as a heat sink, aiding in the conduction of excess thermal energy away from the battery cells, or conversely, provide thermal isolation to maintain optimal operating temperatures. For complex systems, integrated fluid passages or mounting points for cooling plates are sometimes incorporated into the frame assembly.

#### Electrical and Corrosion Control
The mounting system frequently includes provisions for electrical grounding, ensuring proper circuit integrity and safety features. Furthermore, due to the inherent corrosiveness of potential electrolyte leaks (especially in lead-acid batteries) or exposure to environmental factors, the bracket material and its protective coating must exhibit high resistance to chemical degradation and oxidation.

### Materials and Construction

The selection of materials is driven by load requirements, thermal conductivity needs, weight constraints, and corrosion resistance.

1. **Steel (Carbon or Stainless):** Commonly used for heavy-duty applications, providing high strength and durability. Steel brackets are typically coated (e.g., powder coating, galvanization, or e-coating) to prevent rust and chemical attack.
2. **Aluminum Alloys:** Preferred in applications where weight reduction is critical, such as electric vehicles (EVs). Aluminum offers good structural integrity and superior thermal conduction properties compared to steel.
3. **High-Strength Polymers:** Engineered plastics (e.g., fiberglass-reinforced polyamides or polypropylene) are used for lighter, lower-stress applications or as non-conductive enclosures. These materials are inherently resistant to chemical corrosion.

### Typical Configurations

Battery housing frame brackets manifest in several configurations:

* **Tray Mounts (Cradles):** A horizontal platform designed to support the entire base of the battery. Often used for large industrial or automotive lead-acid batteries.
* **Strap/Clamp Systems:** Utilize a rigid frame or bar that presses down upon the top surface or edges of the battery casing, securing it to the base tray or chassis. This is common for quick-release systems or smaller modules.
* **Structural Housing Frames:** Complex, multi-part assemblies used for high-voltage battery packs (e.g., in EVs), where the bracket structure constitutes a major stress-bearing element integrated directly into the vehicle architecture.

KEYWORDS: Battery Tray, Accumulator Mount, Chassis Fixation, Retention Bracket, Energy Storage System, Vibration Damping, NVH Mitigation, Automotive Component, Structural Support, Battery Casing, Module Holder, Electrical Grounding, Thermal Management, Crash Safety, Mechanical Subsystem, Corrosion Resistance, Lead-Acid Battery, Lithium-Ion Pack, Galvanized Steel, Aluminum Alloy, Polymer Enclosure, Mounting Hardware, Cell Stability, Industrial Machinery, Vehicle Architecture, Battery Enclosure, Fixation System, High-Voltage Module, Load Bearing, Accumulator Cradle.
