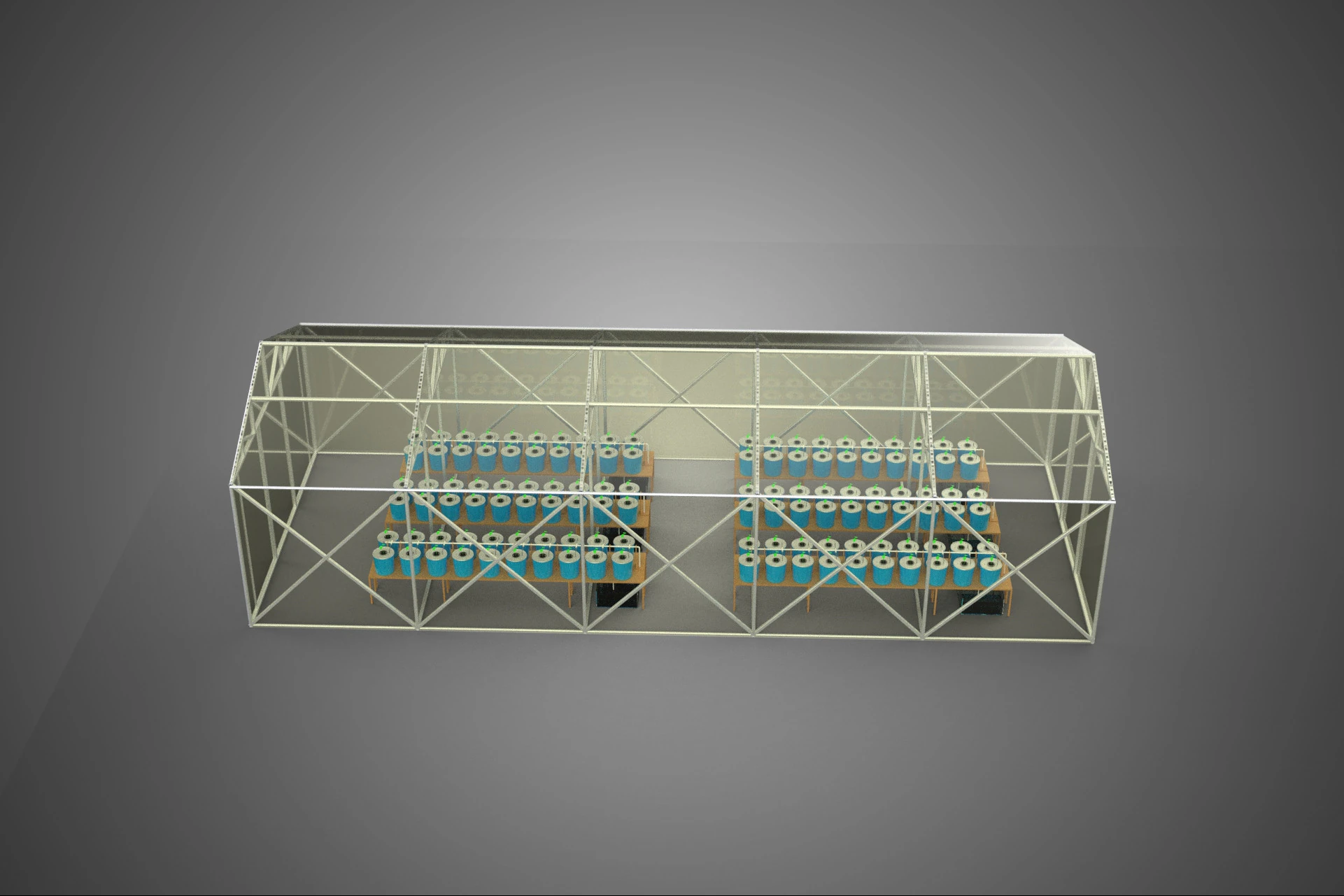

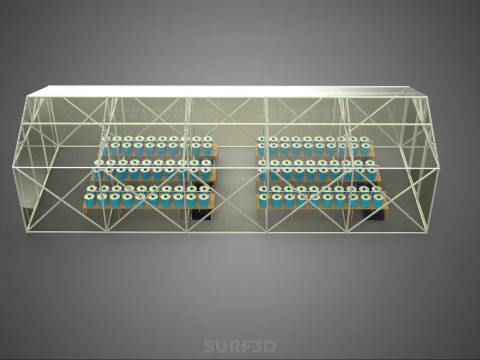

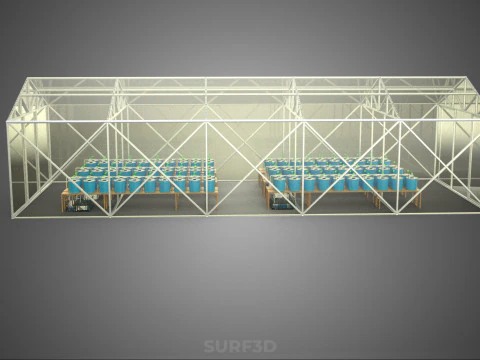

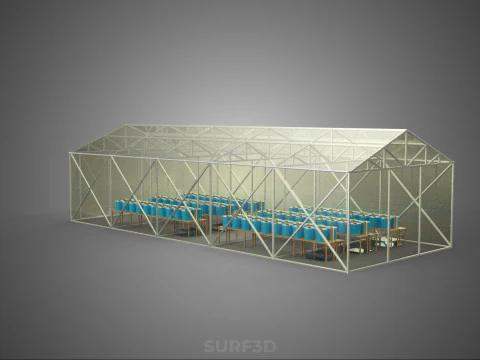

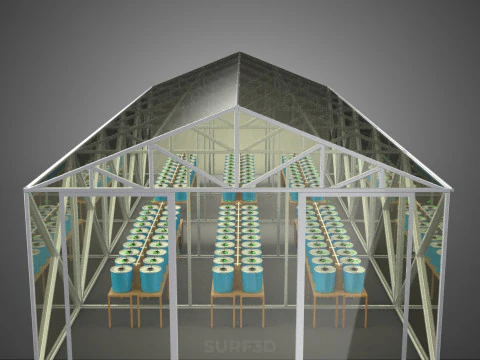

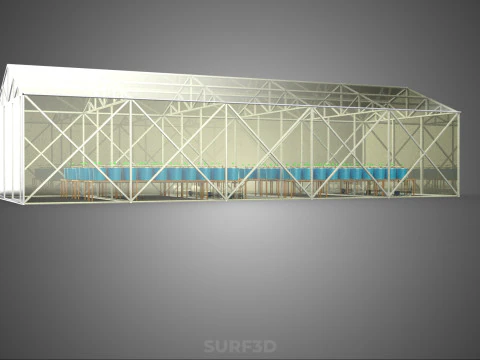

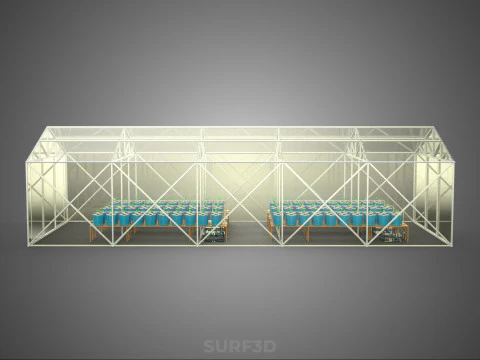

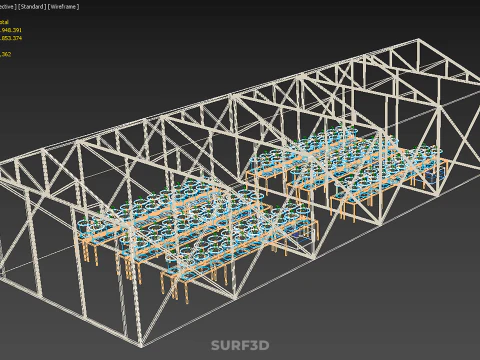

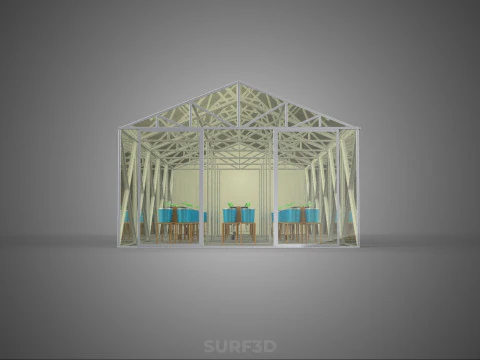

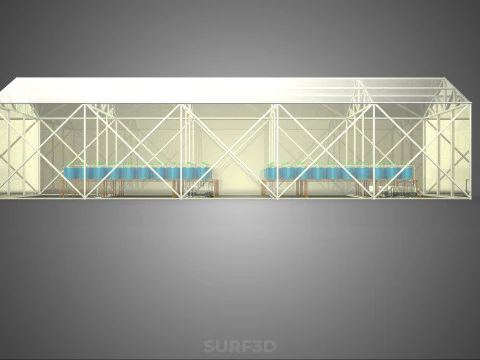

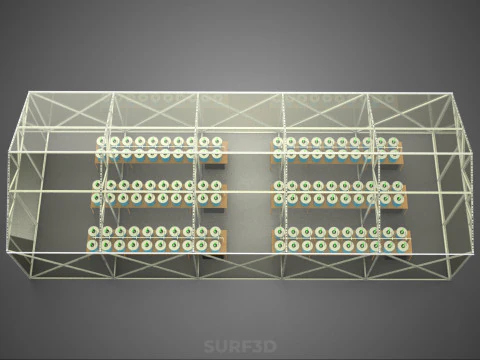

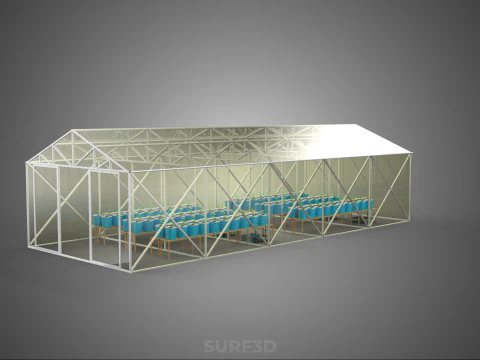

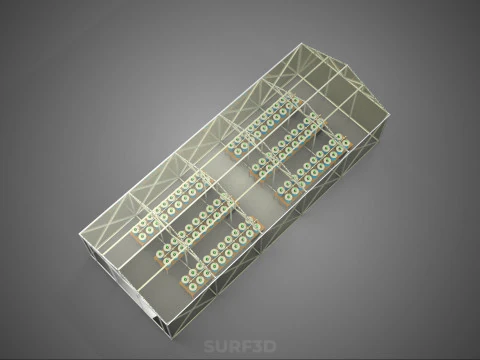

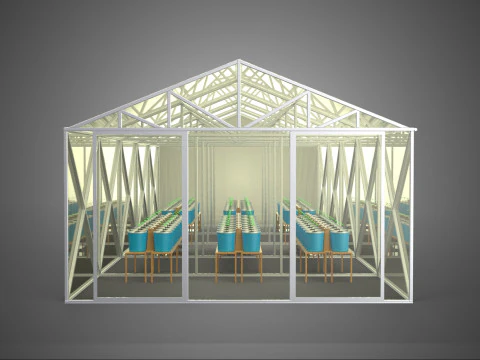

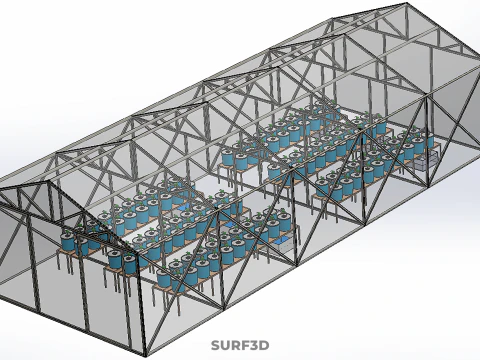

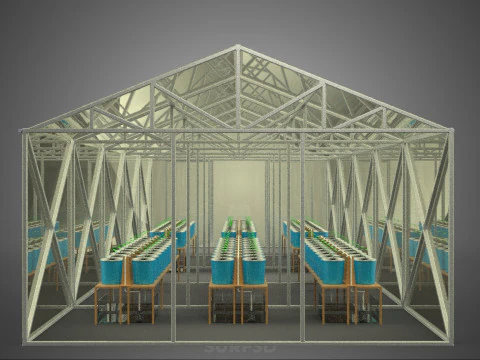

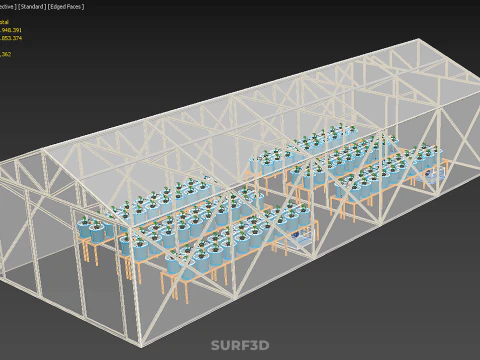

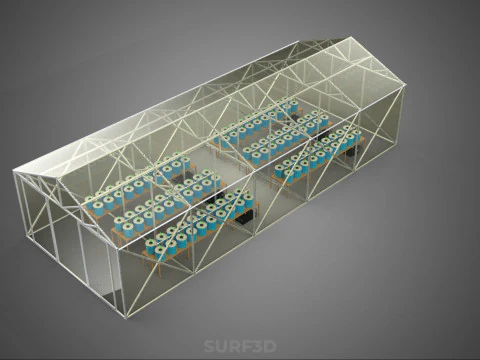

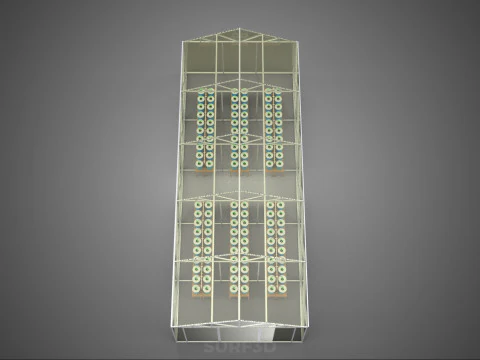

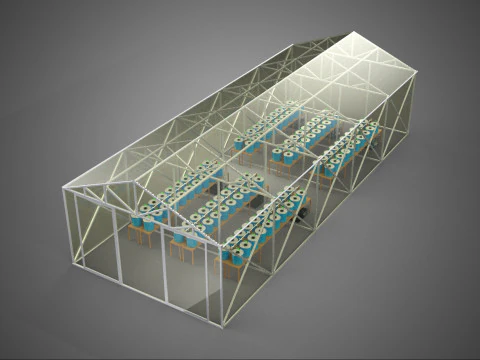

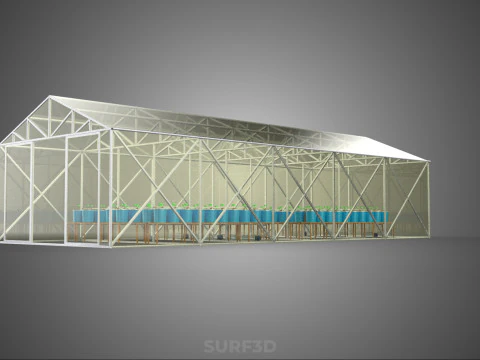

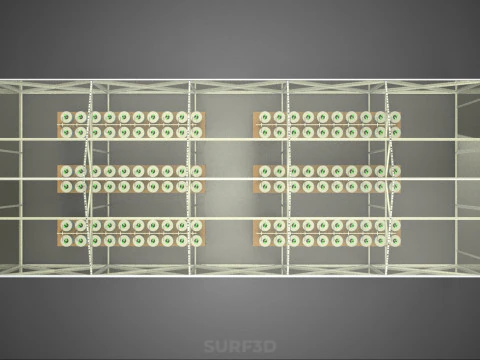

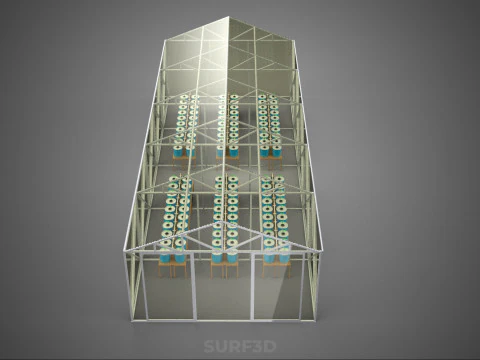

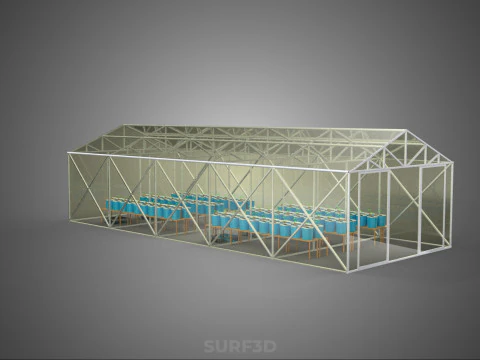

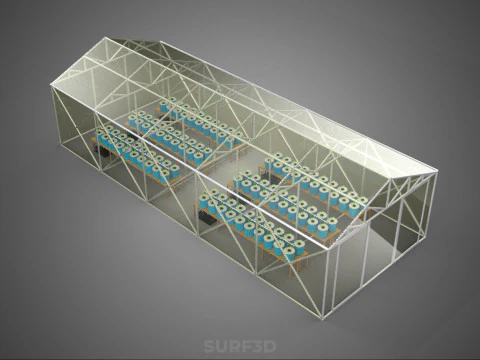

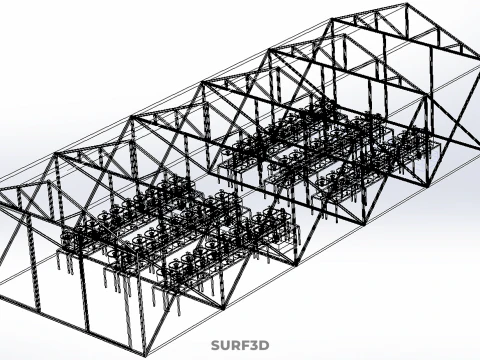

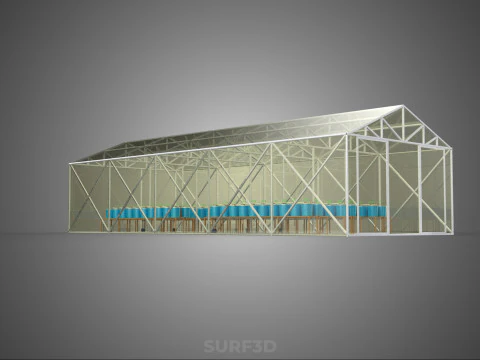

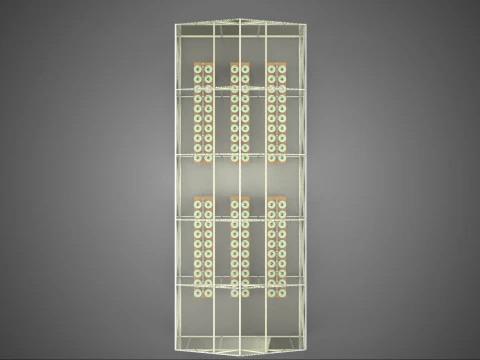

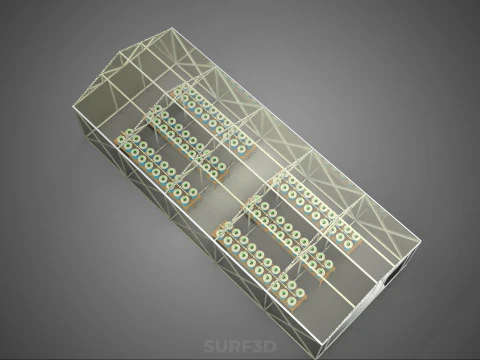

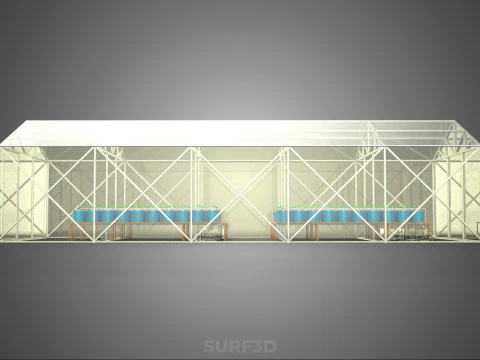

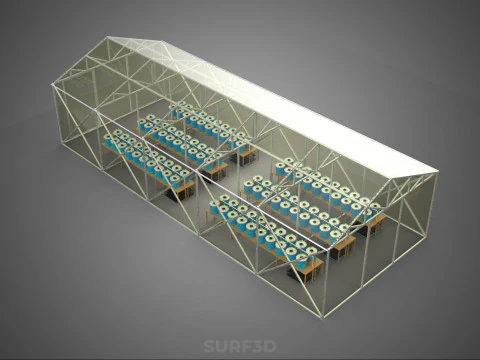

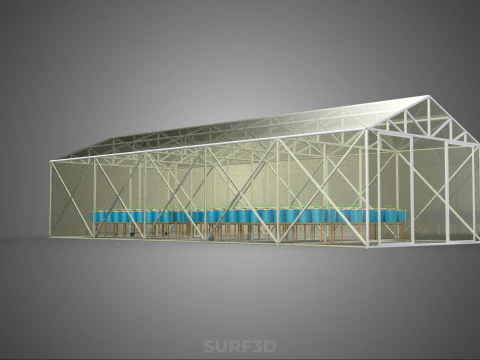

CEA CONTROLLED ENVIRONMENT AGRICULTURE DUTCH BUCKET SYSTEM DBS 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The Dutch Bucket System (DBS), formally recognized as a Bato Bucket system, is a specialized, semi-recirculating drip hydroponic methodology highly integrated within Controlled Environment Agriculture (CEA) facilities. Originating in the Netherlands, DBS is engineered primarily for the high-density, commercial cultivation of large, indeterminate, or vine-producing fruiting crops, offering superior control over nutrient delivery and root zone management compared to traditional field cultivation or simpler hydroponic techniques.

### System Architecture and Functionality

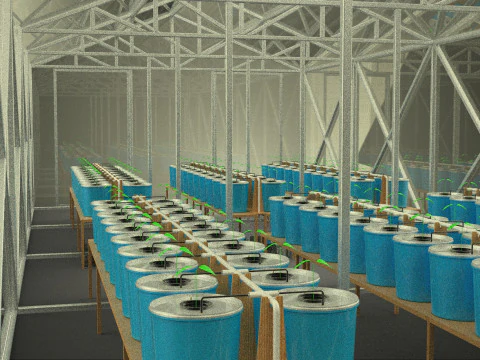

The DBS operates on a principle of pulsed fertigation delivered to individual containers (buckets). Each bucket is typically constructed from food-grade plastic and serves as an isolated growing station. The defining characteristic of the DBS bucket is the specialized drainage apparatus—often an elbow fitting or siphon drain tube—installed near the base. This mechanism ensures that a minimal reservoir of nutrient solution (typically 2–3 cm deep) is maintained at the bottom of the container, preventing the root mass from completely drying out while simultaneously guaranteeing rapid, efficient drainage of excess solution. This quick runoff is crucial for preventing root saturation, managing localized salinity, and ensuring adequate oxygenation in the root zone.

The system requires an inert, structurally stable substrate, which provides physical anchor points for the plants without contributing chemical nutrients. Common media utilized include perlite, coco coir (coir pith), rockwool (stone wool), or a combination thereof, selected for their high porosity, water retention capacity, and pH neutrality.

Nutrient delivery is managed through a central reservoir containing a highly calibrated, aqueous nutrient solution. This solution is pumped via drip lines and emitters directly to the base of each plant on a strict, automated timer schedule. The frequency and duration of these irrigation pulses are dynamically adjusted based on the plant’s specific phenological stage, transpiration rate, and monitored environmental variables such as ambient temperature, relative humidity, and Daily Light Integral (DLI). The nutrient solution that drains from the buckets is collected via a common return channel (drainage trough) and directed back to the central reservoir. This feature makes the system semi-recirculating, enabling high water and nutrient use efficiency, though external adjustments for pH and electrical conductivity (EC) must be continuously monitored and corrected due to plant uptake and evaporative losses.

### Operational Advantages within CEA

Integration of the DBS within a CEA context—such as a modern greenhouse or vertical farm—maximizes the system’s inherent advantages:

1. **Nutrient Precision:** The semi-recirculating nature allows technicians to precisely control the ratio and concentration of mineral elements (fertigation) delivered to the root zone, optimizing growth and yield potential.
2. **Disease Management:** Because each plant resides in an isolated bucket, the physical separation limits the systemic spread of soil-borne or waterborne pathogens that can devastate monolithic or trough-based hydroponic systems (e.g., NFT or DWC).
3. **Crop Versatility and Scale:** The robust structural support provided by the substrate and the bucket design makes DBS exceptionally suitable for large crops requiring trellising, such as vine tomatoes, long English cucumbers, and bell peppers (capsicum). The modular nature also facilitates easy scaling and maintenance in commercial operations.
4. **Water Use Efficiency:** By capturing and reusing drainage solution, the DBS drastically reduces water consumption compared to traditional field agriculture, a critical sustainability metric for CEA operations.

The rigorous control afforded by the DBS, combined with the environmental regulation of CEA, results in predictable crop cycles, high yields, and consistent product quality independent of external meteorological conditions.
