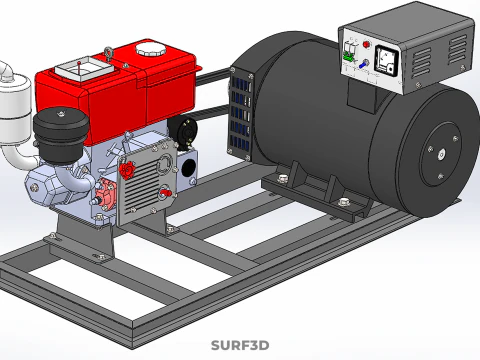

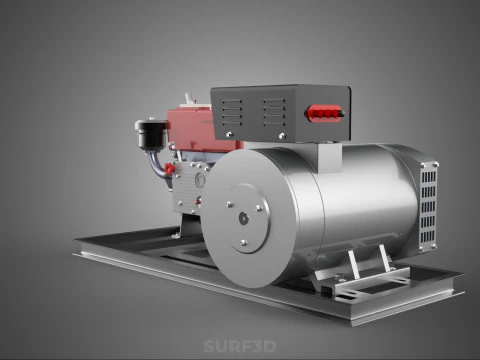

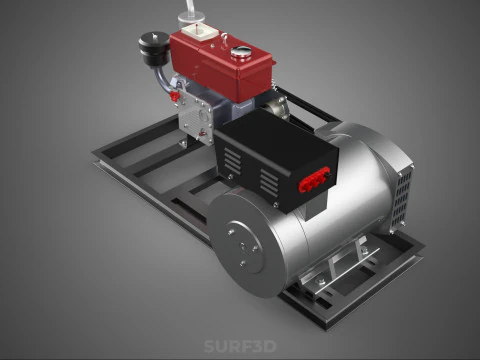

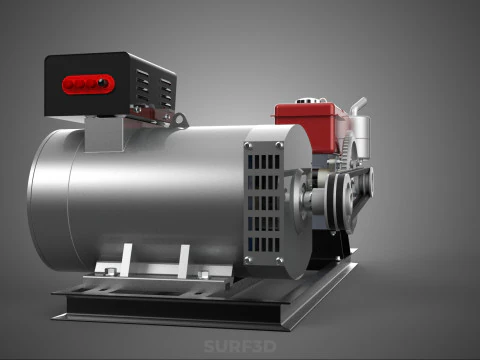

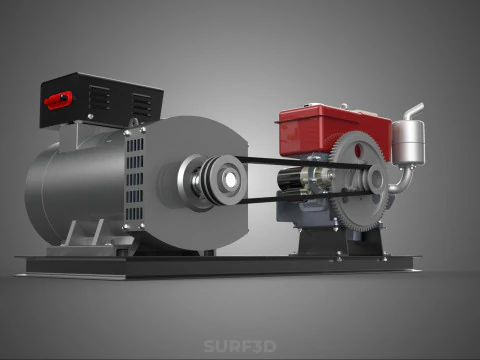

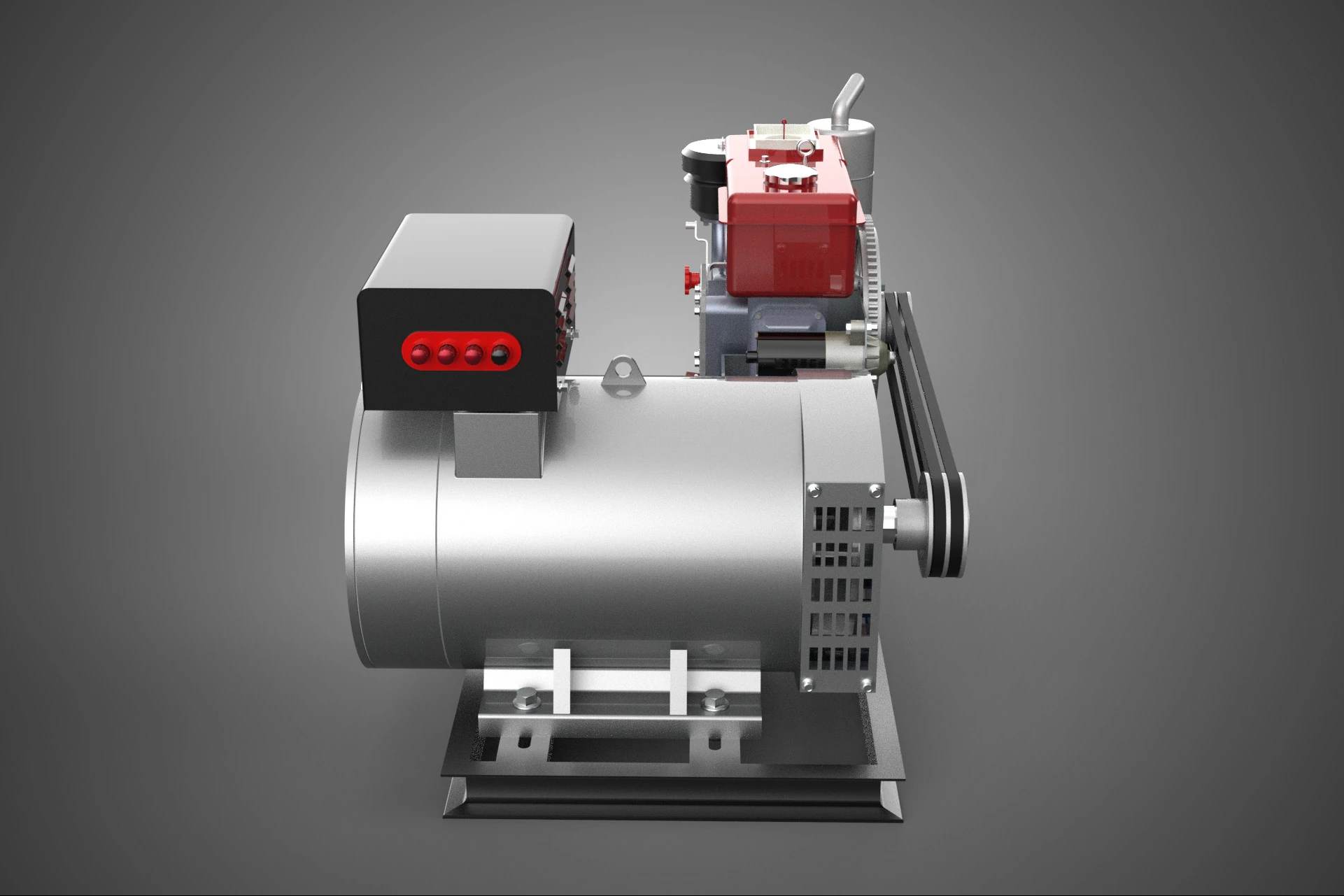

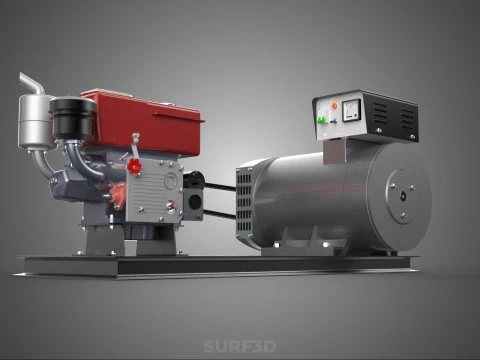

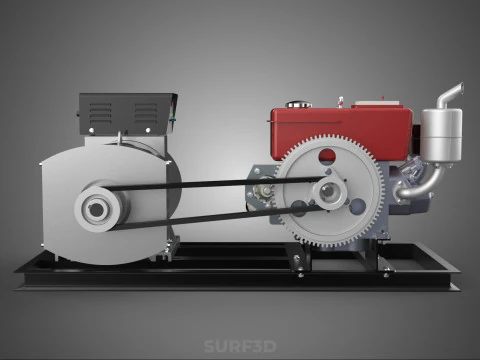

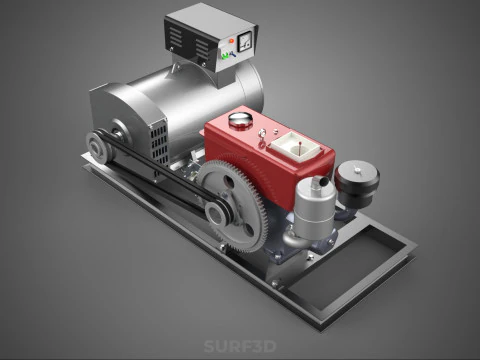

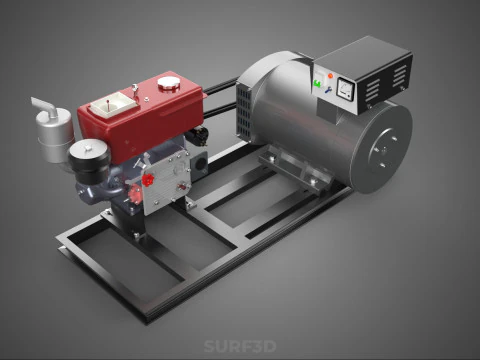

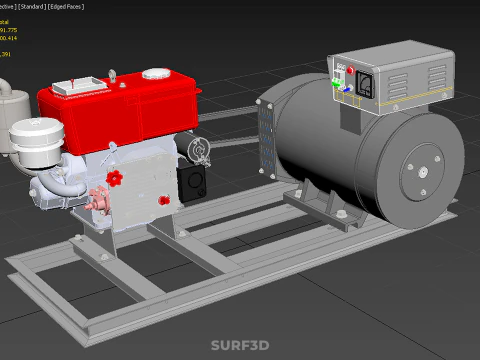

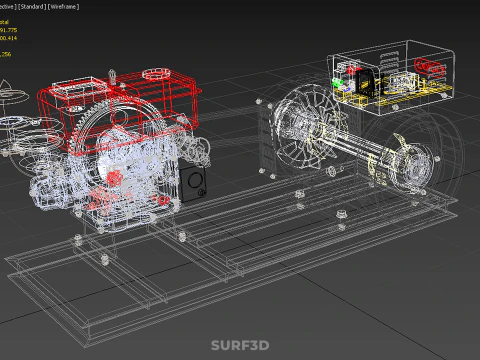

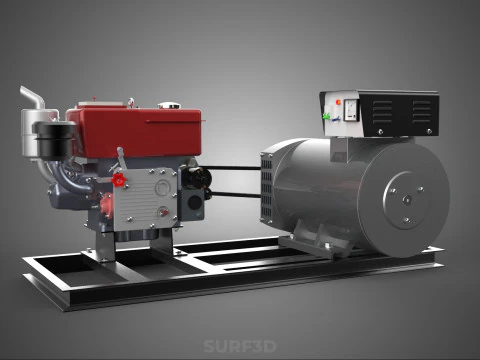

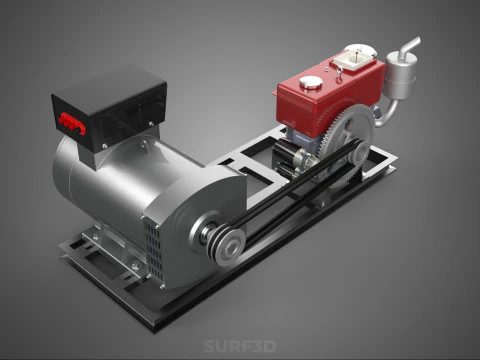

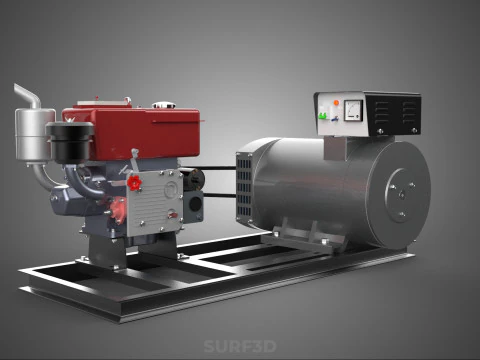

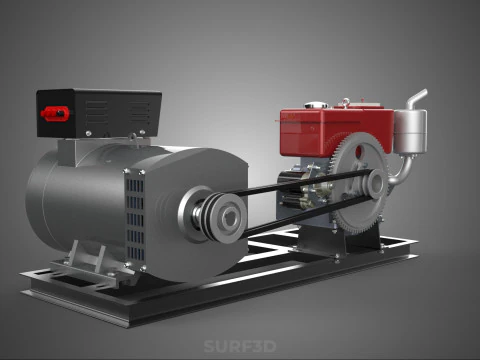

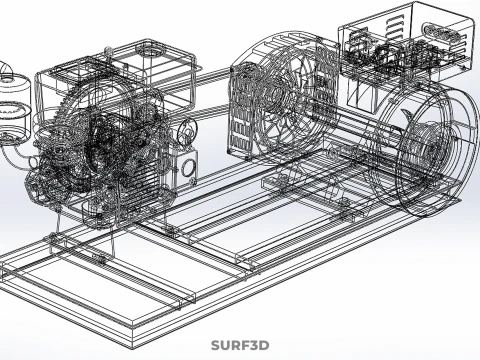

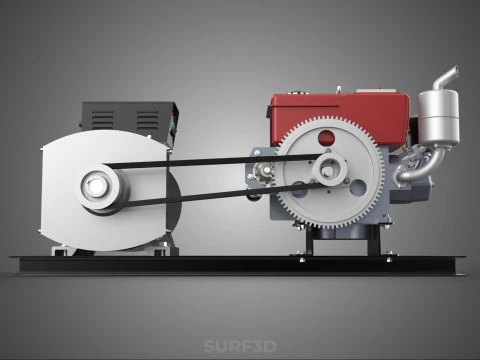

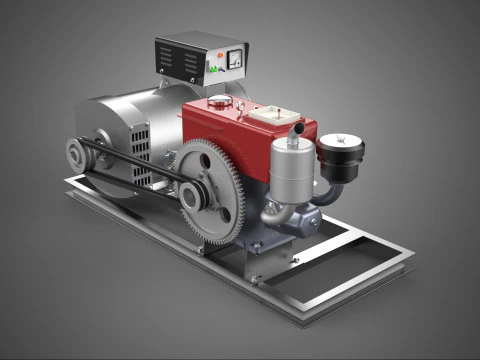

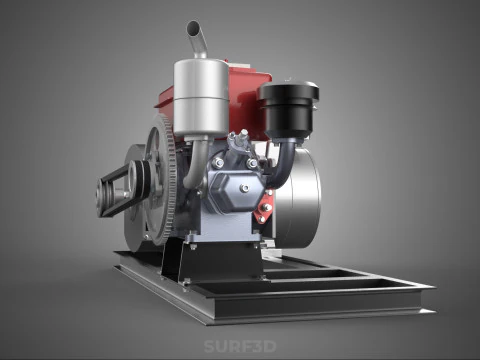

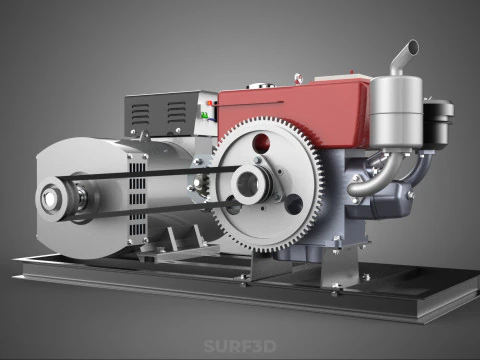

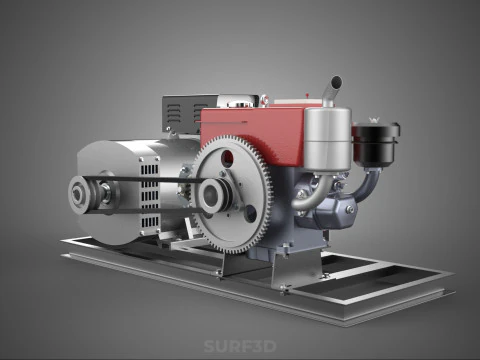

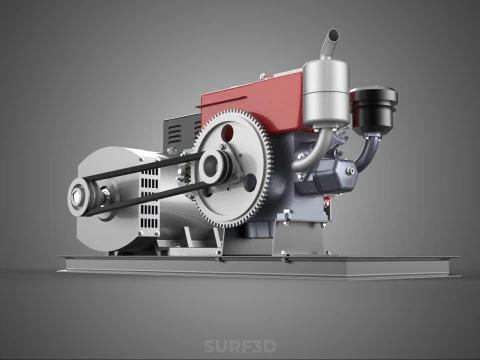

COMPACT DIESEL ENGINE TURBINE DYNAMO GENERATOR SET MACHINERY KVA 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A Compact Diesel Engine Turbine Dynamo Generator Set (Genset) Machinery, rated in kilo-Volt-Amperes (kVA), constitutes an integrated electromechanical system designed for the efficient conversion of chemical energy stored in diesel fuel into usable electrical power. This classification denotes a system engineered for high power density, necessitating minimal physical volume relative to its electrical output capacity.

### Nomenclature and System Definition

The terminology employed—"Compact Diesel Engine Turbine Dynamo Generator Set"—describes an assembly consisting of a high-efficiency diesel prime mover mechanically coupled to a rotating electrical machine (alternator).

1. **Compact Designation:** This feature mandates optimization in component placement, often utilizing integrated cooling systems, modular fuel tanks, and acoustic enclosures to reduce the overall footprint. Compact units are frequently employed in mobile, auxiliary, or constrained stationary applications.
2. **Diesel Engine Prime Mover:** The engine operates on the compression-ignition principle, utilizing heavy oil fuels. Modern compact designs often feature electronic fuel injection (EFI) and high-speed operation (e.g., 1500 or 1800 revolutions per minute) to maximize power output while adhering to stringent emission regulations.
3. **Turbine Clarification:** In the context of compact, piston-driven diesel gensets, the term "Turbine" almost universally refers to an **exhaust-gas turbocharger**. This device uses the thermal and kinetic energy of the engine's exhaust gases to drive a turbine wheel, which in turn powers a compressor wheel. The compressor forces high-pressure air into the engine cylinders, significantly increasing the engine's volumetric efficiency, thermal efficiency, and power-to-weight ratio—a critical factor in achieving the "COMPACT" designation.
4. **Dynamo Generator Set:** While "Dynamo" historically refers specifically to a Direct Current (DC) generator, in contemporary industrial parlance, the term is often used colloquially or historically to describe the coupled rotating electrical machine. The apparatus designated by a kVA rating functions as a synchronous Alternating Current (AC) generator (alternator).

### Functional Components and Integration

The machinery is structurally integrated onto a robust skid base (baseframe), which provides structural rigidity and often incorporates vibration isolation mounts to minimize the transmission of mechanical oscillation.

#### A. Prime Mover Subsystem
The diesel engine provides rotational kinetic energy. Essential components include:
* **Governing System:** Typically electronic (digital or analog) to maintain precise engine speed, ensuring the output frequency (50 Hz or 60 Hz) remains stable under fluctuating load conditions.
* **Cooling System:** Usually closed-loop liquid cooling (radiator and fan) necessary for managing the high thermal loads inherent in turbo charged compact engines.
* **Lubrication System:** Forced-feed system to ensure long-term reliability.

#### B. Electrical Generation Subsystem (Alternator)
The alternator converts mechanical energy into electrical energy.
* **Type:** Synchronous, brushless, revolving field design is standard for industrial kVA output machines.
* **Excitation:** Self-excited systems utilizing an Automatic Voltage Regulator (AVR) are employed to control the magnetic field strength, thereby maintaining consistent output voltage regardless of load variations or power factor changes.
* **Output:** Rated in kVA (kilo-Volt-Amperes), representing the apparent power capacity. The actual power output (kW, kilowatts) is determined by multiplying the kVA rating by the load's power factor (PF).

#### C. Control and Monitoring
Integrated control panels oversee system operation, including starting/stopping sequences, load management, and protective shutdown mechanisms (e.g., high temperature, low oil pressure, over-speed). These controls often utilize microprocessors (engine control units, ECUs) for advanced diagnostics and network communication.

### Applications and Ratings

Compact diesel gensets are crucial for deployments requiring immediate, reliable power in non-utility-connected environments. Their high fuel efficiency and durability make them suitable for both **prime power** (continuous operation) and **standby power** (emergency backup) applications. Typical applications include: mobile telecommunication towers, disaster relief operations, construction site main power, small manufacturing facilities, and auxiliary power for larger vessels. The kVA rating determines the specific load capacity the unit can sustain.
