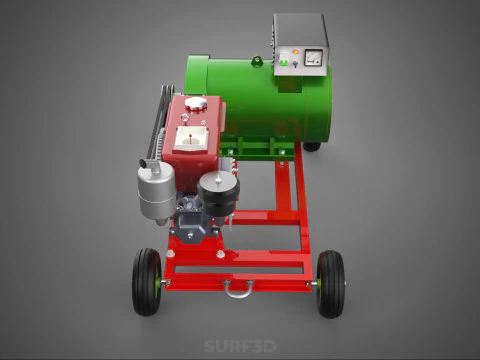

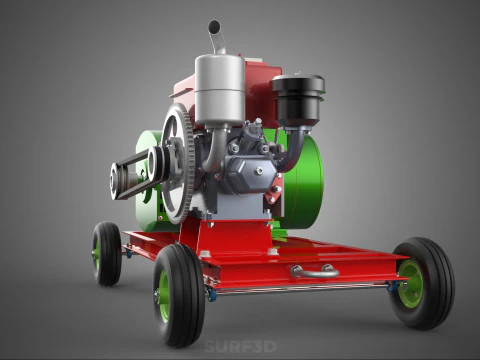

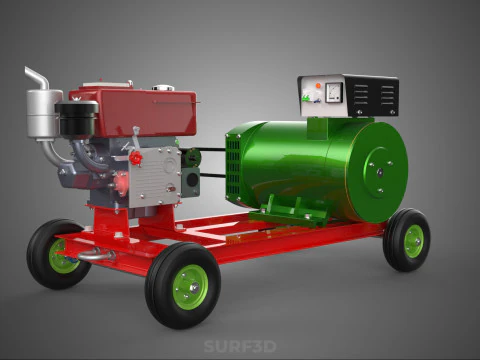

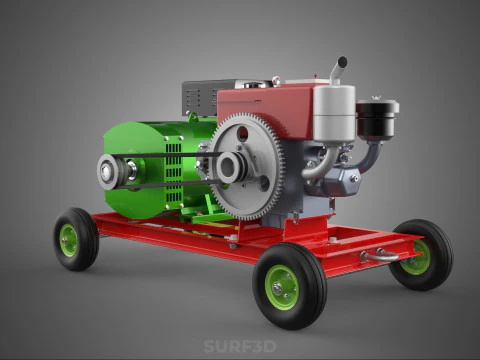

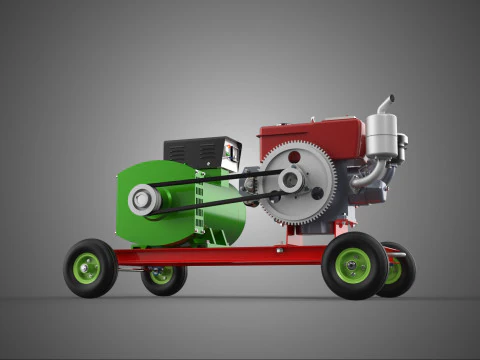

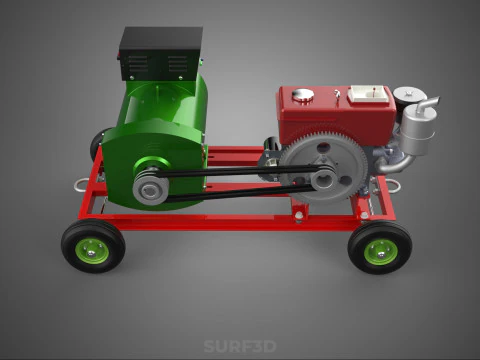

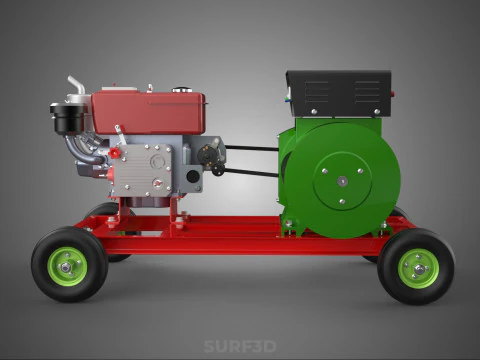

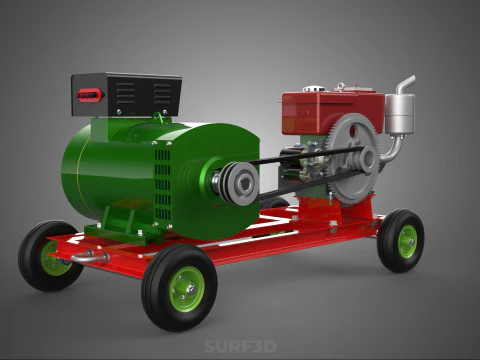

COMPACT SINGLE CYLINDER DIESEL ENGINE POWER GENERATOR SET GENSET 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A compact single-cylinder diesel engine power generator set (Genset) is an integrated electromechanical device designed for the autonomous conversion of chemical potential energy stored in diesel fuel into usable electrical energy. Characterized by its small physical footprint, robustness, and superior fuel economy, this category of Genset typically occupies the lower end of the power spectrum, generally delivering outputs ranging from 3 kVA to 15 kVA. These systems are classified as prime or standby power sources, employed across diverse sectors requiring reliable, medium-duration electrical supply.

### Prime Mover: Single-Cylinder Diesel Engine

The core component is the single-cylinder compression-ignition (CI) engine. This configuration is mechanically simpler than multi-cylinder units, contributing to lower manufacturing costs and reduced maintenance complexity.

#### Design and Operation
The engine operates on the four-stroke diesel cycle. Due to the high thermodynamic efficiency of the CI process, these engines demonstrate low specific fuel consumption (SFC), maximizing operating duration per unit volume of fuel. Typical features include:

1. **High Compression Ratio:** Compression ratios frequently range from 17:1 to 23:1, necessary to achieve the auto-ignition temperature of the injected fuel.
2. **Cooling System:** To maintain operational temperatures, these engines often employ direct air-cooling, utilizing powerful fans to circulate air over external engine fins. Less frequently, in higher power compact models or those requiring extended duty cycles, pressurized closed-loop liquid cooling systems may be utilized.
3. **Vibration Mitigation:** The inherent imbalance of single-cylinder reciprocating motion necessitates the inclusion of substantial flywheels to smooth rotational output. Many modern designs also integrate balance shafts geared to the crankshaft to counterbalance primary inertial forces, thereby reducing overall vibration transmitted to the frame.
4. **Starting Mechanism:** While smaller units may retain manual pull-cord starting, most commercial Gensets are equipped with a 12V or 24V electric starter motor and an integrated battery system for instantaneous startup, often remotely controlled.

### The Electrical Subsystem: Alternator and Control

The alternator is typically mounted directly to the engine crankshaft in a close-coupled (monobloc) configuration, eliminating the need for complex coupling mechanisms and maximizing compactness.

1. **Alternator Type:** Most frequently, a brushless, synchronous, revolving-field alternator is utilized. The brushless design minimizes maintenance by eliminating commutator and brush wear. The output windings are commonly configured for single-phase electrical output (e.g., 120/240V), suitable for standard residential and small commercial loads.
2. **Voltage Regulation:** Electrical output stability is managed by an Automatic Voltage Regulator (AVR). The AVR monitors the output voltage and modulates the current supplied to the exciter windings, ensuring precise voltage maintenance (typically ±1% to 5%) across the entire load range and protecting connected sensitive equipment from damaging fluctuations.
3. **Frequency Stability:** Engine governing systems are calibrated to maintain strict control over rotational speed (RPM), which directly dictates the output frequency (e.g., 1500 RPM for 50 Hz, or 1800 RPM for 60 Hz), crucial for the synchronous operation of electronic devices.

### System Integration and Housing

The entire Genset assembly—engine, alternator, fuel tank, and control panel—is rigidly affixed to a heavy-duty, skid-type steel frame.

1. **Vibration Isolation:** The assembly rests upon elastomer mounts or helical springs, collectively referred to as vibration isolators, designed to attenuate engine vibrations and prevent structural damage or excessive noise transmission.
2. **Fuel System:** An integrated day tank provides sufficient fuel autonomy, often ranging from 4 to 10 hours of continuous operation at 75% load. The system includes filtration mechanisms and safety shutdown sensors for low fuel levels.
3. **Acoustic Enclosure (Quiet-Pack):** For deployment in noise-sensitive environments (residential areas, telecommunication sites), the unit is encased in a sound-attenuating enclosure constructed from treated steel or aluminum panels lined with sound-absorbent, high-density acoustic foam. These "quiet-pack" models significantly reduce operational noise levels, often achieving ratings below 70 dB(A) at 7 meters.

### Applications

Compact single-cylinder diesel Gensets are economically viable and technically suitable for roles demanding reliable, portable, and fuel-efficient power. Primary applications include:

* **Agriculture:** Powering irrigation pumps, milking machines, and remote storage facility lighting.
* **Small Construction:** Operating power tools, lighting, and temporary site offices.
* **Telecommunications:** Providing critical backup power for remote relay stations and cellular towers (BTS sites).
* **Residential/Small Commercial Backup:** Supplying essential loads during utility power outages.

KEYWORDS: Diesel Genset, Single Cylinder Engine, Compact Power Generation, Compression Ignition, Prime Mover, Alternator, Automatic Voltage Regulator (AVR), Brushless Generator, Synchronous Machine, Monobloc Construction, KVA Rating, Fuel Efficiency, Reciprocating Engine, Air-Cooled Diesel, Skid-Mounted, Vibration Isolation, Standby Power, Auxiliary Power Unit (APU), Load Banking, Frequency Stability, Oil Pressure Safety, Four-Stroke Cycle, Telecommunication Backup, Agricultural Power, Quiet-Pack, MTBF, Flywheel, Balance Shaft, Direct Injection, Power Density.
