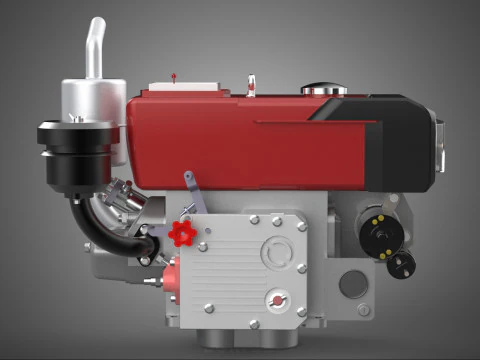

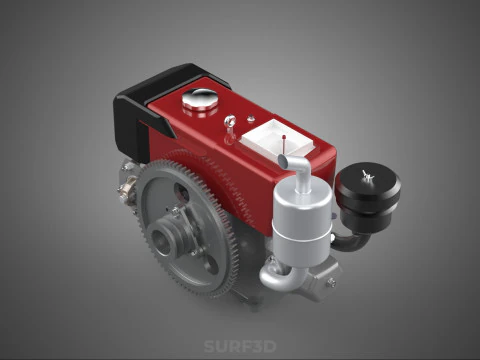

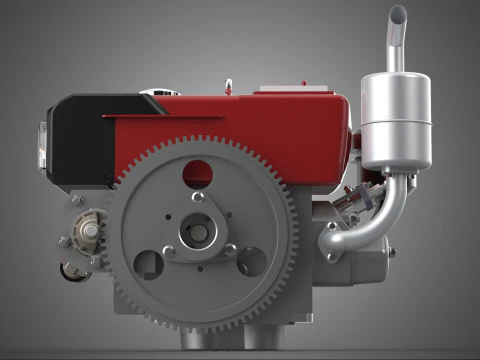

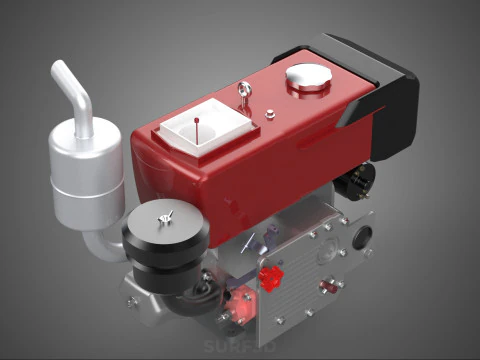

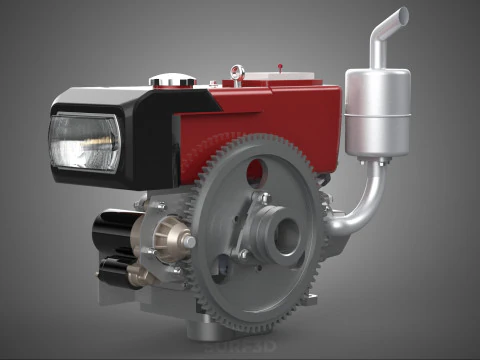

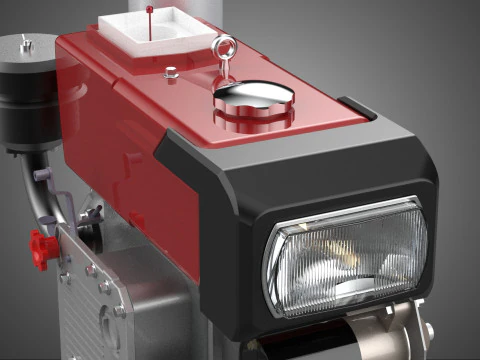

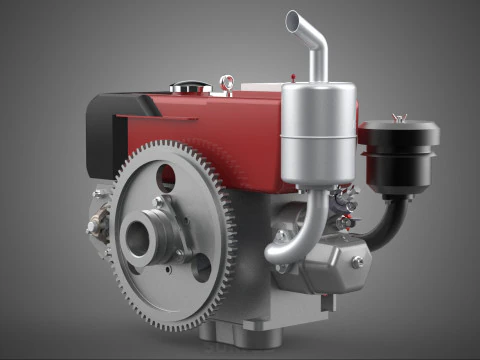

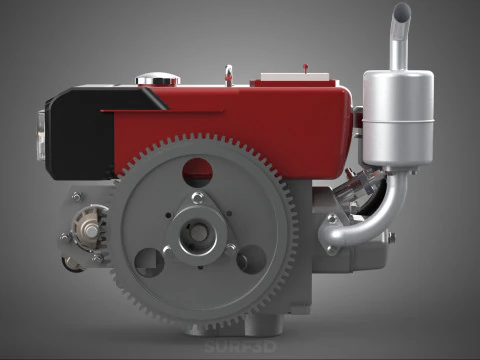

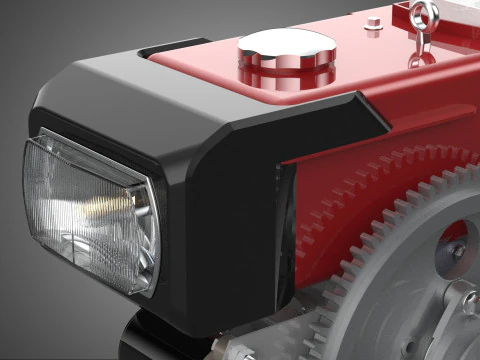

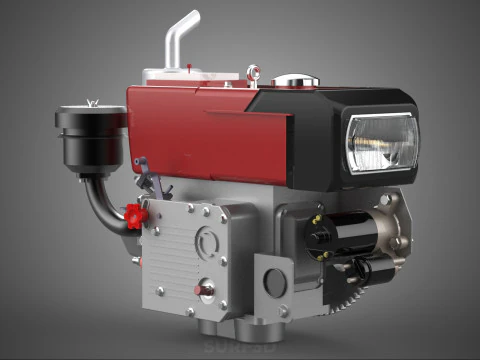

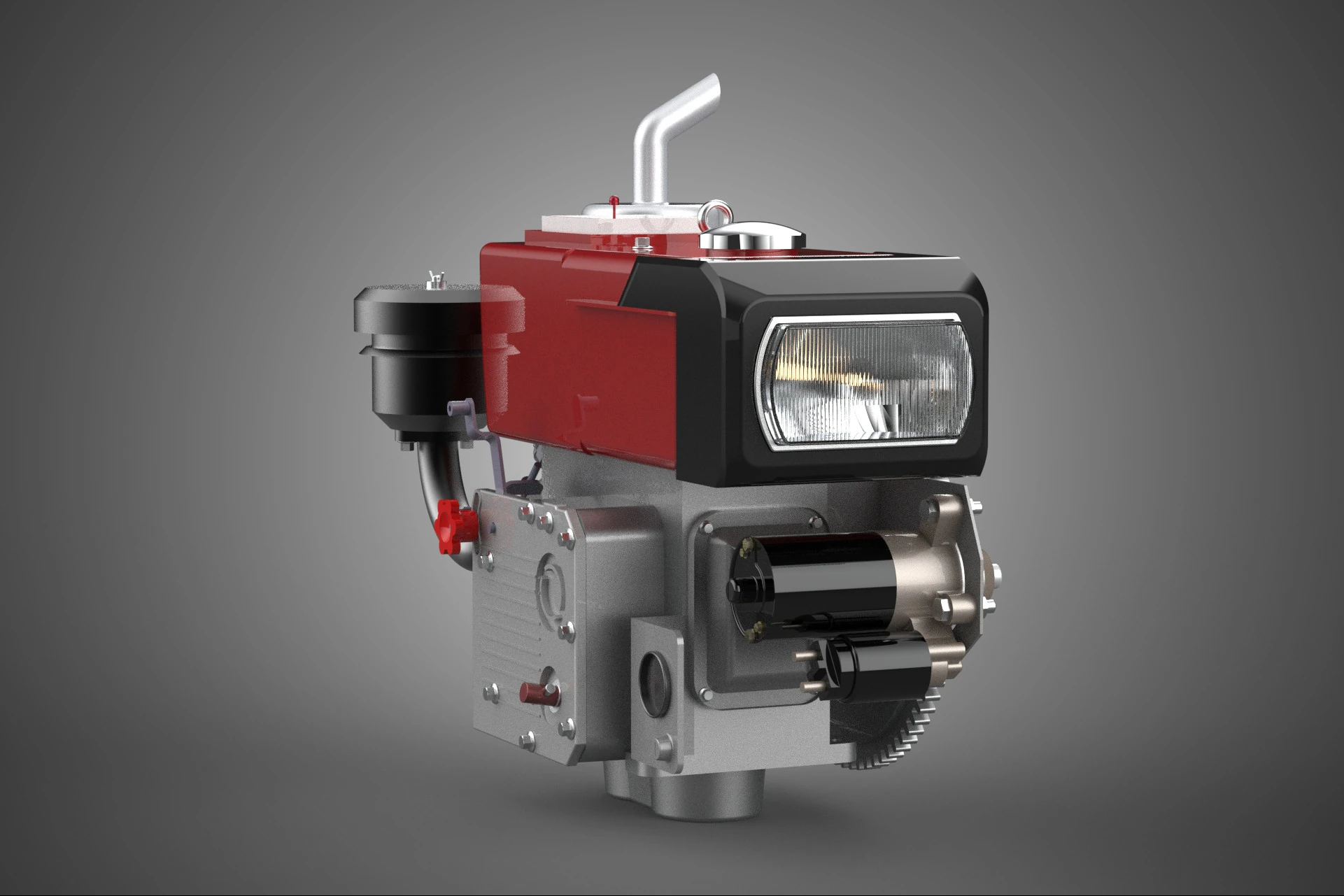

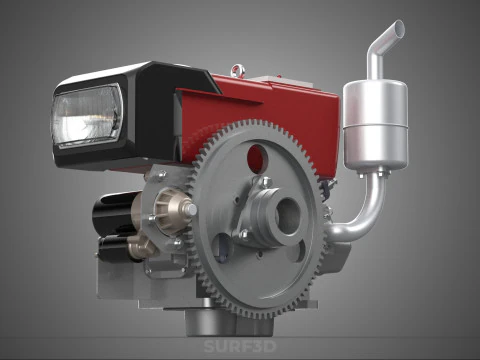

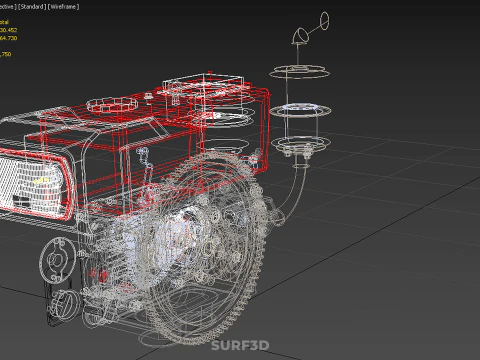

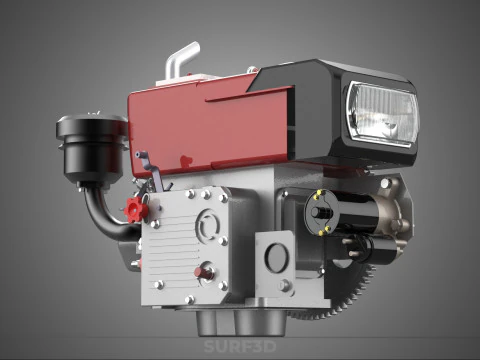

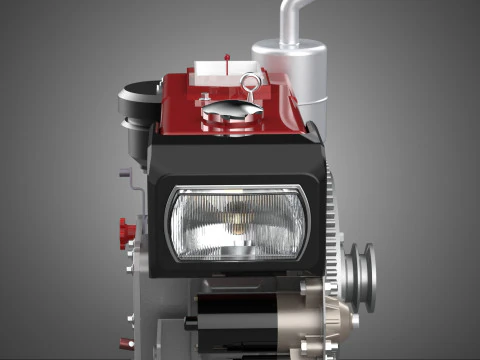

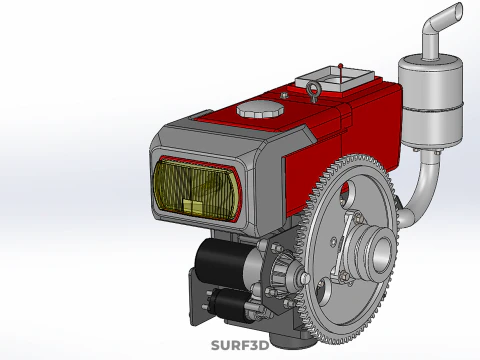

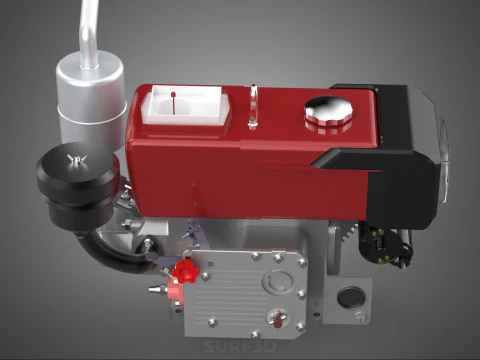

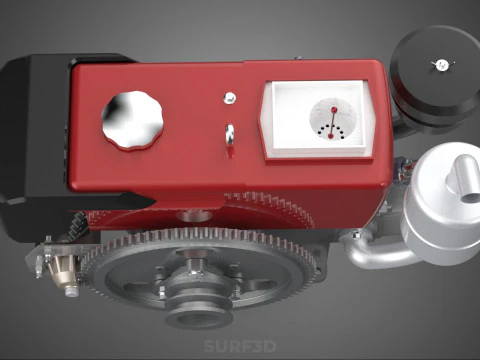

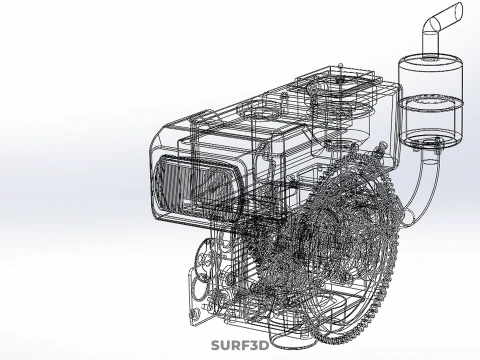

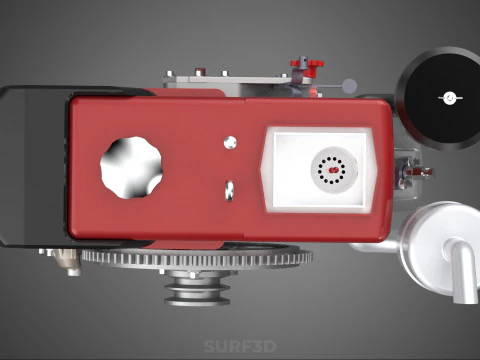

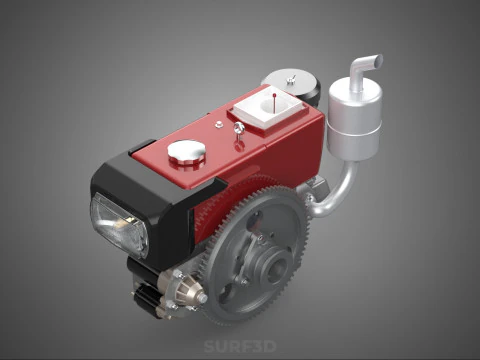

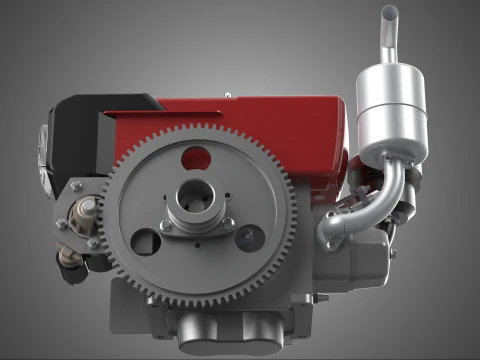

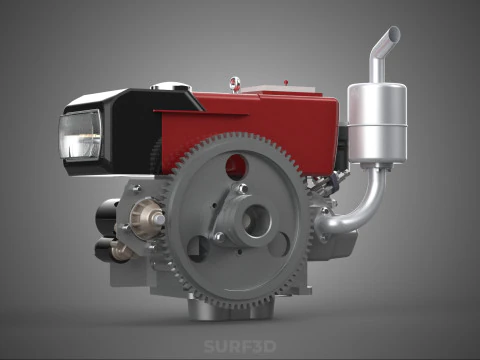

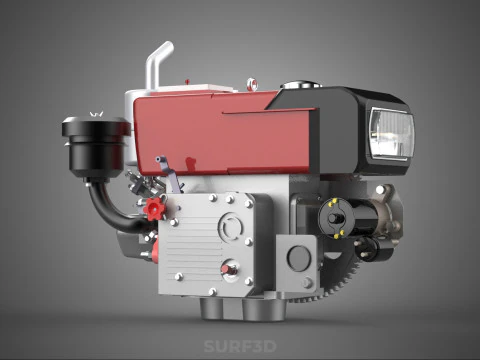

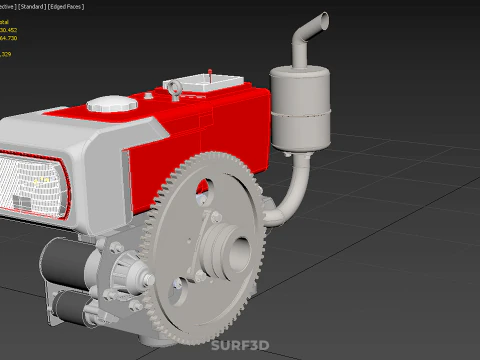

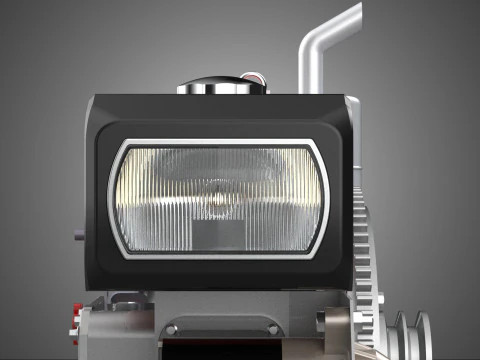

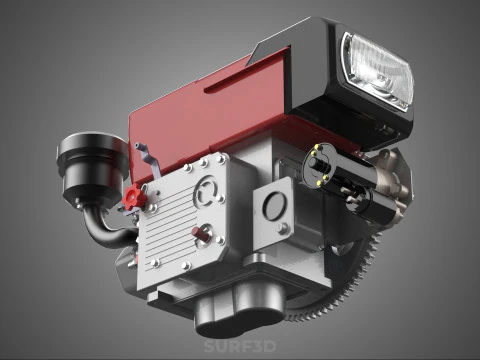

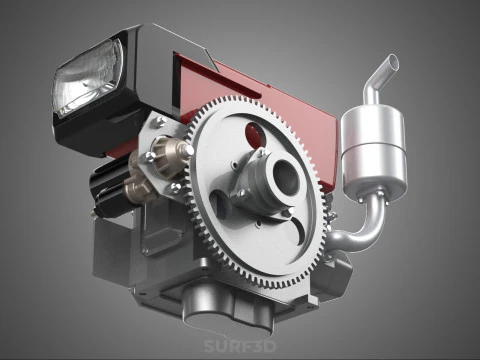

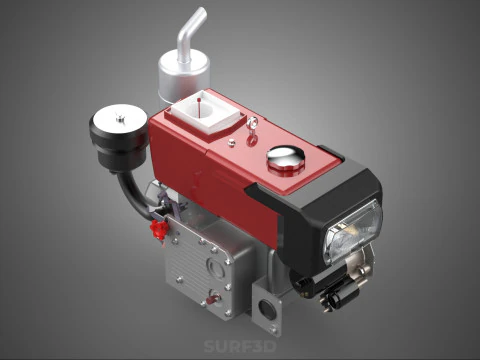

DIESEL ENGINE MACHINE HEADLIGHT HEADLAMP HEAD LAMP LIGHT BEAM 4S 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The Headlamp Assembly for Diesel Engine Machinery, often referenced under the series designation "4S," is a specialized vehicular lighting unit engineered for deployment on heavy industrial, construction, agricultural, or mining equipment powered by internal combustion diesel engines. These components are critical for ensuring operational safety, visibility, and regulatory compliance during periods of low light, nighttime work, or adverse environmental conditions.

### Nomenclature and Application Context

The terms Headlight, Headlamp, and Head Lamp refer interchangeably to the primary forward illumination device. In the context of heavy diesel machinery—such as excavators, bulldozers, large tractors, or specialized loaders—the lighting unit must address functional demands significantly exceeding those required for standard passenger vehicles. The designation "LIGHT BEAM" emphasizes the optical requirement for a focused and controlled illumination pattern necessary for both detailed work area visibility and long-range maneuvering, adhering to stringent field-of-view (FOV) and glare reduction standards (e.g., SAE J578, ECE R112).

### Engineering and Durability Standards

Due to the intense operational environment typical of diesel machinery, the Headlamp 4S is characterized by extreme durability. Key engineering specifications include:

1. **Vibration and Shock Resistance:** Diesel engines generate significant low-frequency vibration. The lamp housing and internal components are designed with enhanced shock dampening and robust mounting brackets capable of withstanding constant mechanical stress and transient impacts common during earthmoving or hauling operations.
2. **Ingress Protection (IP Rating):** These units typically feature high IP ratings (e.g., IP67 or IP69K), indicating superior protection against the ingress of dust, particulate matter, moisture, high-pressure washing, and corrosive chemicals (e.g., hydraulic fluid, road salt, diesel fuel aerosols).
3. **Thermal Management:** Industrial headlamps often operate for extended periods, necessitating efficient thermal dissipation, especially when utilizing high-output light sources such as Light-Emitting Diode (LED) arrays. Integrated heat sinks or active cooling systems prevent premature failure from overheating within enclosed engine compartments.

### Technical Specification and the "4S" Designation

Modern implementations of the 4S headlamp often utilize Solid State Lighting (SSL) technology, predominantly LED, replacing legacy halogen or High-Intensity Discharge (HID) systems. LED advantages include lower power consumption (critical for battery load on machinery), instantaneous full illumination, and significantly longer operational lifespan, minimizing downtime for maintenance.

The "4S" identifier is commonly interpreted within the industrial sector as a product series designation, signifying the fourth generation, or a specific functional standard related to the electrical interface. Potential interpretations include:

* **System Standard:** Denoting compliance with a manufacturer's proprietary standard for ruggedized lighting (Series 4).
* **Electrical Configuration:** Indicating a specific four-wire or four-pin connector system, often utilized to integrate high/low beam functions and sometimes auxiliary safety features directly into the machine’s CAN bus communication system.
* **Optical Feature:** Referencing a module incorporating four primary optical elements or beam patterns (e.g., spot, flood, work light, drive light).

Regardless of the precise manufacturer context, the 4S designation implies a standardized, heavy-duty module engineered specifically for seamless integration and robust performance on high-vibration, 12V or 24V diesel power systems.
