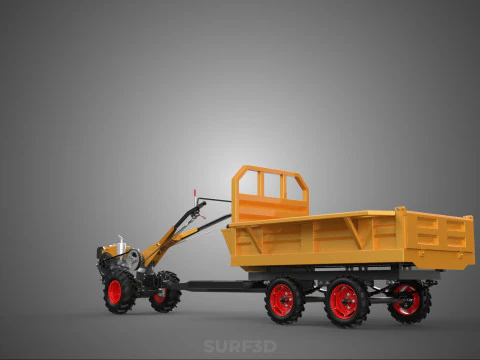

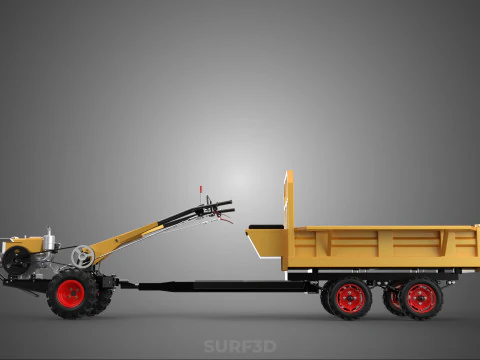

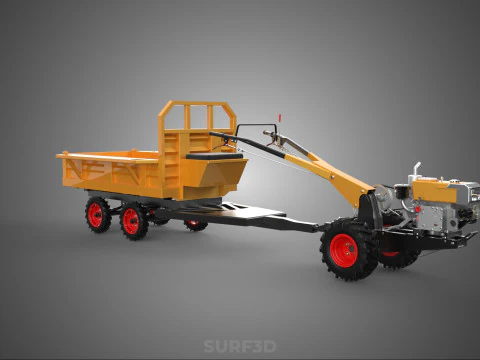

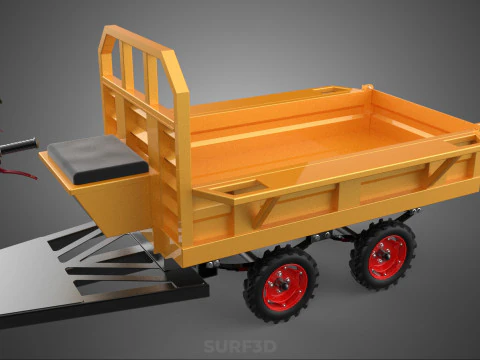

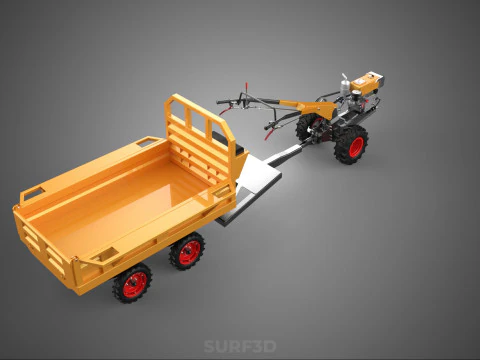

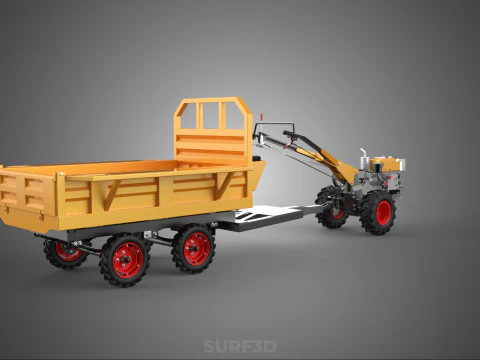

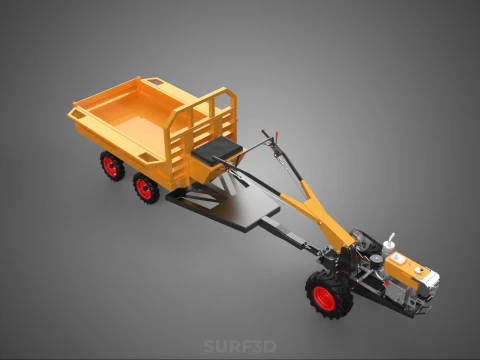

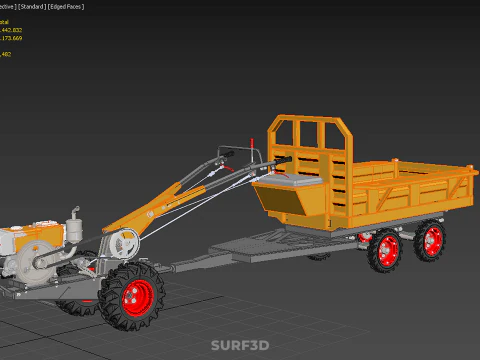

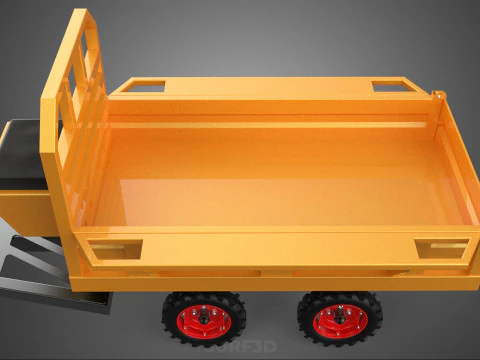

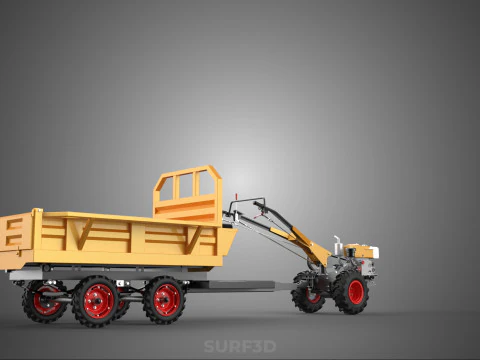

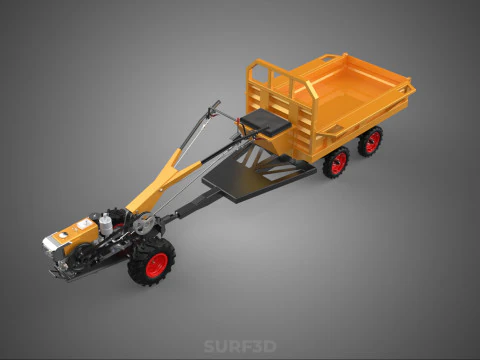

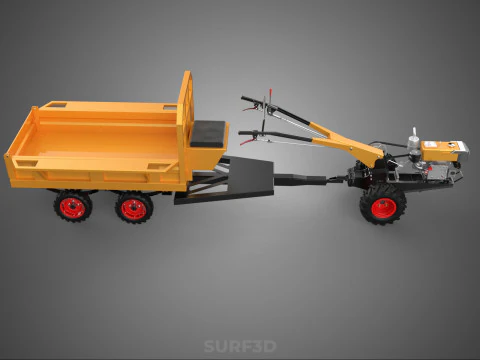

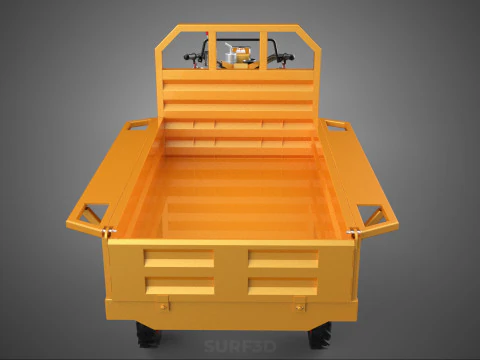

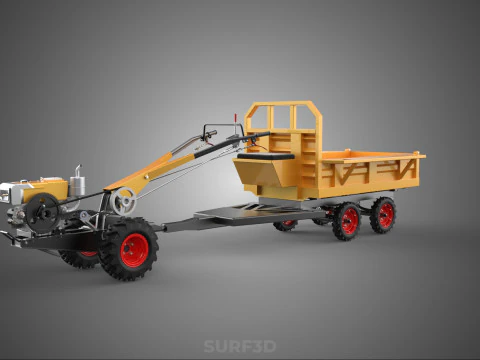

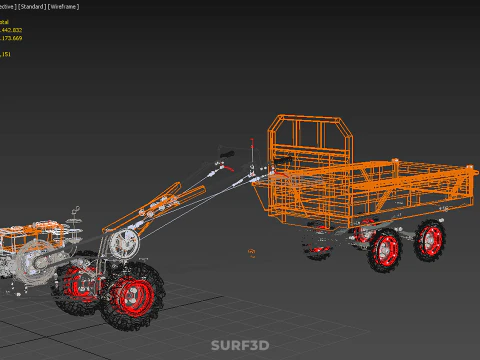

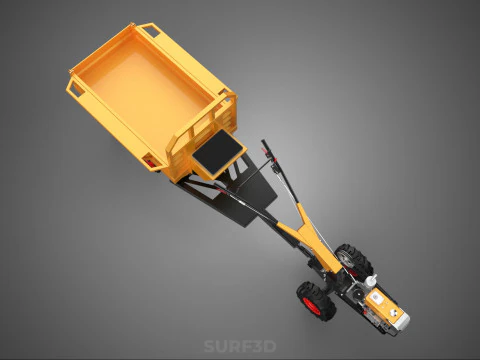

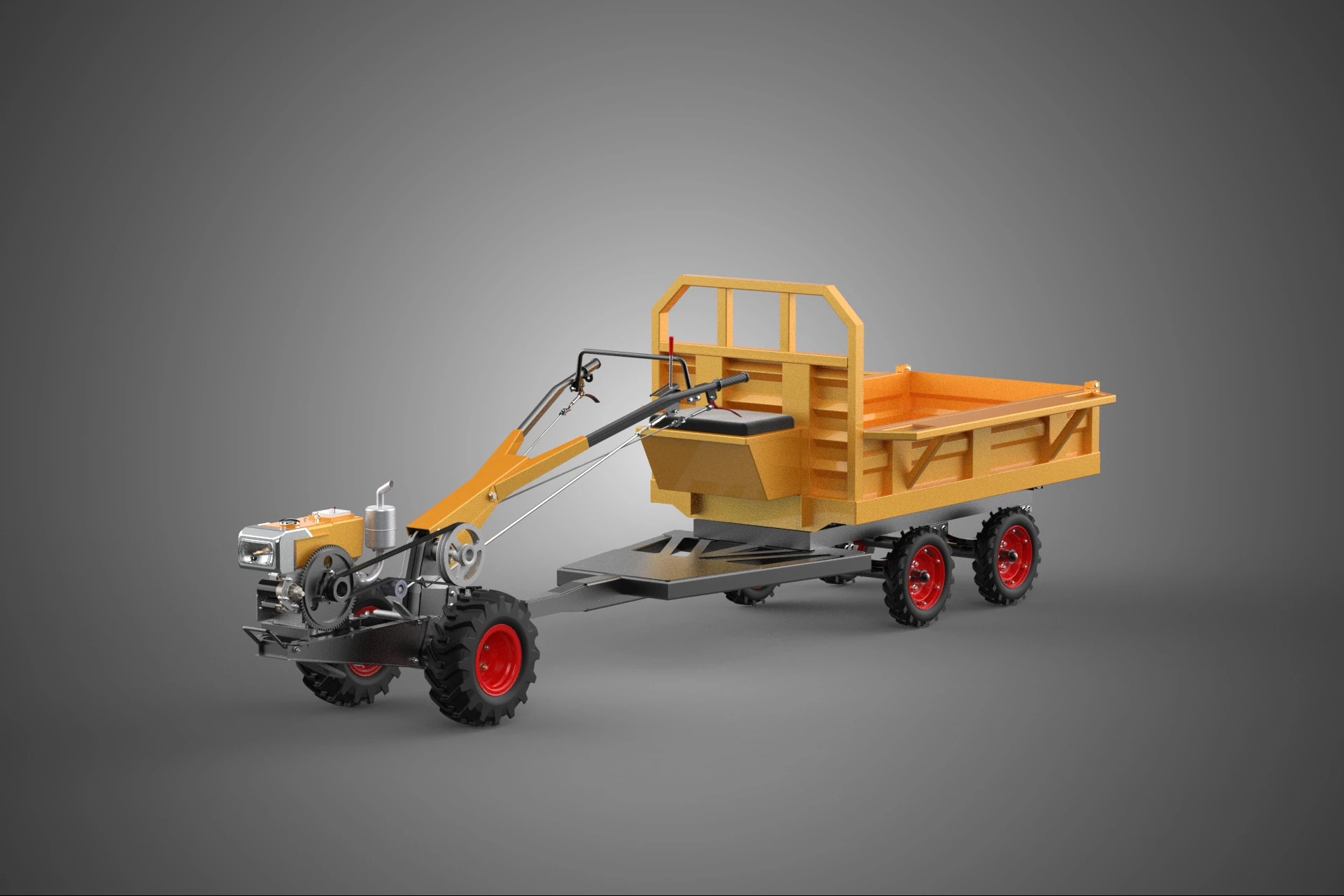

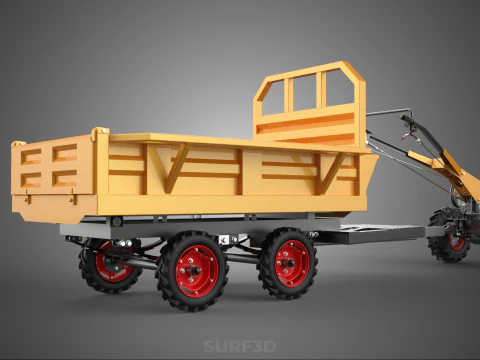

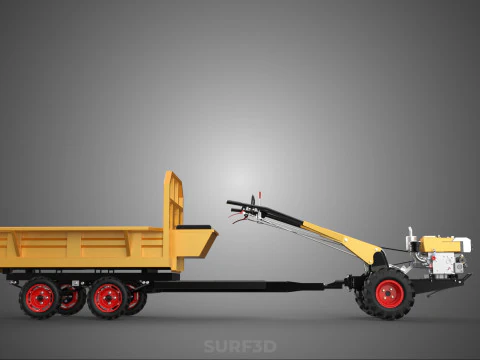

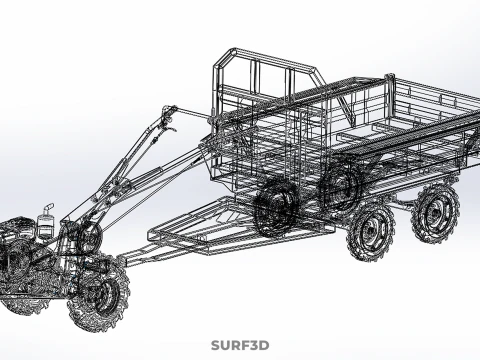

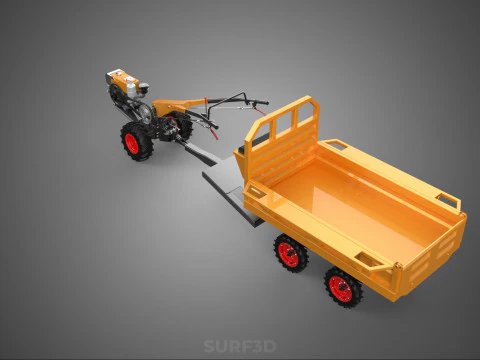

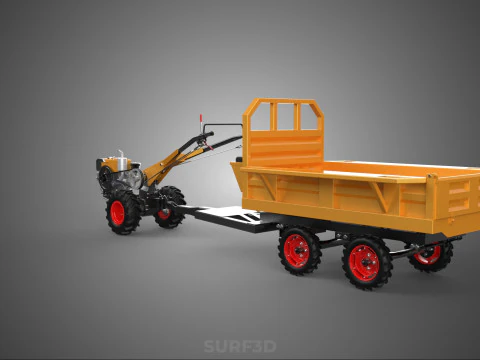

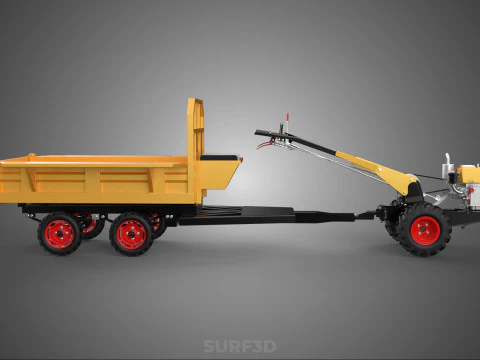

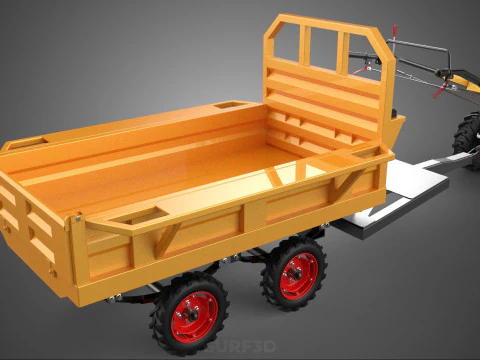

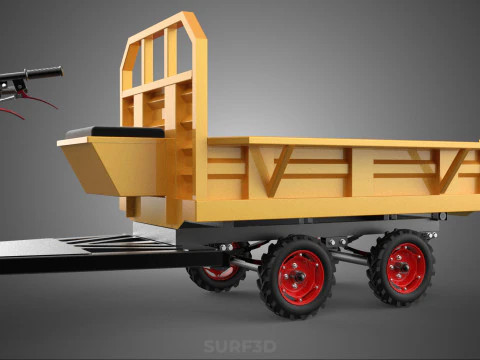

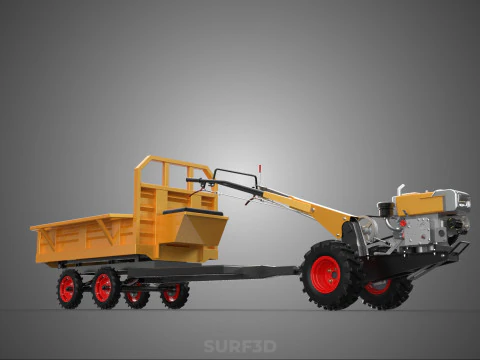

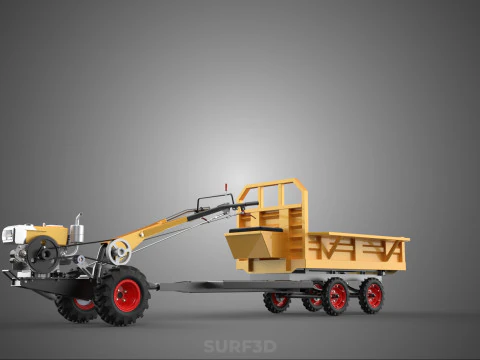

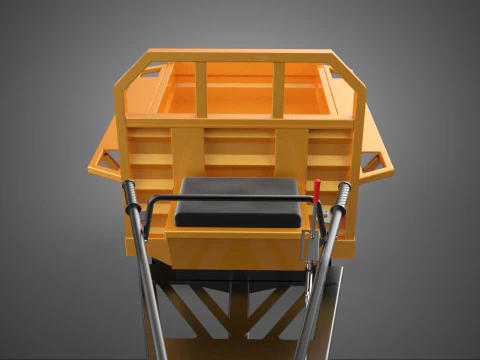

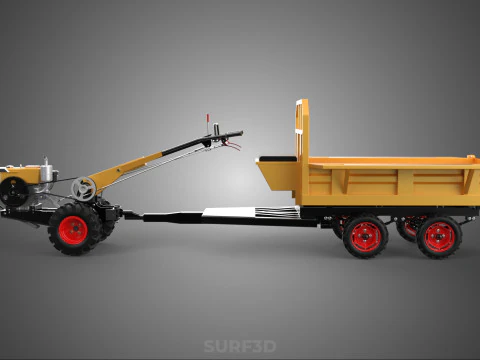

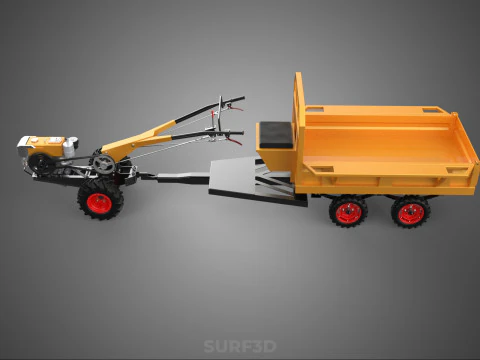

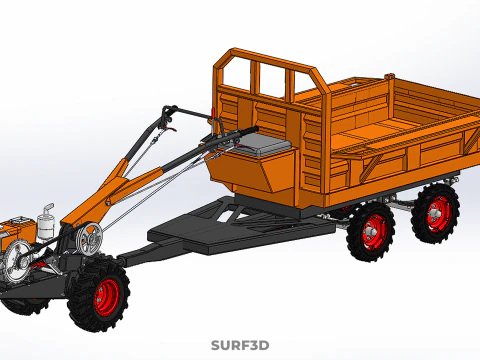

DUAL AXLE TRAILER VEHICLE TRACTOR CART CARGO LOAD BED TROLLEY WD 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
## Dual Axle Trailer Vehicle (Tractor-Drawn Cargo Transport System)

A Dual Axle Trailer Vehicle, often designated as a tractor-drawn cargo cart, load bed, or trolley system, is a type of non-self-propelled ground transport apparatus engineered for the conveyance of materials, equipment, or goods over various terrains. Its defining characteristic is the deployment of two axles, typically arranged in a tandem configuration (a bogie assembly), which significantly enhances load bearing capacity, optimizes weight distribution, and improves dynamic stability compared to single-axle designs.

### I. Nomenclature and Contextual Classification

The specific terminology applied to this apparatus is dependent on its operational environment, size, and function:

1. **Trailer Vehicle:** The most common designation, used broadly for units designed for highway travel or heavy-duty use, requiring registration and robust braking systems.
2. **Tractor Cart/Load Bed:** Used predominantly within agricultural, forestry, or construction sectors. These units are typically designed for lower-speed, off-road applications and are coupled via a drawbar or pintle hook to a primary mover, such as an agricultural tractor or utility vehicle.
3. **Trolley (Industrial):** May refer to smaller, non-roadworthy, heavy-duty cargo carriers employed in closed industrial environments, such as warehouses or material handling yards, often towed by specialized tow tractors or tugs.

The prefix "WD" sometimes denotes a specific dimensional classification (e.g., *Width Designation*) or a manufacturer-specific model series identifier, though its definition is context-dependent and not universally standardized across transport engineering fields.

### II. Mechanical Configuration and Engineering Features

#### Axle System (Tandem Assembly)

The dual axle configuration provides several critical engineering advantages. The tandem arrangement distributes the Gross Vehicle Weight Rating (GVWR) across four or more tires, reducing the imposed pressure on the ground surface and decreasing the rolling resistance compared to concentrating the load on a single axis.

* **Load Distribution:** This configuration minimizes the vertical force exerted on the towing vehicle's hitch point (tongue weight), thereby protecting the structural integrity of the articulated linkage and enhancing the traction and steering control of the primary mover.
* **Suspension and Braking:** Tandem axles allow for the integration of sophisticated suspension systems (e.g., leaf springs, torsion bars, or walking beam assemblies) that articulate independently, facilitating smoother travel over uneven ground and mitigating load shift. Furthermore, modern dual axle units are often required to include independent axle braking systems (hydraulic or pneumatic) to comply with safety regulations pertaining to heavy loads.

#### Chassis and Load Bed

The chassis typically consists of a high-strength structural steel frame (often I-beam or C-channel construction) designed to withstand torsional forces and vertical compression. The load bed (or deck) material varies based on the cargo type—steel plating for bulk material (gravel, debris), treated timber for general utility, or specialized composite materials for temperature-sensitive cargo. Access is facilitated by fixed or removable sides, tailgate assemblies, or hydraulic tilting mechanisms (dump beds).

#### Coupling Mechanism

The connection between the trailer and the tractor/mover is achieved through a rigid or articulated linkage. Common coupling types include:

1. **Drawbar/Ringfeder:** Standard for agricultural and heavy-duty industrial trailers, offering robust connection suitable for off-road maneuvering.
2. **Ball/Coupler Hitch:** Used for lighter utility trailers, providing quick connection.
3. **Pintle Hook:** Extremely rugged system favored in military and construction applications where high articulation and weight capacity are paramount.

### III. Operational Applications

Dual axle trailer vehicles are essential assets across numerous industries due to their capacity and stability:

* **Agriculture:** Transporting harvested crops, silage, livestock, and heavy implements.
* **Construction and Mining:** Hauling raw materials (sand, aggregate), excavation debris, and heavy machinery components.
* **Commercial Logistics:** Used as utility trailers for professional services, equipment transport, and distribution of goods (when road-legal).
* **Industrial Material Handling:** Moving oversized components, waste streams, and bulk materials within manufacturing or port facilities.

The design emphasis on durability, high payload capacity, and stable operation under load positions the dual axle system as the preferred mechanical solution for medium to heavy-duty non-powered material transport.

KEYWORDS: Dual axle, Tandem trailer, Cargo trolley, Tractor cart, Load bed, Utility vehicle, Agricultural implement, Drawbar coupling, Bogie assembly, GVWR, Payload capacity, Non-motorized transport, Hauling stability, Off-road transport, Industrial logistics, Chassis design, Pintle hitch, Articulated linkage, Suspension system, Trailer braking, Structural steel, Material conveyance, Heavy duty, Towing configuration, Equipment carrier, Dump trailer, Commercial trailer, Axle rating, Tandem suspension, Utility trailer.
