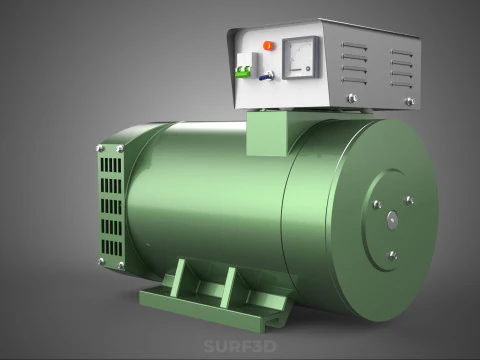

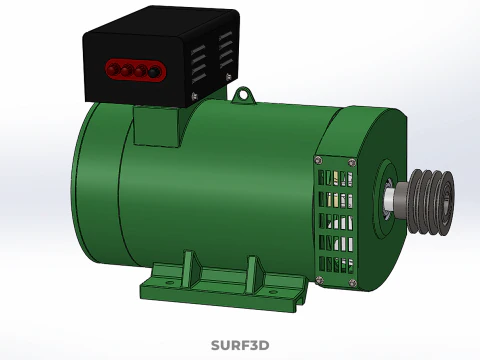

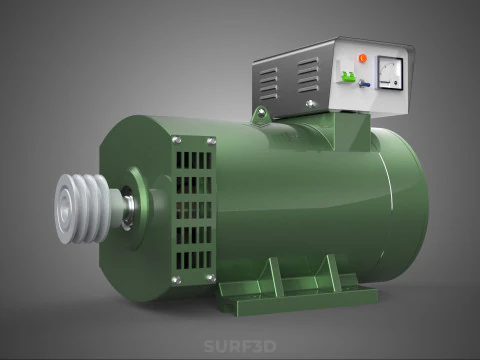

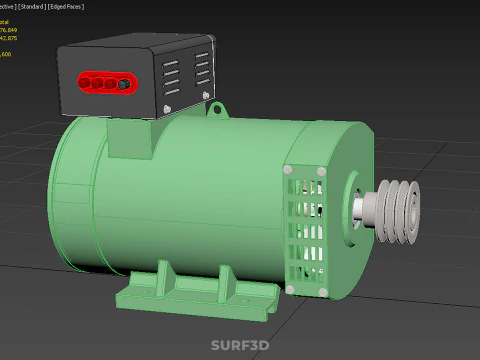

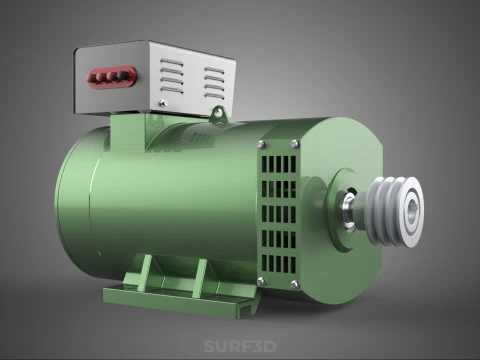

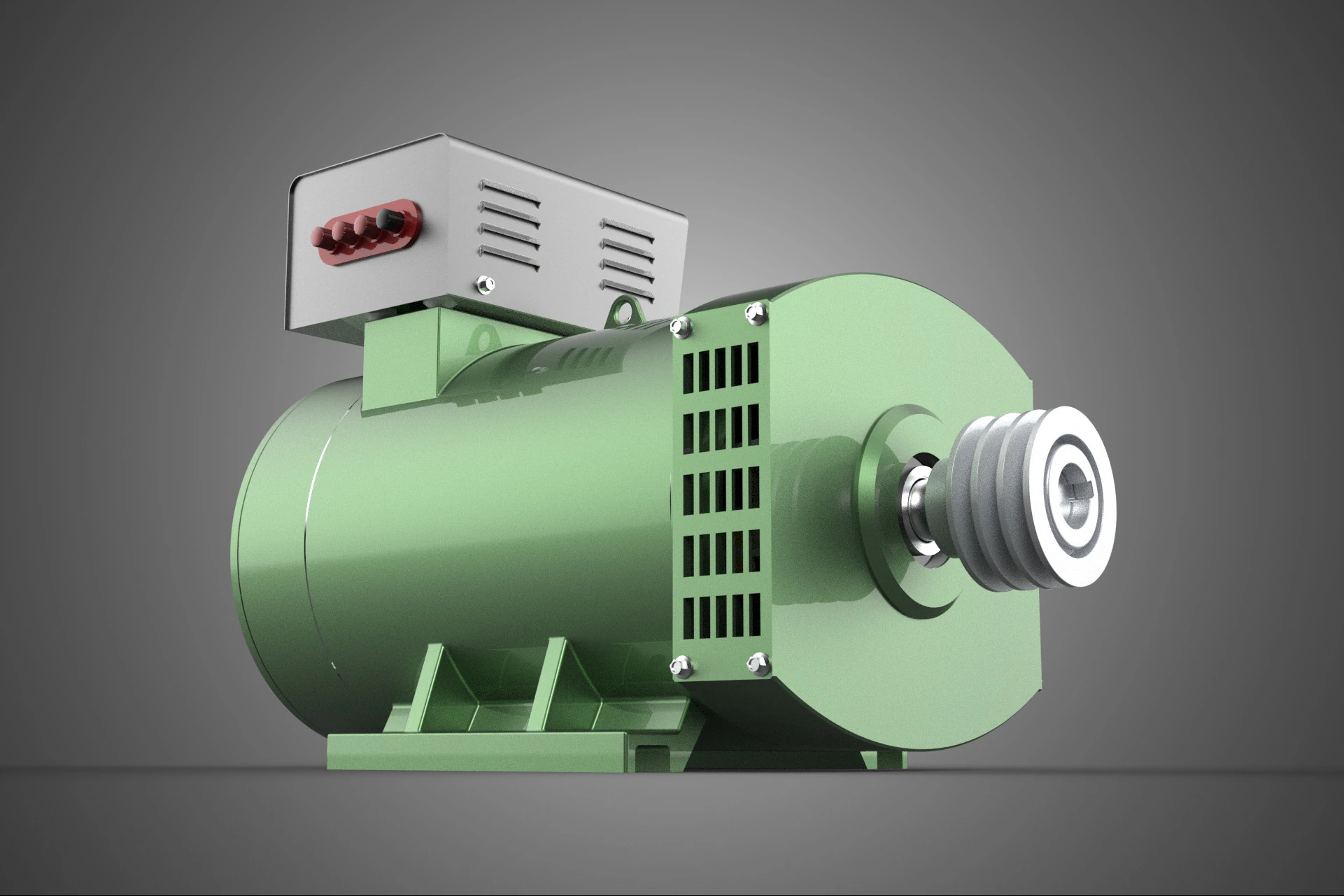

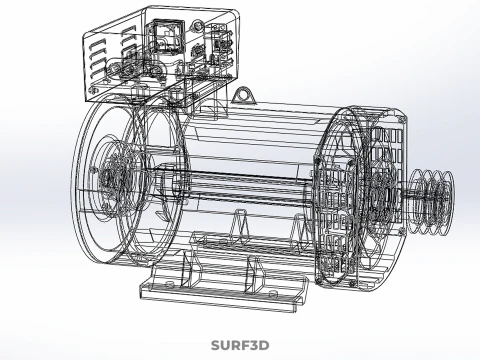

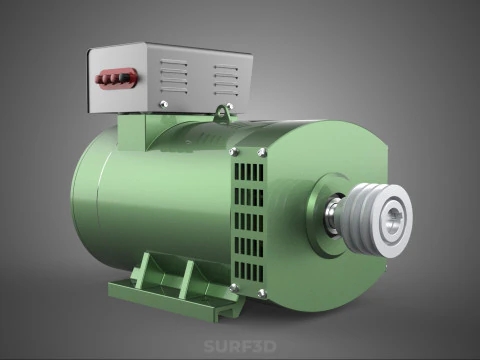

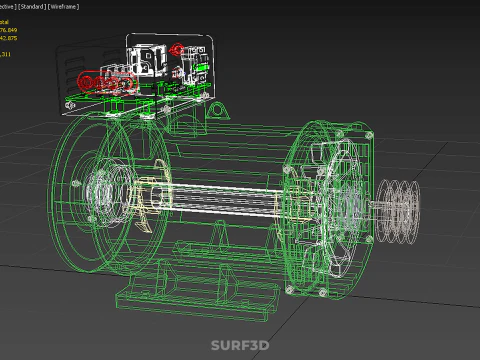

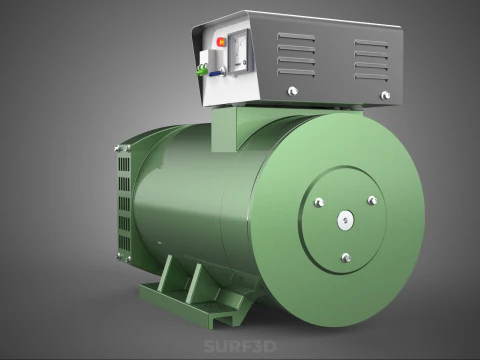

ELECTRICAL GENERATOR MOTOR ALTERNATOR DYNAMO TERMINAL BOX PULLEY 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The aggregation of terms—Electrical Generator, Motor, Alternator, Dynamo, Terminal Box, and Pulley—describes the principal categories of rotating electromechanical machinery (REM), along with their essential mechanical and electrical interface components necessary for functional integration. These devices form the backbone of energy conversion systems, facilitating the transformation of mechanical energy into electrical energy (generation) or electrical energy into mechanical energy (motive force).

### I. Core Electromechanical Machines

Rotating electrical machines are defined by the principle of electromagnetic induction and operate using a combination of stationary components (the stator) and rotating components (the rotor or armature).

#### A. Generator and Dynamo
A **Generator** is a machine that converts mechanical energy supplied by an external source (a prime mover) into electrical energy. The output current and voltage are produced by the movement of conductors relative to a magnetic field.

The term **Dynamo** historically refers specifically to a generator producing Direct Current (DC). Dynamos achieve DC output through a mechanical rectifier known as a commutator, which reverses the connections to the external circuit as the rotor spins. While largely superseded by AC systems utilizing solid-state rectification, dynamos remain relevant in certain low-power DC applications and historical contexts.

#### B. Motor
A **Motor** is functionally the inverse of a generator, converting electrical energy supplied to its windings into mechanical energy, manifested as rotational torque. Electric motors are broadly classified by the type of power supply (AC or DC) and their operational principles (e.g., induction, synchronous, stepper).

#### C. Alternator
An **Alternator** is a specialized type of generator that produces Alternating Current (AC). Modern alternators typically utilize a rotating magnetic field (rotor) and a stationary armature winding (stator). This configuration simplifies the transfer of high-current power out of the machine compared to systems requiring slip rings for the armature circuit. Alternators are crucial in power grids and automotive systems, characterized by their robust design and ability to maintain consistent frequency and voltage across varying loads.

### II. Essential Auxiliary Components

The practical application of these rotating machines requires standardized mechanical coupling and secure electrical interconnection, functions served by the pulley and the terminal box, respectively.

#### A. Terminal Box
The **Terminal Box**, often referred to as a conduit box or junction box, serves as the physical interface between the internal machine windings and the external electrical distribution system (power supply or load). Its primary functions include:
1. **Safety and Insulation:** Protecting personnel and the machine windings from environmental factors (dust, moisture) and ensuring electrical isolation.
2. **Connection Management:** Providing a robust, accessible point for securing lead wires via terminal blocks, lugs, or busbars, facilitating reliable star or delta connections.
3. **Conduit Integration:** Allowing connection to rigid or flexible conduit systems, protecting cable runs leading away from the machine assembly. Terminal boxes are often standardized by industry bodies (e.g., NEMA or IEC) to ensure compatibility and safety ratings.

#### B. Pulley
The **Pulley** is a mechanical coupling device affixed to the shaft of the generator, motor, or alternator. It operates as part of a belt-drive system, transferring rotational mechanical energy (torque and speed) between the electric machine and another component (the prime mover or the driven load).

Pulleys are engineered to specific dimensions (diameter and groove profile, typically V-belt or timing belt standards) to achieve required speed reduction or increase (ratio) and to handle the requisite mechanical load without excessive slip. In generating applications, the pulley receives power from the prime mover; in motor applications, the pulley delivers power to the load.

### III. Operational Synthesis
The components described represent a complete operational unit. For instance, in vehicular systems, the engine (prime mover) connects via a **pulley** to an **alternator**, whose output wiring is safely managed through a **terminal box** before charging the battery or powering the electrical load. In industrial settings, a power source connects via a **terminal box** to a **motor**, which transmits motive power via a **pulley** system to machinery. The efficiency, lifespan, and safety of the electromechanical device are heavily dependent on the correct design and integration of the core machine type and its interface components.

KEYWORDS: Electromechanical conversion, Rotating Electric Machinery (REM), Stator, Rotor, Armature, Field winding, Direct Current (DC), Alternating Current (AC), Rectification, Commutator, Synchronous Machine, Induction Motor, Power Factor, Torque, RPM, Electrical Interface, Conduit, Junction Box, Belt Drive, V-Belt, Power Transmission, Prime Mover, Electrical Load, Electromagnetic Induction, Efficiency, Brushless, Excitation System, Power generation, Mechanical Coupling, NEMA standard, Slip ring, Wire harness.
