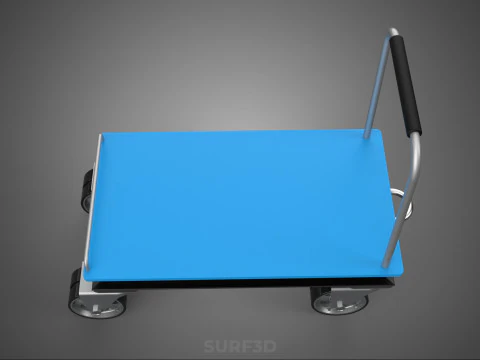

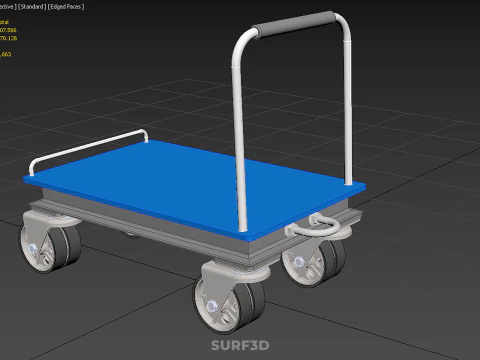

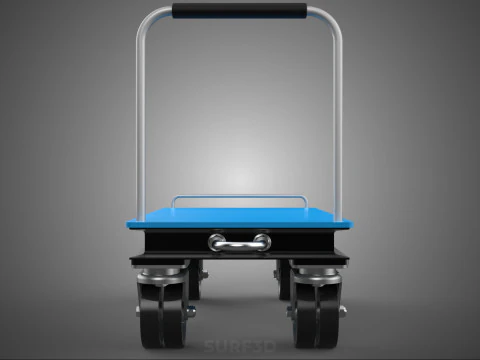

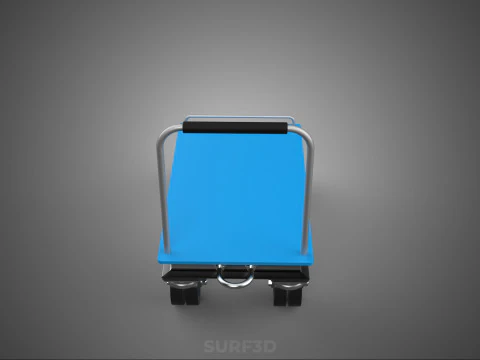

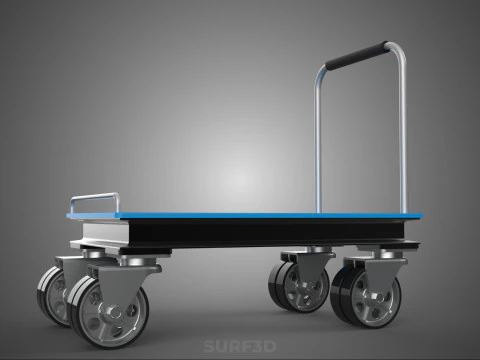

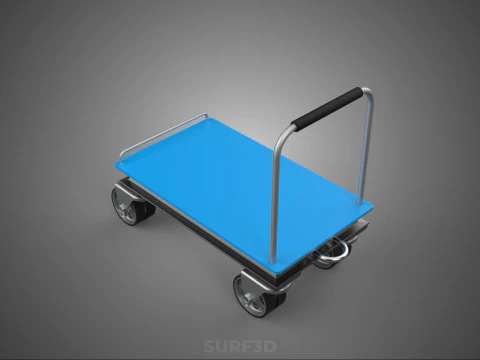

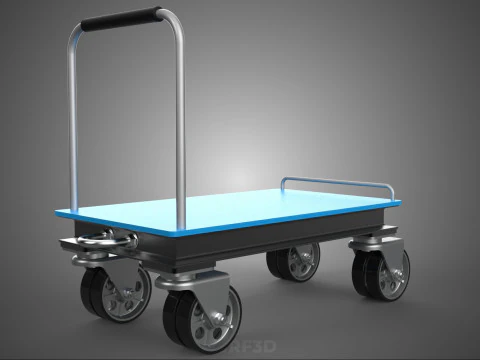

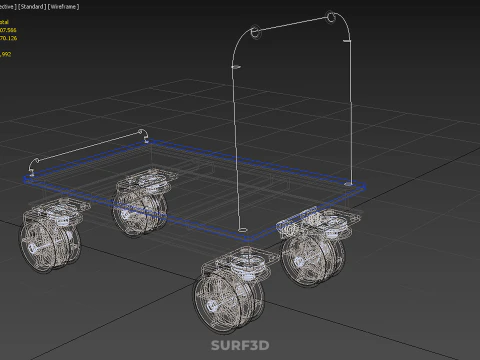

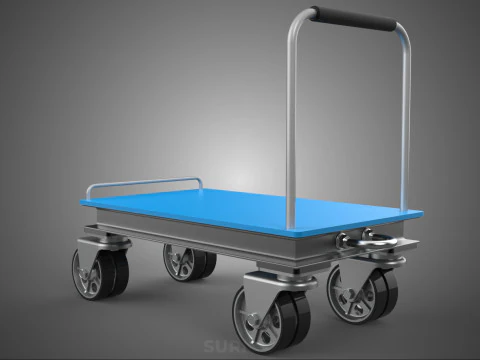

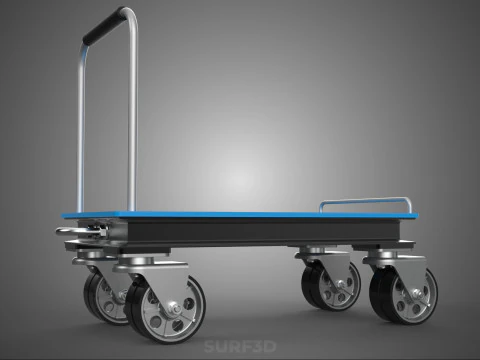

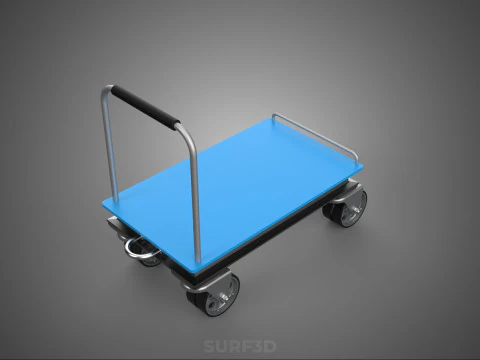

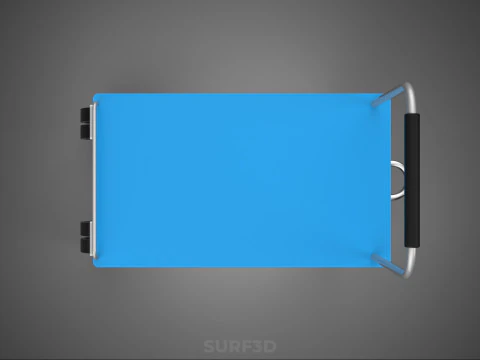

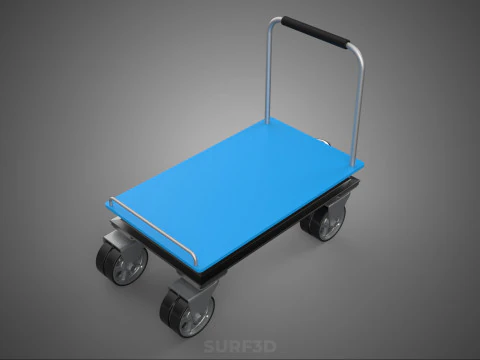

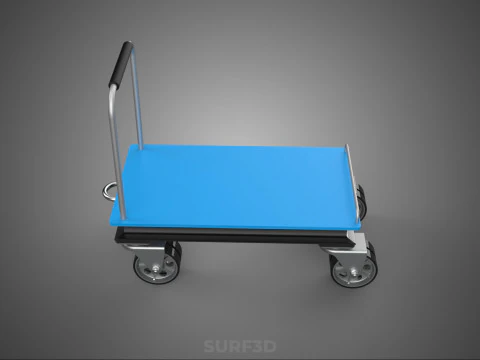

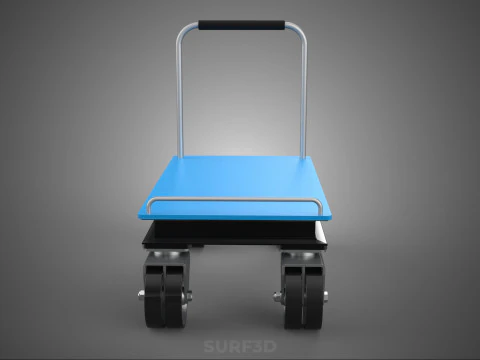

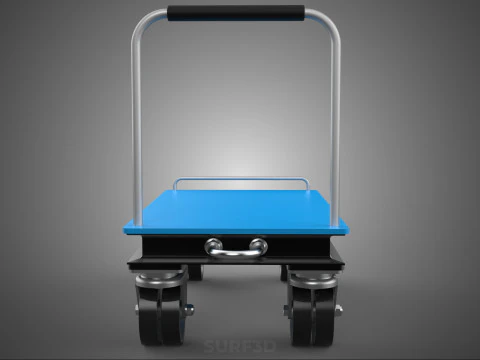

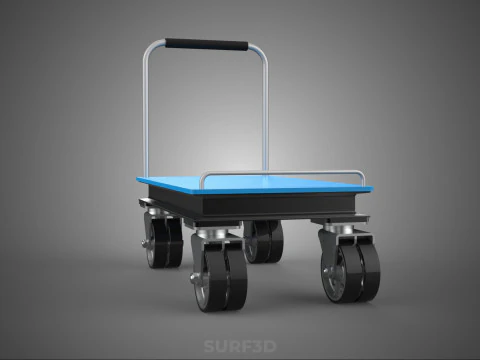

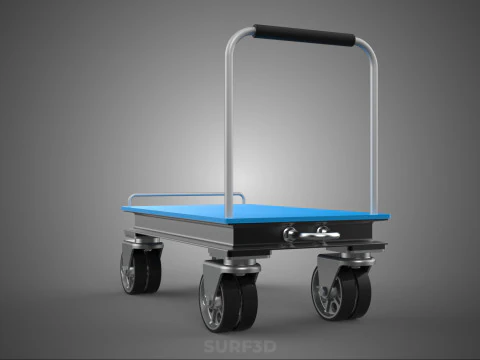

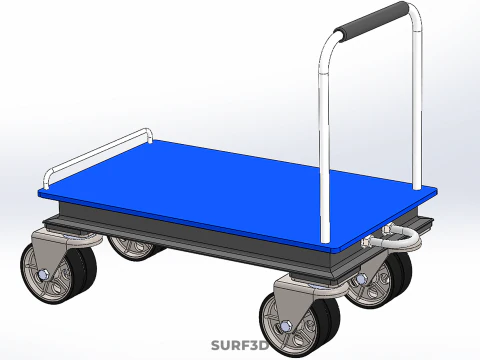

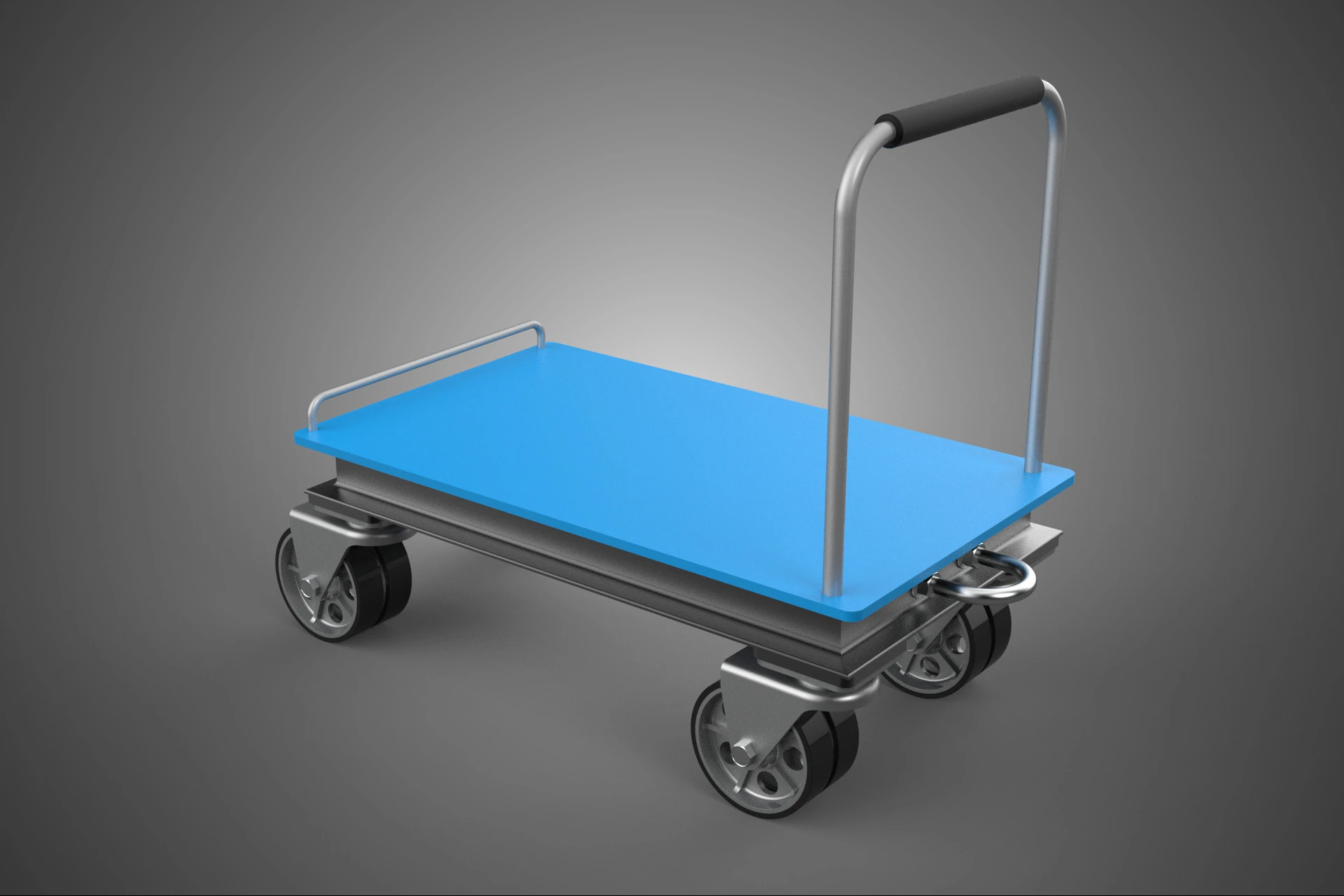

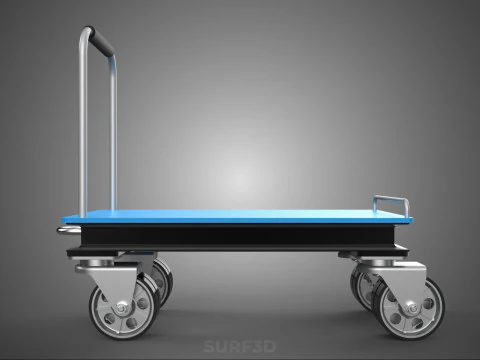

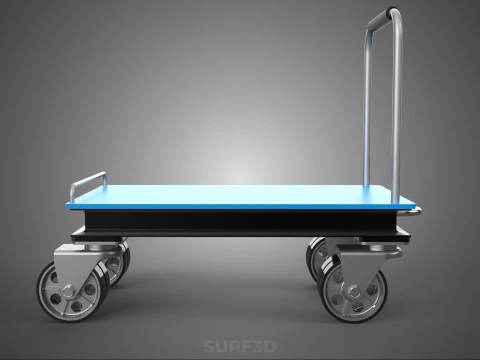

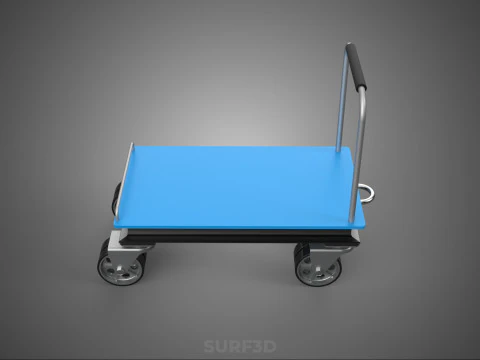

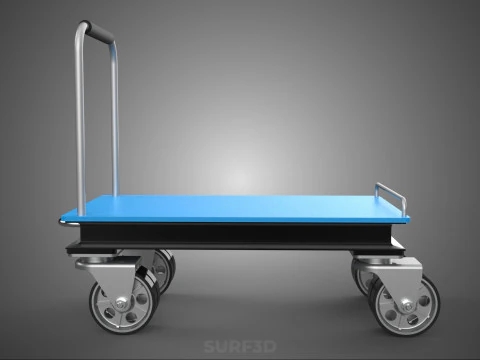

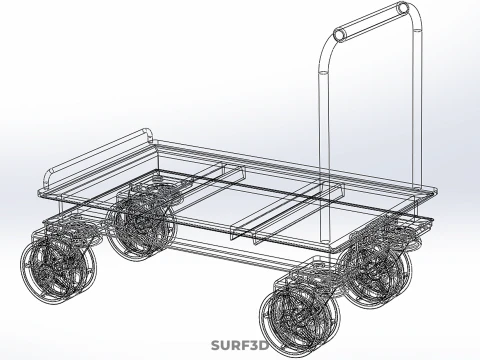

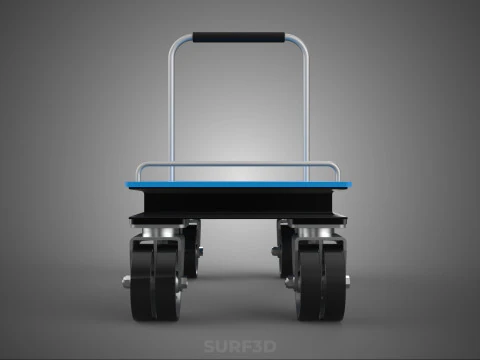

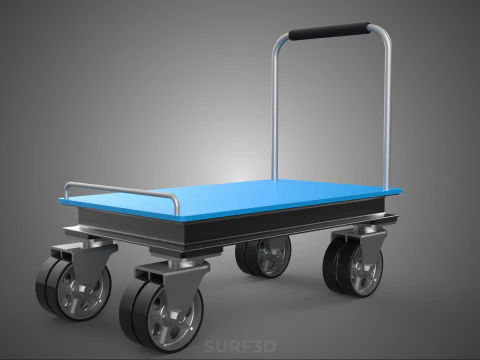

INDUSTRIAL PLATFORM DOLLY CART TROLLEY PALLET BARROW TRANSPORT 4 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The "Industrial Platform Dolly Cart Trolley Pallet Barrow Transport" refers to a comprehensive category of non-powered or partially-powered material handling equipment utilized in logistics, warehousing, and manufacturing environments for the horizontal conveyance of goods. These devices, often grouped under the classification of platform trucks or industrial transport systems, are engineered for durability, high load capacity, and operational efficiency within controlled facility environments.

### Nomenclature and Typology

The terminology associated with this equipment is often overlapping and context-dependent:

1. **Platform Truck/Trolley:** Generally features a handle (push-bar) for manual steering and propulsion, utilizing a flat deck or platform surface.
2. **Dolly:** Typically a simpler, lower-profile device lacking an integrated handle, often relying on the operator pushing the load itself or being towed. Dollies are frequently designed with specific footprints to accommodate standard material units, such as Euro or GMA pallets, allowing them to function as pallet jacks in tight spaces.
3. **Cart:** A generic term often applied to any wheeled carrier, though specific industrial carts may include shelving, side rails, or specialized fixtures for kitting and assembly operations.
4. **Barrow (Industrial Context):** While historically referring to two-wheeled devices (like a wheelbarrow), in modern industrial language, 'barrow transport' can denote any basic, rugged wheeled platform designed for heavy or ******* loads.

The numerical designator, such as '4', commonly refers to the configuration of the running gear, specifying a **quad-caster setup** (four wheels). This configuration is standard for platform trucks, typically featuring two fixed (rigid) casters and two swivel casters to optimize both directional stability and maneuverability in confined aisles.

### Design and Engineering Specifications

Industrial platform transport devices are distinguished from their consumer counterparts by their robust construction, rated load capacity, and specialized components.

#### A. Load Platform
The deck, or platform, is the primary load-bearing surface. It is usually constructed from heavy-gauge steel, reinforced aluminum, or high-density structural foam or polymer composite. Design considerations include resistance to abrasion, chemical exposure, and impact. Industrial platforms are engineered to maintain structural integrity under both high static loads (when stationary) and dynamic stresses encountered during movement (acceleration, braking, cornering).

#### B. Running Gear and Casters
The performance and utility of the transport device are critically dependent upon the selection and configuration of the casters:

1. **Material:** Wheel material is chosen based on the operating environment. Common industrial wheel materials include polyurethane (for floor protection and quiet operation), phenolic (high load, resistance to impact), cast iron (maximum capacity), and solid rubber (shock absorption and debris clearance).
2. **Configuration:** The quad-caster setup (4-wheel system) is standard. For enhanced maneuverability, the swivel casters are typically positioned at the steering (handle) end, while the fixed casters are placed opposite to ensure tracking consistency. In some specialized 'diamond' configurations, the four corner casters are swivel type, with a central fixed caster providing pivot stability, enabling zero-radius turning, though this is less common for standard industrial platforms.
3. **Load Rating:** Casters are individually rated, and the overall load capacity of the platform is calculated based on the capacity of three of the four casters (allowing for uneven distribution during transport).

#### C. Handling and Safety Features
Industrial models often incorporate ergonomic handles designed for standing operation, minimizing strain during pushing or pulling. Safety mechanisms include foot-operated wheel locks, total-lock casters (which immobilize both the wheel and the swivel mechanism), and deck edges designed to contain or secure the load, such as integrated stake pockets or retaining lips.

### Operational Context and Applications

These material handling tools are foundational to internal logistics flows across numerous sectors, including automotive manufacturing, food and beverage production, general warehousing, and distribution centers.

1. **Point-of-Use Delivery:** Platform trolleys are essential for delivering materials directly from storage locations (racking or staging areas) to assembly lines or workstations, facilitating the sequencing and kitting necessary for lean manufacturing and Just-In-Time (JIT) processes.
2. **Order Picking:** Dollies and carts are frequently used in conjunction with manual or voice-assisted picking systems to consolidate multiple items or cartons onto a single mobile unit for subsequent transfer to packing stations.
3. **Heavy Load Staging:** High-capacity platform dollies are employed for temporarily staging or repositioning heavy items, such as machinery components, tools, or packaged bulk goods, prior to forklift retrieval or shipment loading.

These devices provide flexibility and high load capacity where motorized equipment may be impractical, overly expensive, or unsuitable due to space constraints or regulatory limitations (e.g., cleanliness standards in food handling areas).
