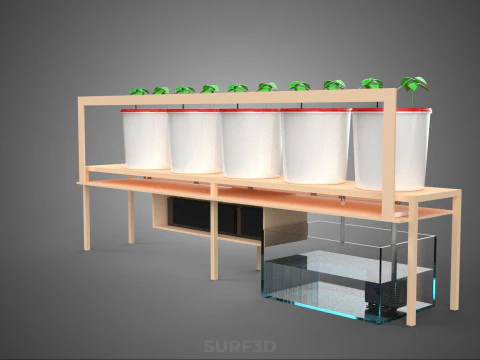

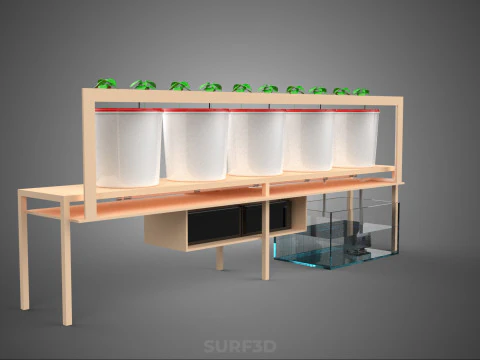

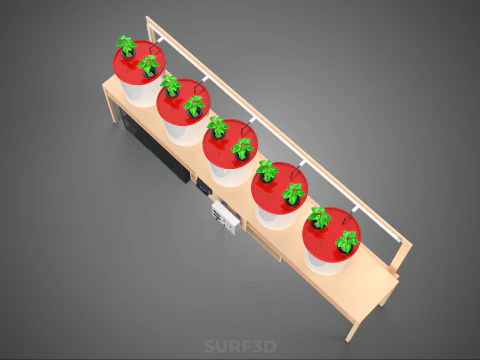

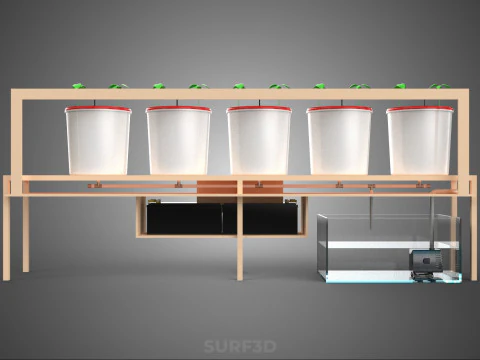

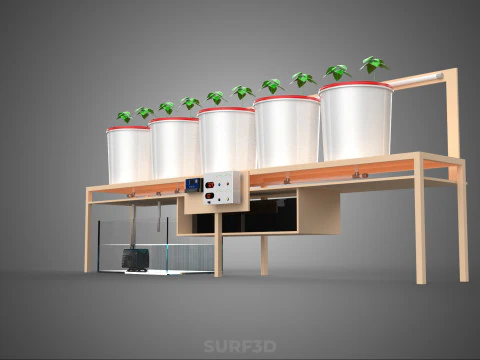

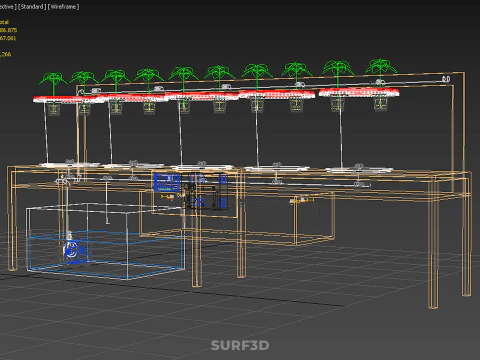

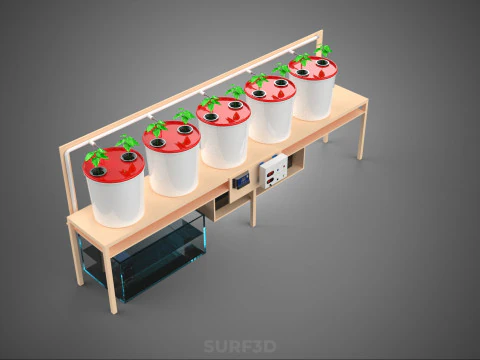

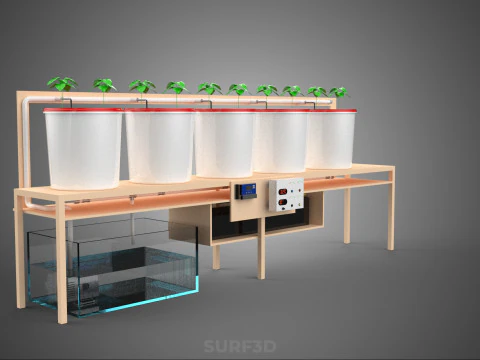

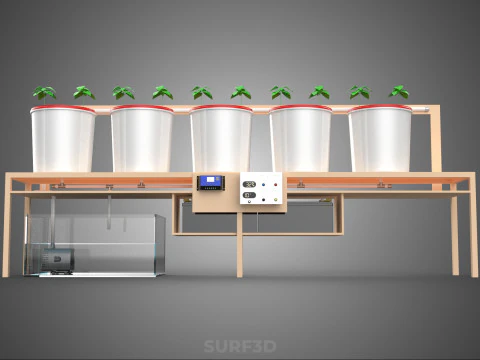

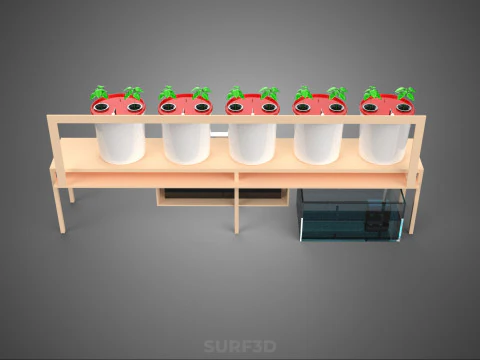

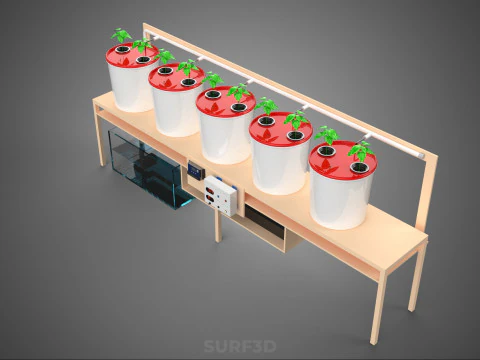

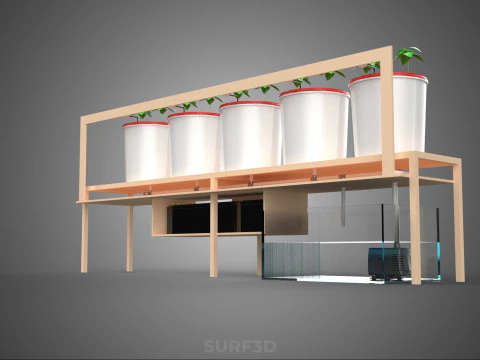

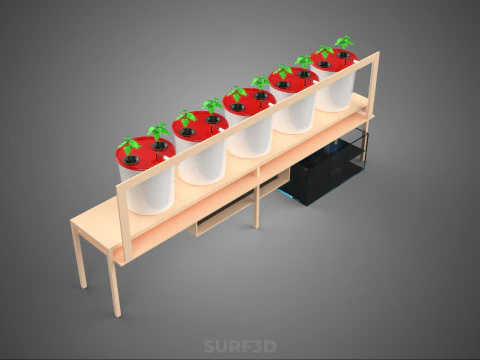

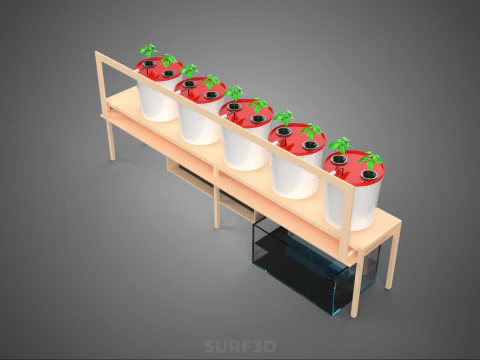

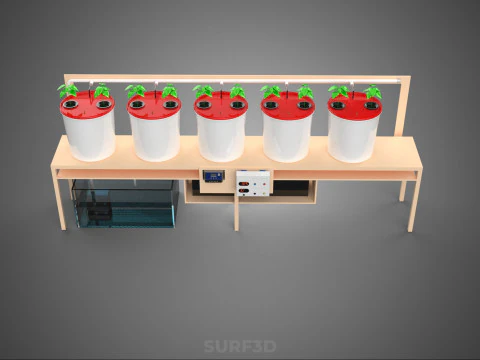

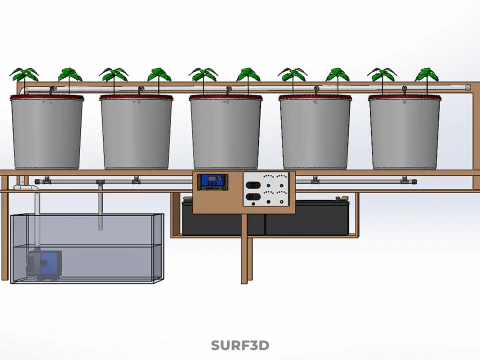

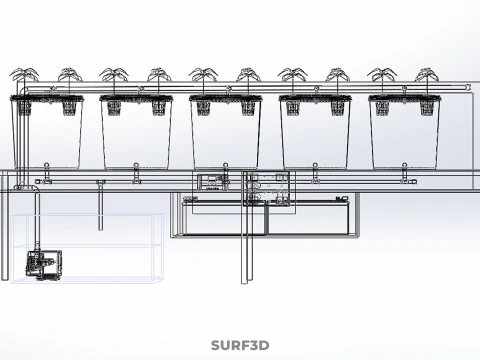

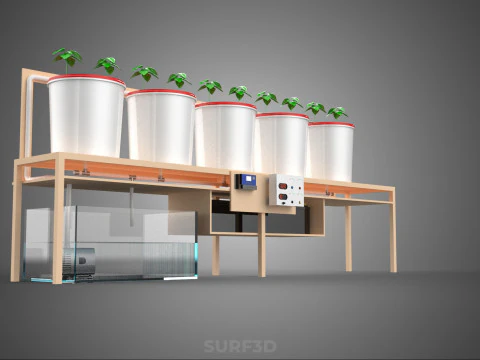

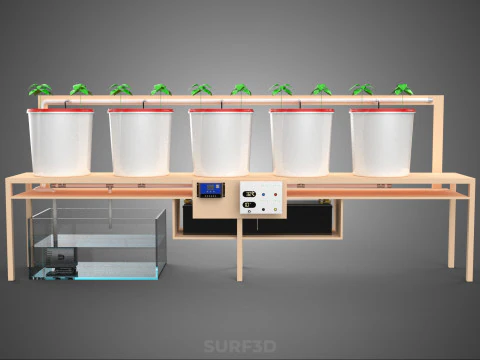

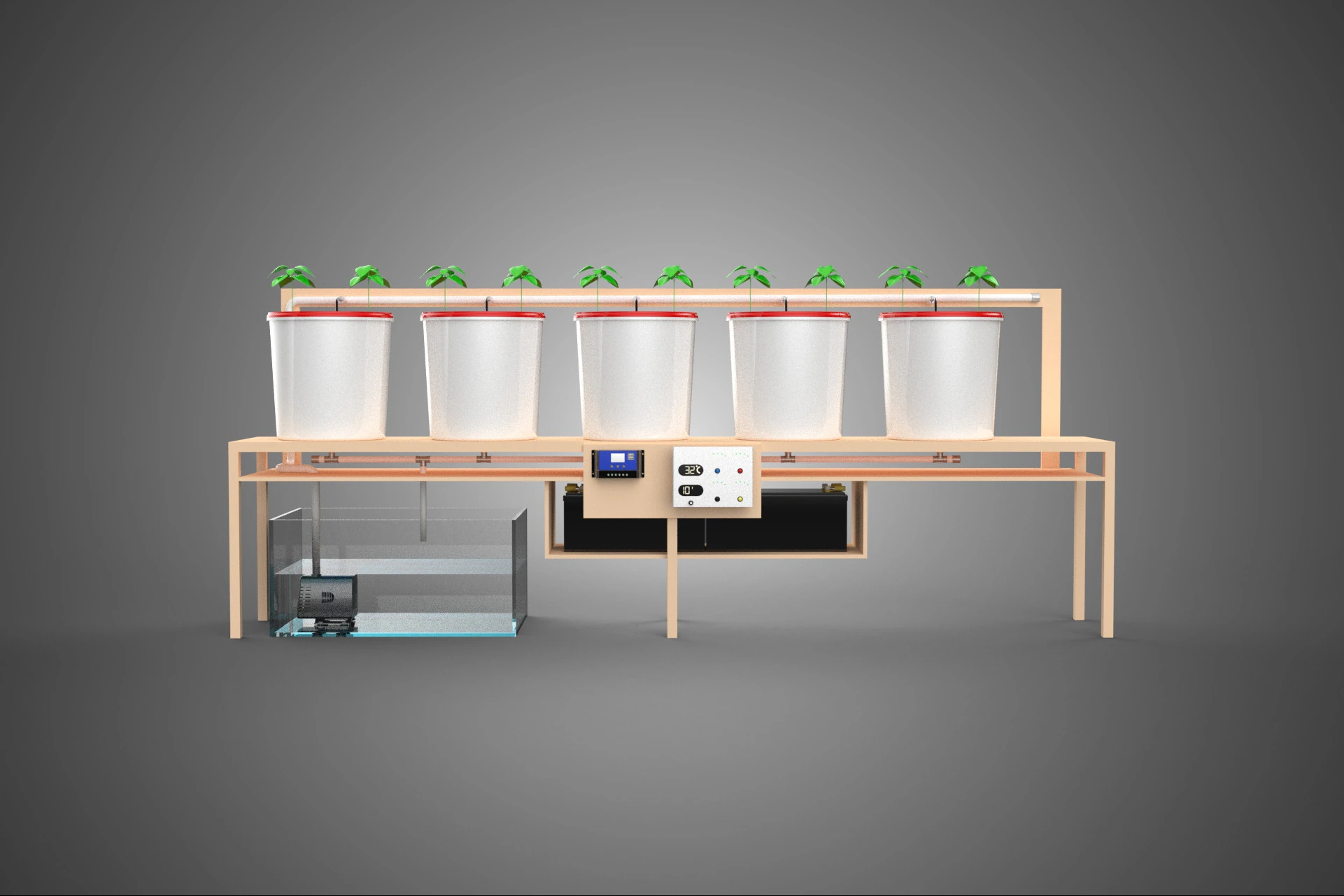

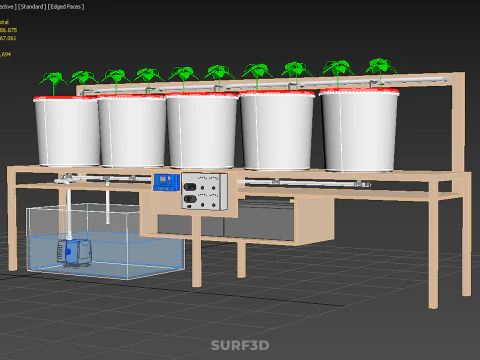

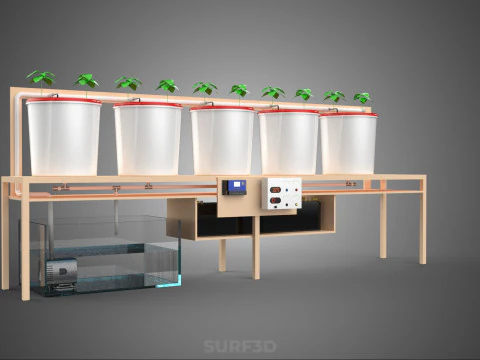

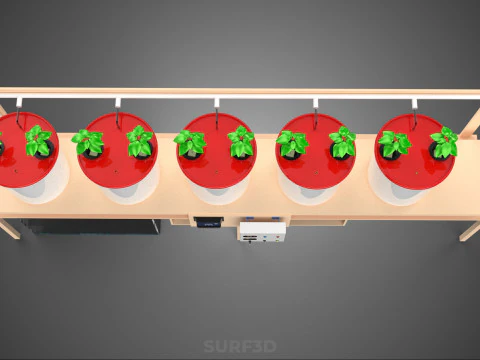

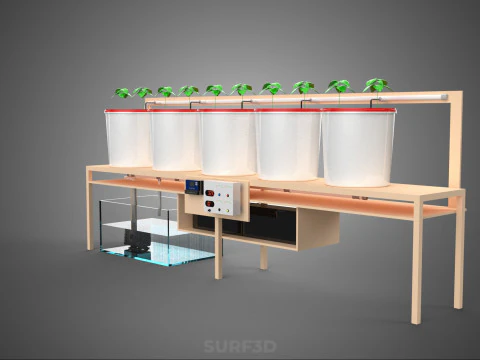

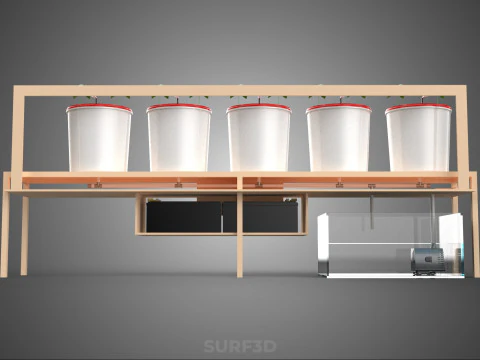

IOT HYDROPONIC PLANT AUTO CONTROL DUTCH BUCKET IRRIGATION SYSTEM 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
**IOT HYDROPONIC PLANT AUTO CONTROL DUTCH BUCKET IRRIGATION SYSTEM**

The IOT Hydroponic Plant Auto Control Dutch Bucket Irrigation System represents an advanced integration of controlled environment agriculture (CEA), recirculating hydroponics, and pervasive computing technologies. This system is designed for the autonomous cultivation of high-value crops, typically vining or fruiting varieties such as tomatoes, cucumbers, peppers, and larger flowering plants, by precisely managing nutrient delivery and environmental conditions.

### I. System Overview and Methodology

The system utilizes the Dutch Bucket technique, also known as the Bato Bucket method. This is a semi-recirculating or fully closed-loop system where individual buckets, filled with an inert growing medium (e.g., perlite, coco coir, rockwool), house the plants. A specialized nutrient solution is delivered to the base of each plant via drip emitters triggered by a master pump and timer schedule.

The defining characteristic of the Dutch Bucket method within this automated framework is its efficient management of drainage. Excess nutrient solution (effluent) drains from the bottom of each bucket through a specialized outlet fitting and returns via a common drainage line back to a central reservoir. This recirculation minimizes water and fertilizer waste, providing high nutrient use efficiency (NUE) compared to non-recirculating methods (e.g., drain-to-waste).

### II. Automated Control Mechanisms

The "Auto Control" functionality is managed by a micro-controller unit (MCU), typically an embedded system like an Arduino or Raspberry Pi, which serves as the central processing unit (CPU) for the entire operation. This CPU orchestrates a sensor-actuator feedback loop designed to maintain optimal cultivation parameters.

**A. Critical Parameters Monitored:**
1. **Electrical Conductivity (EC):** Measures the concentration of dissolved mineral nutrients in the solution, critical for determining the feeding strength.
2. **Potential Hydrogen (pH):** Measures the acidity or alkalinity of the solution, which directly affects nutrient bioavailability and uptake efficiency by the plant roots.
3. **Water Temperature (T):** Influences dissolved oxygen levels and the metabolic rate of the roots; generally maintained between 18°C and 24°C.
4. **Ambient Environmental Factors:** (Optional, but common) Air temperature, relative humidity (RH), and Photosynthetic Photon Flux Density (PPFD) via light sensors.

**B. Actuation and Dosing:**
Based on real-time sensor data compared against user-defined setpoints, the MCU activates various actuators:
* **Nutrient Dosing Pumps:** Automatically inject concentrated stock solutions (A, B, and sometimes C) into the reservoir to maintain the target EC level.
* **pH Correction Pumps:** Precise peristaltic pumps inject buffered acid (pH Down) or base (pH Up) solutions to stabilize the pH within the desired range.
* **Irrigation Pumps/Solenoid Valves:** Manage the flow and timing of nutrient delivery to the buckets based on programmable schedules or environmental triggers (e.g., light intensity).
* **Heaters/Chillers:** Maintain optimal water temperature.

### III. Internet of Things (IOT) Integration

The IOT layer transforms the local automated system into a globally manageable platform. The MCU utilizes networking capabilities (Wi-Fi, Ethernet) to communicate with cloud-based services and databases.

**A. Data Transmission and Logging:**
Sensor readings and actuator statuses are continuously streamed to a secured cloud server. This provides historical data logging, which is crucial for trend analysis, predictive modeling (e.g., forecasting nutrient usage), and optimizing future crop cycles.

**B. Remote Monitoring and Control:**
Users interact with the system via specialized dashboard applications accessible through web browsers or mobile devices. This allows for:
* **Real-time Visualization:** Graphical representation of current EC, pH, temperature, and pump status.
* **Remote Adjustments:** Changing target setpoints (e.g., increasing EC as the plant matures) without physical presence at the farm.
* **Alerts and Notifications:** Automated communication (SMS, email) when parameters deviate outside acceptable thresholds or when maintenance is required (e.g., low reservoir volume).

### IV. Applications and Resource Efficiency

The IOT Dutch Bucket System is highly scalable, ranging from small hobby setups to large commercial greenhouses and vertical farms. Its primary advantage lies in precision resource management. By constantly recirculating the solution and automatically correcting imbalances, the system significantly reduces water consumption (up to 90% less than conventional agriculture) and ensures that plants receive optimal nutrition at every stage of growth, leading to faster development, higher yields, and superior crop quality consistency.

KEYWORDS: Hydroponics, IOT, Dutch Bucket, Bato Bucket, Automation, CEA, Precision Agriculture, Recirculating System, EC Control, pH Adjustment, Nutrient Dosing, Sensors, Actuators, Microcontroller, Cloud Computing, Remote Monitoring, Water Efficiency, Nutrient Use Efficiency, Perlite, Coco Coir, Fruiting Crops, Vining Plants, Data Logging, Real-time Control, Drip Irrigation, Solenoid Valves, Setpoints, Feedback Loop, Yield Optimization, Controlled Environment.
