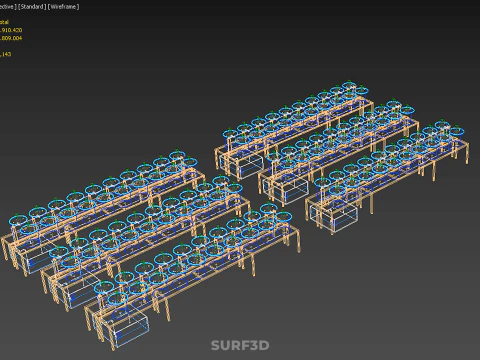

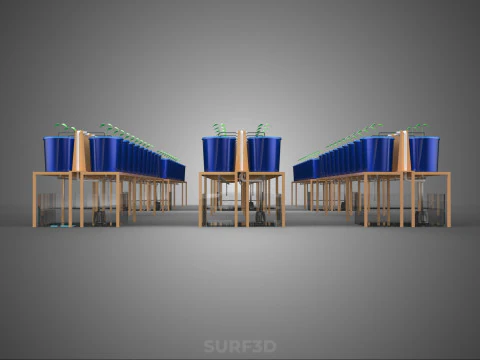

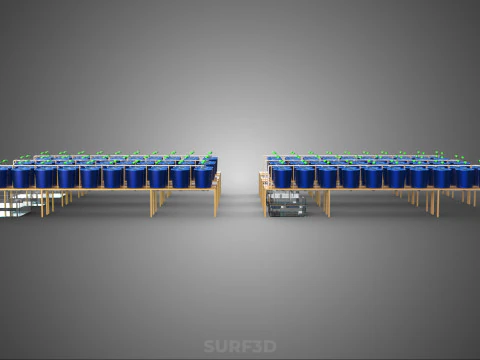

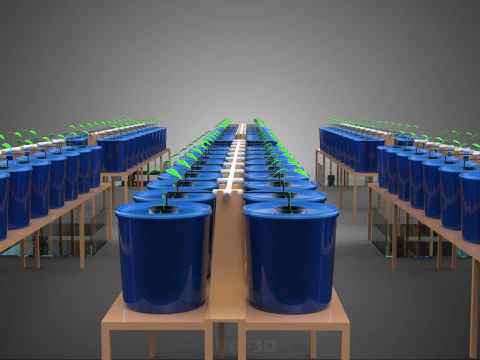

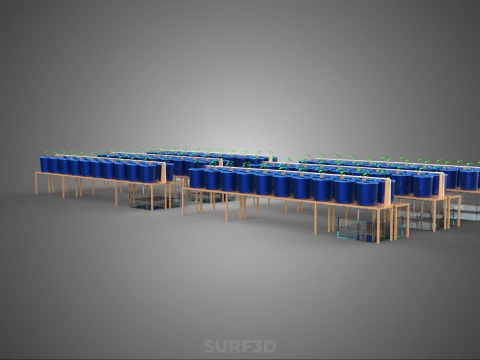

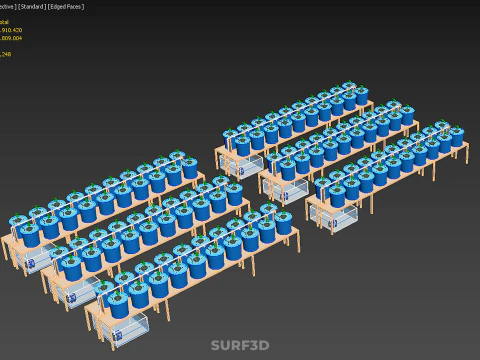

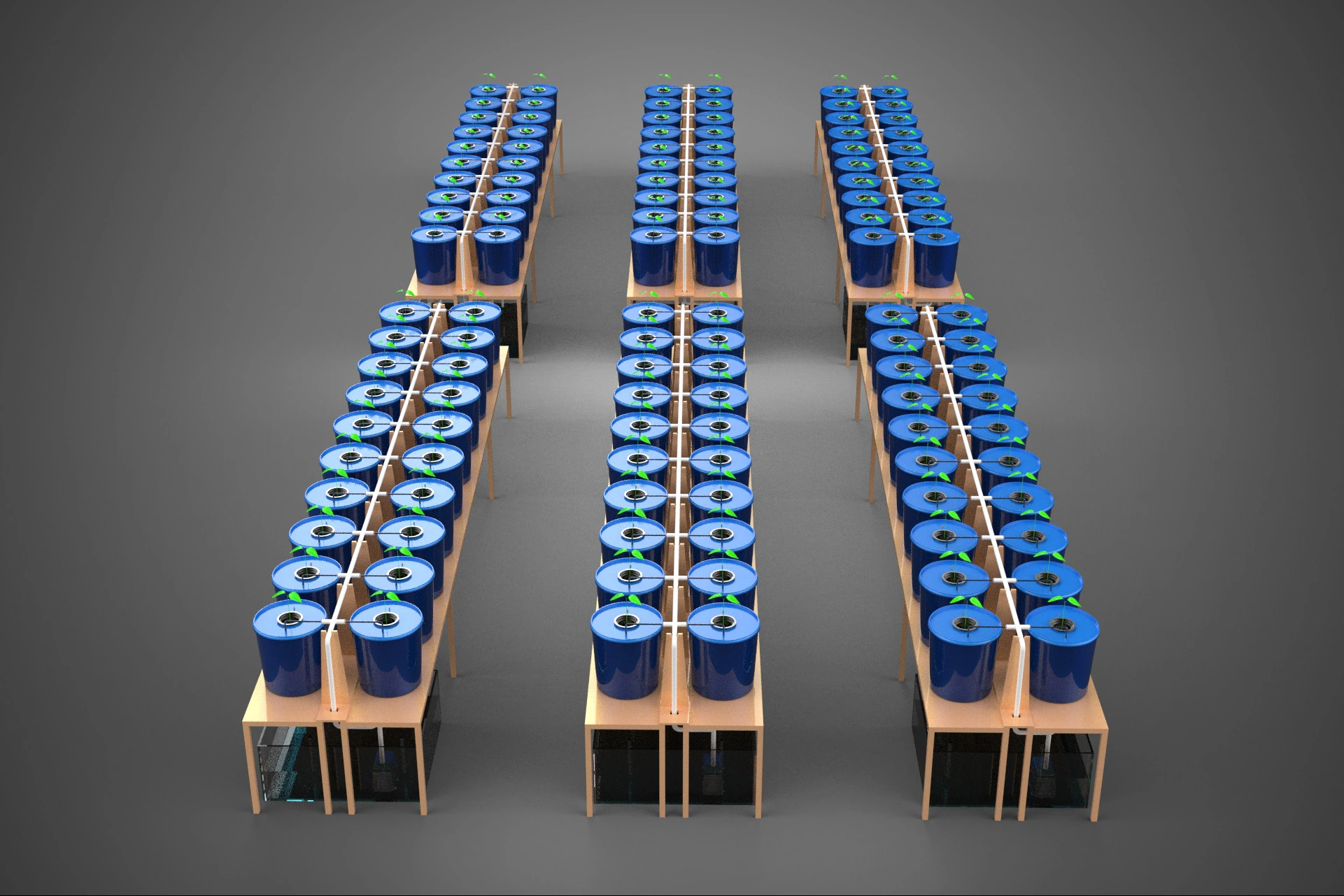

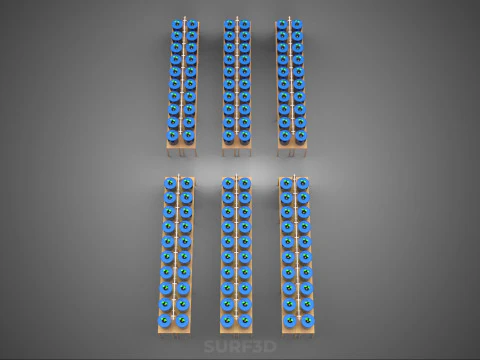

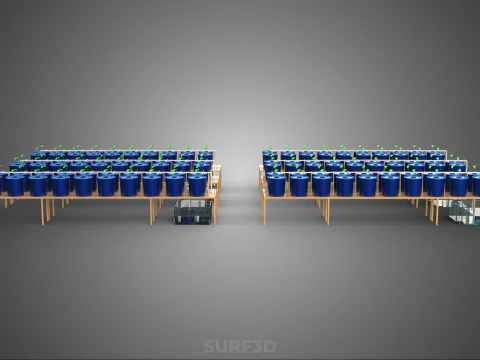

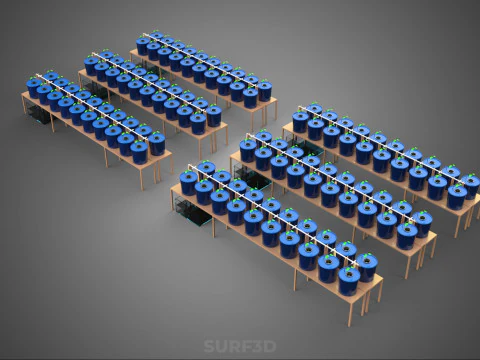

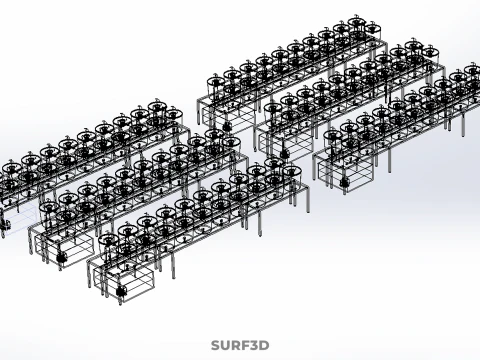

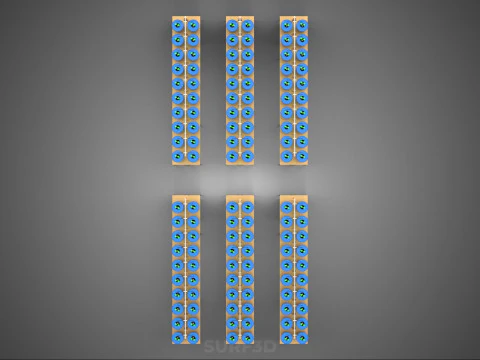

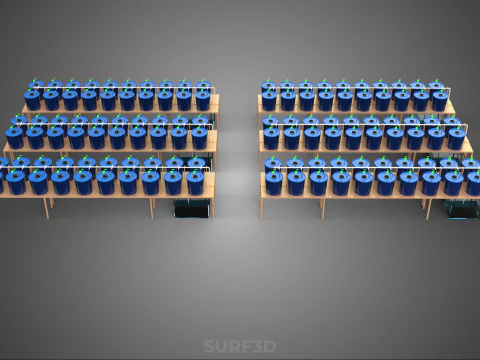

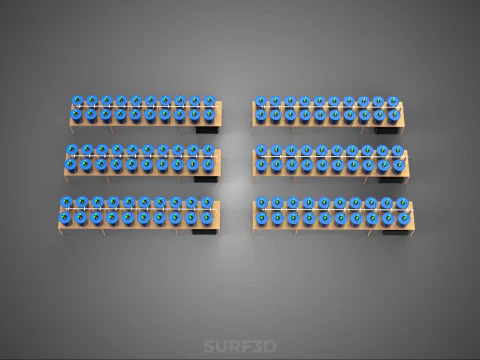

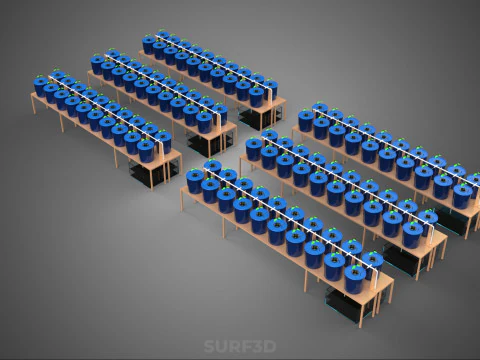

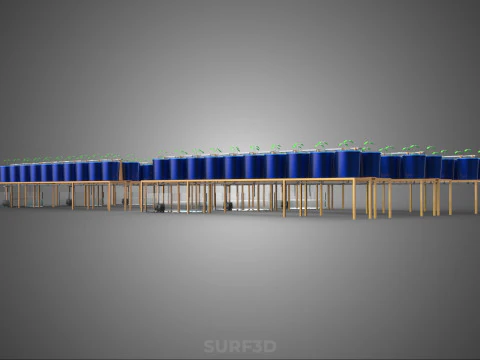

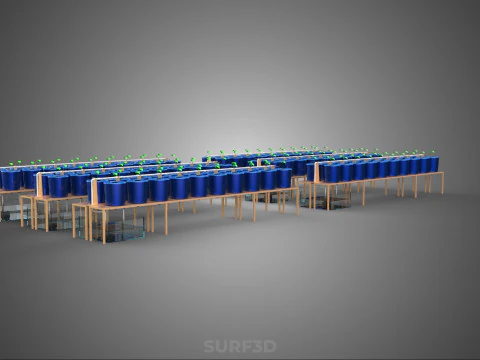

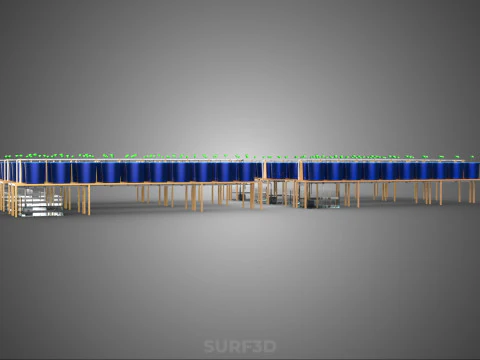

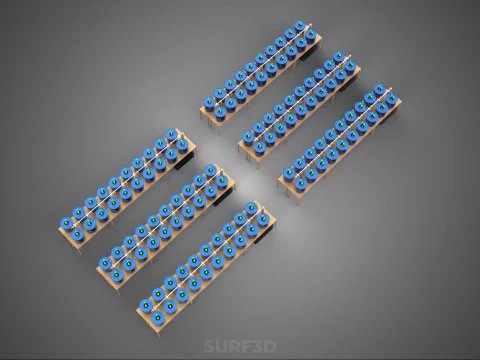

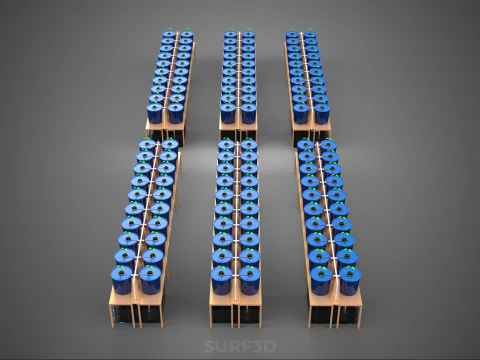

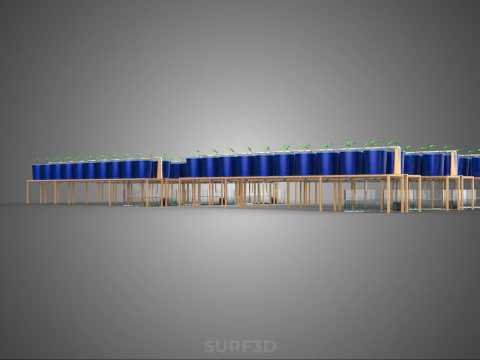

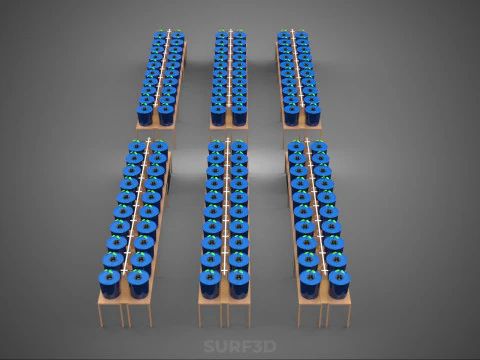

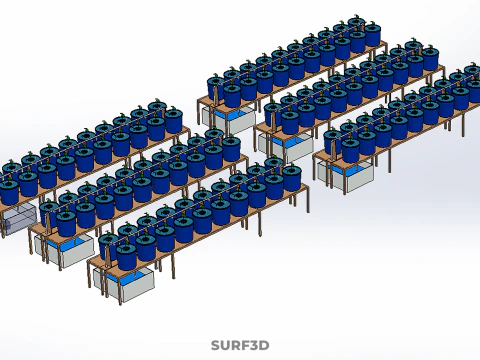

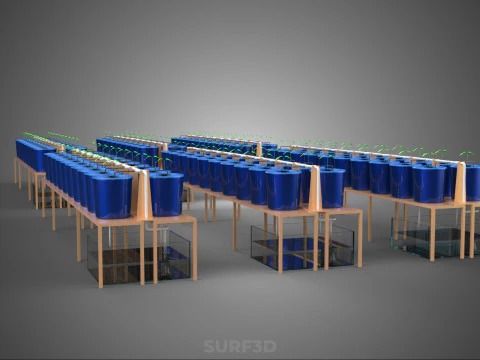

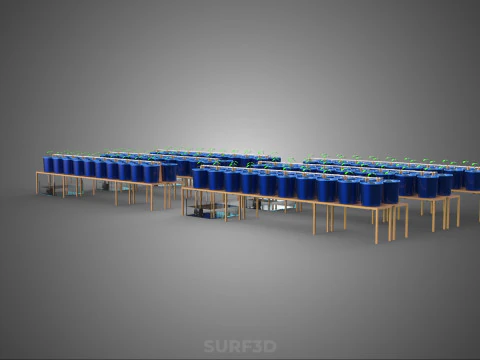

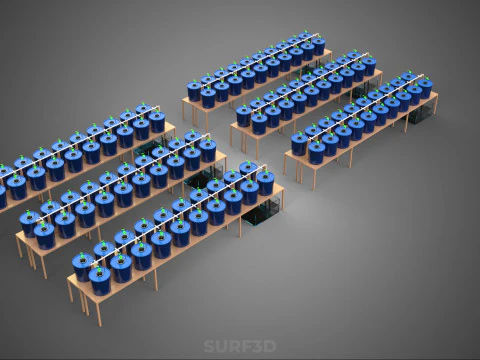

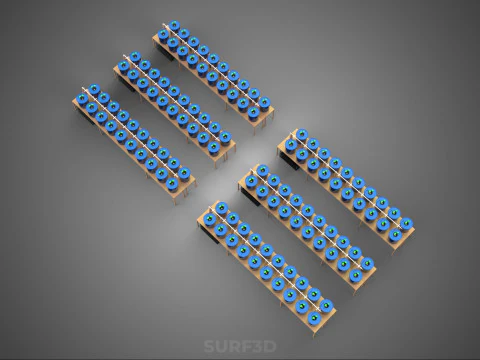

LARGE SCALE DUTCH BUCKET HYDROPONIC SYSTEM INDUSTRIAL FARM PLANT 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The Large Scale Dutch Bucket Hydroponic System, often referred to by the proprietary nomenclature "Bato Bucket System," is an advanced, high-density, recirculating hydroponic methodology widely deployed in industrial-scale Controlled Environment Agriculture (CEA) installations. Originating in the Netherlands, this system is optimized for cultivating large, vining, fruiting crops such as tomatoes (*Solanum lycopersicum*), cucumbers (*Cucumis sativus*), peppers (*Capsicum* spp.), and certain cut flowers requiring robust root support.

### System Architecture and Operation

The industrial-scale Dutch Bucket system operates as a modular, closed-loop setup designed for maximum nutrient and water efficiency.

**1. Growth Chambers (Buckets):** Individual cylindrical or rectangular buckets (typically 10-20 liters capacity) serve as the primary growth chambers. These containers are filled with an inert, non-recirculating growth medium, commonly perlite, coco coir, or rockwool chunks, providing structural support and necessary root zone aeration. A critical design feature is the drain elbow or siphon mechanism situated near the base of the bucket, maintaining a shallow nutrient reservoir (typically 3-5 cm) to hydrate the lower root zone while facilitating rapid drainage of excess solution.

**2. Nutrient Delivery (Drip Irrigation):** Nutrient solution is delivered to the top of the media in each bucket via a network of automated drip irrigation lines fed from a primary distribution manifold. The delivery schedule is intermittent and precise, governed by environmental factors (light intensity, humidity) and crop phenology, ensuring the saturation of the media and the displacement of spent solution.

**3. Recirculation and Recovery:** The drained nutrient solution, which flows out of the buckets' drain elbows, is captured in common, inclined PVC or polyethylene channels. This solution is then gravity-fed back to a central reservoir (the sump). Industrial installations utilize sophisticated automated dosing systems (fertigation units) to monitor and adjust the Electrical Conductivity (EC) and pH of the recovered solution before it is sterilized (often via UV light) and repressurized for redistribution. This recirculation mechanism achieves high Water Use Efficiency (WUE), typically utilizing 80–95% less water than conventional field agriculture.

### Industrial Implementation

Industrial Dutch Bucket farms, often spanning multiple hectares within glass or film greenhouses, prioritize automation and scalability. The modular nature of the system allows for flexible spacing dictated by crop type (e.g., wider spacing for indeterminate tomatoes).

**Pathogen Management:** A significant advantage of the Dutch Bucket methodology at the industrial scale is compartmentalization. Although the nutrient solution is shared, the physical isolation of the root zone media within each bucket mitigates the rapid, catastrophic spread of root-borne pathogens (e.g., *Pythium* or *Fusarium*) common in deep-water culture or nutrient film technique systems, enhancing crop stability and reducing yield loss.

**Environmental Control:** These systems are intrinsically linked with highly controlled environments where parameters such as atmospheric CO2 concentration, temperature, relative humidity, and supplemental photosynthetic lighting are precisely managed to maximize year-round production outputs, regardless of external climate conditions. Maintenance involves regular media flushing to prevent mineral salt accumulation and the periodic replacement of media or containers, depending on the crop rotation cycle.
