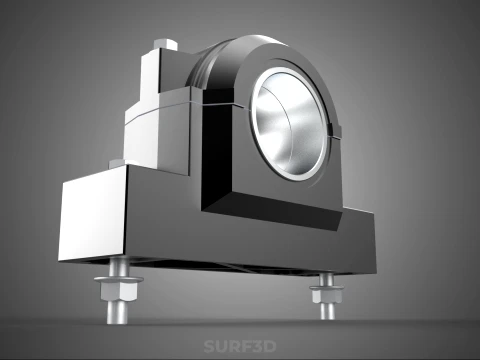

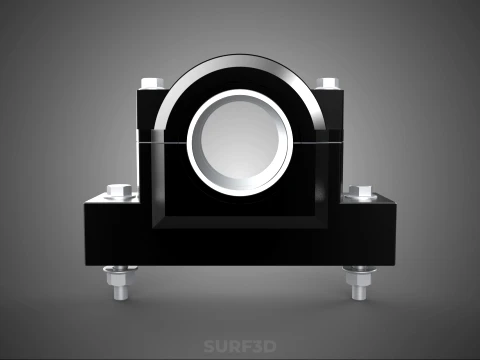

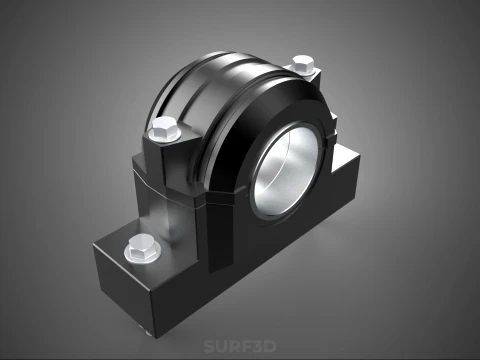

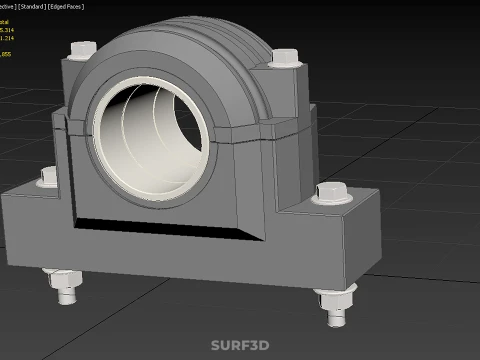

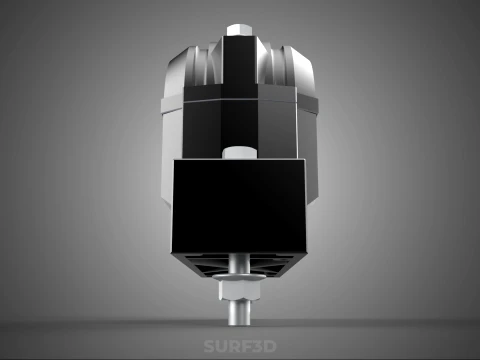

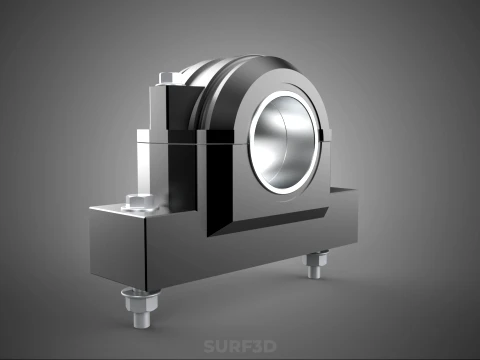

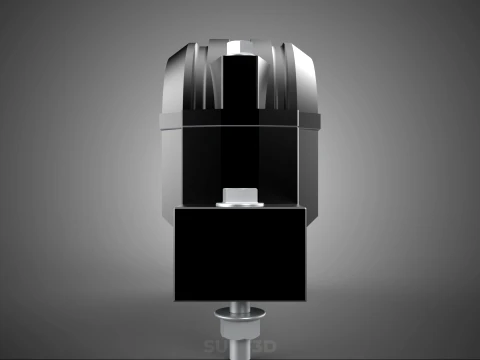

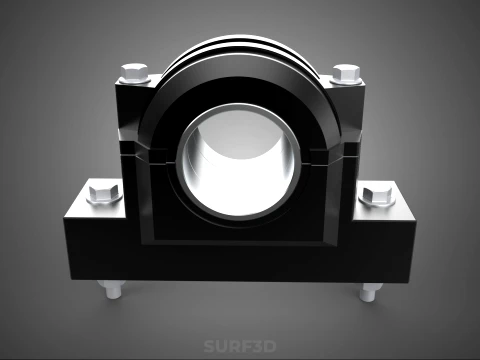

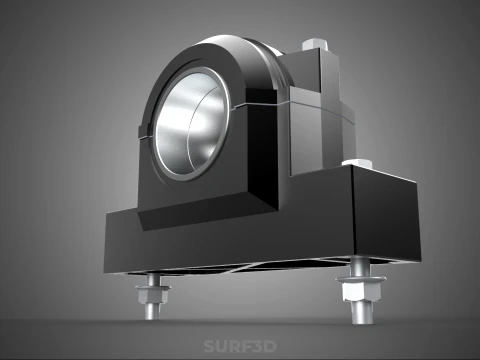

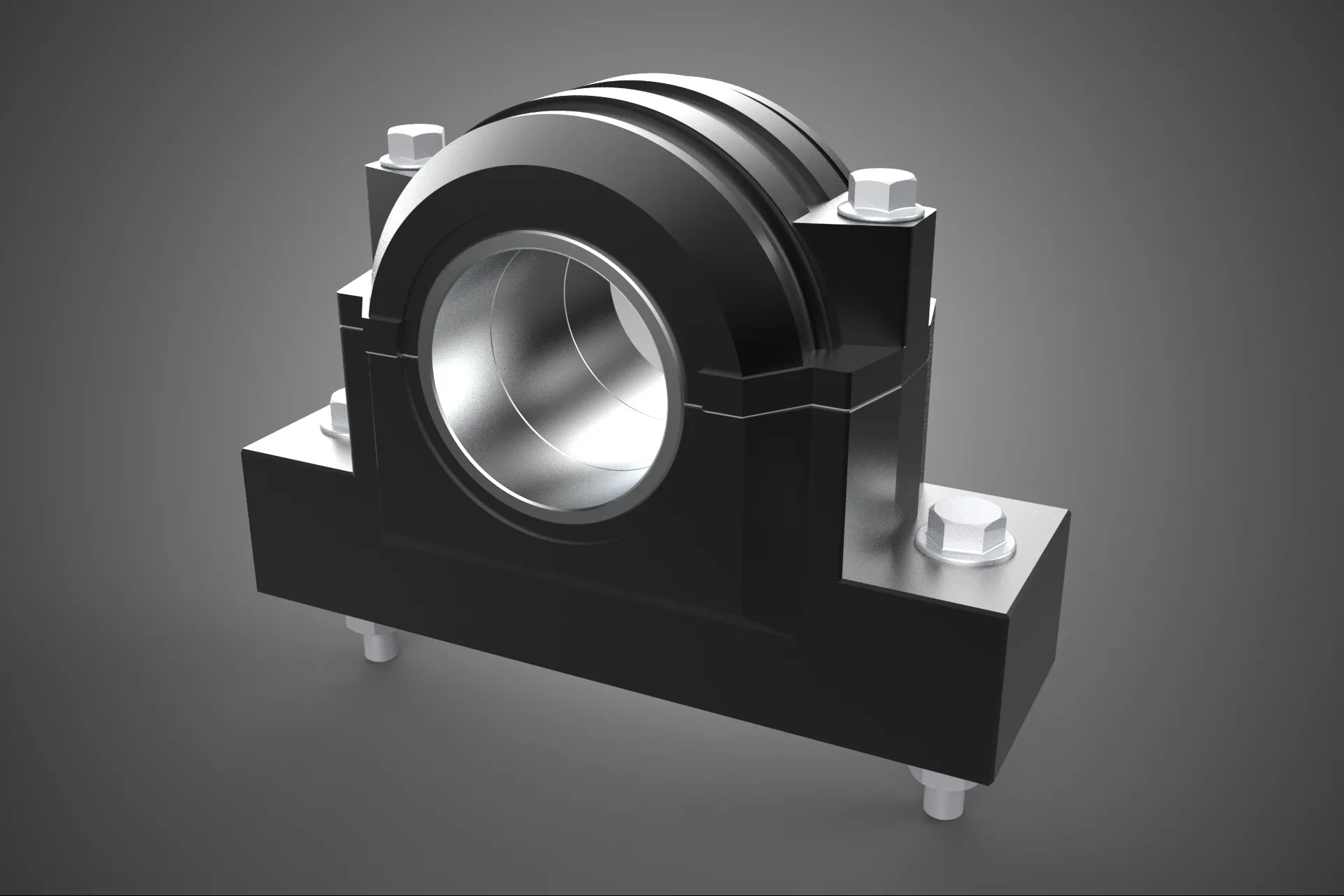

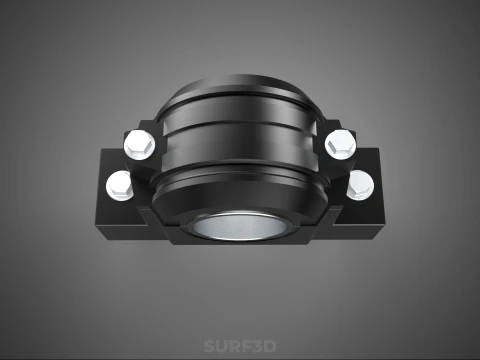

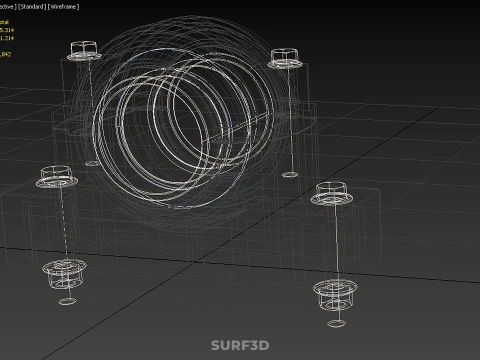

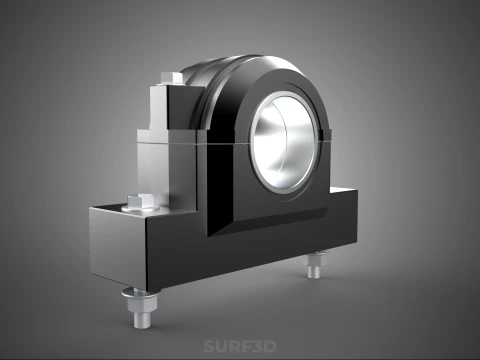

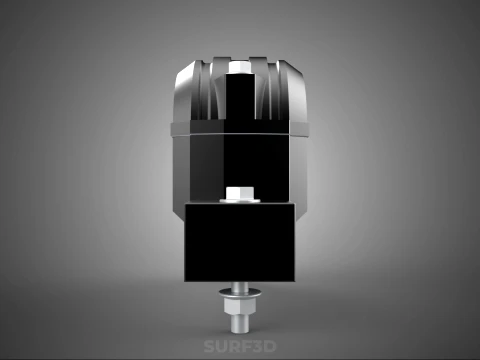

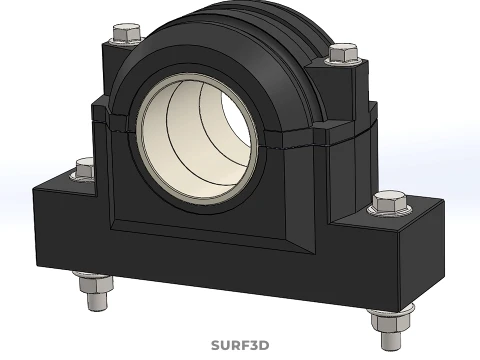

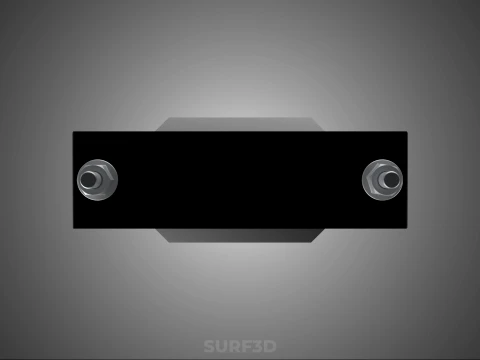

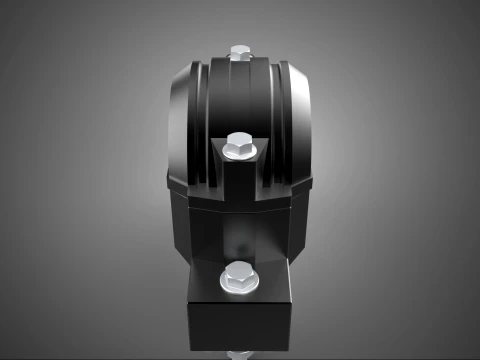

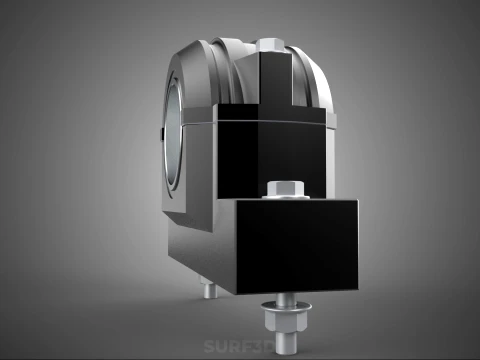

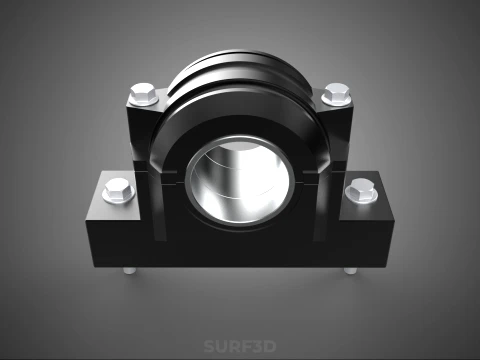

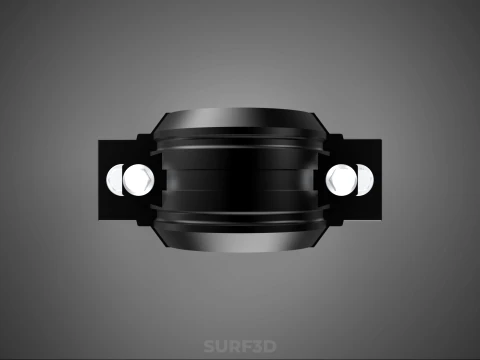

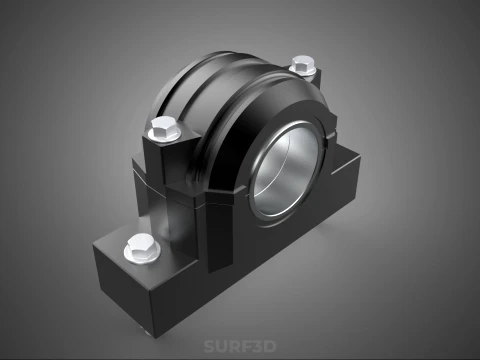

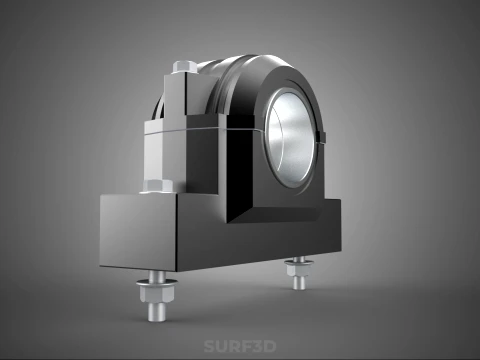

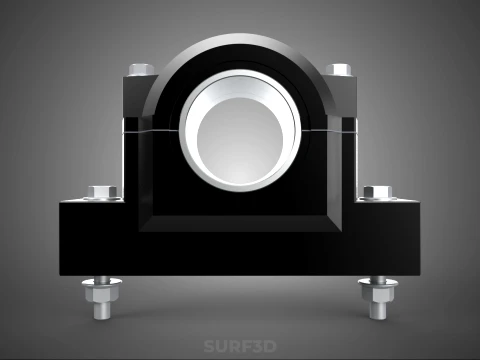

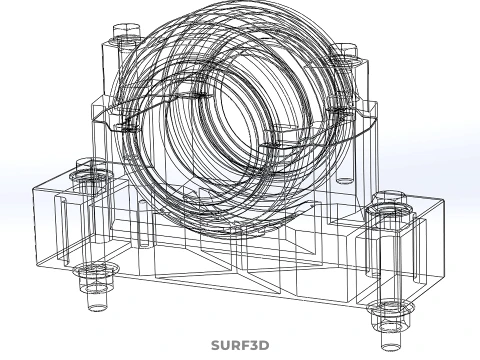

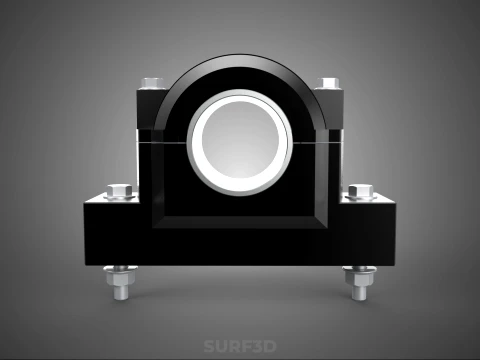

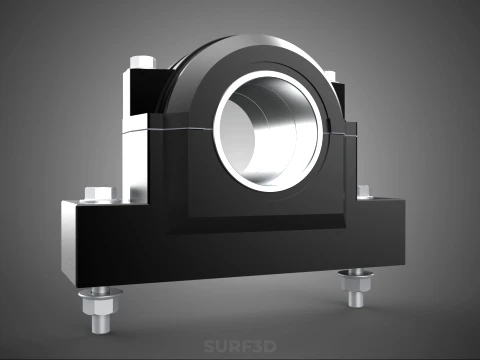

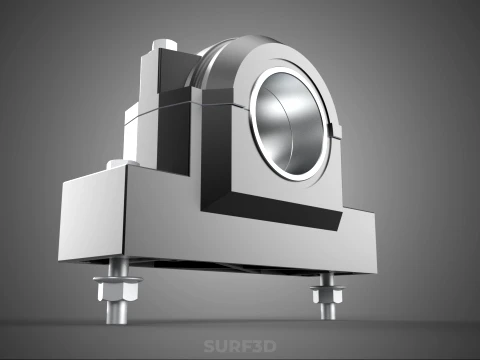

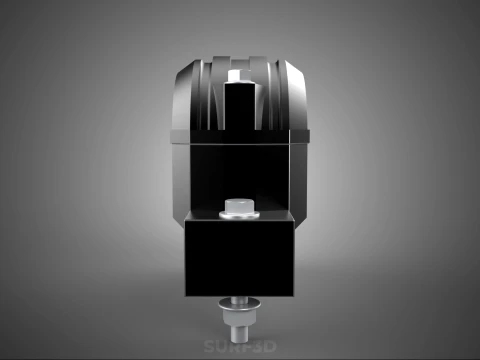

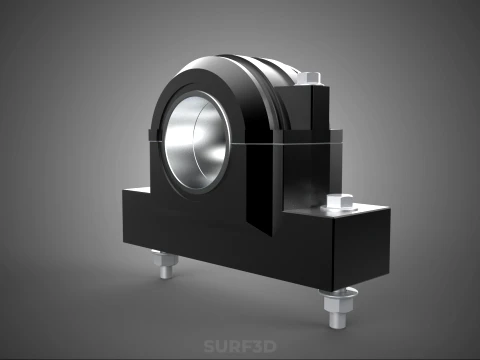

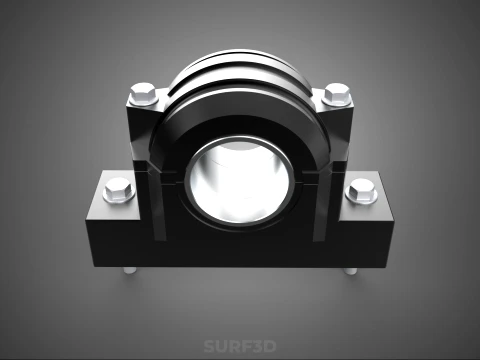

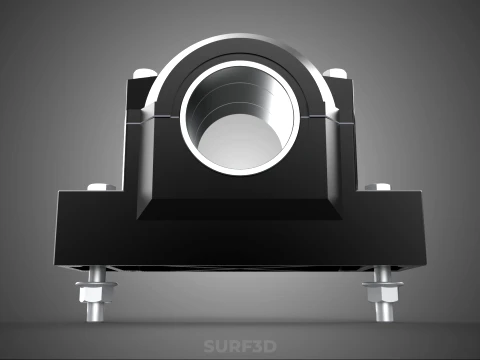

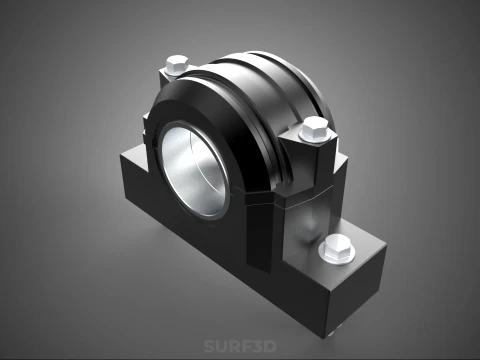

PILLOW BLOCK BEARING HOUSING SPLIT PLUMMER MOUNTING SUPPORT UNIT 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A pillow block bearing, also known as a plummer block or bearing housing, is a pedestal used to provide support for a rotating shaft with the help of compatible bearings and various accessories. The split plummer block design is specifically engineered for heavy-duty industrial applications, allowing the upper part of the housing to be separated from the base. This design feature facilitates easier installation, inspection, and maintenance of the internal bearing and shaft without requiring the disassembly of the entire drive system. Typically manufactured from high-grade cast iron, ductile iron, or cast steel, these mounting units are designed to withstand significant radial and axial loads while maintaining alignment integrity. They often feature integrated lubrication ports and seals to protect the internal components from dust, moisture, and contaminants. Common in conveyors, fans, and power transmission systems, the split housing accommodates various bearing types, including spherical roller bearings or self-aligning ball bearings, and is secured to a foundation using mounting bolts through the base.

KEYWORDS: bearing, housing, plummer, pillow, block, mounting, support, industrial, mechanical, engineering, shaft, rotation, steel, iron, lubricant, assembly, transmission, machinery, hardware, component
