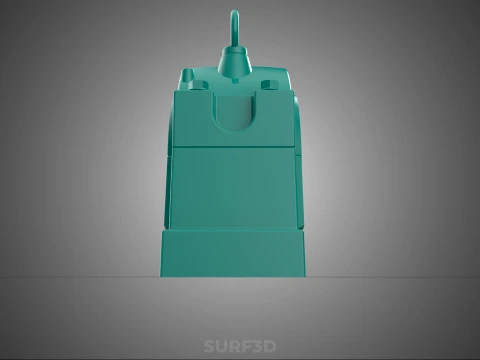

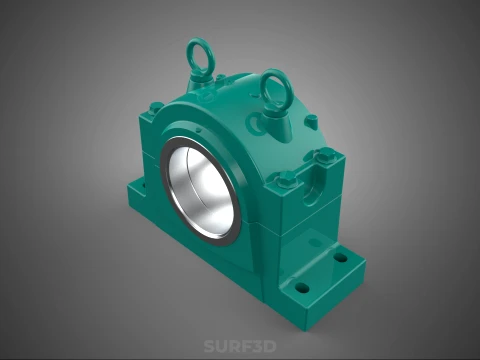

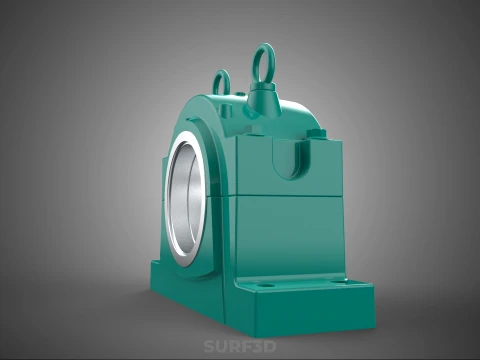

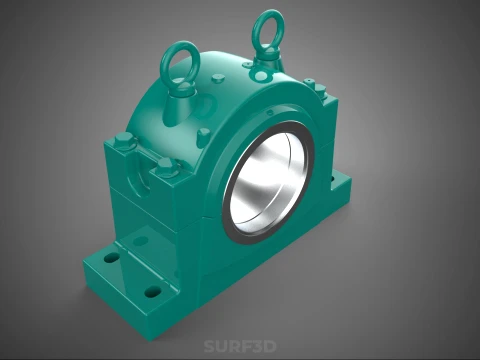

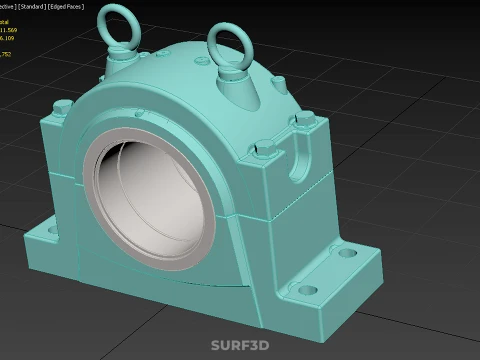

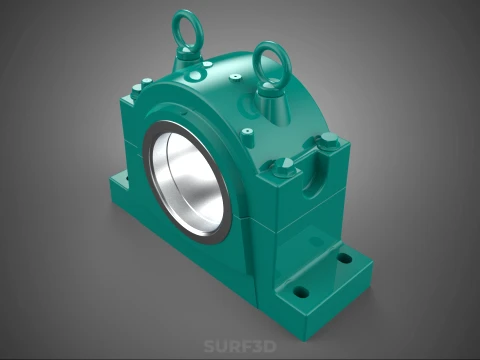

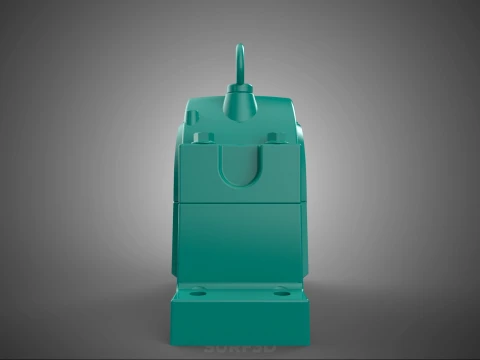

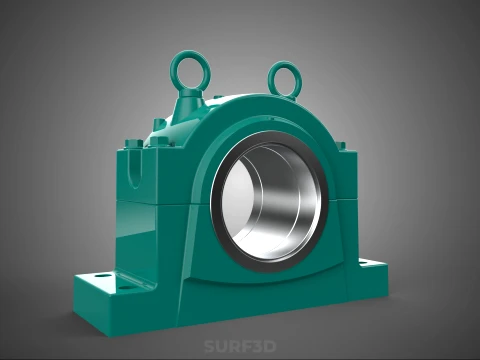

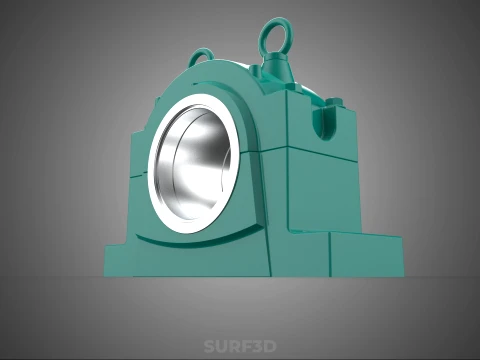

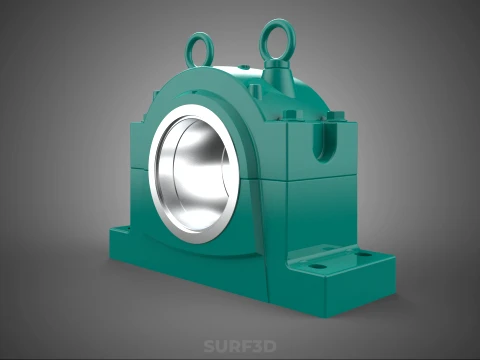

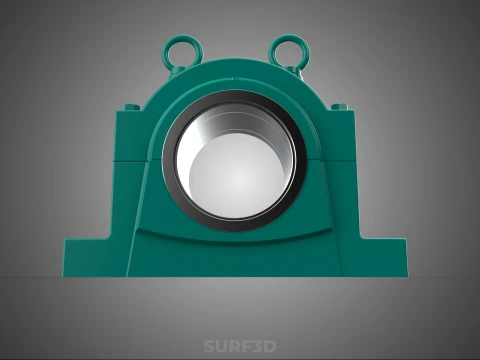

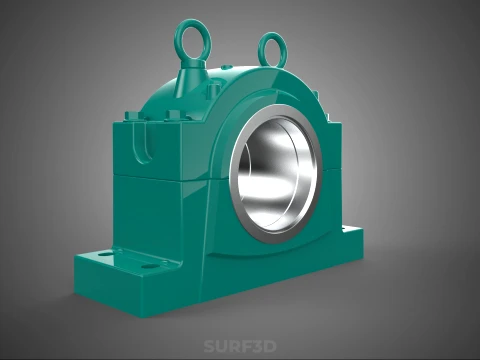

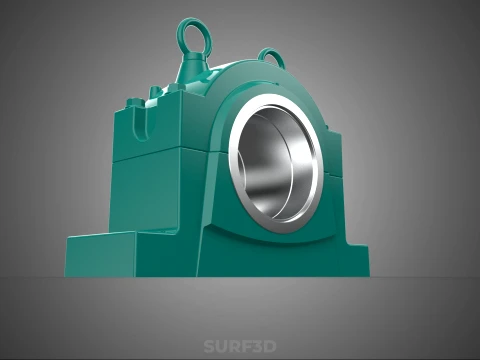

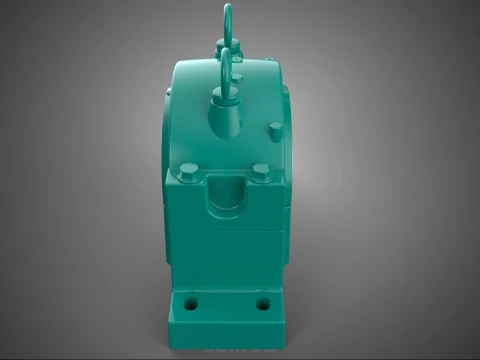

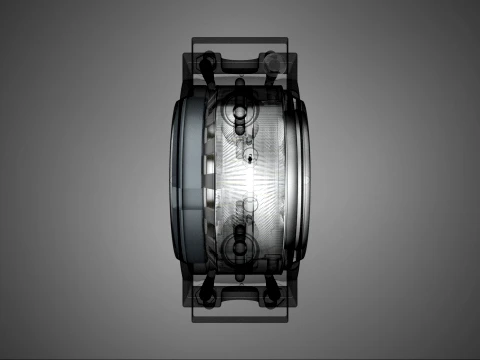

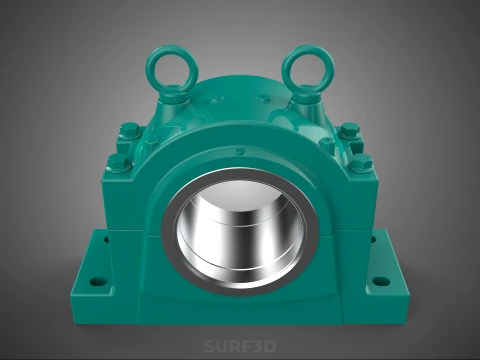

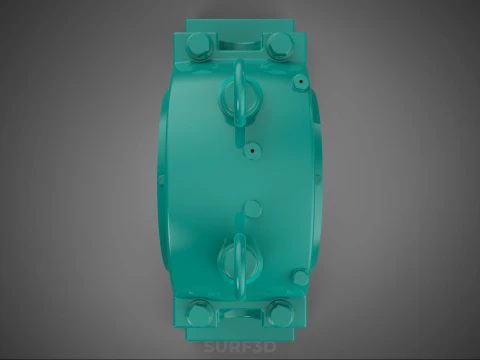

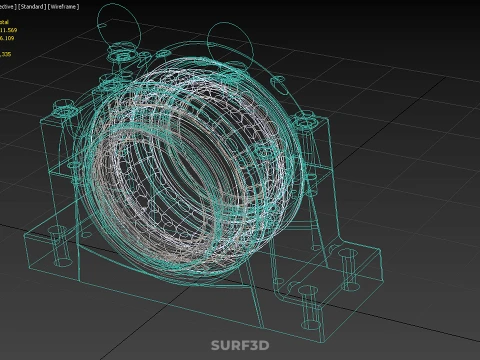

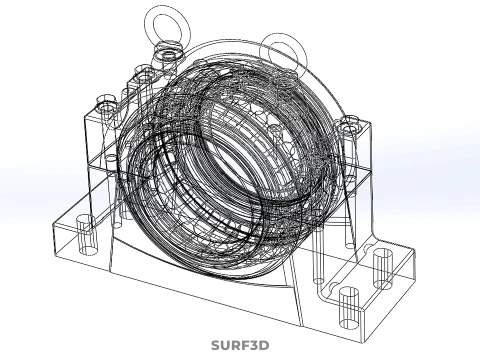

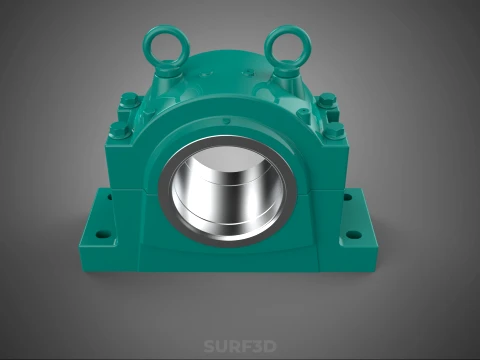

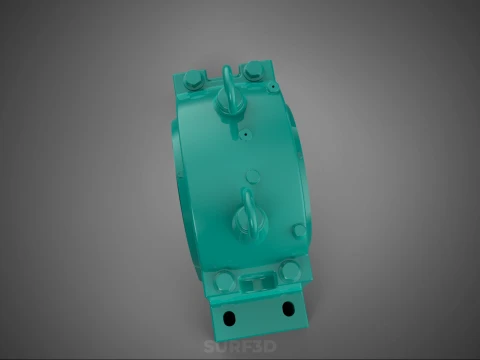

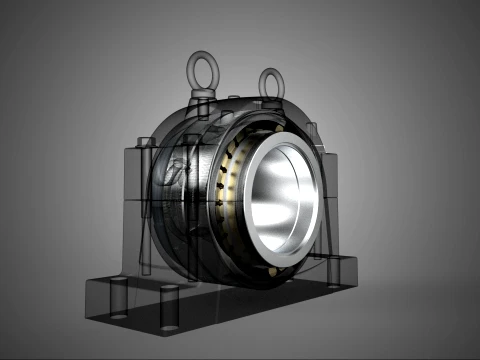

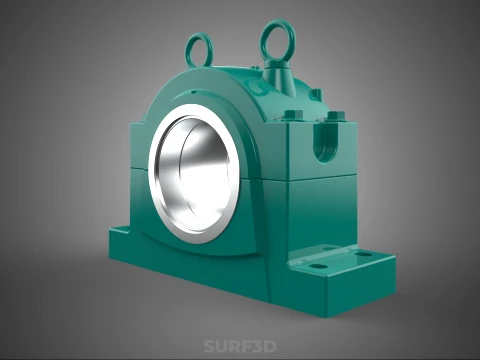

PILLOW BLOCK BEARING SPHERICAL ROLLER HOUSING SPLIT PLUMMER UNIT 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :

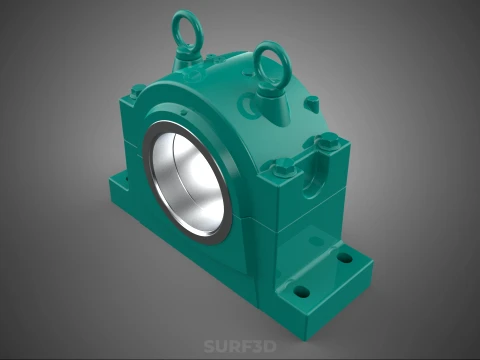

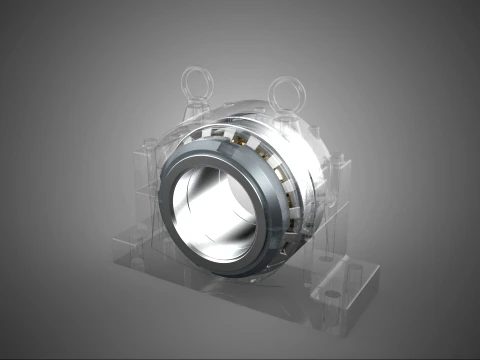

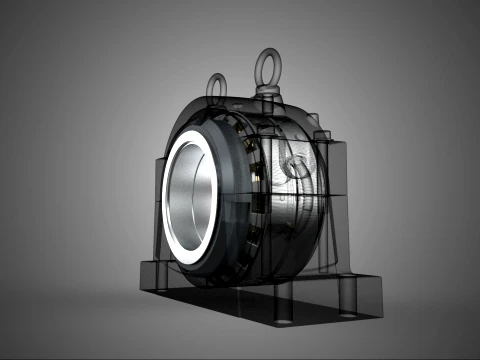

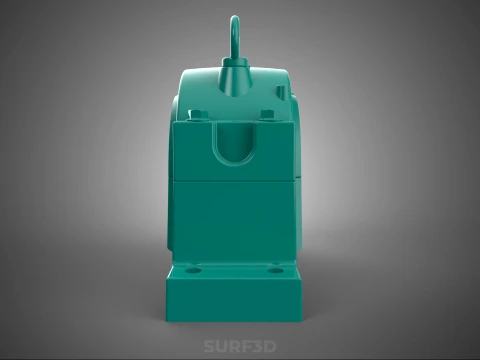

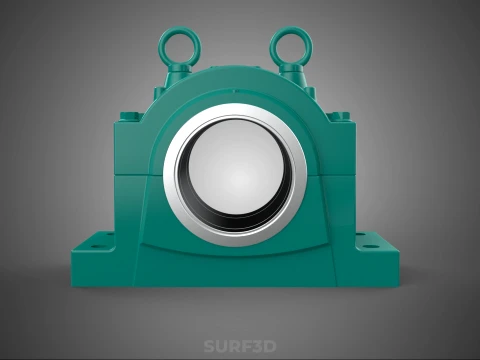

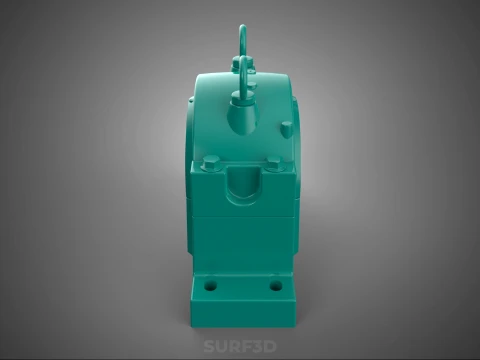

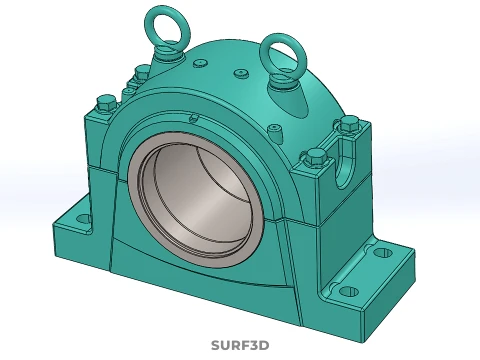

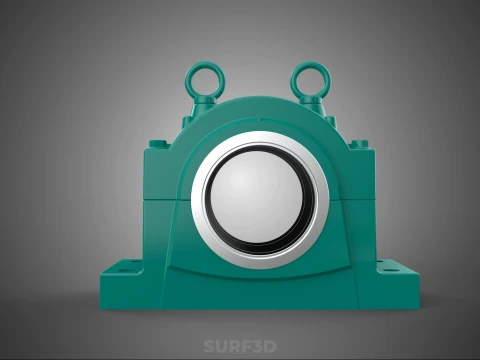

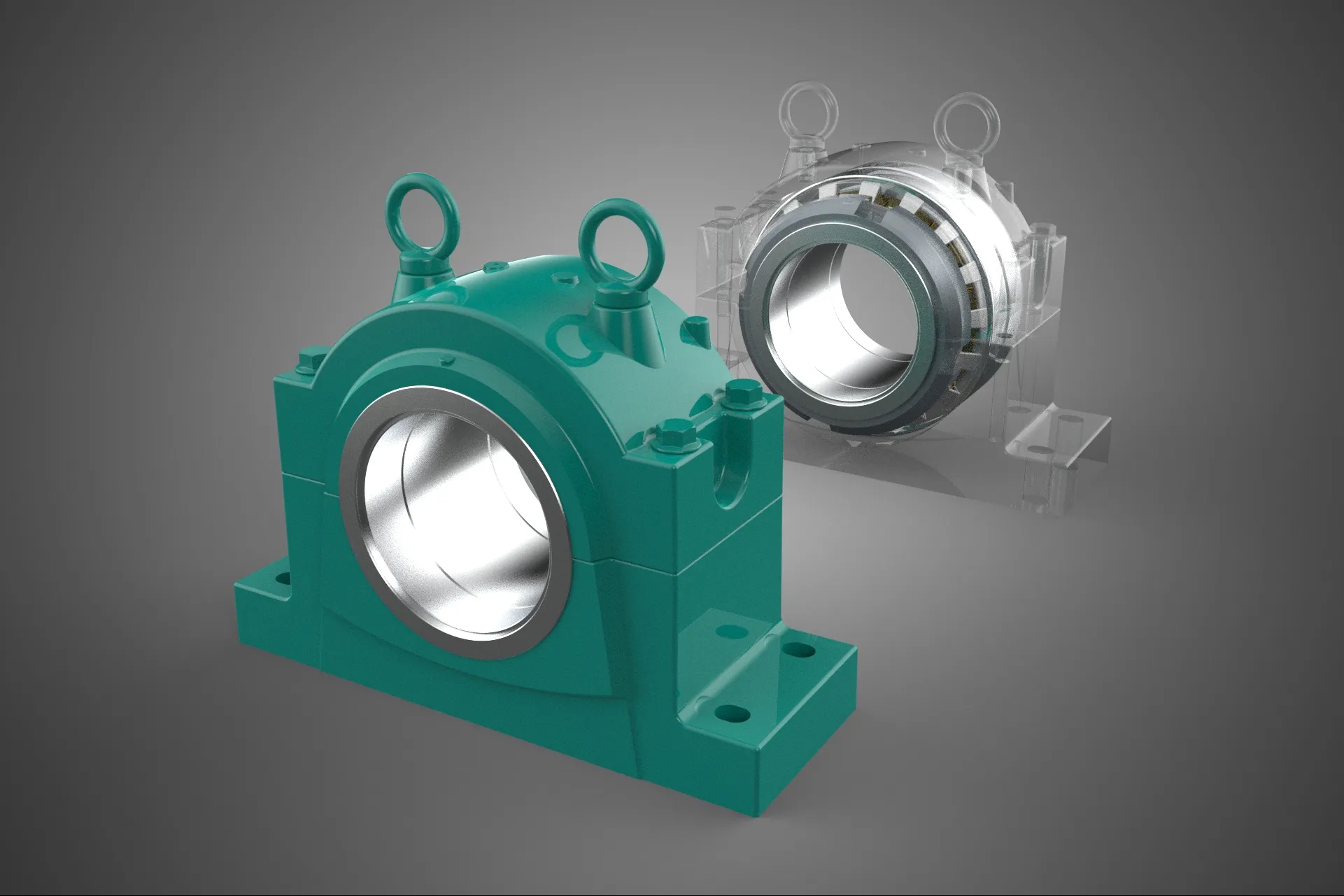

The Pillow Block Bearing Spherical Roller Housing, commonly referred to as a Split Plummer Block Unit, is a sophisticated mechanical assembly designed to support heavy-duty rotating shafts in demanding industrial environments. This specialized housing is typically constructed from high-strength materials such as gray cast iron, ductile iron, or cast steel to ensure structural integrity under significant radial and axial loads. The defining characteristic of this unit is its split-housing design, where the upper cap and lower base are separable. This feature facilitates easier installation, inspection, and maintenance of the spherical roller bearing without requiring the complete disassembly of the shaft or adjacent components. Spherical roller bearings housed within these units are particularly advantageous due to their self-aligning capabilities, allowing the system to accommodate shaft misalignment and deflection without compromising performance. These assemblies often feature integrated lubrication ports and specialized sealing solutions such as labyrinth seals, taconite seals, or felt strips to protect internal components from contaminants like dust and moisture while retaining essential grease or oil. Common applications for these units include conveyor systems, mining equipment, paper mills, and heavy-duty industrial fans, where reliability and ease of service are paramount for minimizing downtime in continuous operations.

KEYWORDS: pillow, block, bearing, plummer, housing, spherical, roller, industrial, mechanical, assembly, shaft, mounting, machinery, cast, iron, lubricant, seal, adapter, sleeve, heavy
