Description

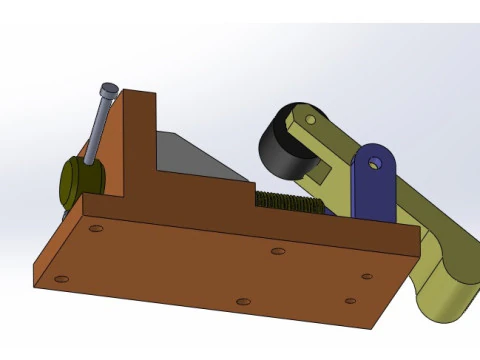

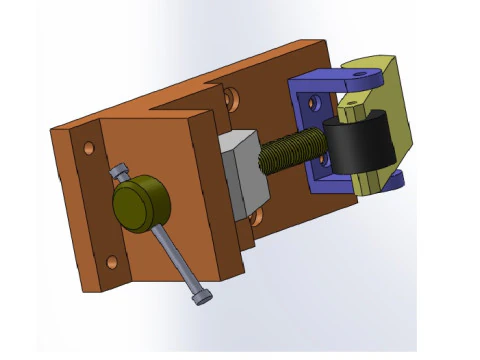

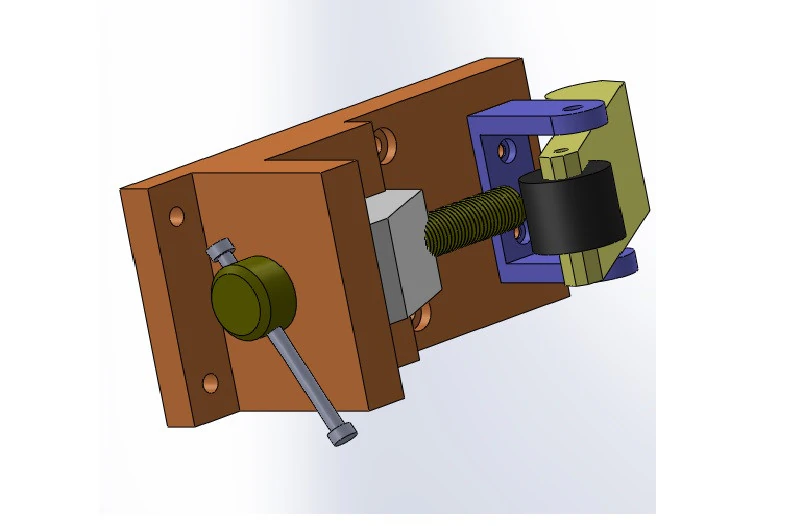

A screw-lever clamping mechanism is a hybrid mechanical system that combines a threaded screw and a lever to achieve both precise adjustment and rapid clamping.

The screw (threaded part) is used to set the initial position according to the size of the workpiece, allowing accurate and controlled adjustment.

Once the correct position is set, the lever is actuated to apply the final clamping force quickly and efficiently.

This mechanism is commonly used in fixtures, jigs, vises, and industrial clamping devices, where frequent adjustments and fast locking are required.

Key advantages include:

Precise initial adjustment

Fast locking and release

Reduced clamping time

Improved ergonomics and productivity
