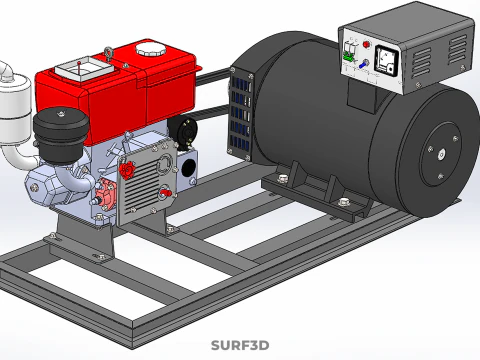

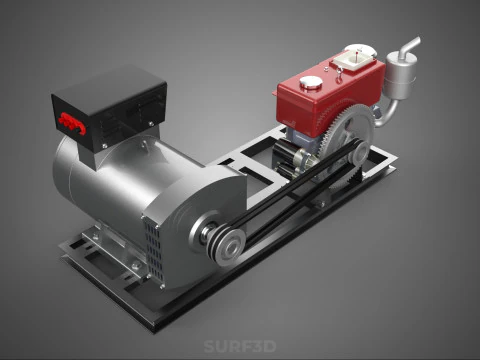

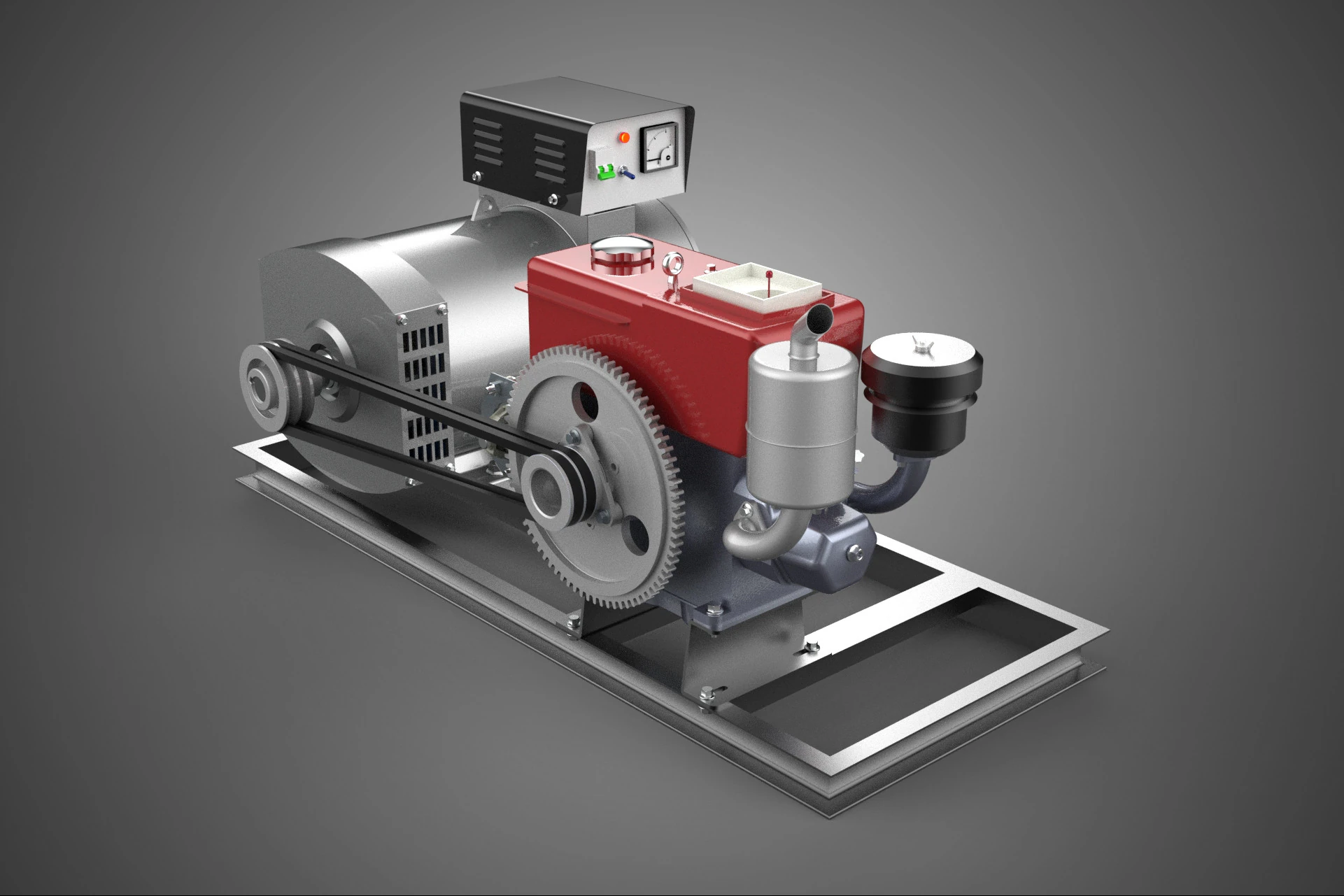

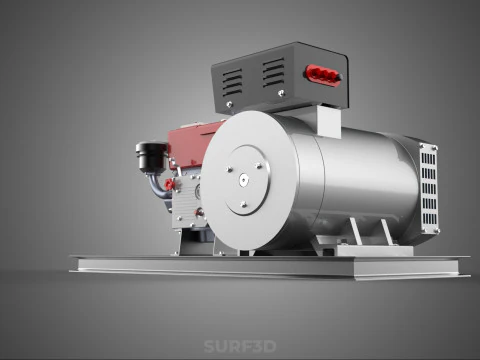

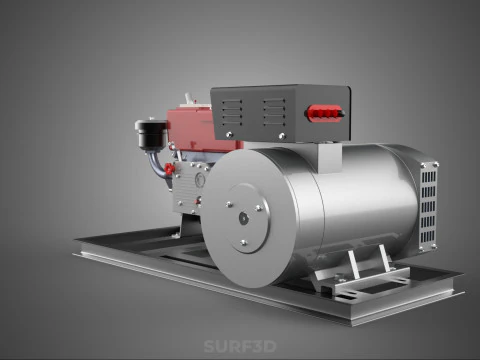

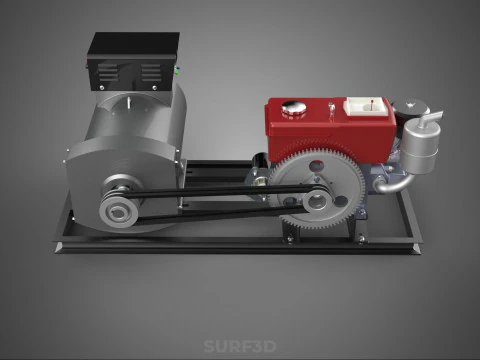

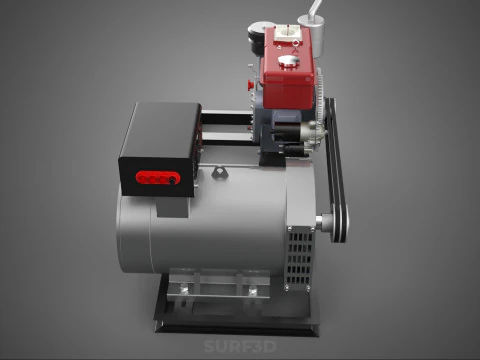

STANDARD DIESEL ELECTRICAL GENERATOR SETS BACKUP POWER GENSET KW 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
**STANDARD DIESEL ELECTRICAL GENERATOR SETS BACKUP POWER GENSET KW**

A standard diesel electrical generator set (genset) configured for backup power is an integrated electromechanical system designed to provide electrical energy automatically and reliably upon the failure or interruption of the primary utility power grid. These installations are critical infrastructure components universally employed in sectors requiring uninterrupted electrical supply, often referred to as Emergency Standby Power (ESP) systems.

### I. Definition and Function

The primary function of a backup diesel genset is to ensure business continuity and safeguard critical operations by acting as a secondary power source. The "standard" designation refers to conventional compression-ignition engines fueled by diesel, paired with synchronous alternators that produce alternating current (AC) electricity at defined voltage and frequency (typically 50 Hz or 60 Hz).

The capacity of these systems is quantified in Kilowatts (kW), representing the real power output capability of the set. This rating determines the maximum sustained load the generator can support during a grid outage. Standby power ratings are defined by international standards, such as ISO 8528-1, which specify the maximum power available for the duration of a utility outage, usually limited by a specific number of operating hours annually.

### II. Core Components and Architecture

A diesel backup genset is composed of three primary functional subsystems:

1. **The Prime Mover:** A diesel engine that converts the chemical energy stored in the fuel into mechanical rotational energy. The selection of the engine is governed by the required power output, transient response capability, and fuel efficiency targets.
2. **The Synchronous Alternator:** An electrical machine mechanically coupled to the prime mover via the crankshaft. It converts rotational mechanical energy into AC electrical energy through electromagnetic induction. Modern alternators feature automatic voltage regulators (AVRs) to maintain precise output voltage irrespective of load fluctuations.
3. **The Control System and Switchgear:** The control panel houses instrumentation for monitoring engine parameters (oil pressure, temperature, RPM) and electrical output (voltage, frequency, amperage). Crucially, the system includes an **Automatic Transfer Switch (ATS)**. The ATS continuously monitors the utility supply and, upon sensing a drop in voltage below preset thresholds, initiates the engine start sequence and subsequently transfers the electrical load from the failed grid to the genset output.

### III. Operational Classification and Power Ratings (kW/kVA)

While gensets are typically rated in apparent power (kVA – Kilovolt-Amperes), the real power output (kW – Kilowatts) is the definitive measure for supporting resistive and inductive loads.

* **Standby Power (ESP):** This is the rating most relevant to backup operation. It denotes the maximum power output permissible during a power outage, limited by operational hours (e.g., 200 hours per year) and maintaining a high level of reliability and quick start capability.
* **Transient Response:** A critical metric for backup systems, quantifying the speed and stability with which the generator responds to sudden changes in load, such as the startup of large motors or chillers, minimizing voltage dip and frequency deviations.

### IV. Deployment and Critical Applications

Diesel backup gensets are indispensable in environments where power interruption poses severe risks.

* **Data Centers:** Employed in N+1 or 2N redundancy configurations to maintain critical cooling and server operations, requiring immediate transfer capability, often within 10 seconds.
* **Healthcare Facilities (Hospitals):** Mandated by regulatory bodies to provide backup power for life support systems, operating theatres, and critical lighting, classified as essential loads.
* **Industrial and Manufacturing:** Used to prevent equipment damage, material spoilage, or costly shutdowns in processes like continuous casting or chemical production.
* **Telecommunications:** Ensuring the operability of cellular towers and central switching offices.

### V. Reliability and Environmental Considerations

Reliability is paramount for backup systems, frequently measured by Mean Time Between Failures (MTBF). Maintenance protocols, including routine testing using dummy loads (load banks), are employed to ensure engine readiness.

Environmental regulations, notably emissions standards established by agencies such as the U.S. Environmental Protection Agency (EPA) or the European Union (EU Stages), govern the design and operation of modern diesel gensets. These standards mandate stringent controls on particulate matter (PM) and Nitrogen Oxides ($\text{NO}_x$), often requiring advanced exhaust aftertreatment systems.

KEYWORDS: Diesel, Generator, Genset, Backup Power, Standby, KW, KVA, ATS, Prime Mover, Alternator, Emergency Power, Critical Load, ISO 8528, Reliability, Grid Failure, Synchronization, Transfer Switch, Load Bank, Emissions, Fuel Efficiency, Data Center, Hospital, Commercial, Industrial, Switchgear, Voltage Regulation, Frequency, MTBF, Cooling System, Fuel Tank, Transient Response.
