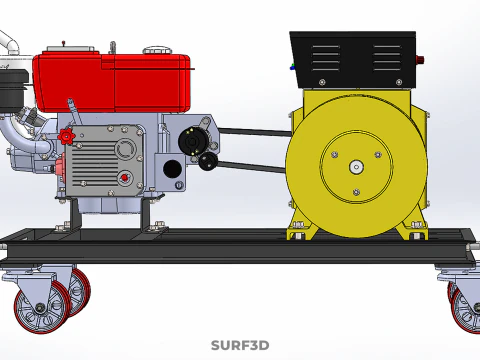

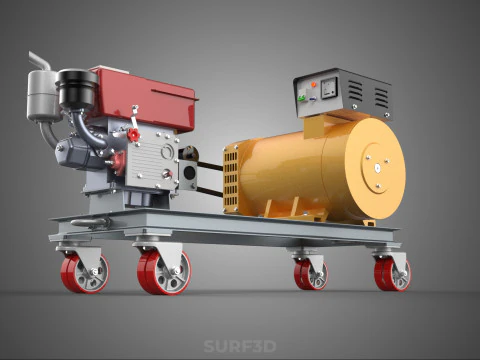

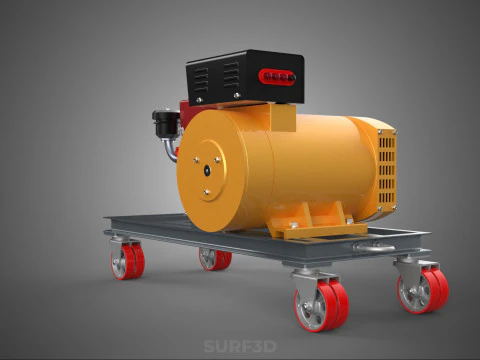

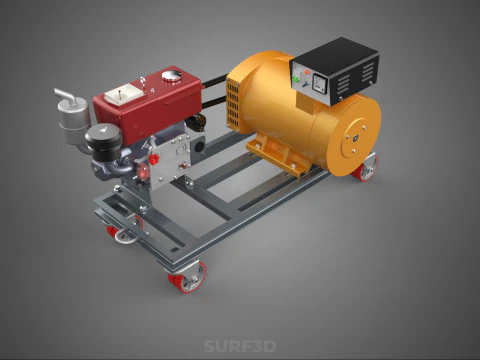

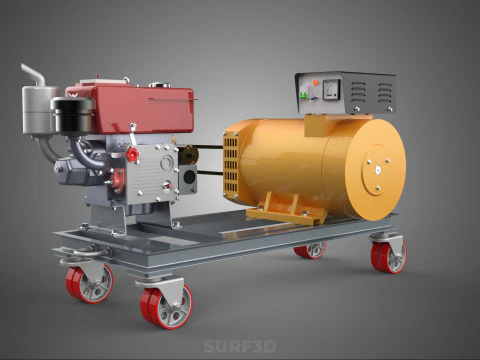

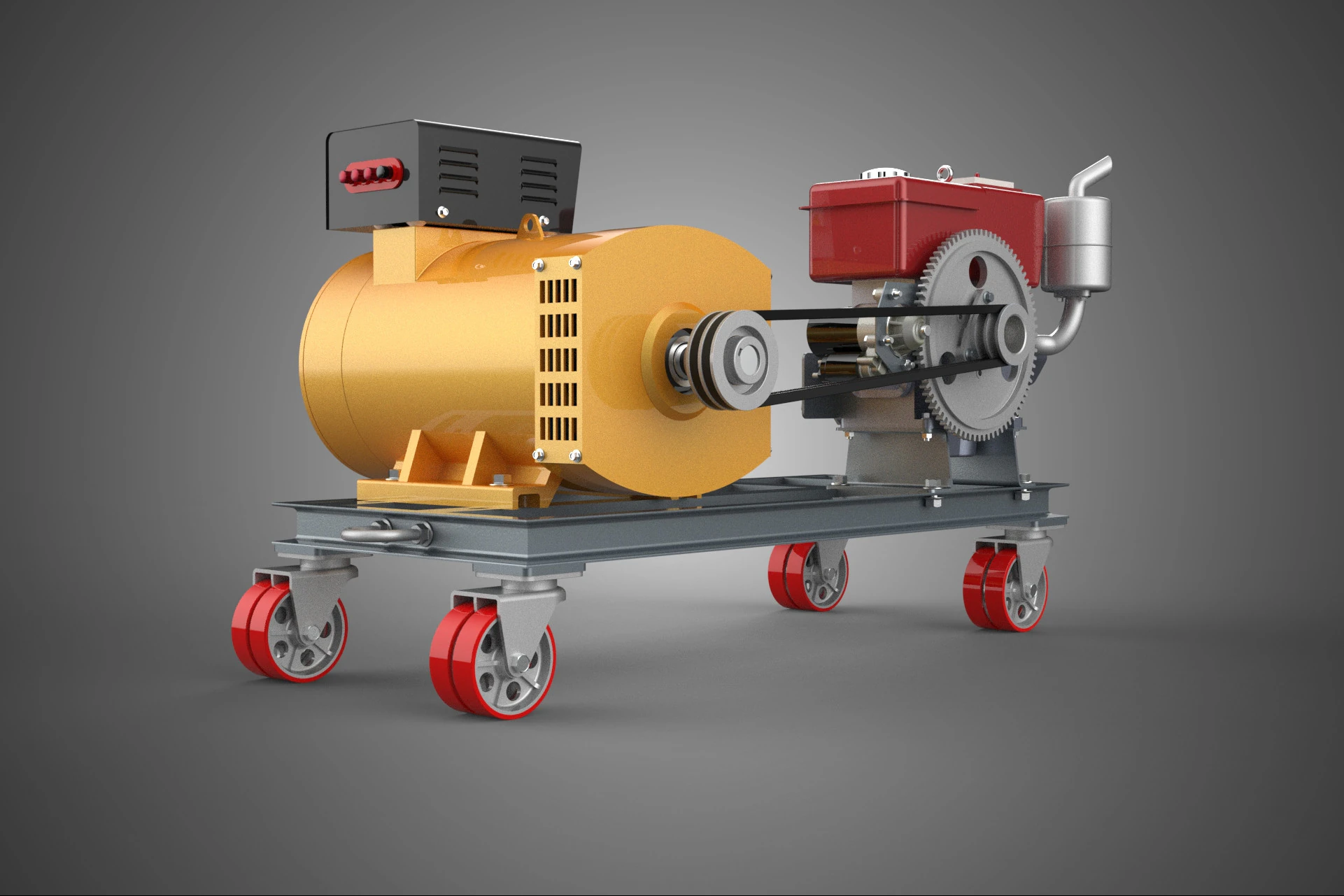

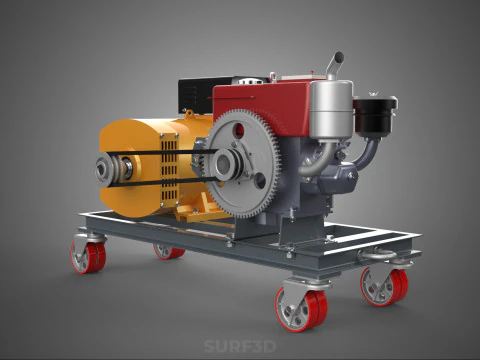

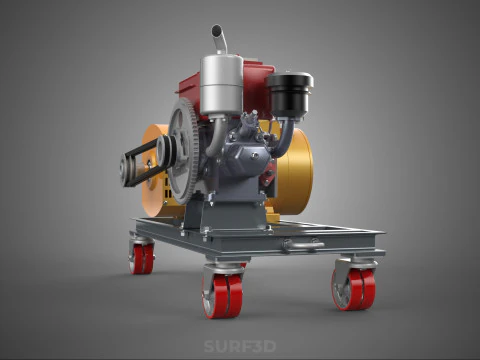

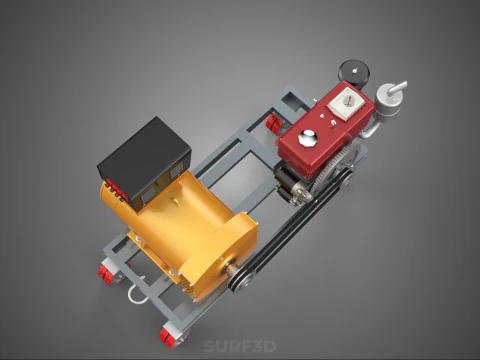

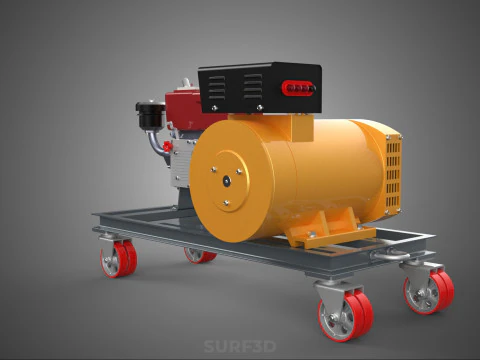

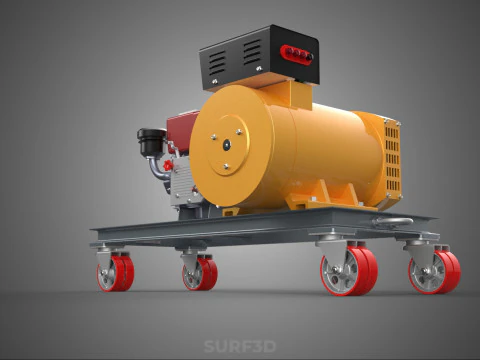

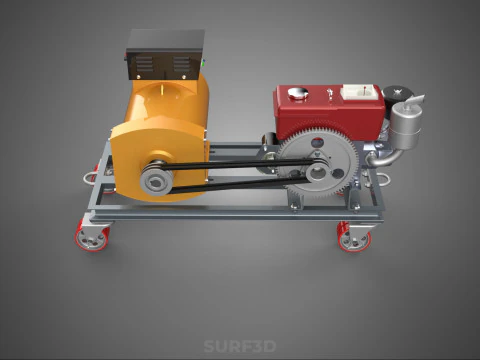

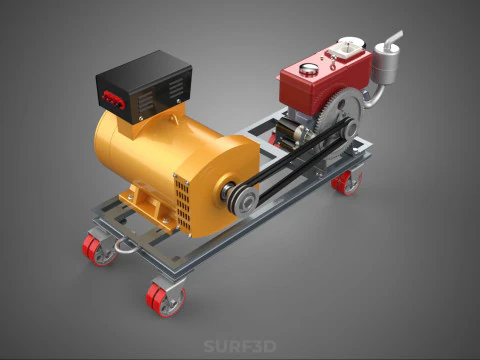

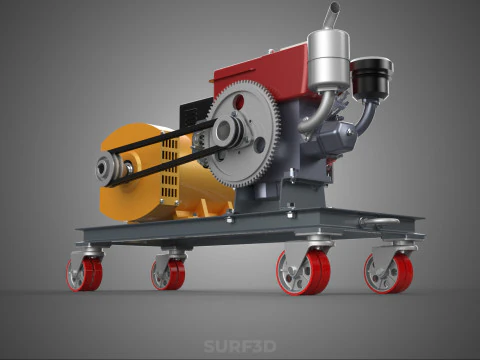

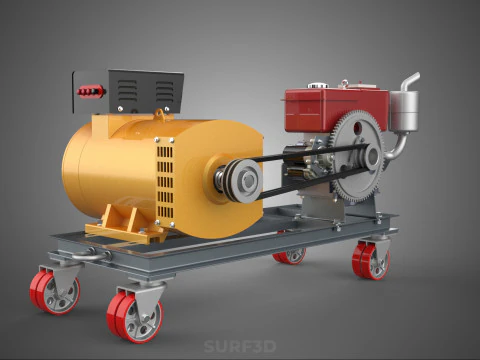

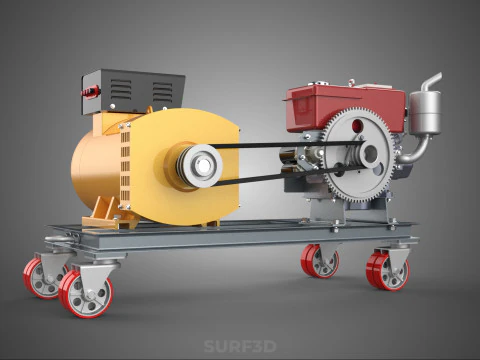

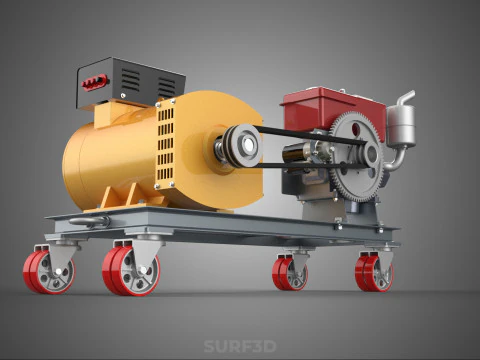

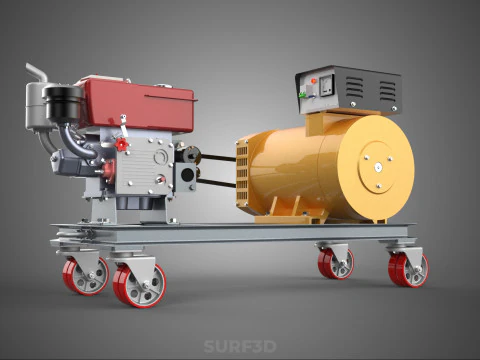

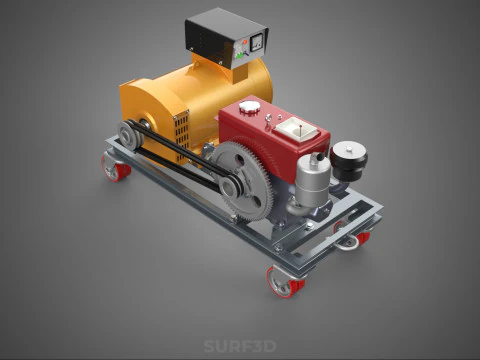

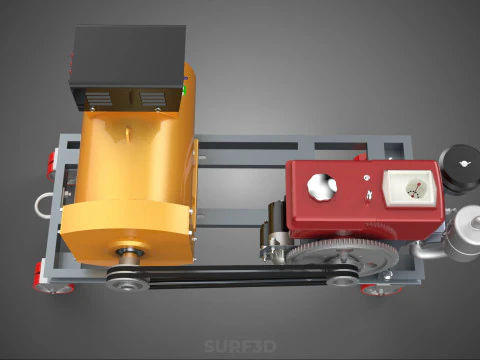

SWIVEL CASTER WHEEL DIESEL POWER GENERATOR SET GENSET ALTERNATOR 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :

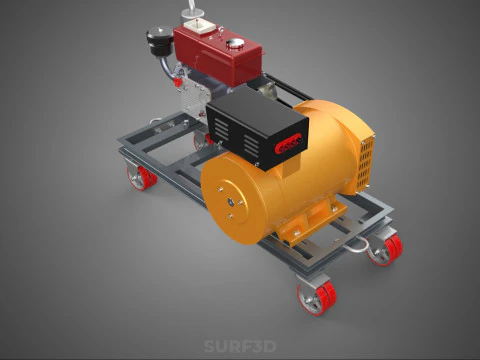

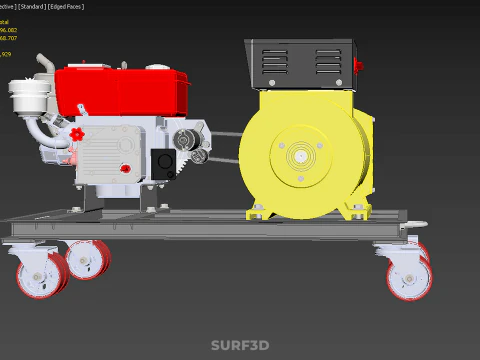

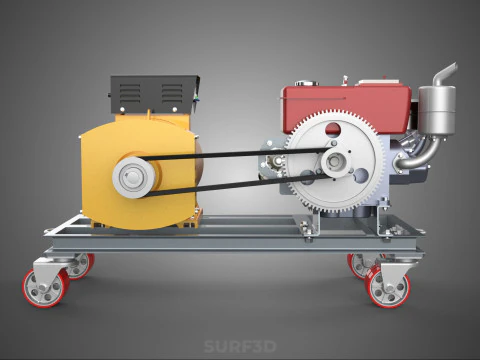

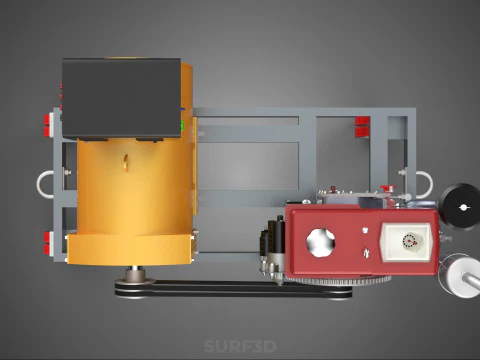

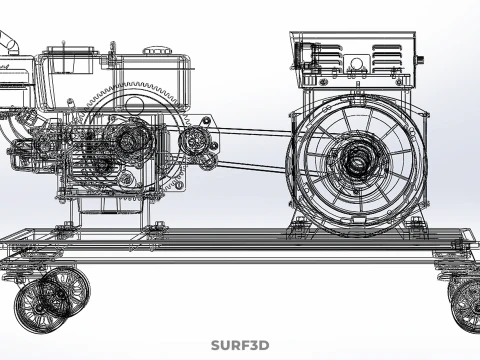

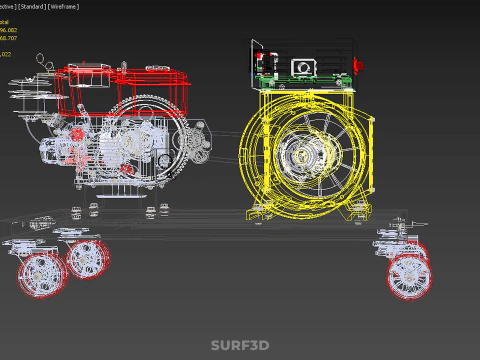

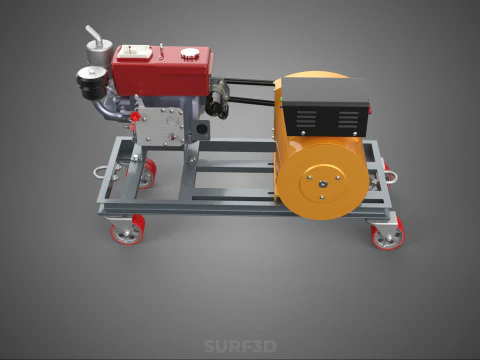

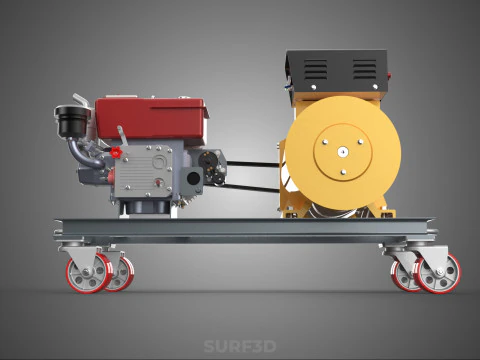

**Swivel Caster Wheel Diesel Power Generator Set Genset Alternator**

A Swivel Caster Wheel Diesel Power Generator Set (Genset) Alternator is a classification of mobile, self-contained electrical energy conversion apparatus characterized by its primary power source (diesel fuel) and its integrated system for localized maneuverability (swivel caster wheels). This configuration is optimized for applications requiring temporary, non-grid-**** electrical supply that necessitates frequent relocation within a confined operational area, such as industrial maintenance, small-scale construction, emergency response staging, or specialized testing facilities.

### Configuration and Function

The apparatus operates on the fundamental principle of electromechanical energy conversion. It comprises two principal coupled subsystems: the prime mover (the diesel engine) and the electrical generator (the alternator), housed within a specialized frame structure.

#### 1. The Diesel Prime Mover

The diesel engine serves as the prime mover, converting the chemical potential energy of diesel fuel through compression ignition into rotational mechanical energy. Diesel engines are selected for these gensets due to their inherent reliability, superior fuel efficiency (thermal efficiency), high torque output, and relatively extended service intervals, making them suitable for demanding, continuous, or standby power applications. The engine speed is precisely regulated, typically by an electronic or mechanical governor, to maintain a constant synchronous speed necessary for generating stable electrical frequency (e.g., 1500 RPM for 50 Hz or 1800 RPM for 60 Hz).

#### 2. The Alternator

The alternator is a synchronous alternating current (AC) electrical machine directly coupled (often via a rigid SAE coupling) to the engine crankshaft. Modern units typically employ brushless designs to minimize maintenance and enhance reliability. The alternator’s rotor contains field windings supplied by an excitation system, which induces voltage in the stationary stator windings. Output voltage and stability are managed by an Automatic Voltage Regulator (AVR), which modulates the field current to compensate for load fluctuations and maintain output within tight tolerance standards (e.g., NEMA or IEC). These mobile units usually produce single-phase or three-phase power, depending on the operational requirements.

#### 3. The Mobility System (Swivel Caster Wheels)

The distinguishing feature of this specific classification is the integration of heavy-duty swivel caster wheels into the base skid or frame. Unlike stationary units or large trailer-mounted systems, the caster wheels are designed for maneuverability on paved or hard-packed surfaces. Swivel casters (often equipped with polyurethane or iron wheels) allow for rotation about a vertical axis, providing directional control.

* **Construction:** The casters are bolted to a robust, often vibration-dampened steel base frame (skid).
* **Safety Features:** Given the substantial weight of a diesel genset (including the engine block, alternator, fuel tank, and frame), the casters must possess high load-bearing capacities. Critical safety features include locking brakes or total-lock mechanisms to prevent unwanted movement during operation, vibration isolation mounts placed between the engine/alternator assembly and the frame, and adequate grounding provisions.

### Control and Protection

All gensets incorporate a control panel that monitors both the mechanical state of the engine (e.g., oil pressure, coolant temperature, speed) and the electrical output (voltage, current, frequency, and kilowatt output). Sophisticated controllers include protection relays that initiate automatic shutdowns in the event of critical faults (e.g., overspeed, low oil pressure, high temperature, or electrical overload), safeguarding the apparatus and connected loads.

### Application Context

Gensets equipped with swivel casters are inherently designed for deployment flexibility in indoor or semi-enclosed environments, such as factory floors, hangars, laboratories, or large temporary event venues where power relocation is frequent but limited to short distances. They are essential tools for spot power delivery, maintenance outages, and localized backup power needs where permanent installation is impractical.
