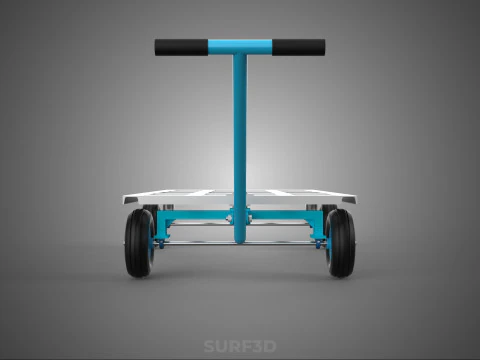

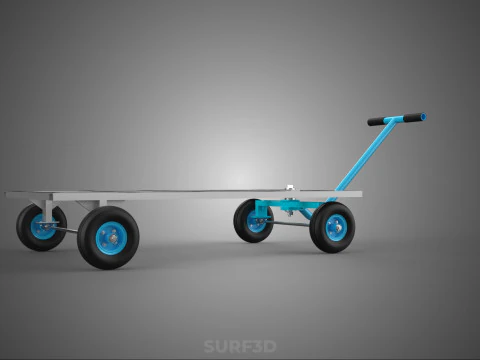

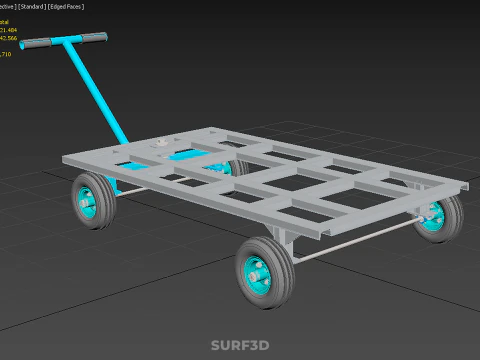

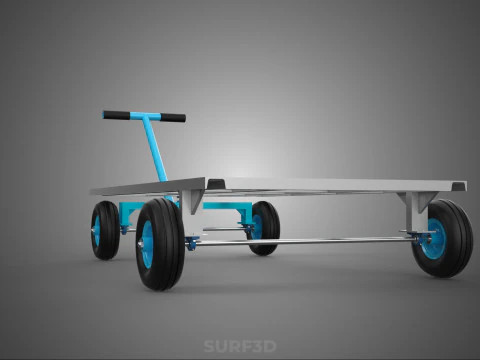

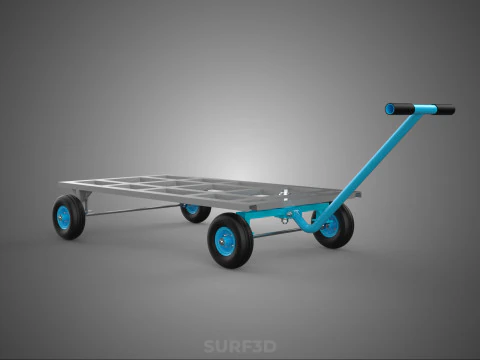

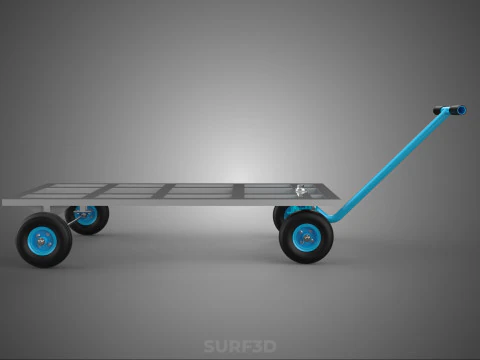

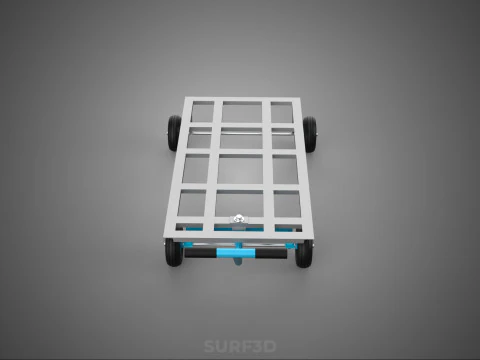

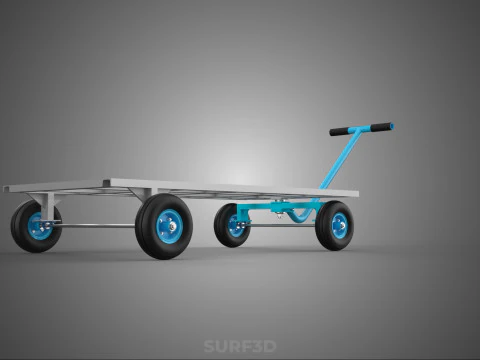

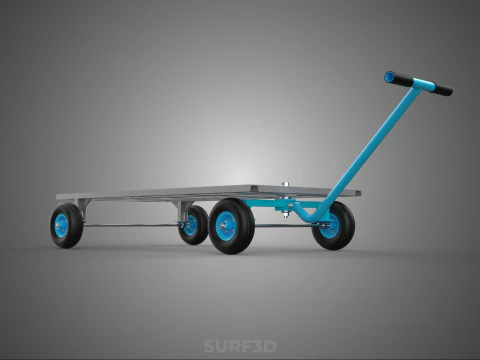

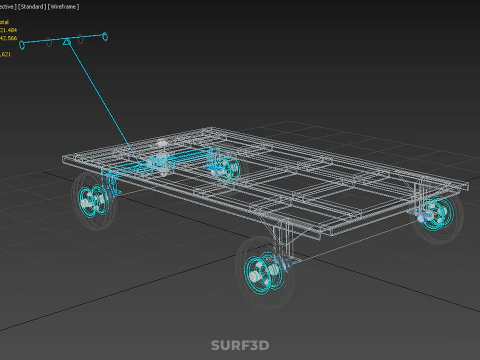

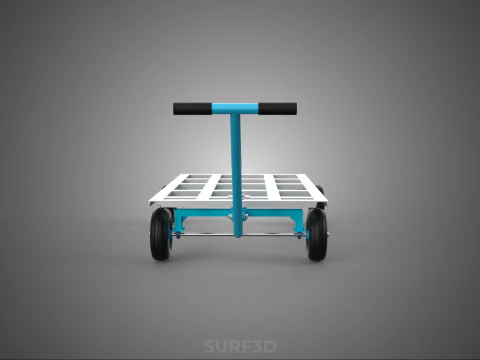

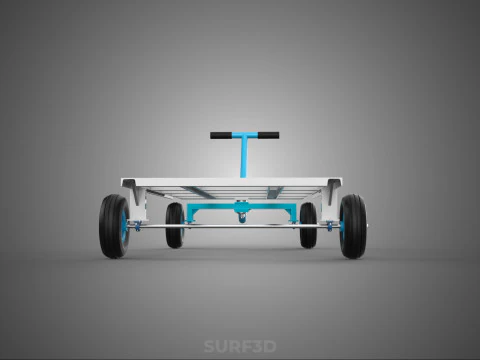

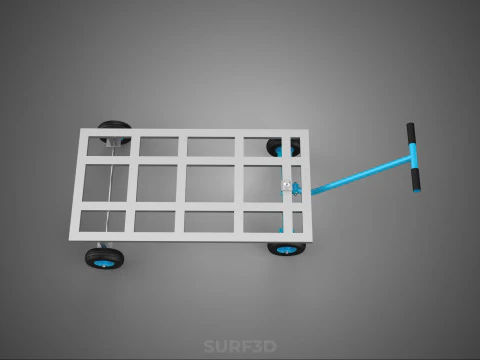

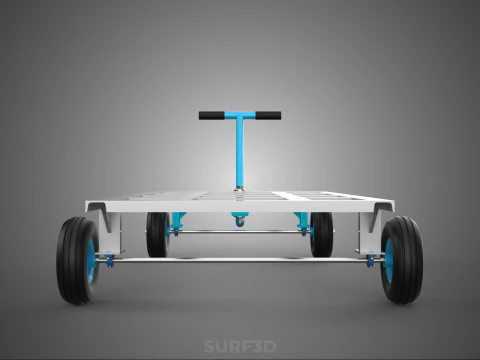

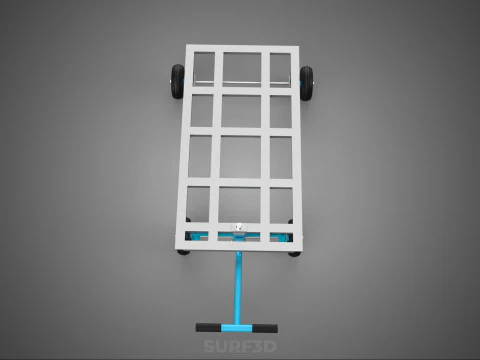

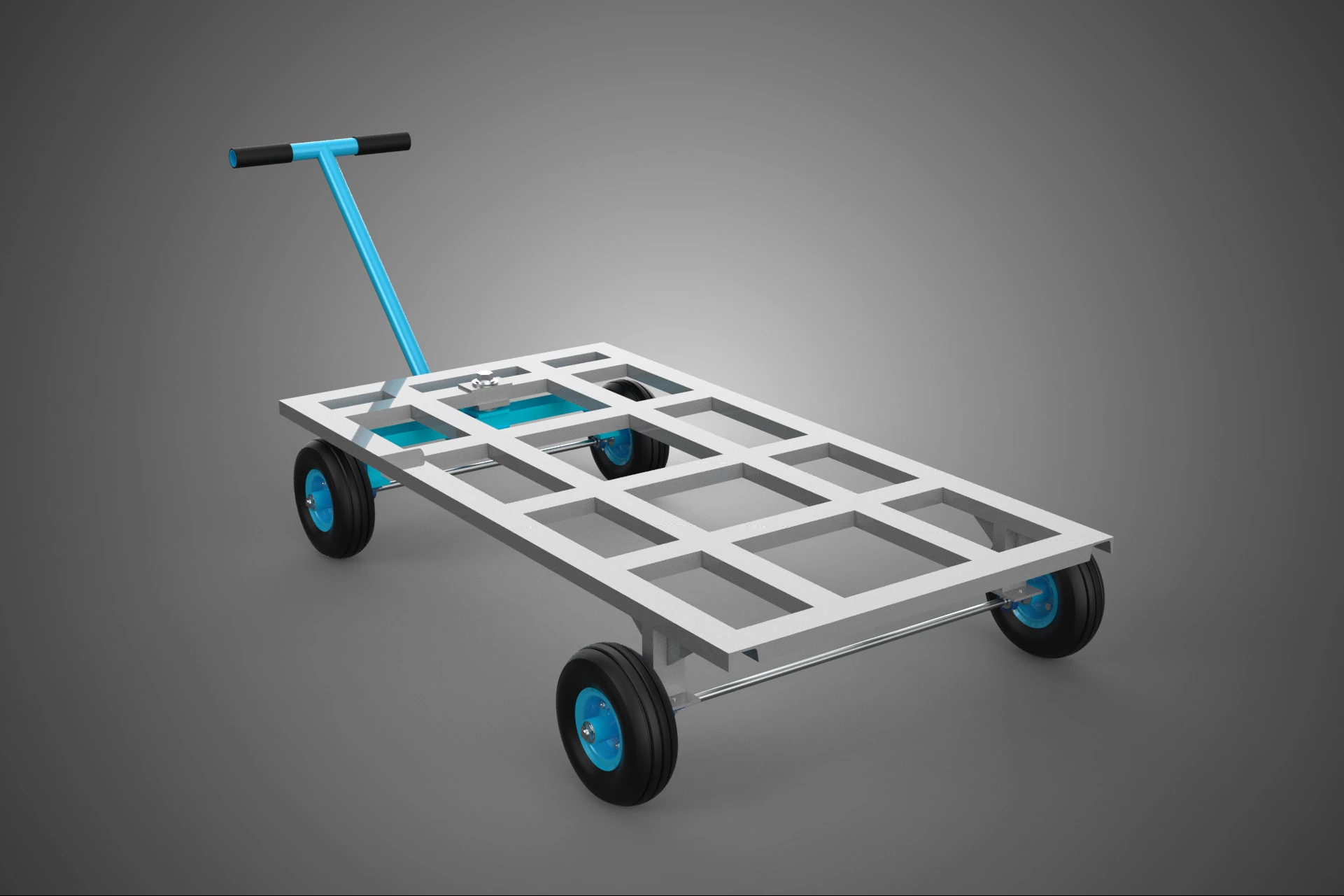

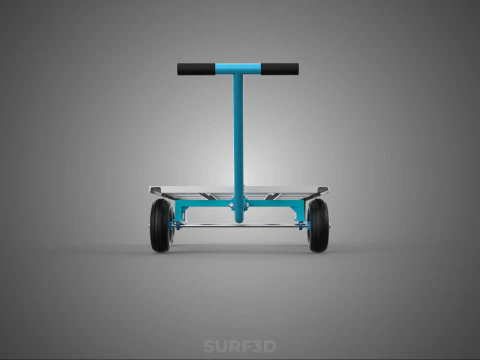

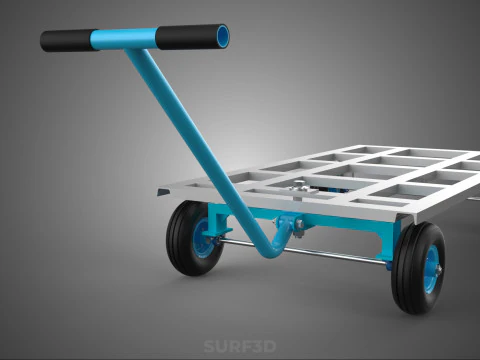

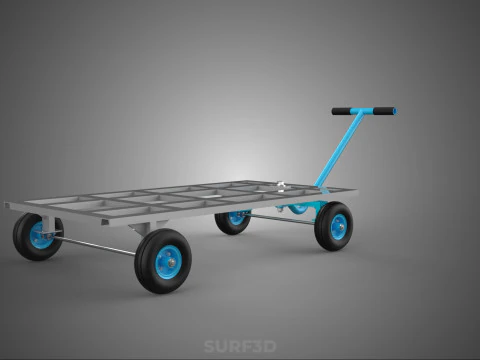

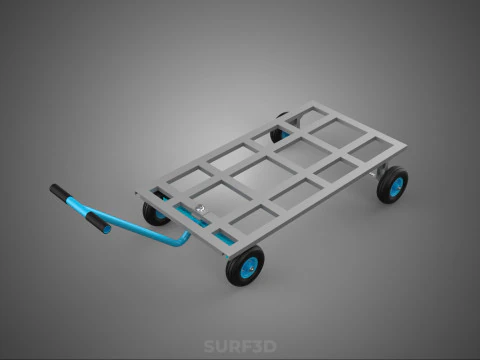

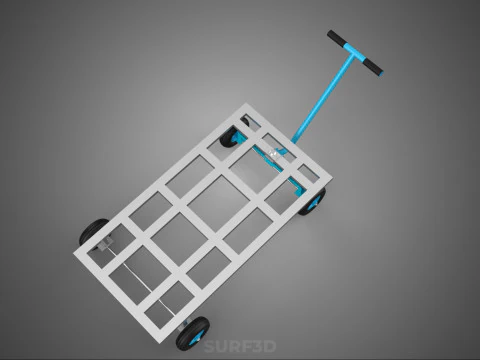

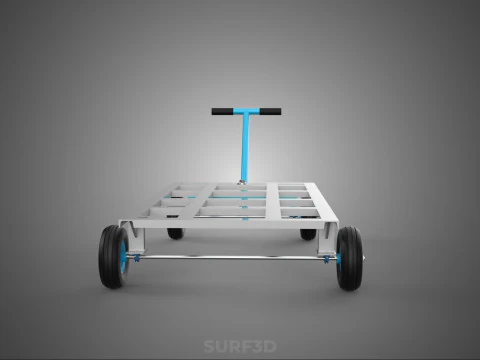

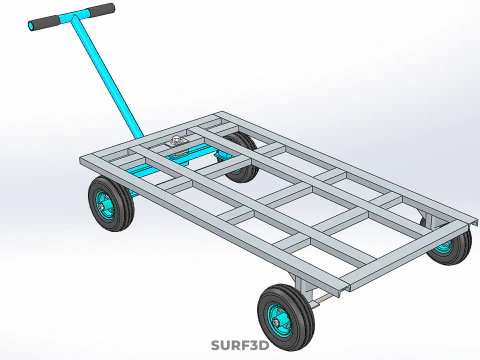

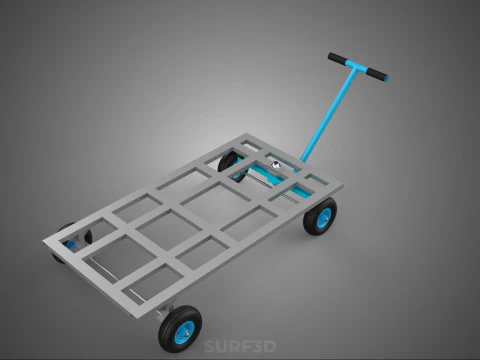

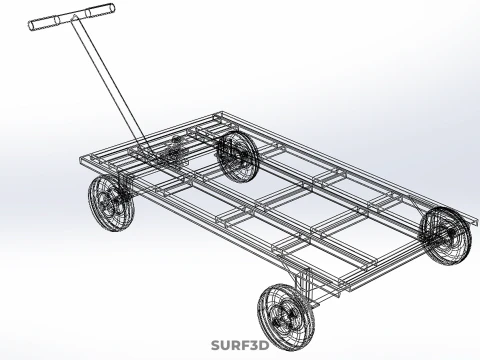

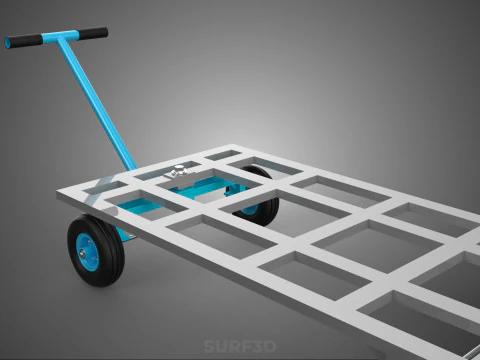

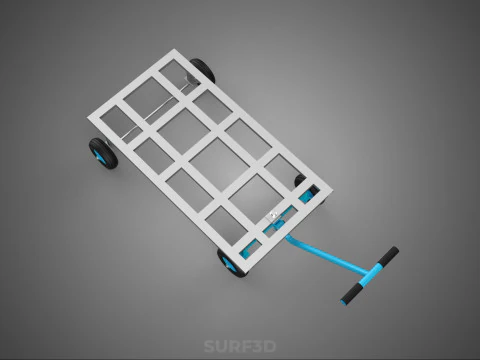

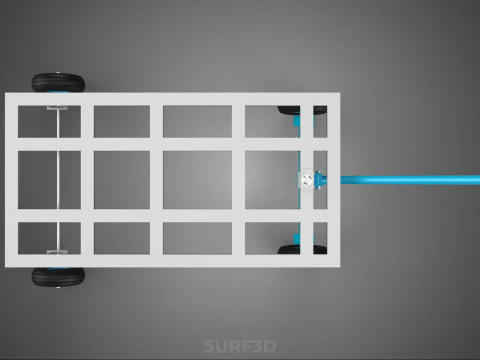

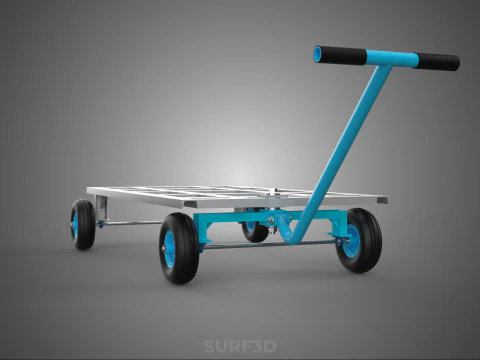

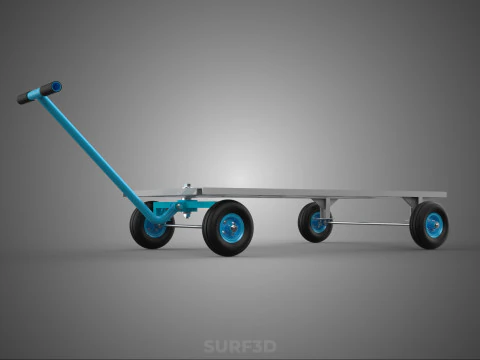

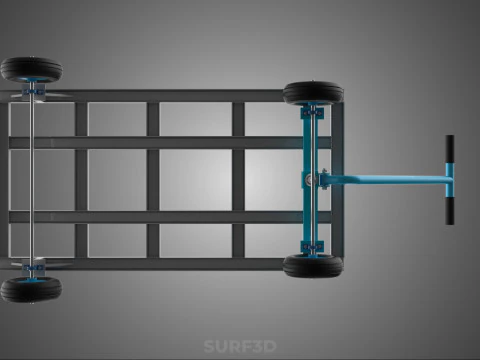

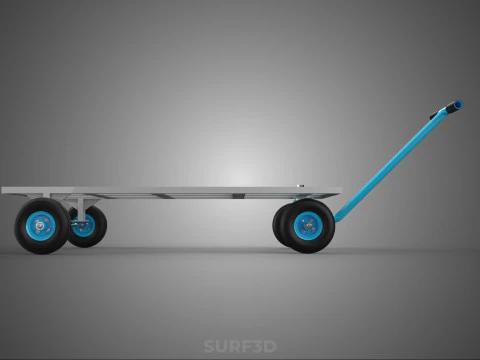

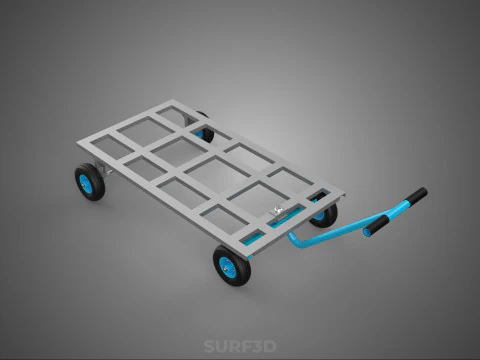

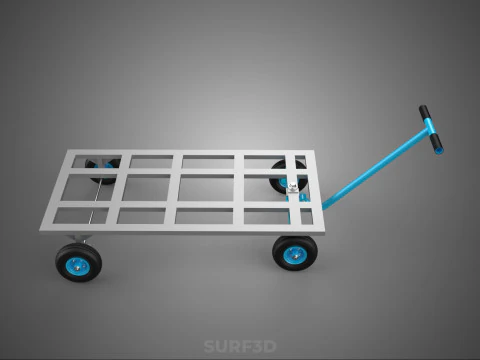

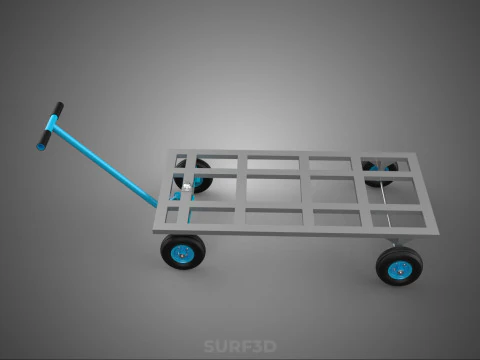

T-HANDLE SWIVEL STEERING FLATBED TROLLEY CART TRANSPORT PALLET 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The T-Handle Swivel Steering Flatbed Trolley Cart Transport Pallet is a specialized piece of non-motorized industrial material handling equipment designed for the controlled horizontal movement of heavy, bulky, or ******* loads within defined operational environments, such as manufacturing plants, warehouses, workshops, and distribution centers. This apparatus integrates specific features—a low-profile flatbed, an ergonomic T-handle interface, and advanced articulation via swivel steering—to optimize maneuverability and load stability.

### Nomenclature and Definition

The designation reflects its composite characteristics:
* **Flatbed Trolley Cart:** Refers to the main structure—a wheeled platform lacking high containment walls, providing a large surface area suitable for oversized or palletized cargo.
* **Swivel Steering:** Indicates the capacity for the running gear (typically the front axle assembly) to articulate directionally through manual input, offering superior control and tighter turning radii compared to fixed-caster or rigid-axle carts.
* **T-Handle:** Defines the specific ergonomic design of the operator interface, providing enhanced leverage and directional input.
* **Transport Pallet:** Emphasizes its role in moving loads traditionally handled by stationary pallets, often involving substantial dynamic load capacities (ranging from 500 kg to over 5,000 kg in heavy-duty variants).

### Design and Construction

The structural integrity of the flatbed trolley is paramount for safety and longevity.

**Chassis and Deck:** The flatbed (or deck) is generally constructed from heavy-gauge welded structural steel, reinforced tubular sections, or dense hardwood laminated onto a steel frame. The deck surface is frequently treated with non-slip materials (e.g., vulcanized rubber or textured paint) to prevent load shift during transit. The low deck height facilitates easy loading, either manually or via ancillary equipment such as bridge cranes or specialized lift tables.

**Running Gear:** The wheels are dimensioned and composed based on the intended operational environment and load capacity. Common materials include polyurethane, solid rubber, or pneumatic tires, optimized for load cushioning and floor protection. The wheel configuration typically involves four or six wheels.

### Steering Mechanism

The distinguishing feature is the swivel steering system, which connects the T-handle directly to the front wheel assembly. This mechanism allows the operator to precisely dictate the direction of travel via the handle’s lateral movement.

1. **Axle Articulation:** Unlike simple caster carts where wheels pivot independently based on resistance, swivel steering mandates the synchronized turning of the primary steering wheels.
2. **T-Handle Integration:** The T-handle serves as the mechanical linkage. When not in active use, the T-handle often incorporates a spring-return mechanism (sometimes gravity-actuated) that locks the handle into an upright position. This vertical position serves a dual function: it minimizes trip hazards and frequently engages a parking brake or wheel stop feature, ensuring the cart remains stationary during loading or unloading operations.

### Operational Application

T-Handle Swivel Steering Flatbed Trolleys are essential components in Lean Manufacturing and industrial logistics where precise, controlled movement of specialized tools, components (like injection molds or jigs), or works-in-progress is required. They are valued in environments requiring tight clearances or where motorized transport is impractical due to safety concerns or spatial constraints. Their high load capacity and superior directional control make them ideal for heavy staging tasks, die transfer, or conveyance of components between adjacent workstations.

KEYWORDS: Material handling, Industrial transport, Flatbed cart, Swivel steering trolley, T-Handle, Platform cart, Warehouse equipment, Logistics apparatus, Heavy duty transport, Die transfer, Utility trolley, Manual push cart, Non-motorized conveyance, Load stability, Ergonomic control, Industrial dolly, Manufacturing logistics, Workshop transport, Pallet carriage, Steerable cart, Axle articulation, Welded steel construction, Load capacity, Floor protection wheels, Staging equipment, Bulk material mover, Distribution center cart, Spring-return handle, Directional control, Internal transport.
