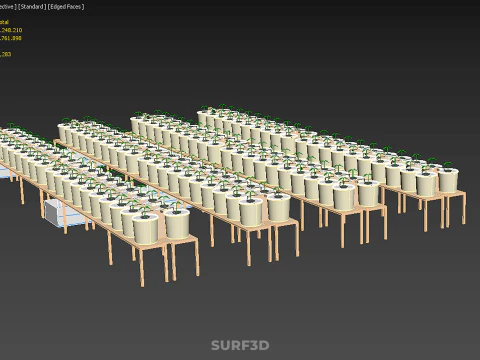

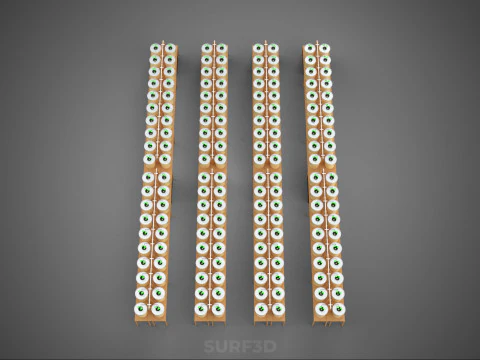

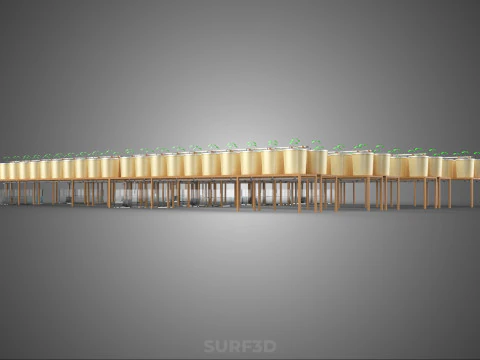

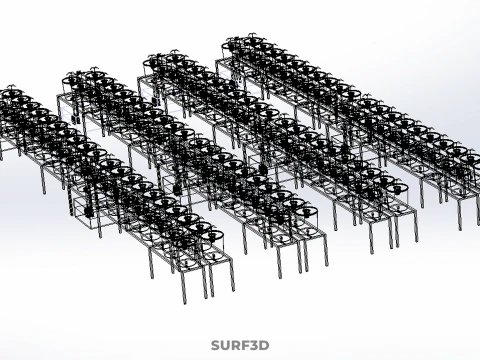

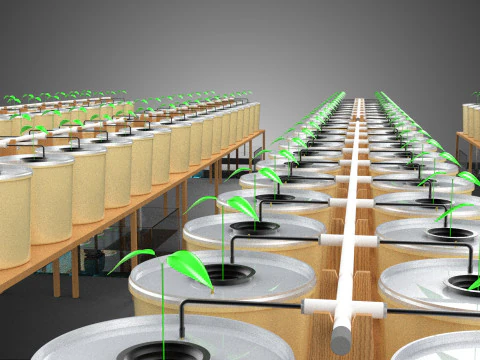

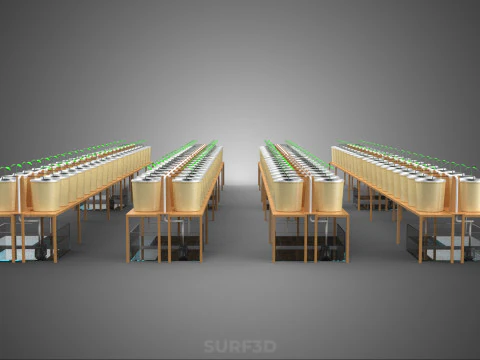

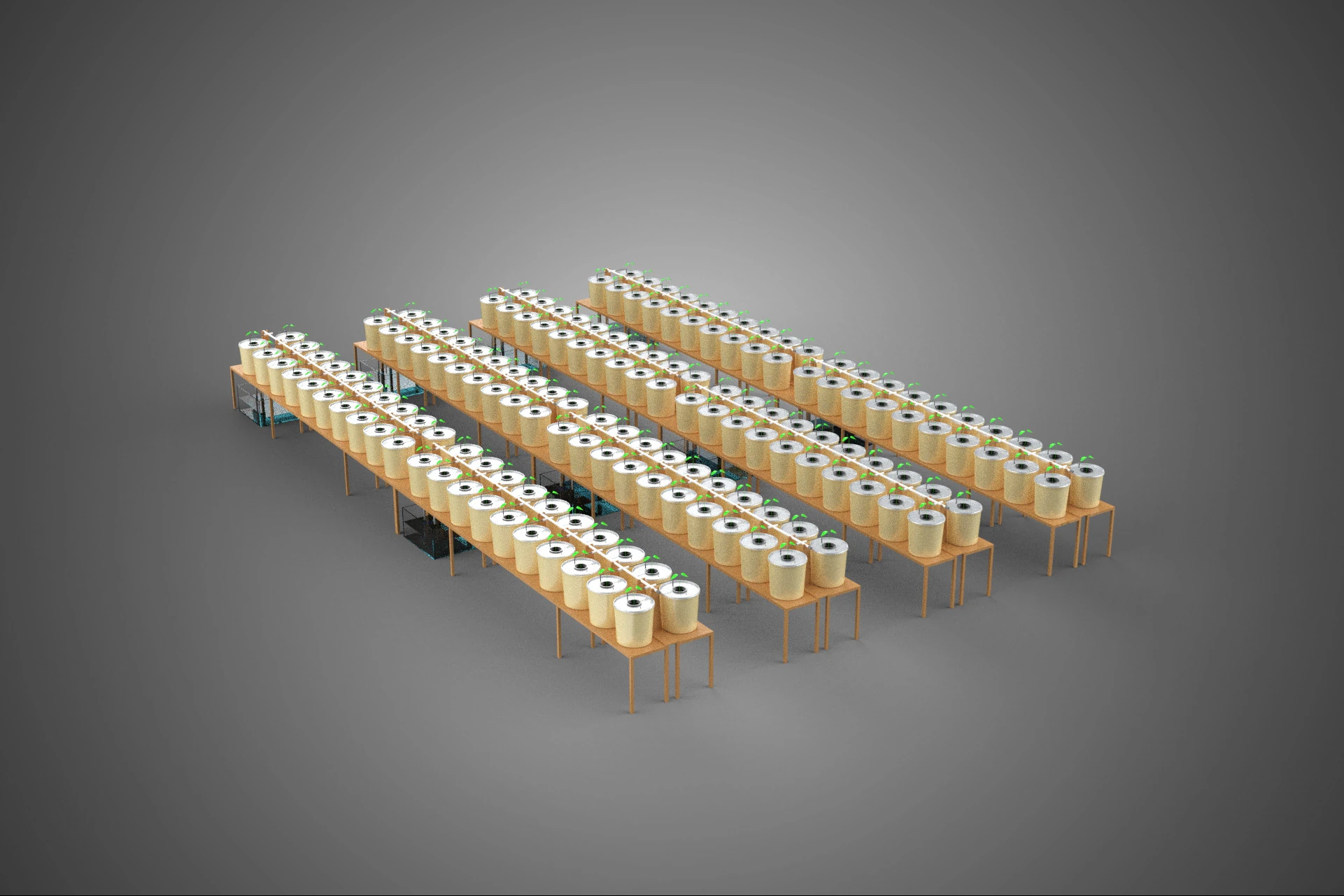

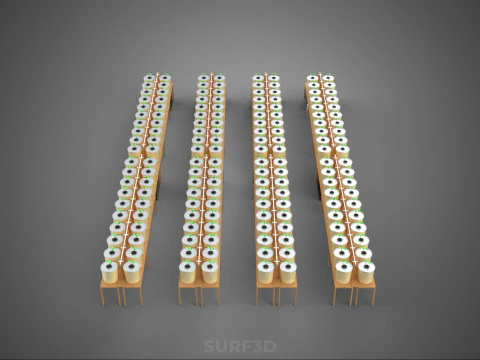

TECHNICAL DIAGRAM MODULAR DUTCH BUCKET INDOOR HYDROPONIC SYSTEM 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The Technical Diagram Modular Dutch Bucket Indoor Hydroponic System illustrates a sophisticated, closed-loop recirculating hydroponic methodology optimized for Controlled Environment Agriculture (CEA). This design, utilizing the Bato Bucket (or Dutch Bucket) technique, provides a versatile and scalable platform for growing large, fruiting, or long-duration crops such as tomatoes, peppers, cucumbers, and cannabis, which require high levels of structural support and precise nutrient management. The diagram functions as a blueprint, specifying the structural, hydraulic, and electrical components necessary for efficient indoor operation.

### System Architecture and Components

The core of the system is the individual growing module—the Dutch Bucket. These containers, typically constructed from high-density, UV-resistant plastic, are designed to hold an inert growing medium (e.g., perlite, coco coir, or rockwool) and are arranged linearly or in parallel rows. Key components detailed in the technical diagram include:

1. **Nutrient Reservoir (Tank):** A centralized vessel for holding and mixing the hydroponic nutrient solution (water, macronutrients, and micronutrients). Its volume is specified based on the system's total plant count and recirculation rate.
2. **Submersible Pump and Delivery Manifold:** A pump draws solution from the reservoir, propelling it through a main feeder line (supply manifold) to distribution points.
3. **Drip Emitters:** Small-diameter tubing (often spaghetti tubing) and pressure-compensated emitters ensure calibrated, uniform delivery of nutrient solution directly to the base of the root zone in each bucket.
4. **Drainage System (Return Manifold):** Each Dutch Bucket contains a standpipe or specialized drain elbow fitted near the bottom. This standpipe maintains a shallow reservoir of nutrient solution at the base of the bucket, providing localized root moisture and oxygenation, while excess solution drains via gravity into a common return line (drain manifold, typically PVC piping).
5. **Control and Monitoring Unit:** The diagram often includes schematics for electronic timers or advanced programmable logic controllers (PLCs) that manage irrigation cycles and regulate environmental parameters such as pH, Electrical Conductivity (EC), and lighting cycles.

### Operational Mechanism and Recirculation

The system operates on a timed, intermittent schedule. When activated, the pump delivers the nutrient solution to the drip emitters, which saturate the inert medium. The medium provides physical anchoring, while the solution provides hydration and nutrition. Since the system is closed-loop (recirculating), all leachate (drainage water) is collected by the return manifold and channeled back to the main reservoir. This recirculation minimizes water and nutrient waste, significantly enhancing resource efficiency compared to open-loop (drain-to-waste) systems. Regular monitoring of the reservoir’s chemical composition is essential for maintaining optimal root health.

### Modular and Indoor Specifications

The designation "Modular" refers to the system's flexible design, allowing individual buckets or entire rows to be added, removed, or serviced independently without requiring system shutdown or reconfiguration of the main reservoir and pump infrastructure. This scalability is critical for commercial indoor applications where maximizing space utilization and minimizing downtime are priorities. The "Indoor" specification dictates requirements for artificial lighting integration (e.g., LED or HPS fixtures, not depicted but referenced in environmental control specifications), ventilation systems, and insulation to maintain optimal temperature (18°C to 28°C) and humidity (50% to 70% RH). The technical diagram provides precise measurements for spacing, pipe sizing (e.g., 3/4 inch supply line, 2-inch return line), hydrostatic pressure requirements, and materials required for long-term resistance to nutrient salts and disinfectants.

KEYWORDS: Hydroponics, Dutch Bucket, Bato Bucket, Recirculating System, Controlled Environment Agriculture, CEA, Technical Diagram, Modular Design, Indoor Cultivation, Nutrient Film Technique, Drip Irrigation, Reservoir, Submersible Pump, Inert Medium, Perlite, Coco Coir, Leachate, EC Monitoring, pH Regulation, Standpipe Drain, PVC Piping, Commercial Hydroponics, Scalability, Water Efficiency, Closed-Loop, Greenhouse Technology, Fruiting Crops, Plumbing Schematics, Timed Irrigation, Hydrostatic Pressure, Grow System.
