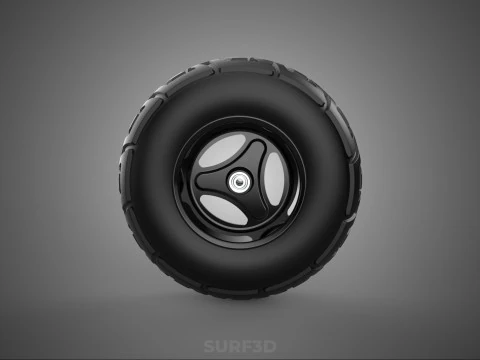

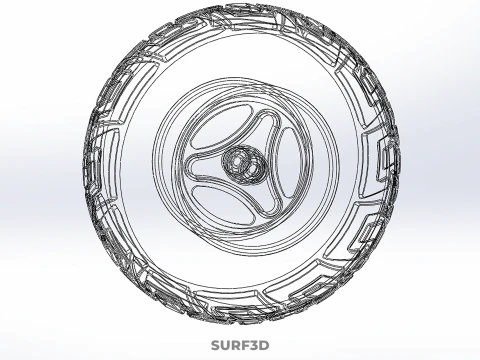

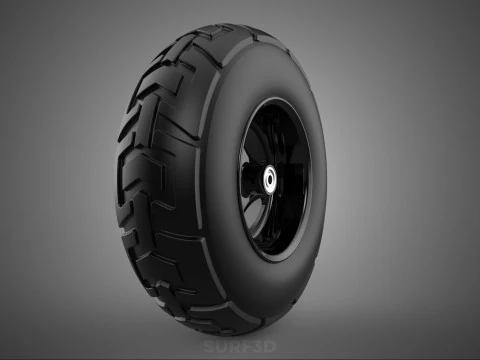

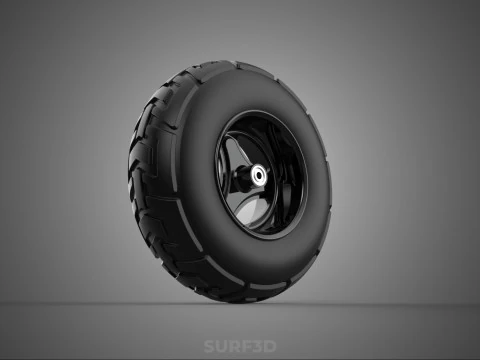

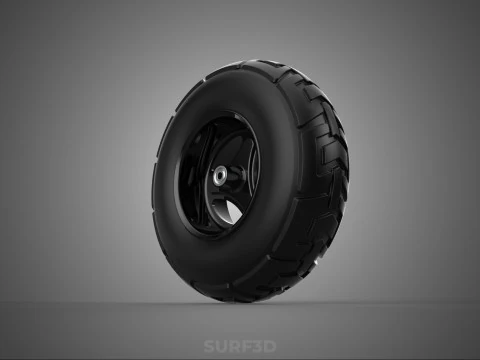

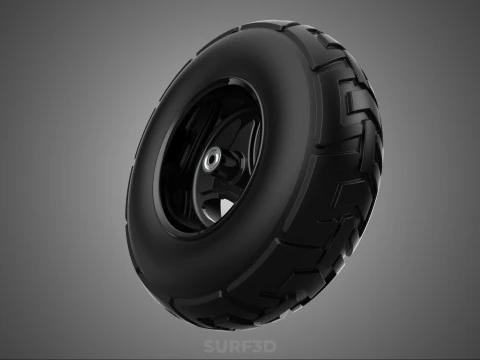

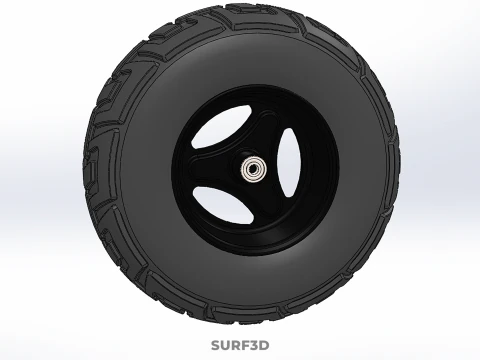

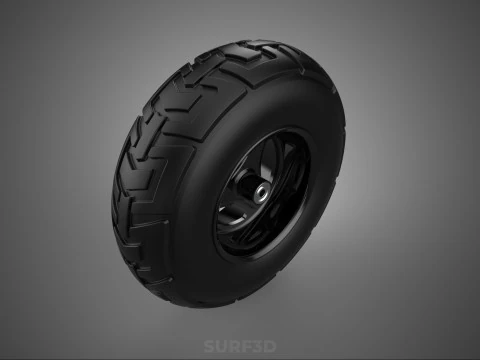

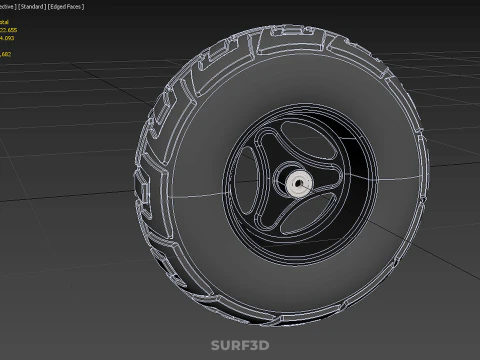

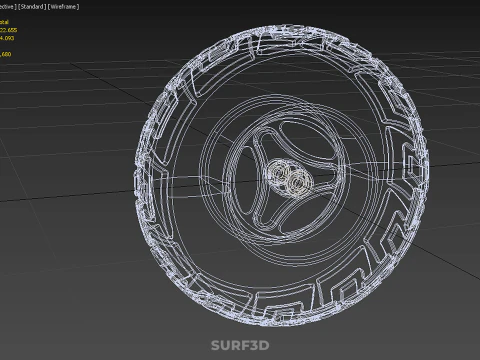

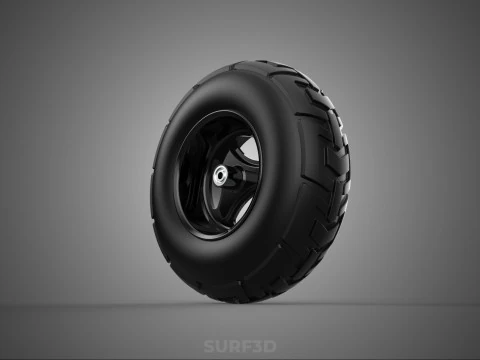

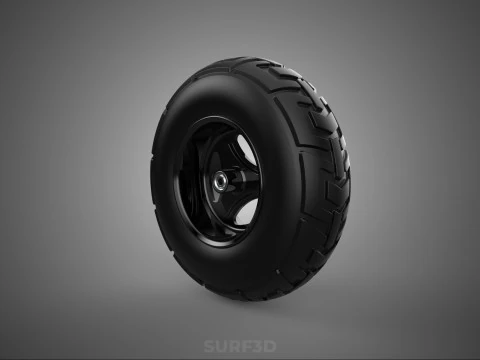

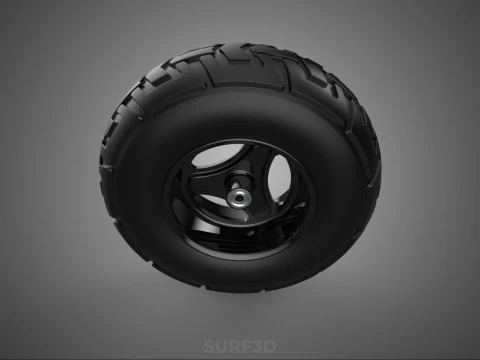

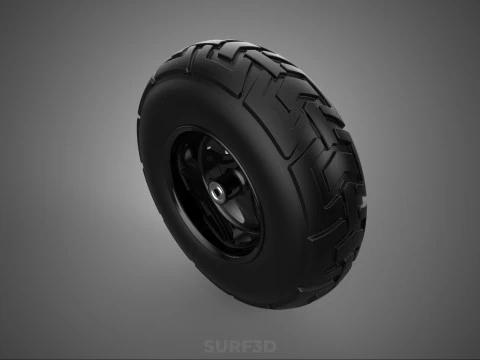

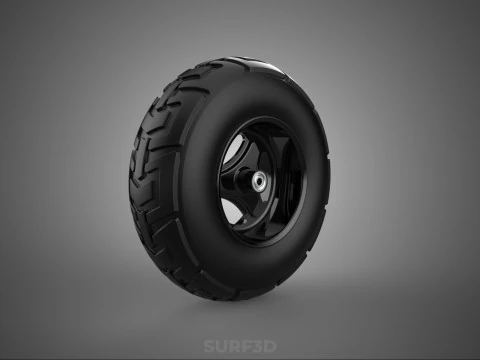

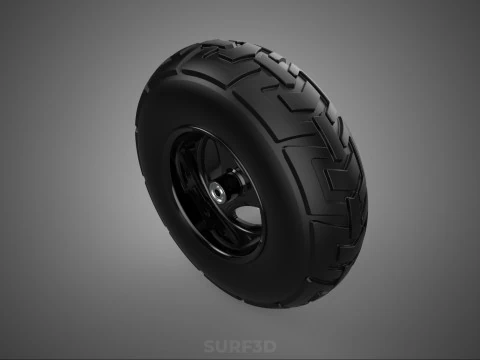

TRIPLE 3 SPOKE RIM REPLACEMENT PNEUMATIC WHEEL BARROW TIRE TREAD 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :

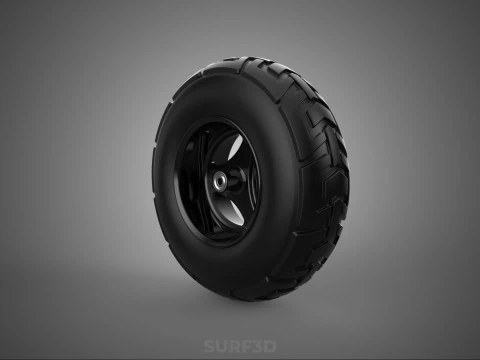

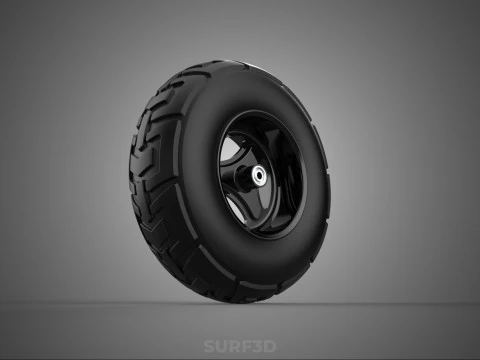

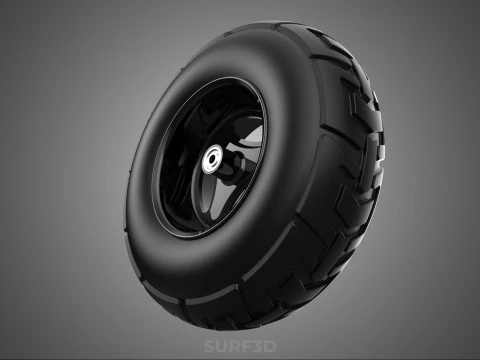

The "Triple 3 Spoke Rim Replacement Pneumatic Wheel Barrow Tire Tread" refers to a fully integrated wheel assembly engineered as a service component for standard single-wheel and occasionally dual-wheel wheelbarrows (garden carts or construction utility vehicles). This component facilitates the restoration of the equipment’s mobility by replacing worn-out tires, compromised inner tubes, or structurally failed rims.

### Functional and Structural Overview

The replacement unit is a comprehensive assembly comprising three primary elements: the pneumatic tire (including the tread and inner tube), the integrated rim structure, and the central bearing hub. Its design prioritizes robust load bearing, shock absorption, and enhanced traction necessary for maneuvering heavy loads across non-uniform or challenging terrain typically encountered in construction, landscaping, and agricultural environments.

#### The Pneumatic Tire System

The use of a pneumatic (air-filled) tire distinguishes this assembly from solid or semi-pneumatic alternatives. This configuration provides superior cushioning, minimizing vibration transfer to the wheelbarrow operator and improving the ability to roll over obstacles such as rocks, roots, or debris. Key specifications for these tires include:

1. **Load Rating:** The maximum weight the tire can safely support, often significantly exceeding 300 lbs (136 kg).
2. **Maximum Inflation Pressure (PSI):** Critical for maintaining structural integrity and preventing sidewall failure under load.
3. **Nominal Diameter:** Standard sizes typically range from 13 to 16 inches, optimized for balancing ground clearance and rolling resistance.

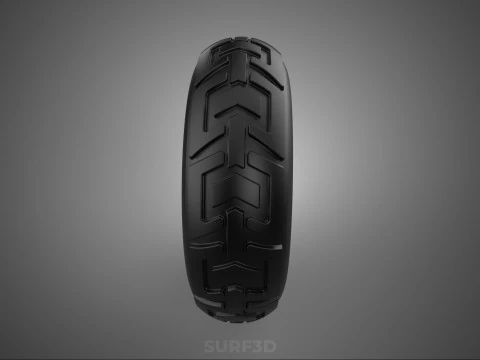

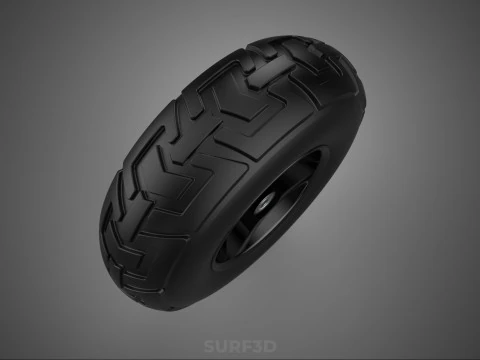

#### Tire Tread Design

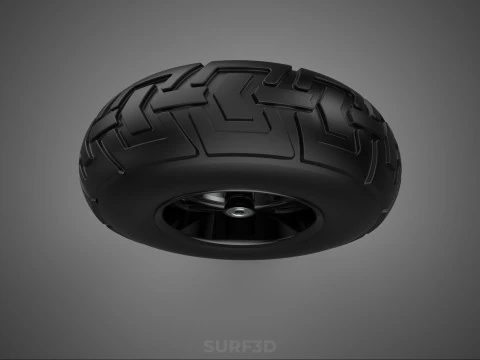

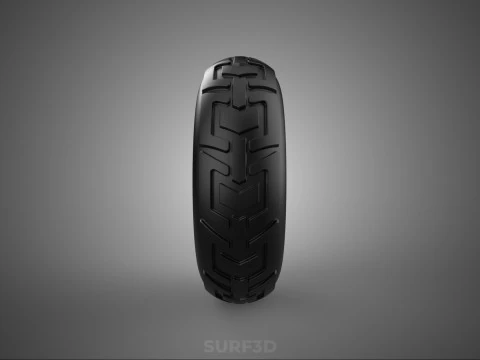

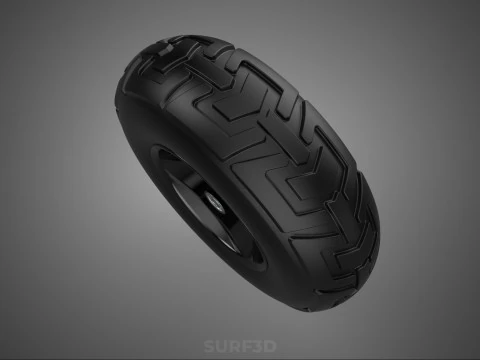

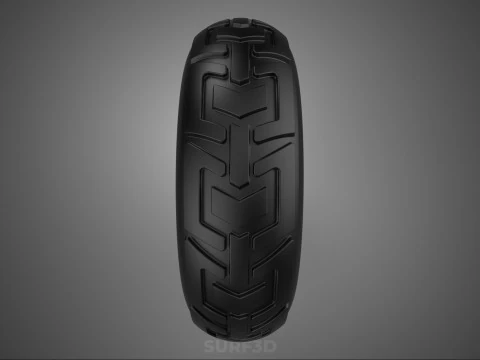

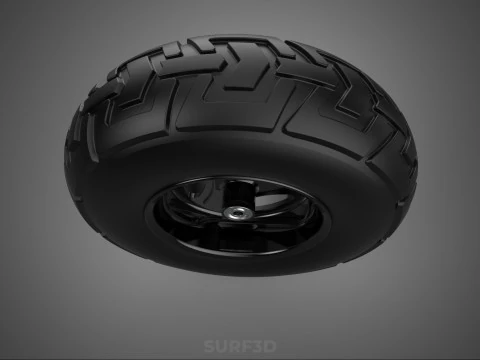

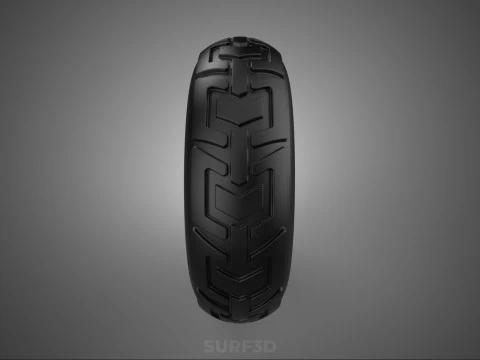

The tire tread is the patterned rubber surface engineered to interface with the ground, providing necessary friction and directional stability. Given the application, the tread profile is typically aggressive, featuring deep, widely spaced lugs, diamond patterns, or chevron/sawtooth patterns. This design maximizes grip on soft substrates (mud, loose soil, sand) while ensuring effective self-cleaning, preventing the accumulation of material that would otherwise reduce traction.

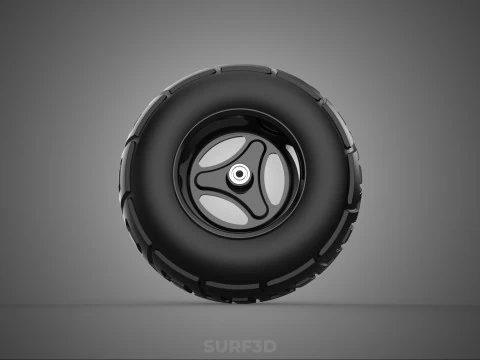

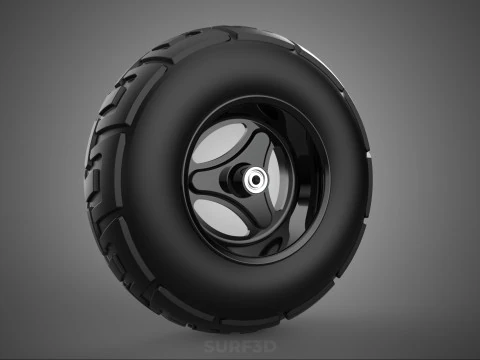

### The Triple 3 Spoke Rim Assembly

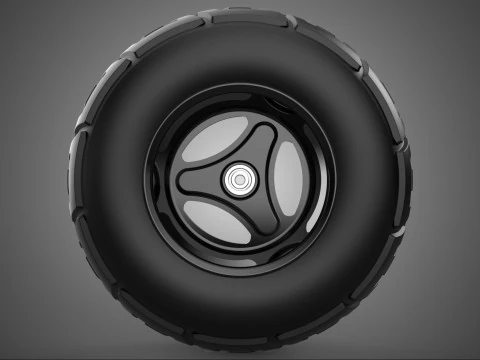

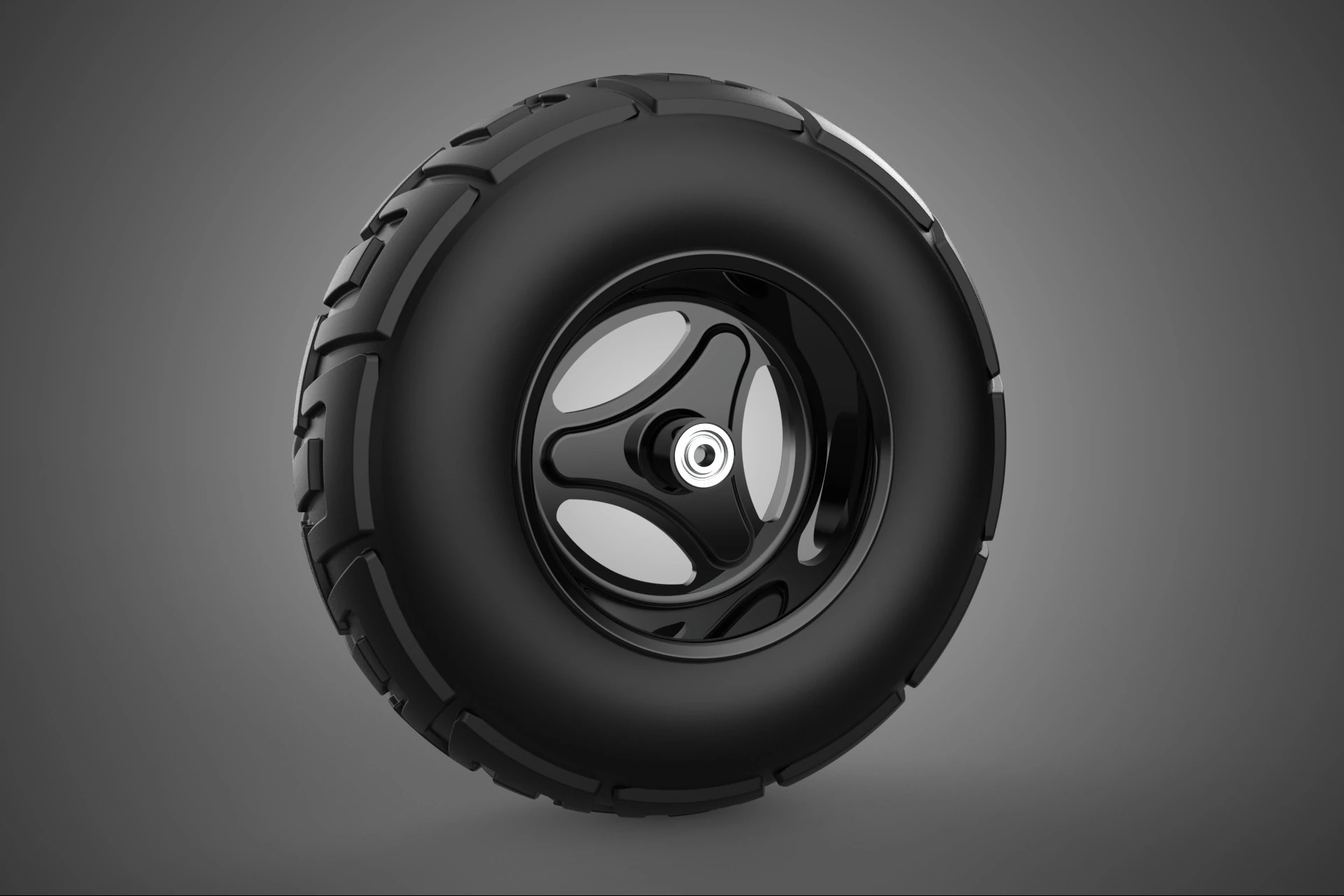

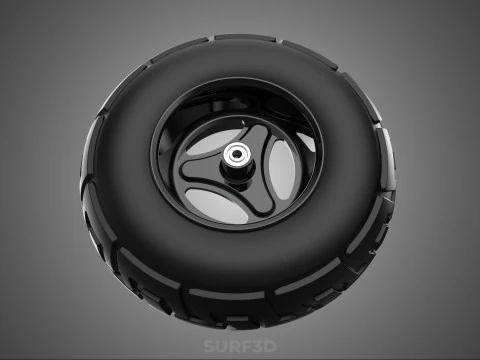

The defining feature of this specific replacement unit is the "Triple 3 Spoke Rim" configuration. This specification usually denotes a heavy-duty, fixed-spoke design integrated directly into the wheel structure, distinct from traditional wire spokes.

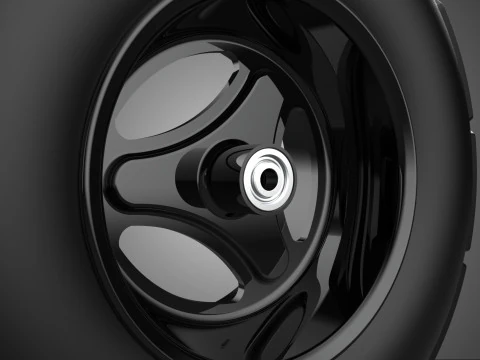

**Structural Configuration:** This rim configuration is typically a nine-spoke design where the spokes are clustered in three groups of three (often interpreted in manufacturing as three major structural spokes, each possessing an underlying triangular or triplicate reinforcement structure for enhanced rigidity).

**Materiality:** The rim material is crucial for durability. Common materials include:

* **High-Density Polyethylene (HDPE) or Polypropylene:** Offers excellent resistance to rust, corrosion, and impacts, and is significantly lighter than metal.
* **Stamped Steel:** Provides maximum load capacity and impact resilience, though it is susceptible to corrosion if the protective finish is breached.

The robust, non-adjustable spoke design ensures consistent lateral and radial stability, preventing the warping and truing issues often associated with lighter-duty wire-spoke assemblies when subjected to eccentric or extremely heavy loads. The rim assembly includes the central hub, designed to accommodate standard axle diameters, usually 5/8 inch or 3/4 inch, and sealed ball bearings or bushings for reduced rotational friction.

### Replacement and Maintenance

This product is marketed as a pre-mounted, ready-to-install service part. The primary benefit is the elimination of the complex and tool-intensive process of mounting a new tire onto an existing rim, which often requires specialized tire irons and inflation equipment. Users can perform a complete swap by simply removing the existing axle hardware, sliding off the damaged wheel, and installing the new assembly. Regular maintenance primarily involves monitoring the tire pressure (using the specified PSI) and ensuring the axle bearings remain free of grit and debris.

***
KEYWORDS: Wheelbarrow, Pneumatic tire, Replacement wheel, Triple 3 spoke rim, Tire assembly, Tread pattern, Load capacity, Spoke design, Heavy-duty, Garden cart, Construction equipment, Inflation pressure, Bearing hub, Axle diameter, Mobility component, Stamped steel rim, Polymer rim, Traction, Off-road performance, Non-marking rubber, Service part, Lug pattern, Durability, Cushioning, Rolling resistance, Integrated assembly, Component swap, Landscape tool, Utility cart, Self-cleaning tread.
