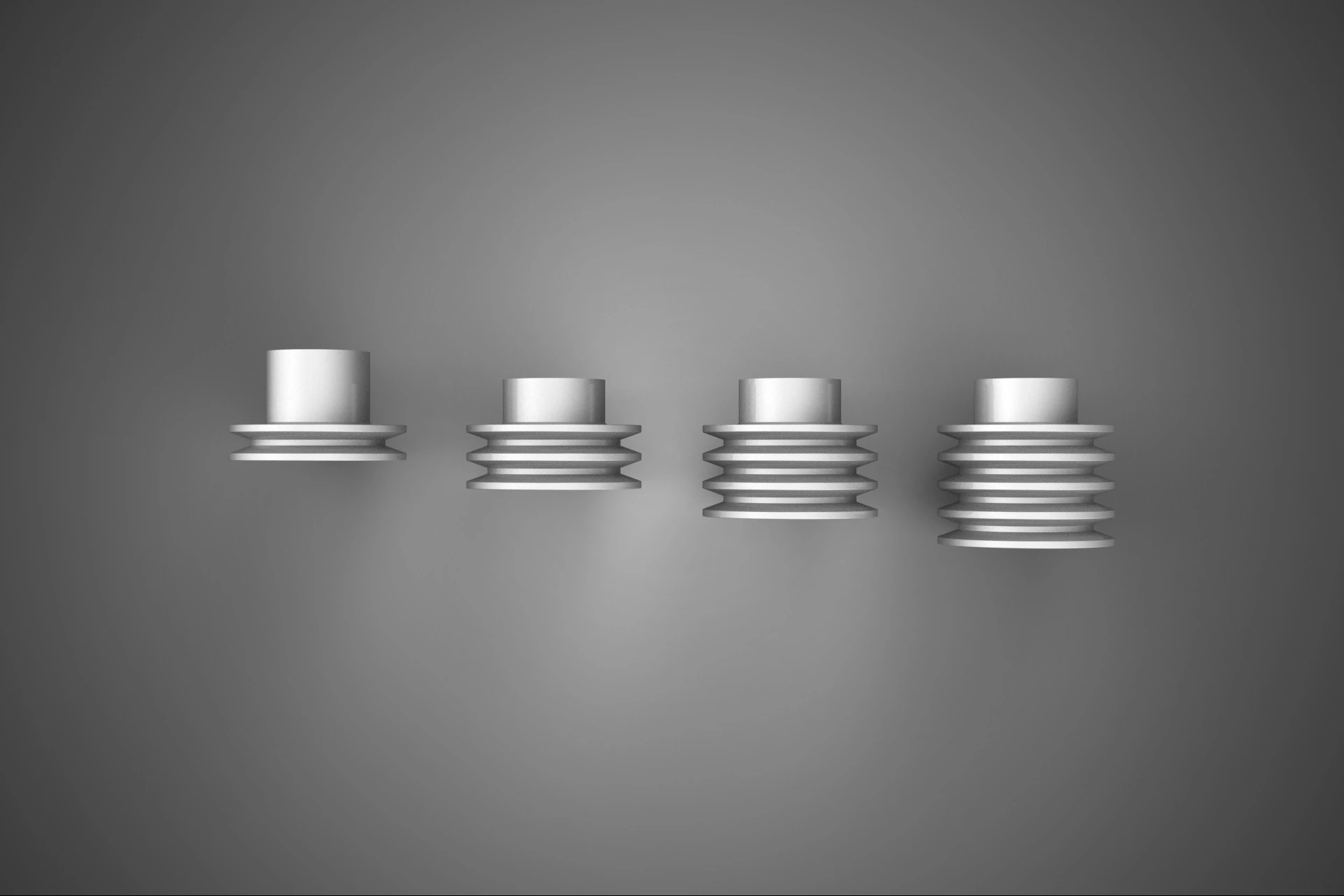

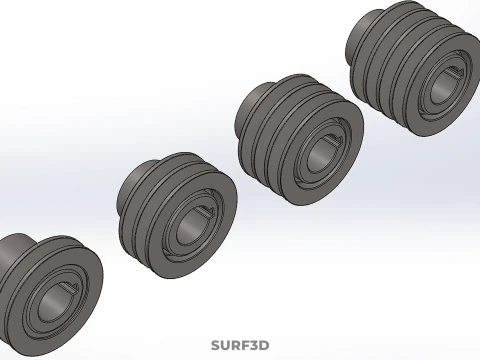

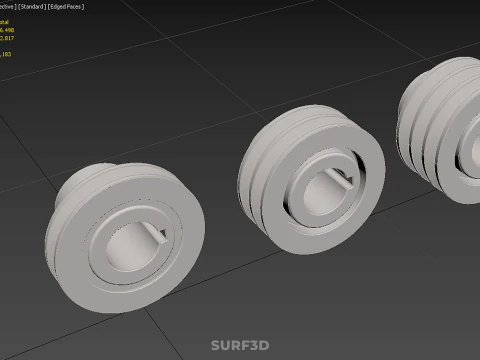

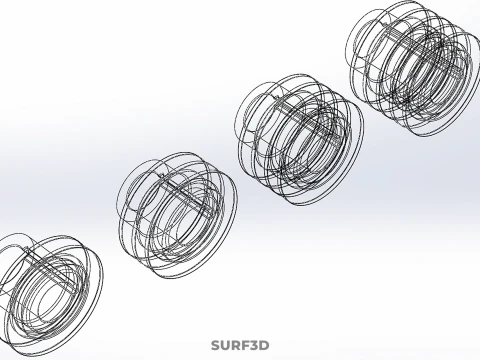

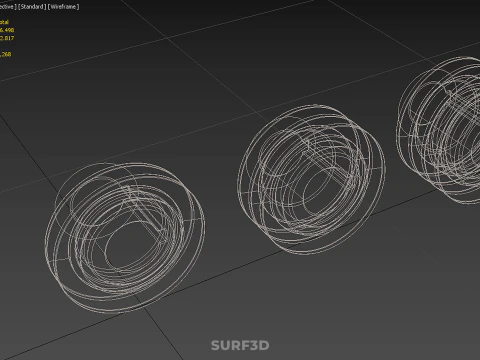

VARIOUS GROOVE PULLEY SHEAVE MULTI TRACK WHEEL DRIVE GEAR V BELT 3D Model

Description

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The system collectively described by "Various Groove Pulley Sheave Multi Track Wheel Drive Gear V Belt" represents the core mechanical components utilized in flexible friction-based power transmission systems, widely employed across industrial machinery, automotive applications, and mechanical drive systems. These components facilitate the transfer of rotational kinetic energy between two or more shafts, often incorporating speed reduction, speed multiplication, or torque management.

### Nomenclature and Core Function

**Pulley/Sheave:** In power transmission engineering, the terms **pulley** and **sheave** refer to the grooved wheel mounted onto a rotating shaft. While often used interchangeably, "sheave" specifically implies a wheel designed with a circumferential groove to accommodate a belt, rope, or cable. When used in conjunction with a V-belt, the sheave’s primary function is to provide the necessary frictional surface to engage the belt, thereby transmitting torque from the driving shaft to the driven shaft.

**Groove Geometry (V-Belt):** The defining characteristic of this system is the **V-groove**, which has a trapezoidal cross-section. The V-belt drive utilizes the **wedge principle** for enhanced power transfer. As tension is applied, the V-belt is forced down into the groove. This wedging action increases the normal force perpendicular to the groove walls, significantly magnifying the friction and the resultant torque capacity compared to simple flat-belt drives, which rely only on tension over the crown of the pulley.

### Multi-Track and Drive Configurations

**Multi-Track Wheel (Multi-Groove Sheave):** The term "Multi Track" or "Multi Groove" refers to sheaves engineered with two or more adjacent, parallel grooves. This configuration is essential for high-power applications where a single belt cannot handle the required torque load. By distributing the load across multiple individual V-belts or a single ribbed V-belt (often referred to as a multi-V or poly-V belt), the system increases its power density capacity, provides redundancy, and reduces individual belt stress, thereby extending service life.

**Drive Gear:** While "gear" typically denotes a positive-engagement mechanism using meshing teeth, in the context of belt drives, "drive gear" or "track wheel" may be used more broadly to describe the component driving the belt. For synchronous (timing) belt systems, the sheave *is* a true gear or sprocket, featuring teeth that engage complementary grooves on the belt, providing positive, non-slip transmission critical for maintaining phase synchronization. However, in the standard V-belt system, the component relies purely on friction.

### Design and Material Considerations

Sheaves and pulleys are manufactured to stringent tolerances to ensure proper belt seating and alignment, which minimizes slip and reduces frictional heat buildup. Common materials depend on the application requirements:

1. **Cast Iron:** Used extensively for large-diameter, low-speed, and high-inertia applications, offering excellent dampening properties.
2. **Steel:** Employed where high strength, rigidity, and lower mass are required, particularly in demanding industrial environments.
3. **Aluminum Alloys:** Preferred for high-speed, light-duty applications where minimizing mass and rotational inertia is paramount.

Proper system alignment, coupled with precise pitch diameter matching for multiple sheaves, is crucial to ensure even load distribution across all multi-track grooves and prevent premature wear or belt turnover. Dynamic balancing is mandatory for sheaves operating at high rotational speeds to mitigate vibration and cyclic fatigue on shafts and bearings.
