VYRIVNIUVACH Ukrainian Air launched high precision glide BOMB 3D Model

Description

“VYRIVNIUVACH”  NATO Codified

An air-launched high-precision glide munition based on an aircraft bomb warhead, designed to engage enemy ground targets with known coordinates.»

  At the Eurosatory 2026 exhibition, in Paris this summer, the “VYRIVNIUVACH” (“The One Who Levels ”) — translated from Ukrainian —a Ukrainian kit for converting conventional bombs into guided bombs, known as a KAБ (GUIDED AIR BOMB)—from DG Industry was unveiled to the public for the first time.

  The presented УМПК - UMPK (Unified Planning and Correction Module) kit (analogous to JDAM) for 250-kg bombs features a design unlike its russian counterparts. As reported, the first batches are already arriving at the front, and this weapon has been adopted by the Armed Forces of Ukraine.

 Dimensions: length—2.7 meters, wingspan—2.4 meters.

 Range: up to 130 km when launched from high altitudes and about 40 km when launched from low altitudes.

    It is approximately three times cheaper than its American counterparts, the JDAM-ER. Judging by the exhibits at the show, it uses 500-pound NATO Mk 82 bombs.

It consists of two main parts (a wing module with a deployment mechanism and a tail section with a satellite navigation system).

It is adapted for use with NATO F-16 and Mirage fighter jets and is also compatible with Ukrainian- Soviet aircraft.

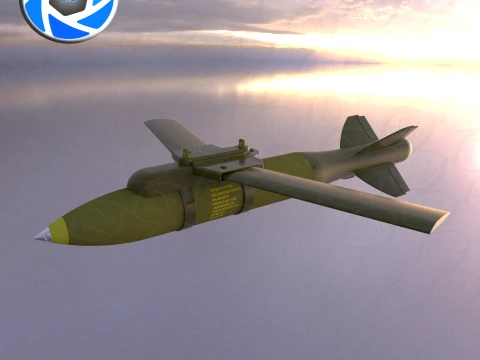

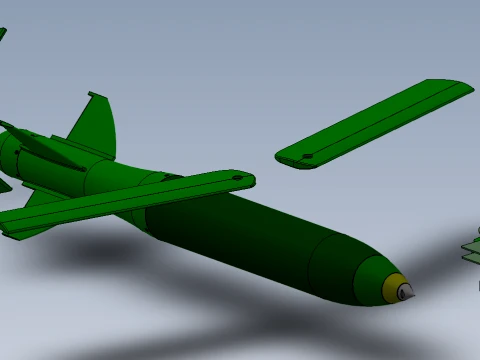

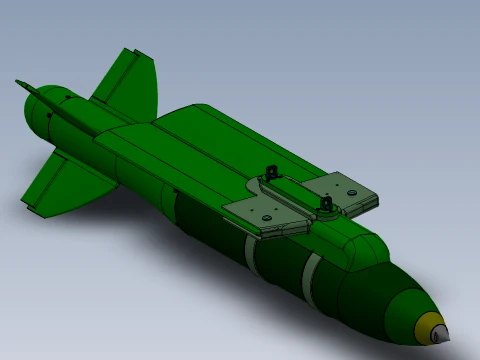

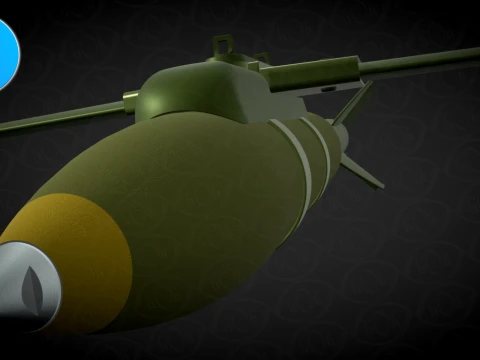

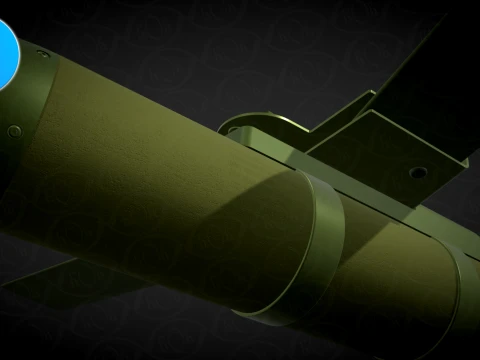

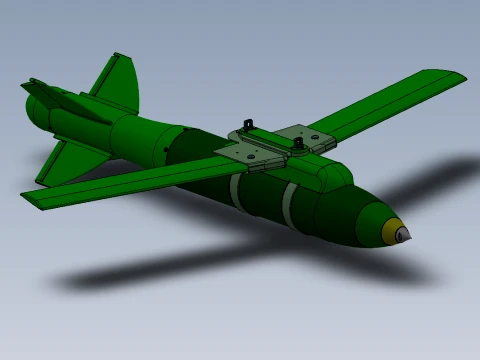

     Development of a life-size 3D model—as detailed as possible (using materials freely available at the time of the presentation in Paris)—that incorporates virtually all external structural elements into the model. The model is rendered in CAD quality and precision in its assembled version—the wings extend, and the elevator and rudder can rotate (allowing for animation of this model). The module itself, the elevator and rudder, and the airframe wings can be detached. All model elements are rendered in full 3D format and do not require the use of additional special 2D textures. Additionally, the package includes THREE independent 3D models—assemblies of the model in the positions of retracted wings, operational flight, and tail control maneuvers. The model is ready for realistic 3D visualization in virtually any application designed for this purpose, using a standard set of “materials”—all surfaces are prepared for this and marked as “Assigned materials” with color-coded labels. See examples of realistic rendering in KeyShot 5.0 and Sketchfab (the KeyShot package file (ksp) for visualization is included in the set).

     The model is technically accurate and is made as close as possible to the original and in the original dimensions, including the elements. Even the screw heads, rivets which are not filled with putty and sealant in the real product, correspond to real metric fasteners. Everything is made as accurately as possible, as much as possible relying on the little information from available open sources - photo  materials. The model can be successfully used for detailed study of the external design of the product, creating realistic 3D visualizations of high quality and pixel resolution - much higher than 4K (smooth surfaces and high detail). As well as can be used for the production of high-quality stand models-models for training and for exhibition purposes. The model is assembled, all moving elements are made by separate parts,     Attitude and position rudders, which if desired, allows you to use the model to create 3D animation.   The model was originally developed in technical-engineering 3D format (solid model CAD). The set contains only textures for  "marking-sticker". To create sample visualizations (see image gallery preview), some seamless textures (not specialized) were used that are freely available on the Internet or in standard visualization software packages and were not specifically designed for this purpose. In addition to solid model file formats, converted highly detailed polygonal file formats are additionally provided.

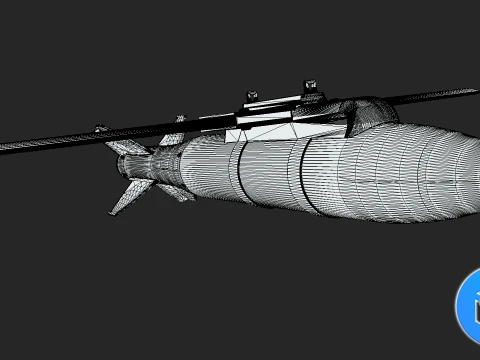

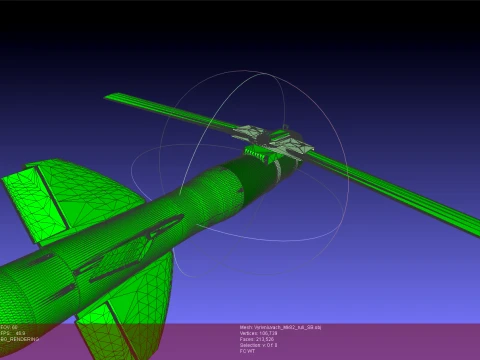

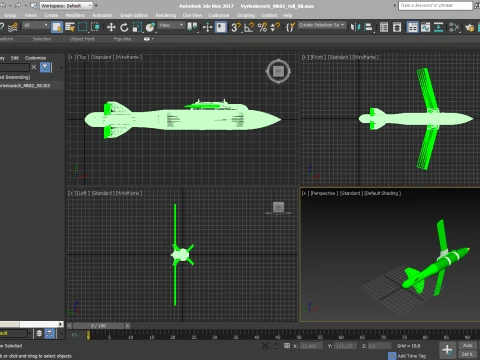

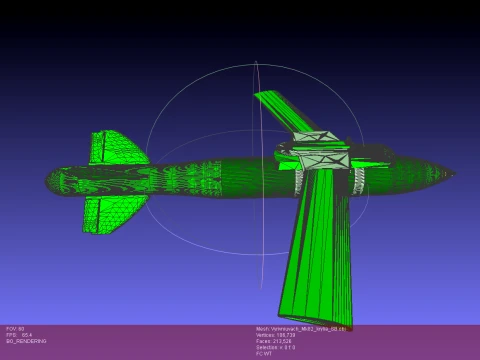

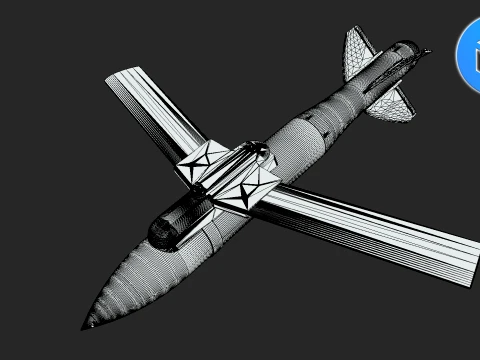

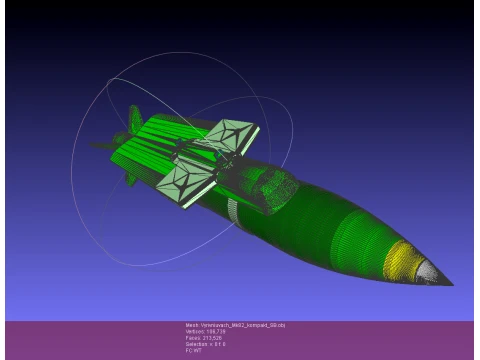

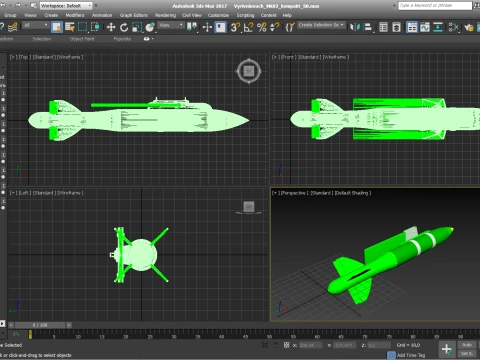

Mesh:

Vertices  106739

Faces 213526

 (Vyrivniuvach_Mk82_krylia_SB.obj)

Please rate and write a review about this model. If you have any questions, please message me. Always willing to consider your price offer.
