automatic assembly dispensing line 3D Model

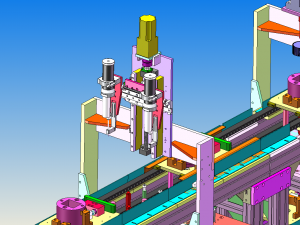

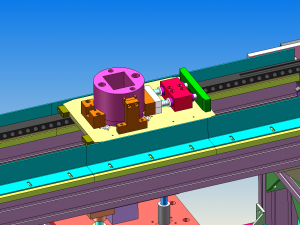

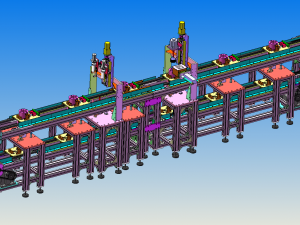

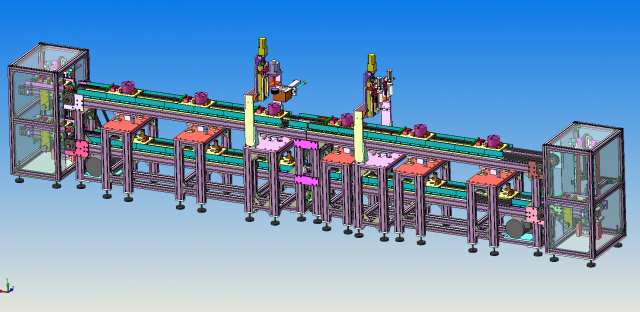

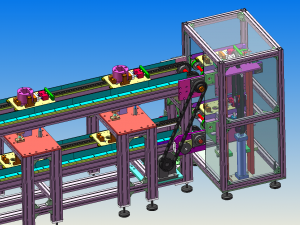

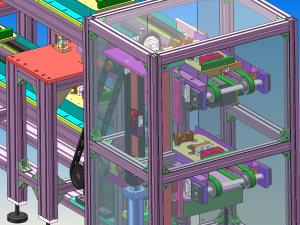

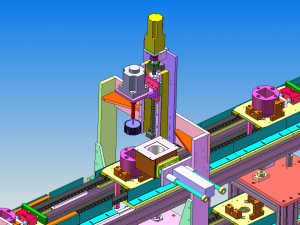

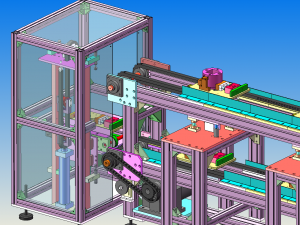

this is a set of non-standard automatic assembly and dispensing line with lifting machine tooling flow plate cycle operation full set of drawings, the drawings mainly reflect the modern automation unmanned technical level, the total length of this line is about 7 meters, the front and rear ends of the elevator is responsible for the flow plate in the form of lifting cycle transmission operation, the middle of the main body is responsible for the assembly of some parts assembly, such as dispensing, locking screws, testing, pressing assembly, inserting assembly, welding and other work docking, the two sides of the main line body are empty, which is used to install some assembly machines. the assembly line workers have made some guide holes to ensure the assembly accuracy. the lower layer of the line body is mainly to transport the empty tooling flow plate back, and the middle part is the jacking structure of each station, and each position has its own lifting structure each station has a corresponding top structure to ensure the assembly accuracy of each station. the hole position and standard parts have been drawn for all the structures of this automatic line. you can see these in the figure. the total line drawing is complete. this is very helpful for the design of automatic line body. therefore, you are welcome to download and learn more drawings of other or assembly lines you can go to the home page to download. the quality of the drawings is very good. after downloading, there won't be few parts or can't be opened. you can rest assured to download Print Ready: No
