pad finishing machine rubber machinery tire machine 3D Model

it is used for finishing the used woven cloth (cloth surface cleaning and expansion, deviation correction and alignment) for next use.

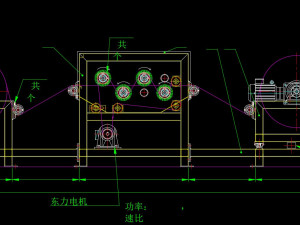

the pad finishing machine is mainly composed of guiding device, coiling device, driving device, rectifying device, cloth feeding roller, spreading roller, cloth guiding roller and brush roller. after the cloth is exported from the guide device, it is sent to the coiling device after being cleaned by the direction changing roller and the spreading roller, and the nylon brush wire of the upper and lower brush roller. the photoelectric deviation correction device is installed in the crimping device to ensure the neat crimping and the pad cloth p***** through after the brush carding, the cloth guide roller and the cloth spreading roller will be flattened after expansion, so as to be used next time. Print Ready: No
