three storey villa 3-07 3D Model

water and electricity construction drawing of a three storey villa building structure)

key words: symmetrical design



drawing depth: extended

other professional drawings: structure, water supply and drainage, electrical

construction area: 1200 square meters

building floors: 3

renderings: yes

air defense: none



this design is the design, structure, water heating and electrical construction drawing of a european imitation building in liaoning province

the construction area of the project is about 1200 square meters, the structural form is brick concrete structure, the number of floors is 3, and the roof form is european tile slope roof

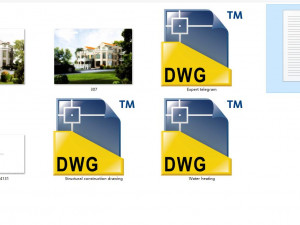

this set of drawings includes engineering method, door and window table, floor plan, elevation, section, wall detail, cornice construction method, etc

the characteristics of the villa are: due to the requirements of party a, it can be divided into two, so the design of water heating and electrical diagram is two.



engineering design time: august 2008

drawing depth: construction drawing

building floors: 3

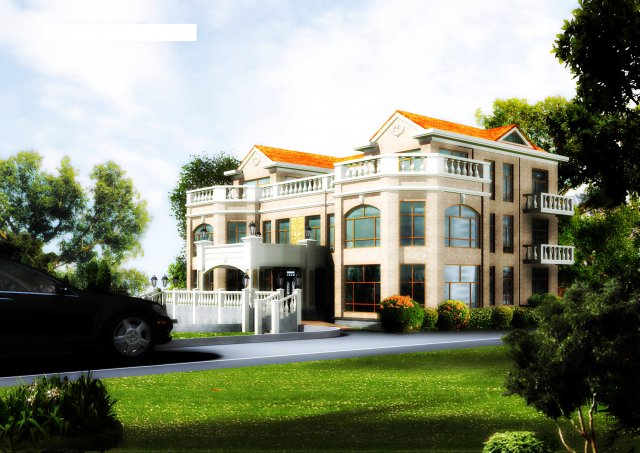

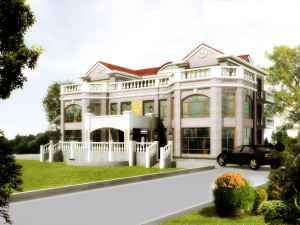

effect picture: 2 pieces (including two color schemes)



door width 27.66 m * depth 21.63 m



the unit type is a two-and-a-half single family villa with brick concrete structure, with a height of 12.535 meters, a building area of about 1200 square meters, and an area of 598 square meters; the first floor is equipped with a bogu hall, a dining room, a living room, a garage, a bedroom, and a toilet; the second floor has four bedrooms, four bathrooms, two living rooms and two leisure halls; the third floor has one bedroom, two bathrooms and a kitchen there are 1 hall, 2 flower houses and 1 leisure hall;



the house is of european style, with european tile roof, fresh and elegant color, full of the charm of the times; the room scale design is appropriate, the space utilization rate is high, the kitchen is bright, and the space used has good lighting and ventilation. Print Ready: No
