Descrizione

Hi! We glad introduce you 3d model - STL files - to print your own Ray Blaster Mark II from CoD Zombies.

Model include:

- 98 stl files to 3d printing + 5 stand files (biggest part 150x120x62mm).
- Digital Instruction for assembling.
- List of components you will needs for assembling.

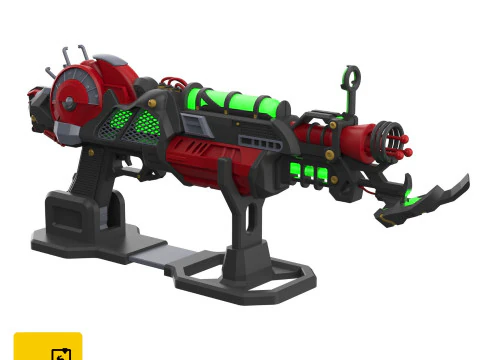

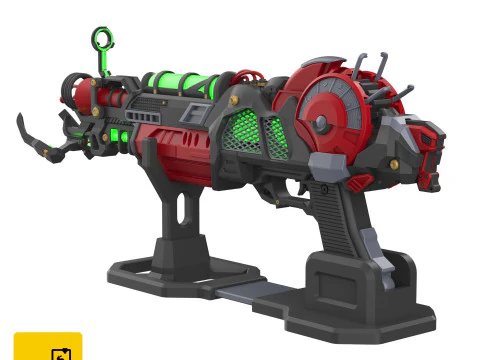

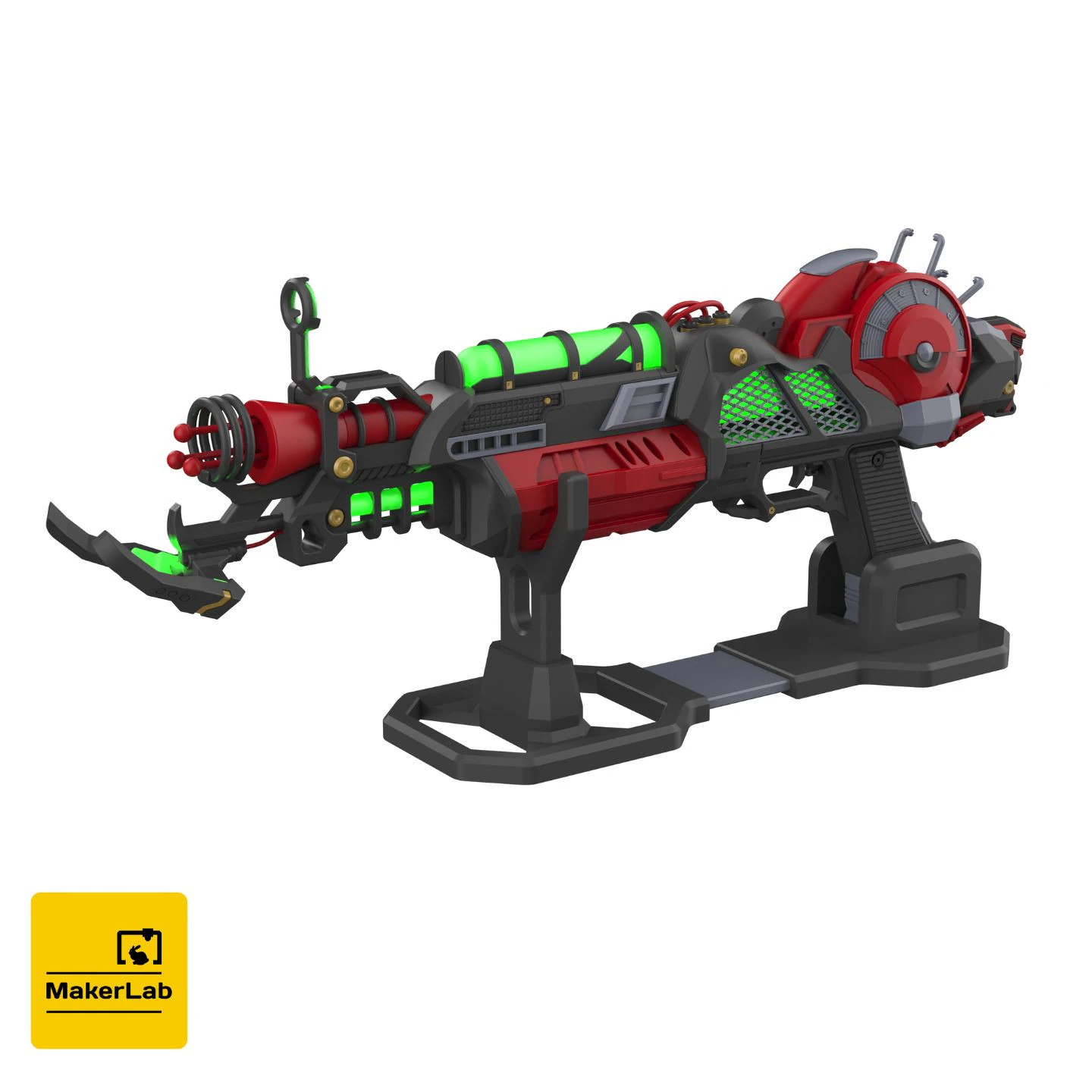

The model contains demo stand, backlight and removable battery in the back with a latch or magnets.

Dimensions: 561x228x80mm (22.1x9x3.14")

Model feautures:

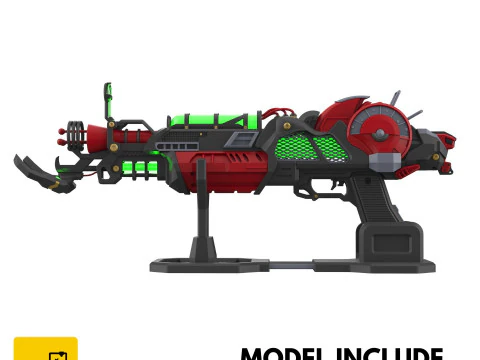

- model include a demo stand

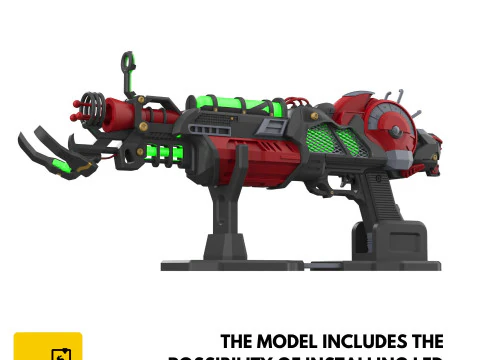

- model include the possibility of installing led backlight

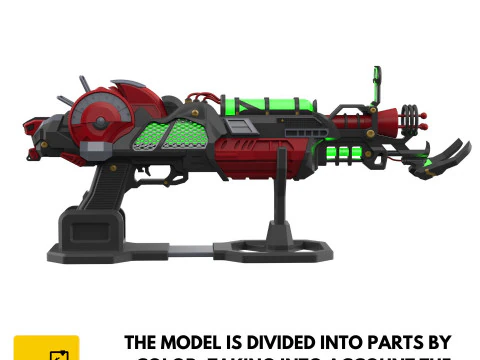

- model is divided into parts by color, taking into account the comfort of printing and assembly

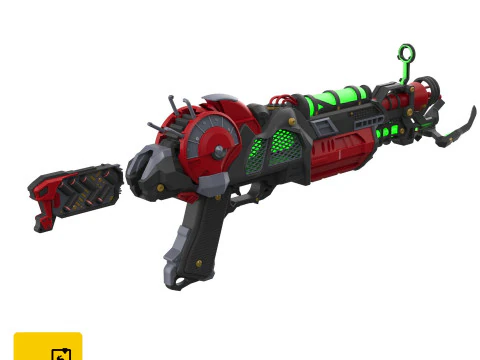

- model include removable magazine

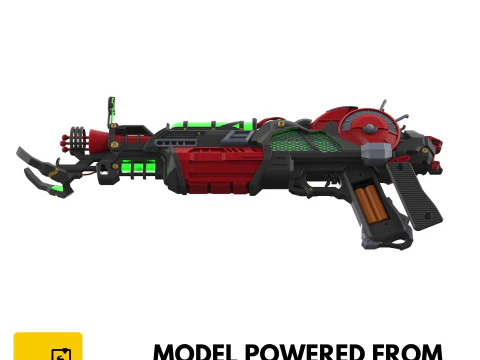

- model powered from 2xAA batteries
- instructions include an exploded view, a part sheets, a sectional view, an electrical diagram and list of components

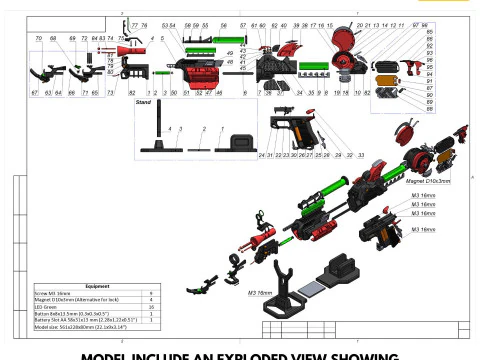

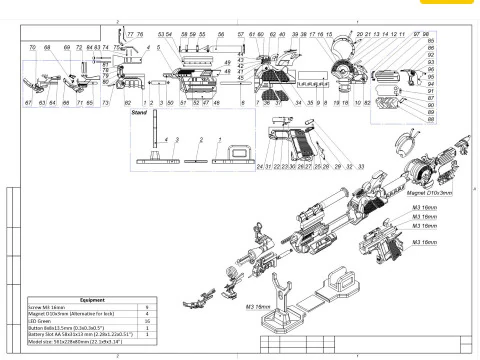

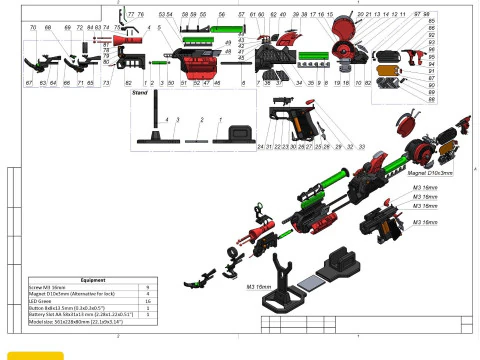

- model include an exploded view showing the assembly sequence and a list of all components required for assembly

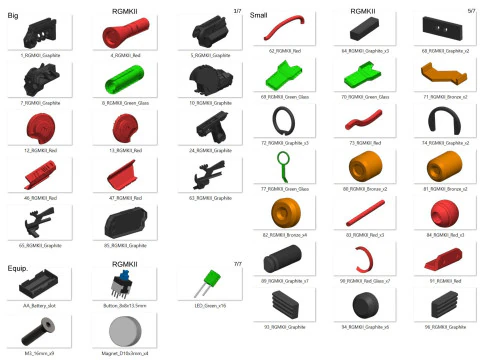

- model include a part sheets that will help control the printing and assembly process

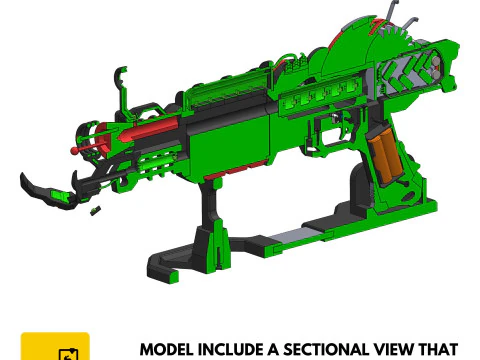

- model include a sectional view that will help you understand how to fit parts and components together

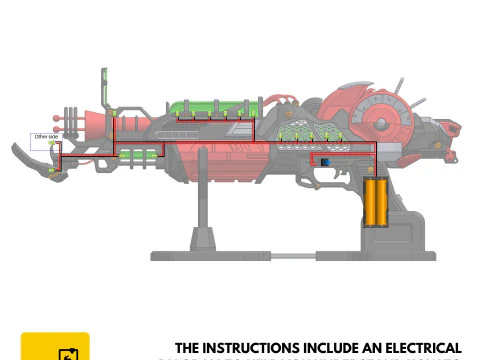

- the instructions include an electrical diagram to help you understand how to connect and assemble electrical components

List of components needs for assembling with LEDs lighting:

- 8*8mm button switch
- screws M3 (16mm)
- magnets D10x3mm
- LEDs 3x4x2mm
- AA batteries slots

This model availible on our Patreon: MakerLab

-----------------------------------------------------------

Legal notice
This is not an officially licensed product and is only considered Fan Art, the item is 3D model designed for fan art by me.

FOR PERSONAL USE ONLY. NOT INTENDED FOR COMMERCIAL PRINTING.
