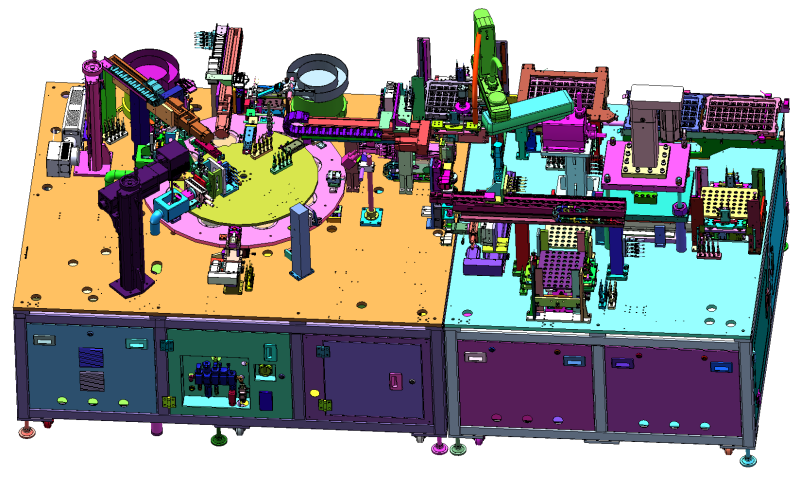

Aluminium buislijm lasapparatuur SolidWorks bewerkbaar 3D Model

Beschrijving

Aluminum tube glue welding equipment SolidWorks editable

Aluminum tube dispensing and welding equipment mainly involves two main technical fields: dispensing and welding. 1、 Working principle of dispensing equipment: The working principle of dispensing equipment mainly consists of two steps: coating and flowing. Glue application stage: Through precise computer program control, the glue is extruded and accurately applied to the designated surface of the workpiece, and the flow rate and speed of the glue are controlled to ensure the accuracy and uniformity of the glue application. Glue flow stage: Allow the glue to naturally flow to the designated position and join after being applied. The viscosity of the adhesive plays an important role in this stage, and it is necessary to ensure that the adhesive is not too thin and will not flow to other areas when applied, while also not being too thick and affecting the application effect. Components: Typically, dispensing equipment is divided into three main parts: dispensing system, pneumatic system, and control system. Operation and precautions: The operation steps include installing the fixed frame, turning on the air pressure and power, programming, setting parameters, setting the air pressure, starting dispensing, observing the dispensing situation, stopping dispensing, and cleaning the dispensing machine. Precautions include ensuring equipment cleanliness and calibration, safe operation, avoiding direct sunlight and electromagnetic signal interference, etc. 2、 The main application of welding equipment: Aluminum tube welding machines are mainly used for welding needs in the refrigeration and automotive industries, such as air conditioning, refrigerators, refrigeration equipment, automotive water tank radiators, filters, etc. It is also applicable to electrical industries such as transformers, motor rotors and stators, copper wire and copper bar welding for generators, as well as metal processing industries such as track surfaces and steel surface quenching. Main parameters: oscillation power, input power, output frequency, input voltage, load duration, etc. are the main technical parameters of aluminum tube welding machines. Maintenance and troubleshooting: Daily maintenance includes cleaning equipment, lubrication system, electrical system inspection, gas system inspection, control system inspection, cooling system maintenance, etc. Regular maintenance includes developing maintenance plans, component replacement, condition monitoring, equipment calibration, etc. Troubleshooting includes fault analysis, development of maintenance plans, and execution of maintenance processes.
