Bomba de aviação cluster RBK 250 275 AO 1sch Moulage imprimível em 3D Em escala de 1 a 5 Modelo 3D

Descrição

This is the Soviet - Russian Cluster aviation bomb RBK-250-275 AO-1sch (РБК-250-275 АО-1сч ).

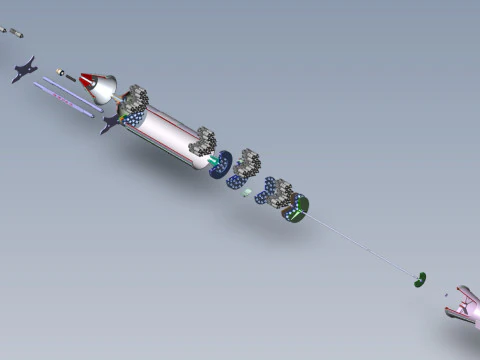

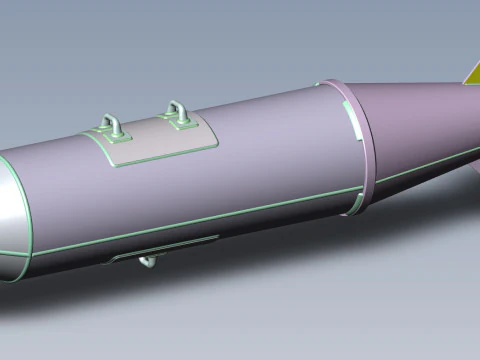

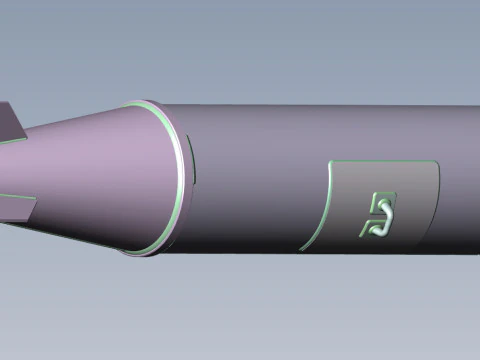

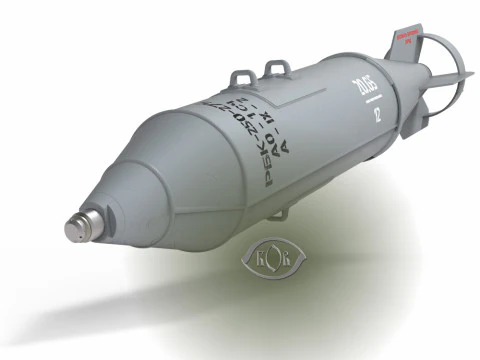

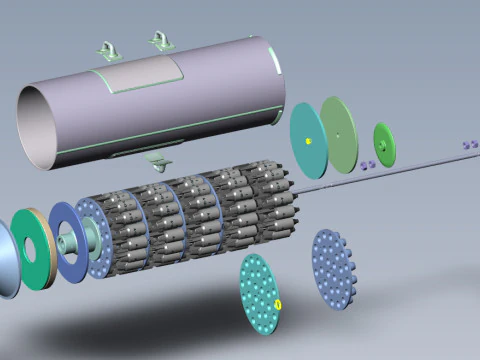

This is an assembly - stand 3D model, in scale 1:5 and THREE variants (External forms, Full assembly, Training stand with Cut).
This is a model of the Soviet - Russian single bomb cassette RBK-250-275 AO-1sch,
equipped with AO-1sch fragmentation bombs, designed for mass destruction of manpower. It was adopted by the USSR in 1960.
The weight of the cassette is 273 (275) kg;

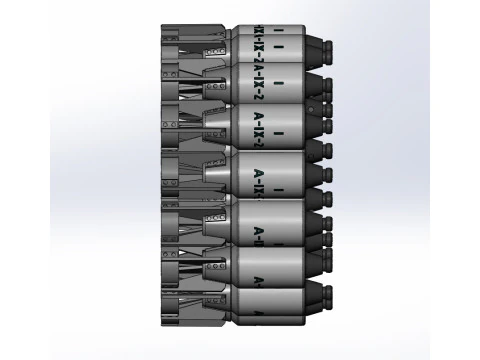

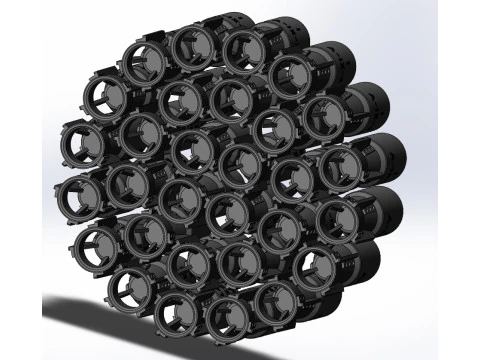

Number of bombs in the cassette - 150 pcs.
Minimum height of the cassette opening - 400 m

• Basic data of the «AO-1cch» aerial bomb
  Bomb weight - 1.2 kg;
  Weight of explosives - 0.038 kg;
  The radius of continuous destruction by killing fragments - not less than 12.5 meters.
  Actively used in the Russian-Ukrainian war since 2022 and other wars
  with the participation of the Russian Federation.

Dimensions of the model 444x82x110mm. maximum - Including stand (scale 1 to 5 in relation to the real size).

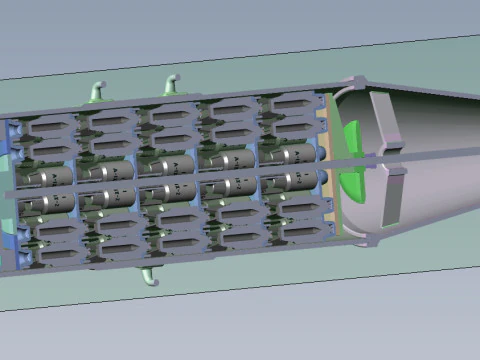

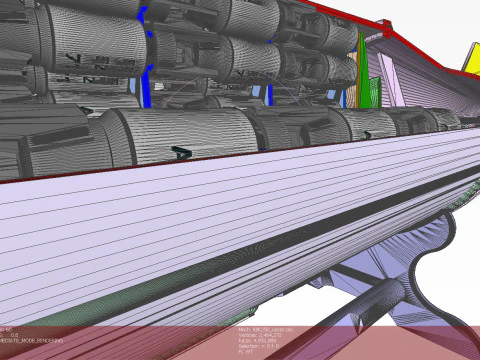

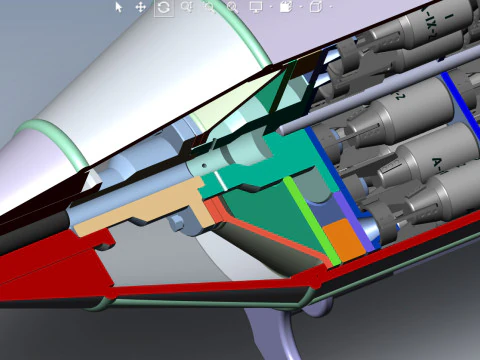

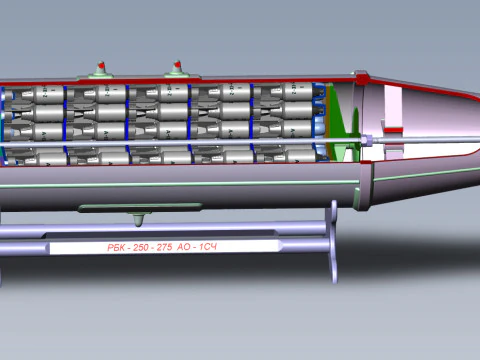

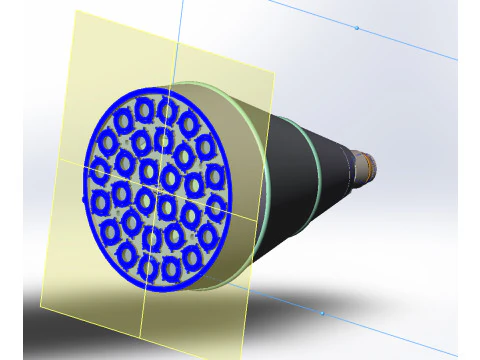

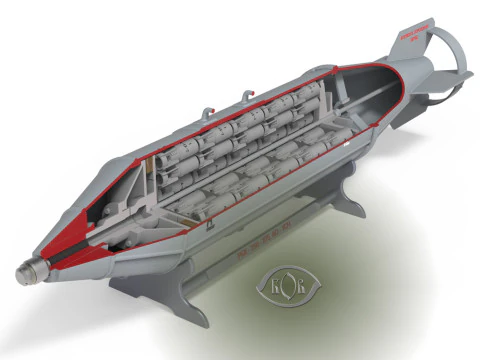

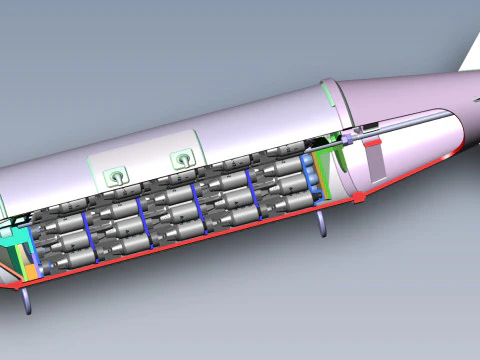

One of the variants of the model is a moulage with conventionally opened internal cavity - a cognitive model to create
an educational understanding of the basics of the internal structure and principles of operation in a visual form.

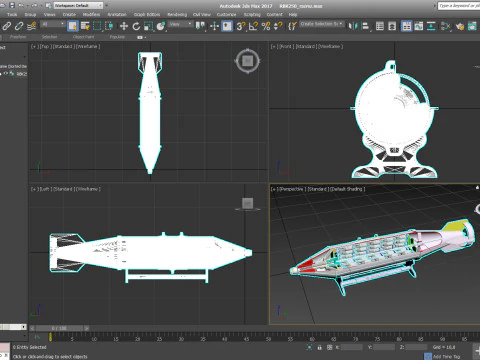

The models are made in SolidWorks program.
They are intended primarily for 3D printing or partial CNC manufacturing of bench models - training models, for use as a visual aid.
The models are not exact copies of the forms of the real product,
but contain the forms of the main elements and are adapted for the possibility of manufacturing and subsequent assembly of the model-imitation of the product.

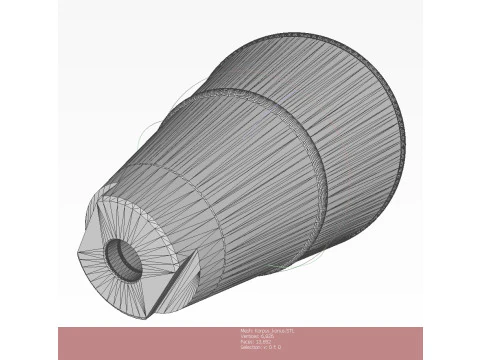

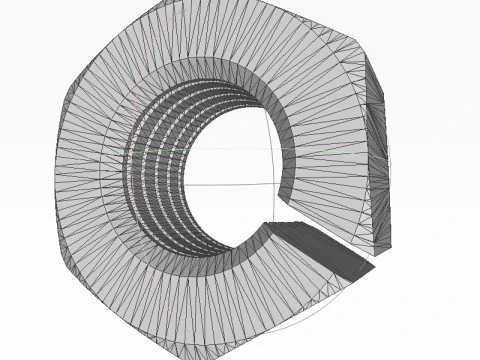

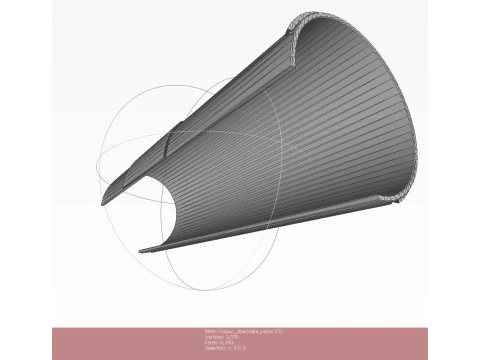

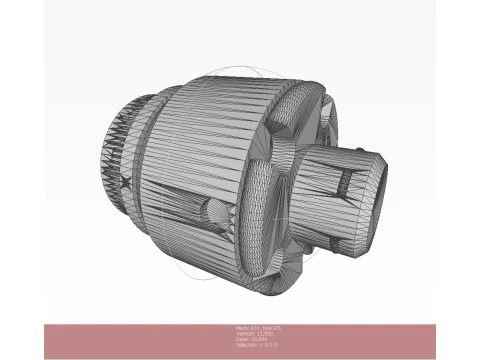

The models are assembly models, containing all the conditional part files (STL) in high-polygonal design to obtain qualitatively smooth shapes.
The parts can be attached to each other with glue or with pins (wire material) to preserve the possibility of later disassembly.

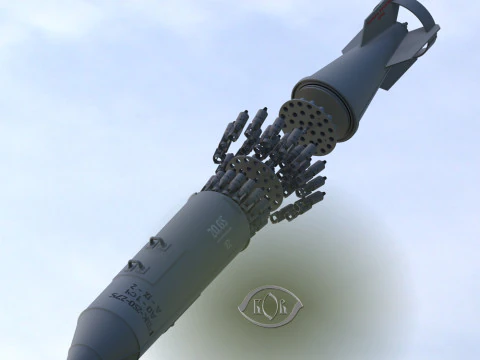

In addition, the set contains all files for obtaining high-quality realistic close-up renderings
(smooth lines, highlighted, prepared surfaces for applying materials or textures), an additional texture file - texture stickers
for applying to surfaces (see rendering examples).
In addition to solid model file formats, converted highly detailed polygonal file formats are additionally provided.

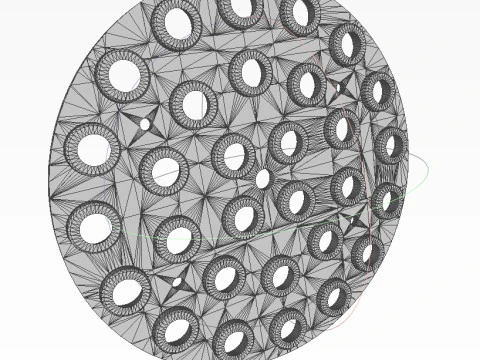

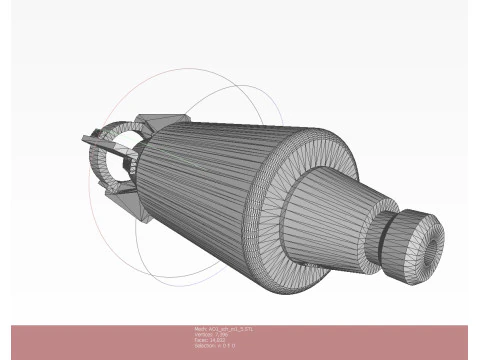

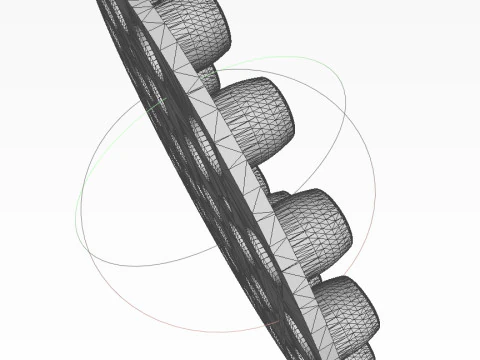

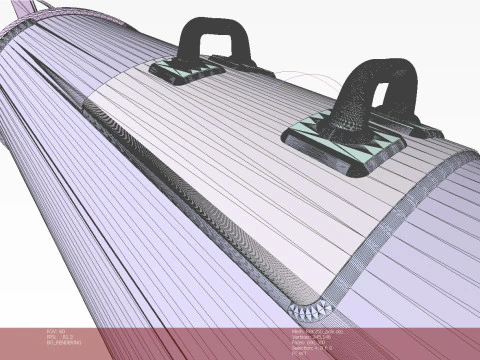

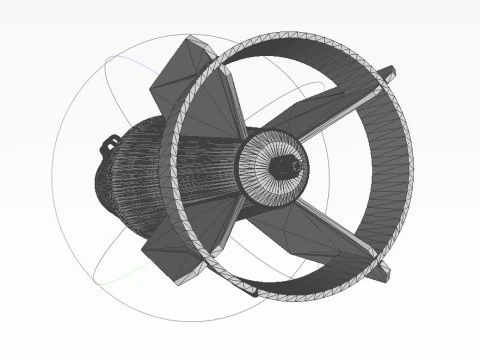

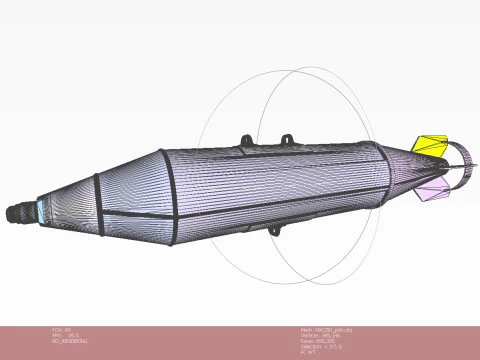

Mesh:
Vertices 345146
Faces 690300

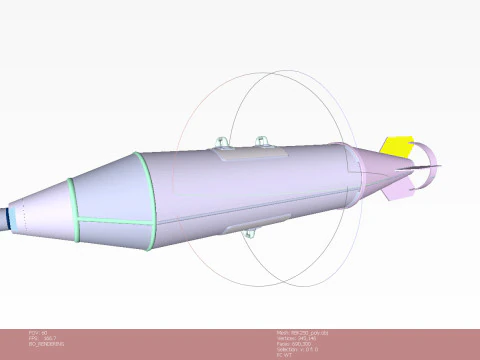

(RBK250_pole.obj - model variant, external forms only)
Please rate and write a review about this model.
If you have any questions, please message me.
If you have any wishes or suggestions, what other models of similar military ammo
you would like to see in your collection - please write me.
Thank you.
