Sistema de filtro de areia industrial AutoValve de 15 m3-h Modelo 3D

Descrição

15 m3/h Industrial AutoValve Sand Filter System 3D ModelOverview:

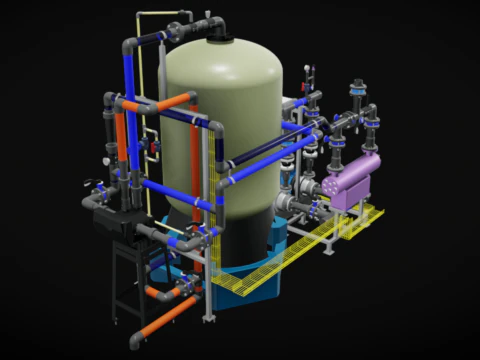

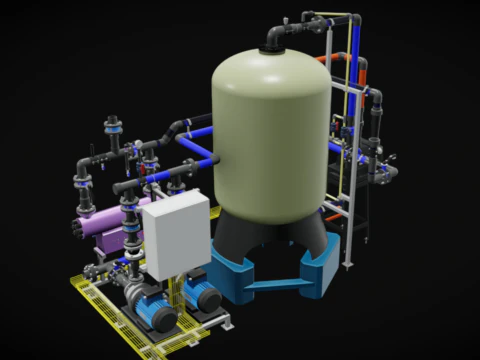

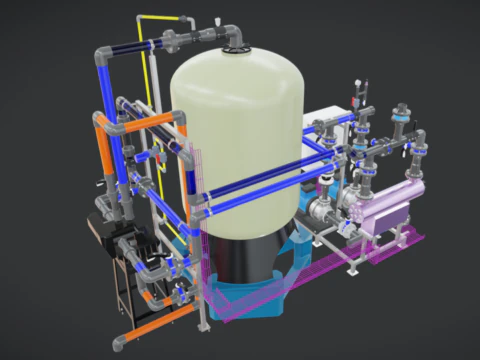

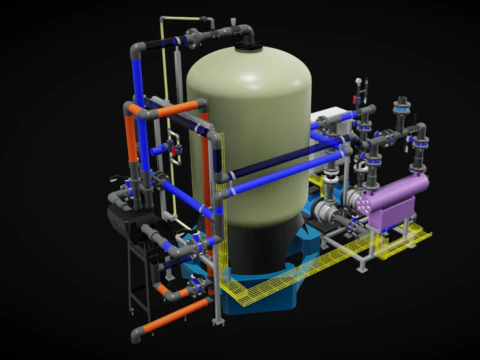

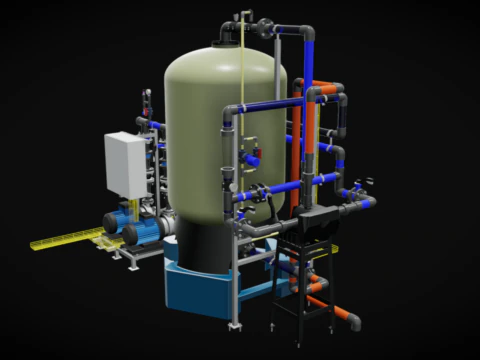

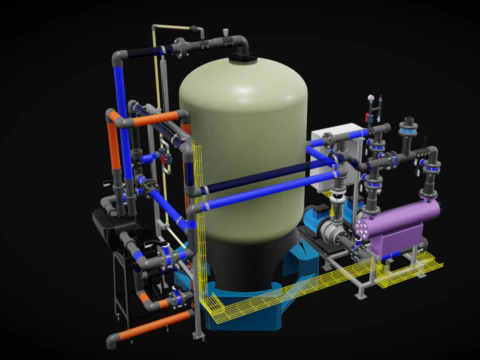

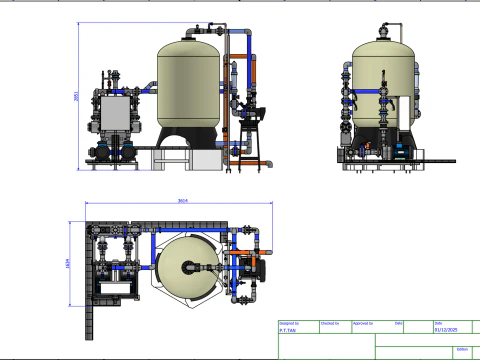

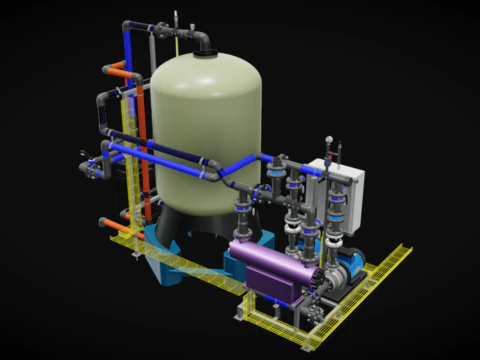

15 m/h Industrial Sand Filter System with Autovalve, Dual Pumps & 440W UV
This is a fully modeled industrial water filtration system designed for a flow rate of 15 m/h, built with a 482 inch sand filter vessel, an automatic backwash valve (Runxin autovalve), dual feed/booster pumps, and a 440W UV sterilization unit.
The entire assembly is created in Autodesk Inventor, optimized for engineering visualization, mechanical design, and plant layout integration.

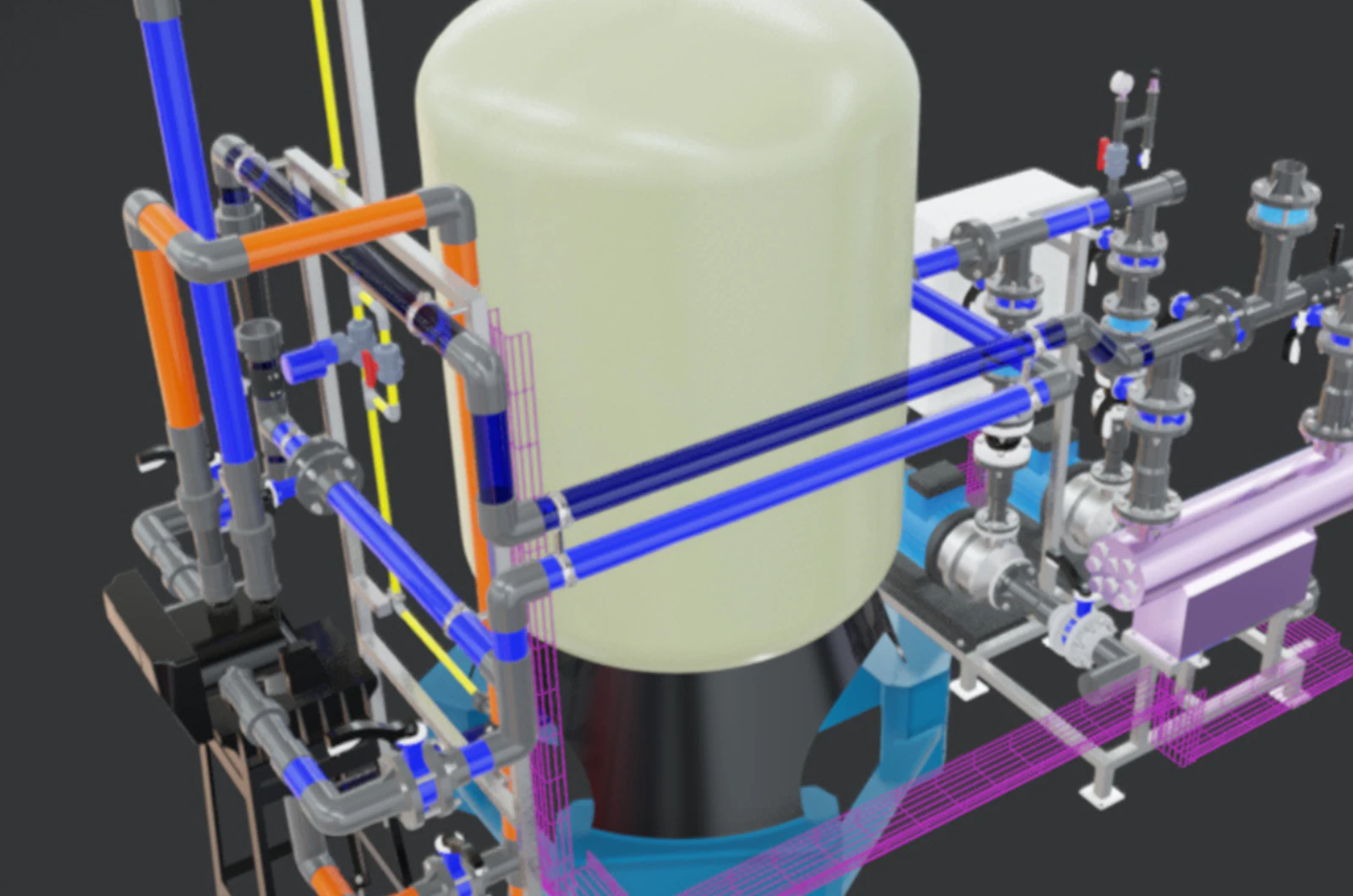

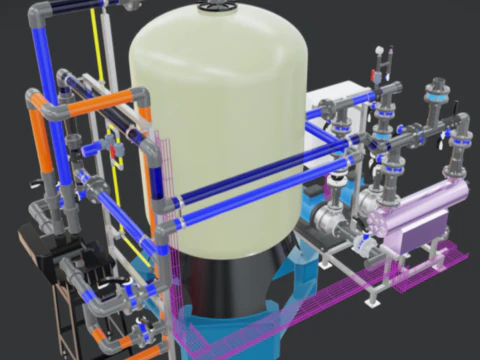

The model includes a complete piping layout, pump skid structure, sand filter internals, inlet/outlet manifolds, and cable routing placeholders. It is ideal for industrial water treatment design, 3D animation, engineering documentation, VR/AR visualization, and digital twin applications.

Features
Flow rate: ~15 m/h
Sand Filter: 482 inch FRP/Steel tank
Valve: Runxin automatic backwash autovalve
Pumping System: Dual booster feed pump configuration
Sterilization: High-power 440W UV lamp
Layout: Compact skid-mounted design
Fully modeled piping, fittings, and support frames
Realistic materials, standardized connectors, and structured component hierarchy
3D Model Details

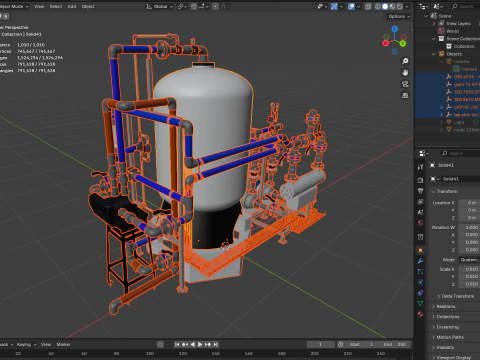

Designed in Autodesk Inventor
High-accuracy mechanical proportions
Clean mesh, no overlapping geometry
Organized folder structure for easy editing
Suitable for FBX/OBJ/GLTF workflows
Use Cases
Industrial filtration system design
Water treatment plant visualization
Technical documentation
Engineering presentations
VR/AR training modules
