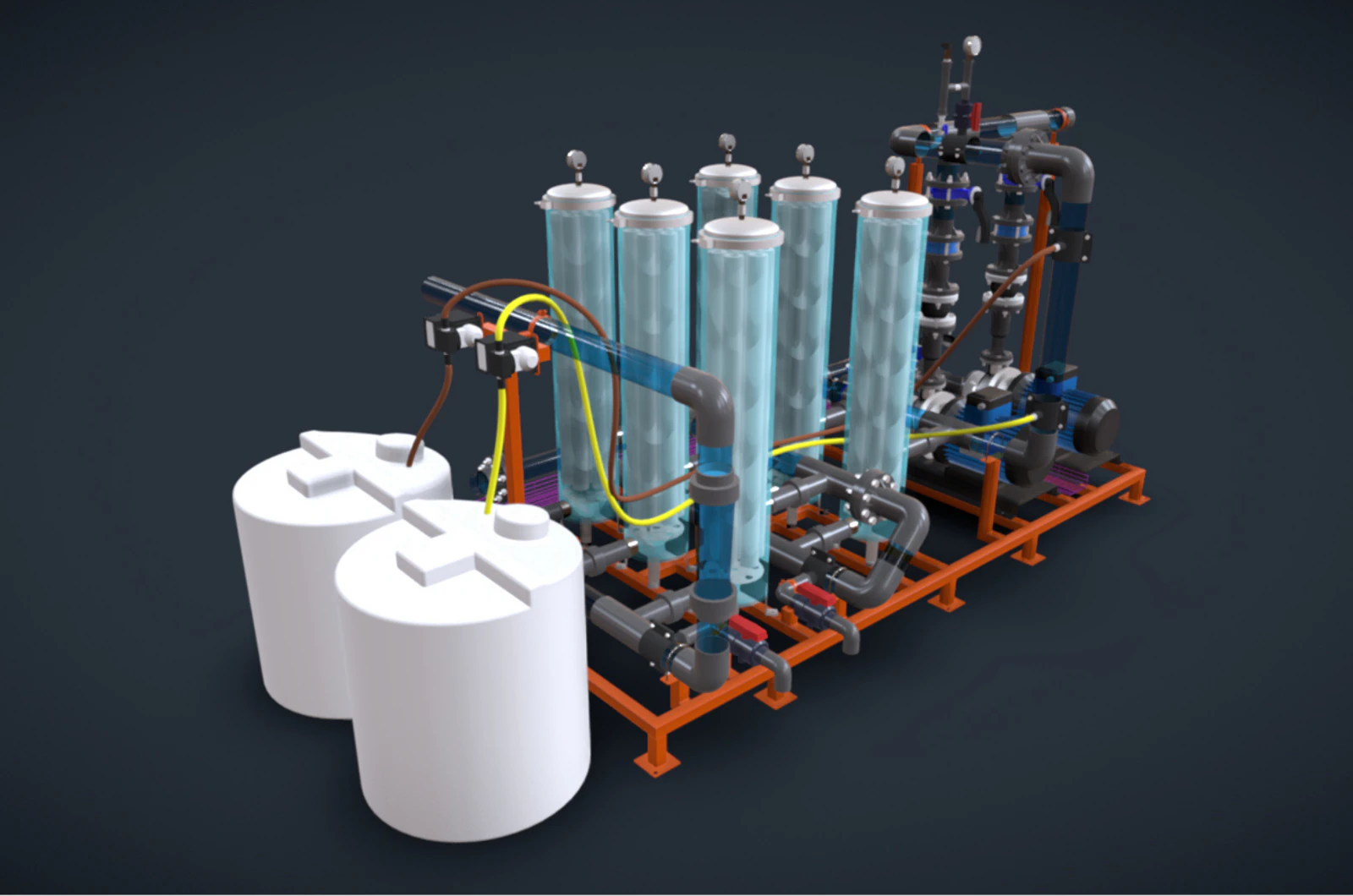

15m3h 2 Stage Fine Filters with Chemical Dosing 3D Model
- Request product support by the author
- Available formats:
- Item ID:616705
- Date: 2025-12-09
- Polygons:163,426
- Vertices:146,557
- Animated:No
- Textured:No
- Rigged:No
- Materials:
- Low-poly:No
- Collection:No
- UVW mapping:No
- Plugins Used:No
- Print Ready:No
- 3D Scan:No
- Adult content:No
- PBR:No
- AI Training:No
- Geometry:Polygonal
- Unwrapped UVs:Unknown
- Views:26
Description
15m/h – 2 Stage Fine Filters with Anti-Scale & Dechlorination for RO Feed
Industrial-grade pre-treatment system engineered for 15 m/h RO feedwater.
This setup integrates a two-stage fine filtration line and a complete RO membrane protection chemical system, ensuring stable operation, high water clarity, and long-term RO performance.
System Overview
• Flow Capacity: 15 m/h
• Operation: Dual feed pumps alternating for durability
• Piping: Full stainless steel build (SS304)
• Control: Automatic via VFD + pressure sensors
Stage 1 – Fine Filtration (5 micron)
• 3 SS304 cartridge housings, 40-inch
• Each housing contains 7 PP 5 m cartridges
• Removes suspended solids and fine particulates to protect the second stage
Stage 2 – Fine Filtration (1 micron)
• 3 SS304 cartridge housings, 40-inch
• Each housing contains 7 PP 1 m cartridges
• Provides ultra-fine polishing filtration before RO feed
RO Membrane Protection Chemical System
Placed upstream to protect RO membranes under industrial load:
1. Anti-Scale Dosing (Antiscalant)
• Prevents scaling and mineral deposition
• Ensures stable RO differential pressure
2. Dechlorination Dosing
• Removes residual chlorine to avoid membrane oxidation
Each dosing unit includes:
• 1 100L PE chemical tank
• 1 Precision metering pump
Applications
• RO feedwater pre-treatment
• Food & beverage production
• Industrial process water
• Manufacturing plants requiring continuous operation
Included Components (3D Model)
• Dual feed pumps
• Two-stage fine filtration line
• uPVC piping layout
• Chemical dosing modules
• 40-inch industrial housings with 7-core PP cartridges
Need more formats?
If you need a different format, please send us a Conversion Request. We can convert 3D models to: .stl, .c4d, .obj, .fbx, .ma/.mb, .3ds, .3dm, .dxf/.dwg, .max. .blend, .skp, .glb. Free Format ConversionWe do not convert 3d scenes and solid formats such as .step, .iges, .stp, .sldprt etc!
Usage Information
15m3h 2 Stage Fine Filters with Chemical Dosing - You can use this royalty-free 3D model for both personal and commercial purposes in accordance with the Basic or Extended License.The Basic License covers most standard use cases, including digital advertisements, design and visualization projects, business social media accounts, native apps, web apps, video games, and physical or digital end products (both free and sold).
The Extended License includes all rights granted under the Basic License, with no usage limitations, and allows the 3D model to be used in unlimited commercial projects under Royalty-Free terms.
Read more
Do you provide Money Back Guarantee?
Yes, we do. If you purchased a product and found some error in the renders or description, we'll try to fix the problem as soon as possible. If we cannot correct the error, we will cancel your order and you will get your money back within 24 hours from downloading the item. Read more conditions hereKeywords
