CONJUNTO GERADOR DE ENERGIA DE TURBINA CARRINHO MOTOR DIESEL ALTERNADOR DÍNAMO Modelo 3D

Descrição

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :

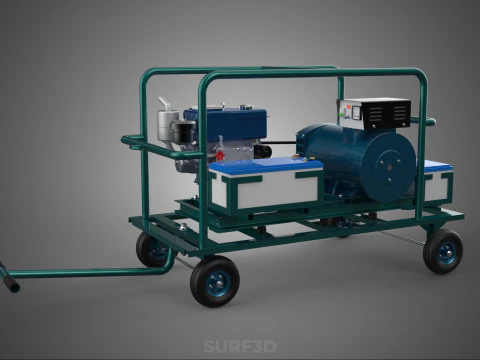

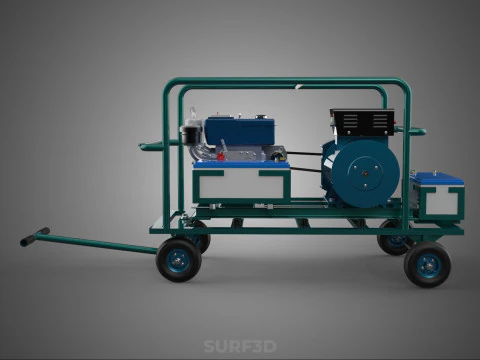

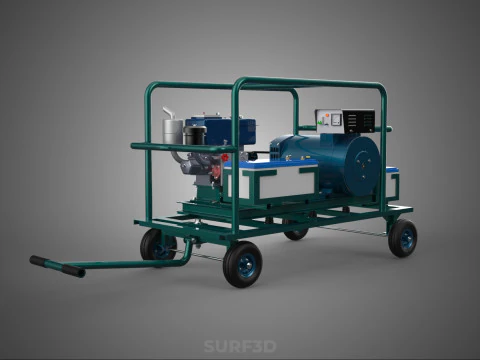

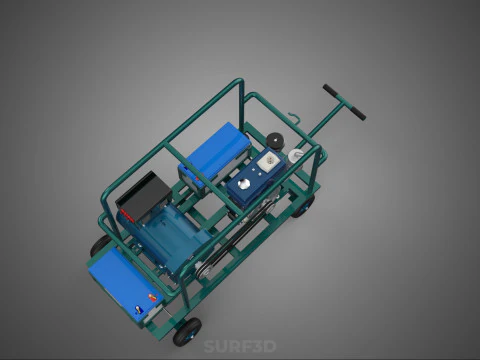

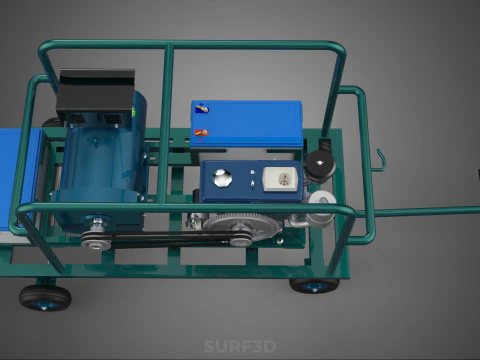

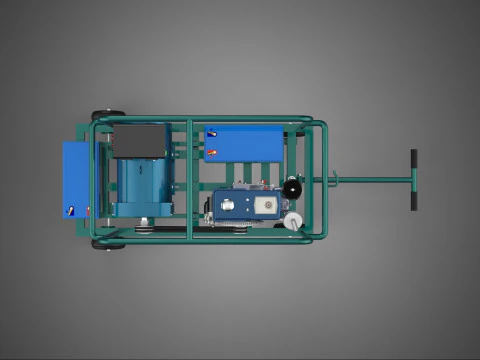

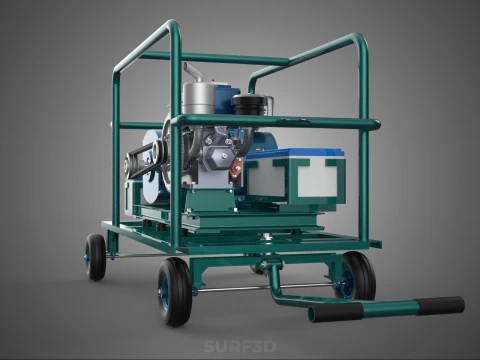

**CART TURBINE POWER GENERATOR SET DIESEL ENGINE ALTERNATOR DYNAMO**

A Cart Turbine Power Generator Set is a specialized class of mobile electrical power generation equipment, commonly referred to as a genset, characterized by its integration of a forced-induction diesel engine, an electrical generator, and a highly mobile, wheeled chassis (cart). This apparatus is designed for rapid deployment, temporary power provision, or standby operation in locations lacking infrastructure or during power grid failures. The assembly represents a complete, self-contained system for converting the chemical potential energy stored in diesel fuel into usable electrical energy.

### Core Components and System Architecture

The generator set is intrinsically an electromechanical system composed of three primary integrated subsystems: the Prime Mover, the Electrical Conversion Unit, and the Transport/Support Mechanism.

#### 1. Prime Mover (Diesel Engine and Turbine System)

The prime mover is a compression-ignition internal combustion engine operating on diesel fuel. These engines are selected for their high thermal efficiency, robust torque characteristics, and reliability under varying loads. The nomenclature "Turbine" within this context generally refers to an integrated **turbocharger system**. A turbocharger utilizes an exhaust gas-driven turbine coupled to a compressor wheel. This arrangement maximizes engine volumetric efficiency by forcing compressed air into the combustion chambers, thereby increasing power density and fuel economy relative to naturally aspirated engines of comparable displacement. The inclusion of a turbocharger is crucial for achieving high power output in a compact, portable format. The engine’s crankshaft rotation provides the mechanical input necessary to drive the electrical conversion unit.

#### 2. Electrical Conversion Unit (Alternator and Dynamo)

The electrical conversion unit is rigidly coupled to the engine, typically via a flexible coupling, forming a single rotating assembly. This component is responsible for transforming mechanical energy into electrical energy.

* **Alternator (Synchronous Generator):** In most modern industrial gensets, a synchronous alternator is utilized, producing alternating current (AC). The alternator operates on the principle of electromagnetic induction, generating a three-phase or single-phase voltage at a frequency (e.g., 50 Hz or 60 Hz) determined by the engine speed and the number of magnetic poles. Alternators feature integrated Automatic Voltage Regulators (AVRs) to maintain consistent output parameters despite fluctuations in load.
* **Dynamo (Direct Current Generator):** While less common for high-power primary generation, a dynamo produces direct current (DC). The term "dynamo" is often used generically or historically to refer to the generator component, or specifically to smaller DC generators used for battery charging or auxiliary systems within the genset itself.

#### 3. Cart and Mobility System

The "Cart" designation highlights the non-stationary nature of the unit. This refers to a heavy-duty frame or chassis mounted on wheels (often pneumatic tires) or skids, designed to absorb operational vibrations and facilitate movement across diverse terrains. The chassis integrates the fuel tank, control panel, engine cooling system, and sound-attenuating enclosures. Portability is a defining functional characteristic, enabling deployment for emergency, military, construction, or remote logistical applications.

### Operational Characteristics

These generating sets are characterized by their instantaneous readiness, high power-to-weight ratio (especially due to the turbocharged diesel engine), and ability to operate independently of fixed power infrastructure. They are essential assets in standby power schemes, disaster recovery operations, and temporary construction sites where reliable, medium-to-high capacity electrical supply is required.

KEYWORDS: Generator Set, Genset, Diesel Engine, Alternator, Dynamo, Turbocharger, Cart, Mobile Power, Standby Power, Emergency Power, AC Power, DC Power, Power Generation, Prime Mover, Internal Combustion Engine, Synchronous Generator, Forced Induction, Electrical Power, Mobile Chassis, Portable Generator, Turbo Diesel, Auxiliary Power, AVR, Electromechanical, Power System, Energy Conversion, Electrical Grid, Load Bank, Fuel Efficiency, Remote Operation.
