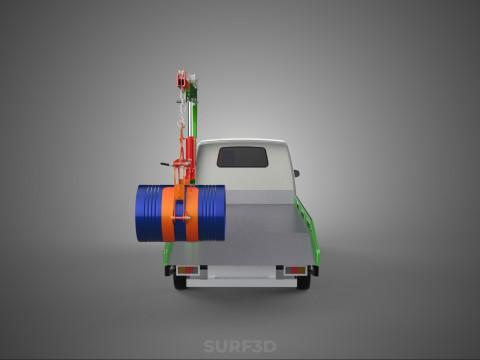

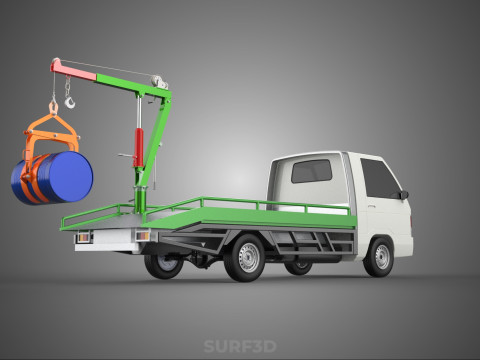

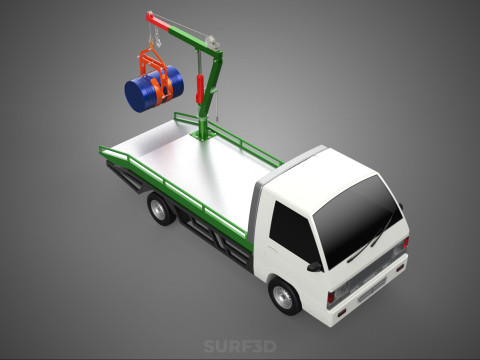

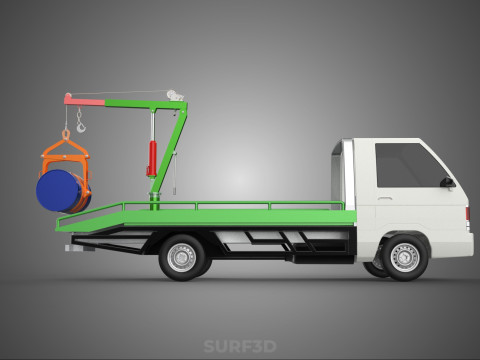

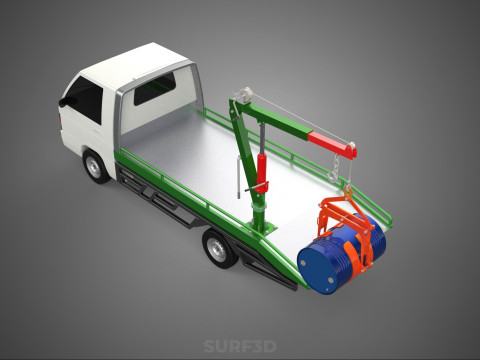

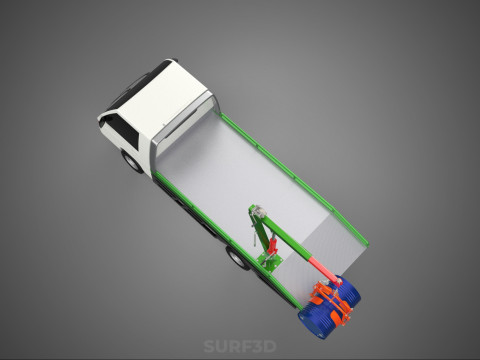

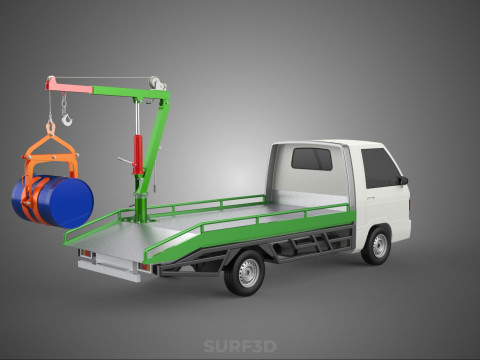

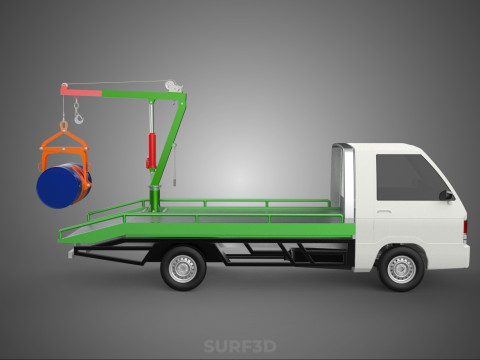

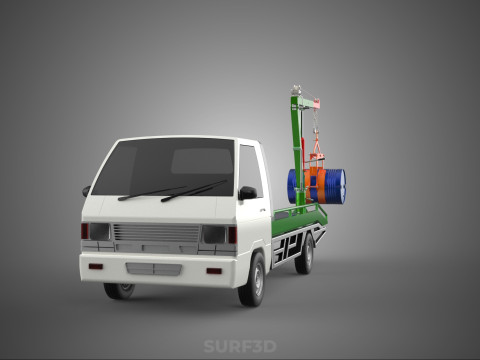

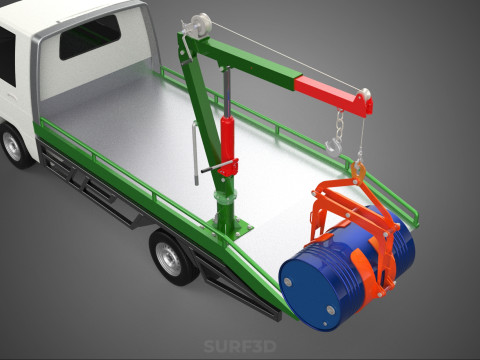

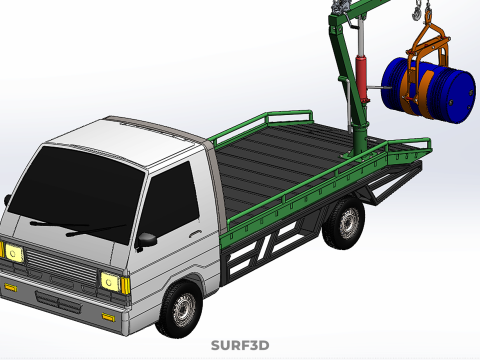

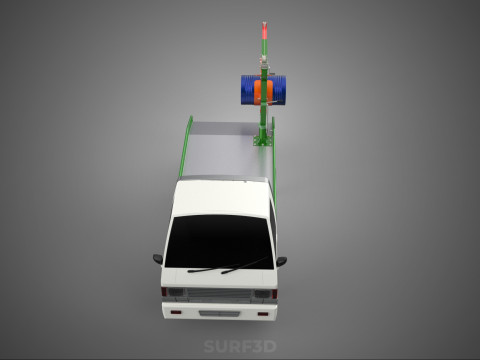

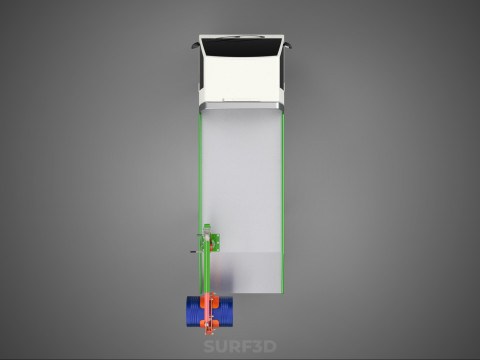

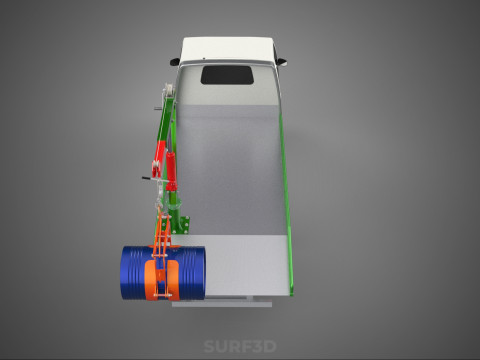

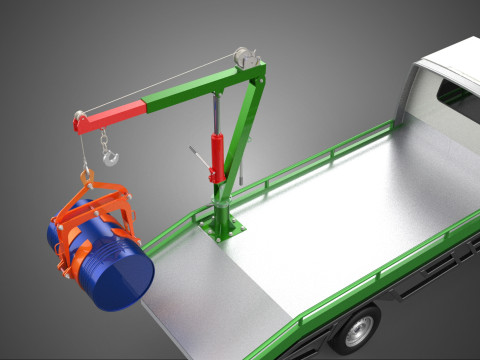

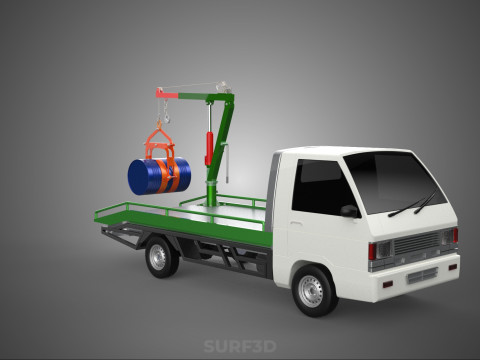

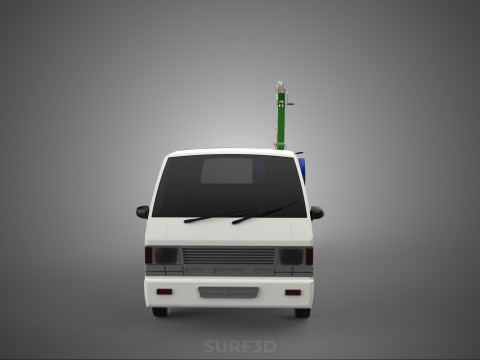

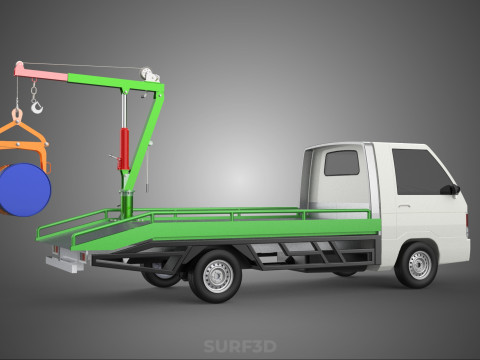

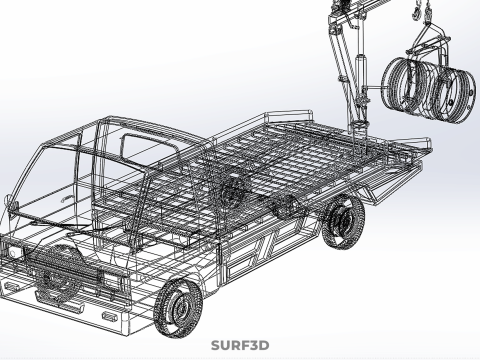

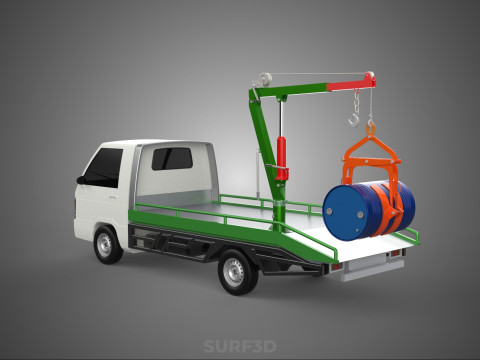

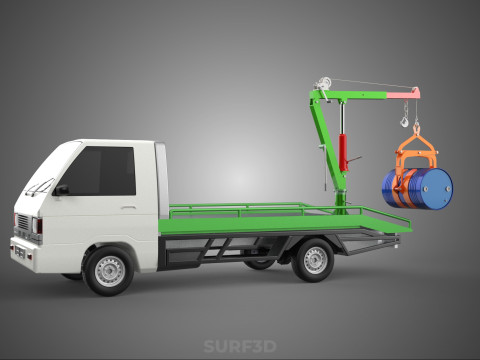

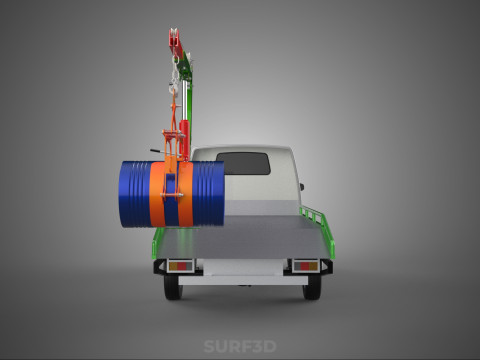

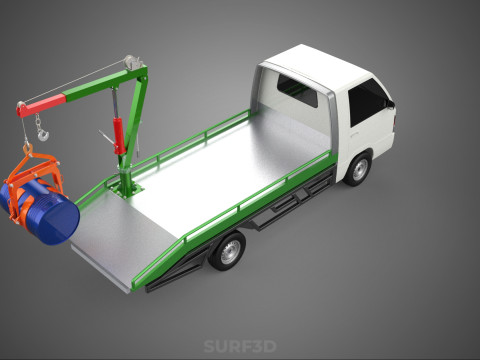

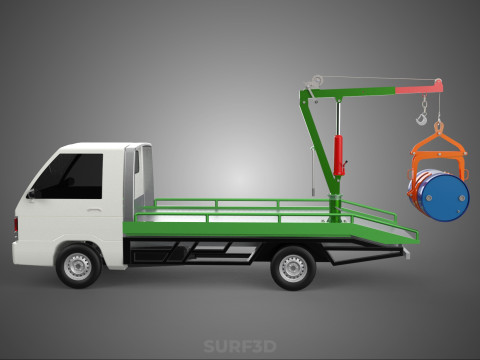

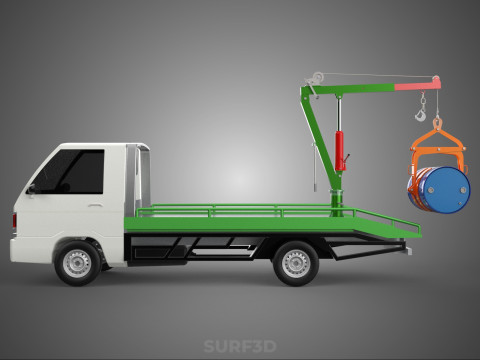

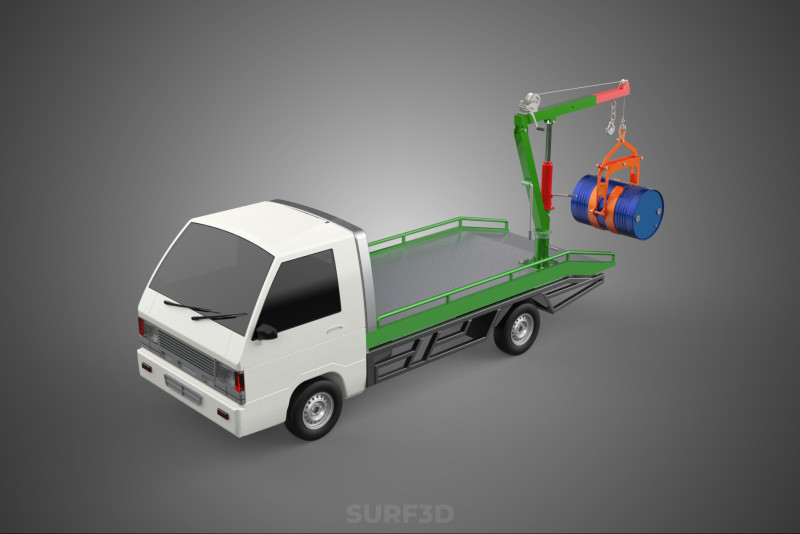

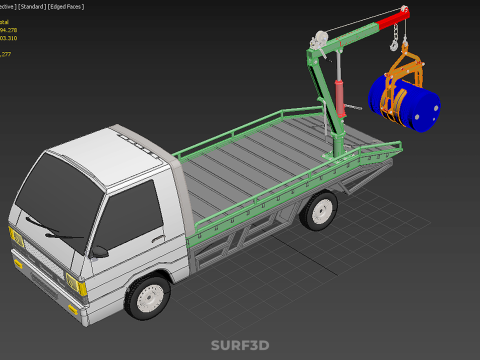

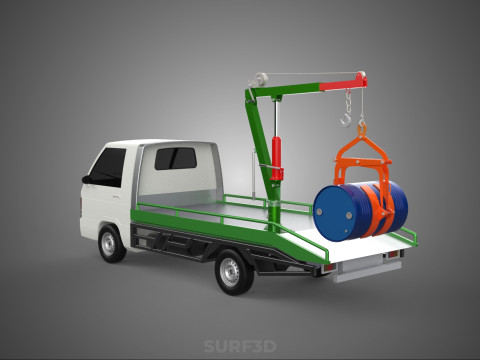

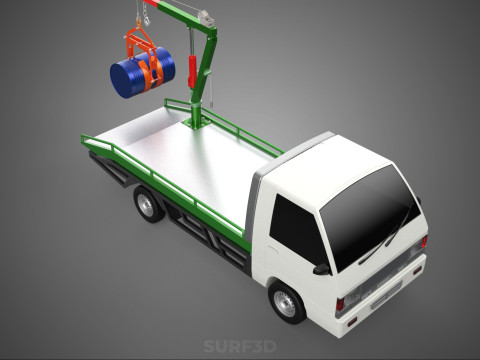

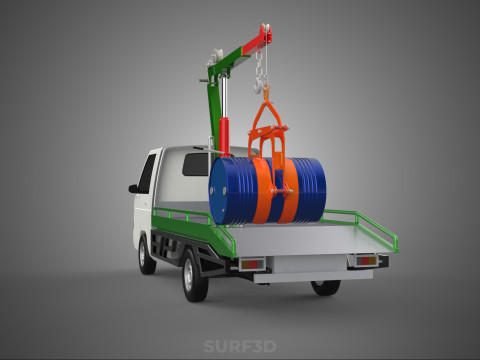

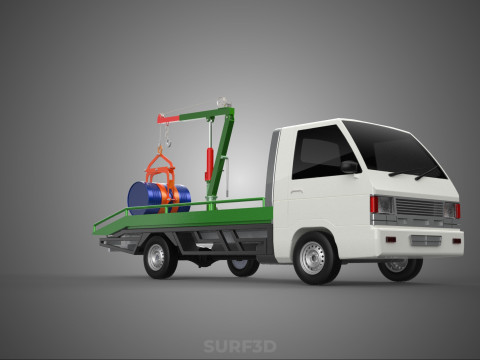

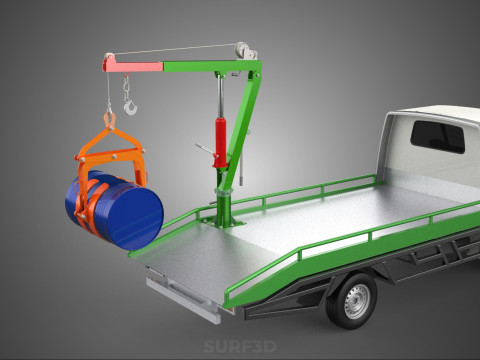

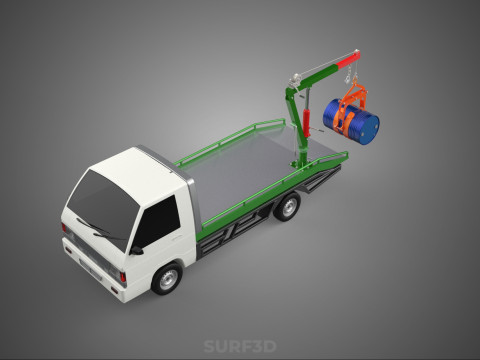

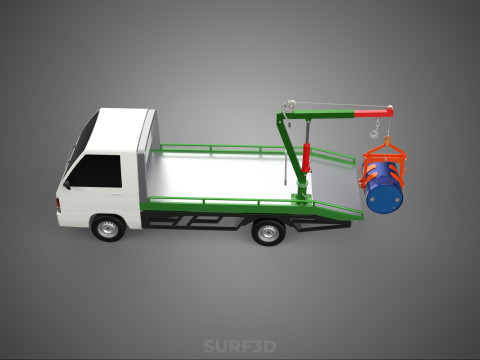

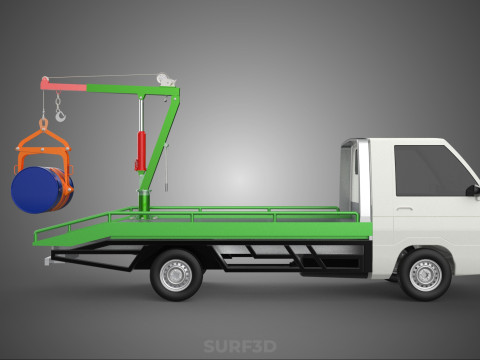

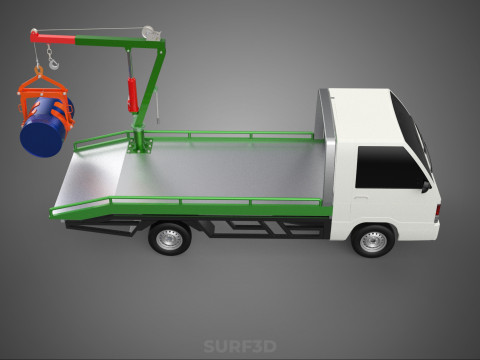

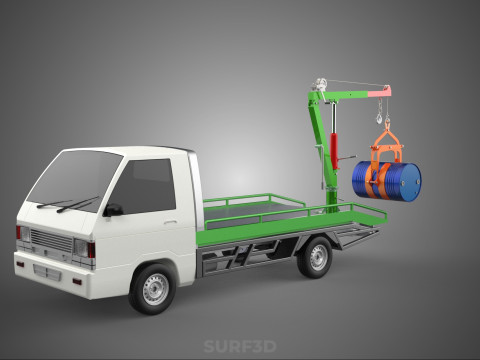

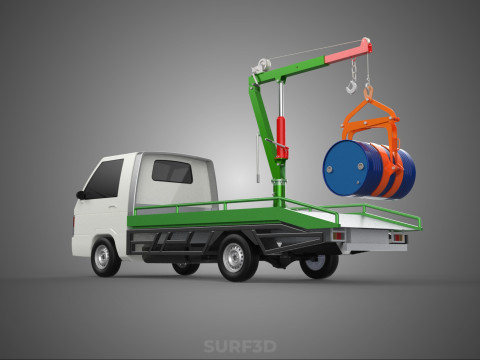

FLATBED TRUCK PICKUP CRANE LIFTING WINCH HOIST JIB DRUM BARREL Modelo 3D

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.***) – Provided for Rhino users

Model Info
• - All files are checked and ****ed for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A "Flatbed Truck Pickup with Crane ***ch Hoist Jib to Lift the Drum Barrel" describes a highly specialized commercial vehicle engineered for the efficient and safe transportation and loading/unloading of cylindrical containers, particularly industrial drums or barrels. This integrated system combines the mobility and cargo capacity of a flatbed truck with the precise lifting capabilities of a truck-mounted crane.

**Nomenclature and Classification:**
While the term "pickup" might colloquially refer to a light-duty truck, in this context, it signifies the vehicle's capacity to "pick up" or retrieve loads. The base vehicle is typically a medium to heavy-duty commercial truck chassis equipped with an open flatbed body. Such vehicles are broadly classified under "crane trucks," "boom trucks," "service trucks with cranes," or more specifically, "drum handling trucks" when their primary function is the manipulation of barrels. Depending on the crane's articulation, it may be further specified as a "******* boom truck" (articulated jib) or a "stiff boom truck" (telescopic straight boom).

**Components and Functionality:**

1. **Flatbed Chassis (Vehicle Platform):**
* The foundational element is a robust truck chassis, designed for commercial operation, providing stability and substantial load-bearing capacity.
* The **flatbed cargo area** offers an open, unobstructed platform, facilitating easy side or rear loading of various materials in addition to drums. Its design allows for the transport of multiple drums, often secured by strapping or specialized containment systems.
* **Outriggers/Stabilizers:** Crucial for stability during lifting operations, these hydraulic or manual extensions deploy from the chassis to create a wider, more stable base, counteracting the leverage exerted by the crane and preventing tipping.

2. **Lifting System (Crane/Jib/Boom Assembly):**
* **Crane/Boom:** This is the primary lifting mechanism, typically mounted directly behind the truck's cab or at the rear of the flatbed. It consists of a multi-section boom (often referred to as a jib) that can be extended, retracted, elevated, and slewed (rotated horizontally) to reach and position loads.
* **Hydraulic System:** Most modern truck-mounted cranes are hydraulically powered, providing precise and powerful control over boom extension, elevation, and sle***g. Hydraulic cylinders are integral to the articulation points of the boom.
* *****ch and Hoist:** Integrated into the crane's jib, the *****ch** comprises a powered drum around which a high-tensile steel cable is spooled. The **hoist mechanism**, often synonymous with the ***ch's lifting function, facilitates the vertical movement of the load by ***ding or un***ding the cable. The cable terminates in a hook or a specialized lifting attachment.
* **Jib:** Refers to the extending arm or boom of the crane. In many applications, particularly with ******* booms, the jib has multiple articulated sections, allo***g it to fold compactly when not in use and extend with great flexibility to maneuver loads in confined spaces or over obstacles.

3. **Drum Handling Attachments:**
* For the secure and efficient handling of drums or barrels, specific attachments are used in conjunction with the hoist cable. These can include:
* **Drum Grapples/Clamps:** Mechanical or hydraulic devices designed to grip the top rim, side, or full body of a drum securely.
* **Drum Slings:** Specialized slings or chains that loop around or under the drum, often with a spreader bar to maintain stability.
* **Forklift-Style Drum Lifters (Hook Mounted):** Attachments that simulate forklift prongs but are designed to connect to a crane hook, allo***g the drum to be lifted from its base.
These attachments ensure the drum is lifted safely, without damage, and maintained in a stable orientation during transit.

**Operational Principles:**
Operation involves strategic positioning of the truck, deployment of outriggers for stabilization, extending the crane jib towards the drum, securely attaching the appropriate drum lifter, engaging the hoist to lift the drum clear of the ground, sle***g (rotating) the drum over the flatbed, and carefully lowering it onto the cargo area. Reverse steps apply for unloading. Control is typically managed via a remote control unit (wired or wireless) or a control panel mounted on the truck, allo***g the operator to maintain a safe distance and optimal visibility of the lifting operation.

**Applications:**
These vehicles are indispensable in various industries requiring the handling and transport of liquids, chemicals, waste, or other materials stored in drums. Common applications include:
* **Environmental Services:** Collection and transport of hazardous or non-hazardous waste drums from various sites.
* **Oil and Gas Industry:** Moving lubricant drums, drilling fluids, or fuel barrels on drilling sites, refineries, or distribution centers.
* **Chemical Manufacturing:** Intra-plant transport or delivery of raw materials and finished products in drummed form.
* **Construction:** Moving small barrels of liquids (e.g., sealants, oils, admixtures) or general small lifts on job sites.
* **Logistics and Warehousing:** Loading and unloading drums from docks or ground level onto transport vehicles, especially when a dedicated loading dock is unavailable.
* **Agriculture:** Handling bulk liquid fertilizers, pesticides, or fuels.

**Advantages:**
The primary advantages of this integrated system include unparalleled versatility, combining transportation and lifting capabilities in a single unit; enhanced efficiency by reducing the need for separate lifting equipment and personnel; improved safety by minimizing manual handling of heavy drums; and superior accessibility, as the mobile crane can operate in locations where traditional forklifts might struggle due to terrain or space constraints.

**Safety Considerations:**
The operation of a crane truck requires trained and certified personnel due to inherent risks associated with heavy lifting, vehicle stability, and the potential handling of hazardous materials. Adherence to load charts, proper outrigger deployment, maintaining safe working distances, and consistent situational awareness are paramount to ensure the safety of operators, bystanders, and cargo.

KEYWORDS: Flatbed truck, crane truck, boom truck, drum handling, barrel lifter, ***ch hoist, jib crane, mobile crane, commercial vehicle, material handling, logistics, industrial transport, specialized equipment, hydraulic system, outriggers, cargo transport, heavy lifting, container management, waste management, chemical transport, oil and gas industry, safety equipment, lifting attachment, drum grapple, service vehicle, ******* boom, stiff boom, freight transport, industrial drums, hazardous materials.
