Mold for GOODYEAR tire TE188 3725X35 Scale 25 Modelo de Impressão 3D

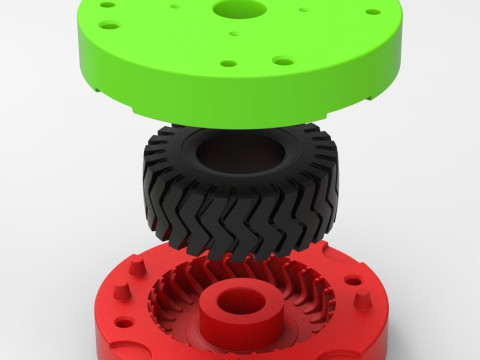

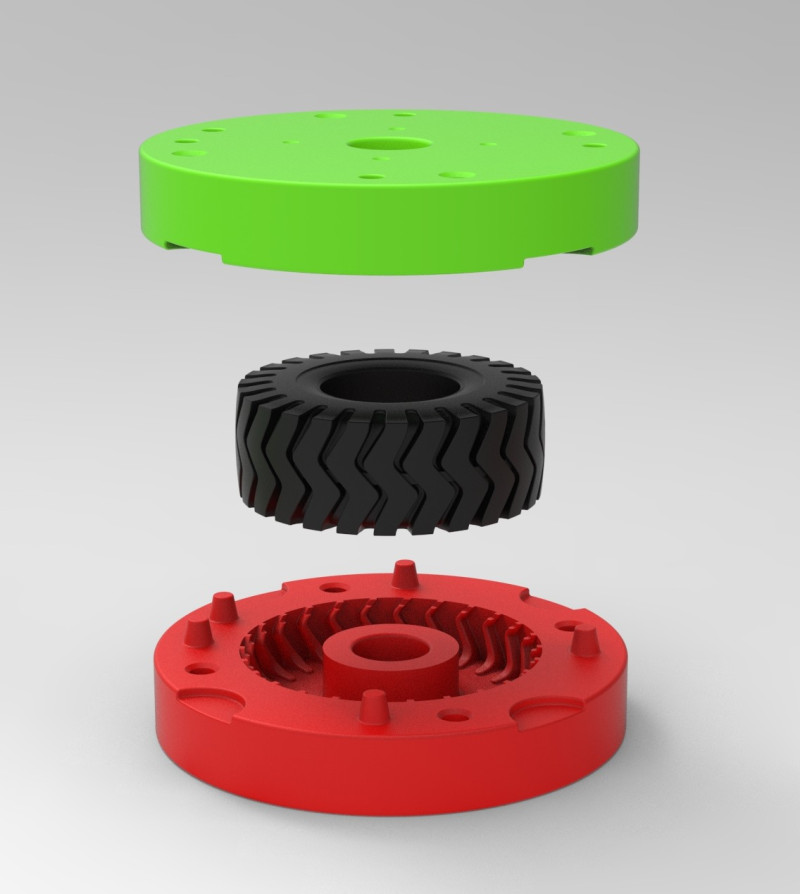

The mold is intended for the tire manufacture from silicone or similar flexible material in scale 1:25. It consists of 2 parts: top and bottom part. Each part can be 3D printed without supports.

Mold dimensions:

- diameter – 111 mm

- height – 37,5 mm

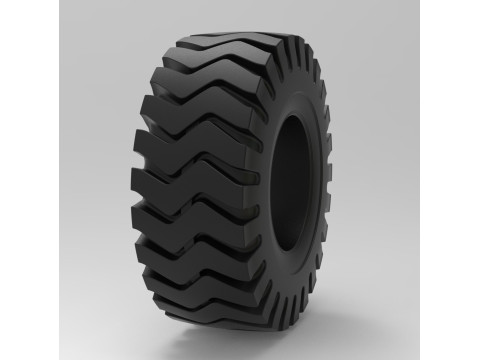

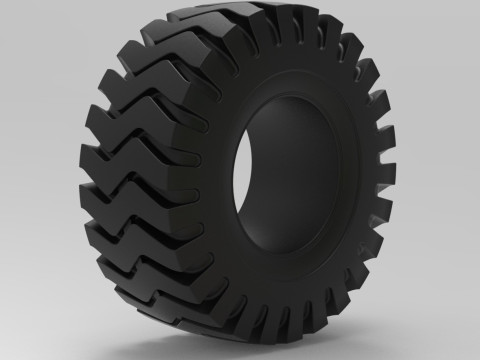

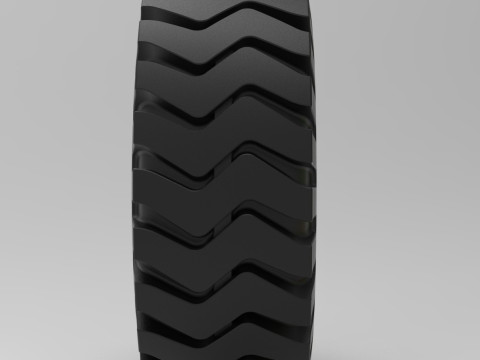

Tire dimensions:

-        outer diameter – 71 mm

-        overall width – 27,5 mm

-        inner diameter – 32 mm

If you want a different wheel size, simply scale the mold.

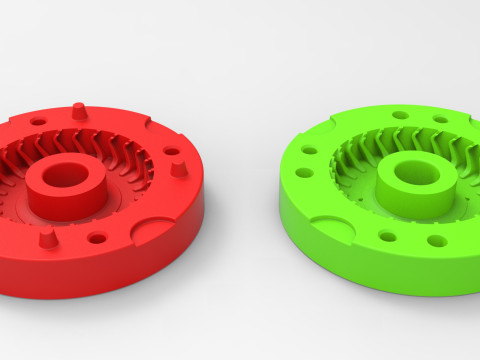

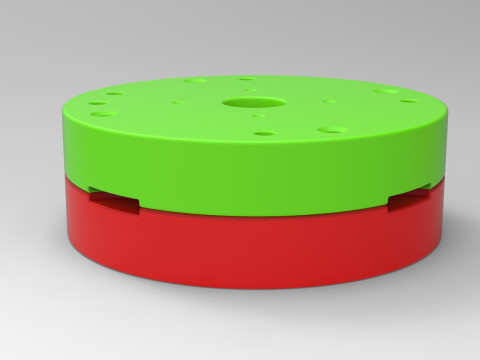

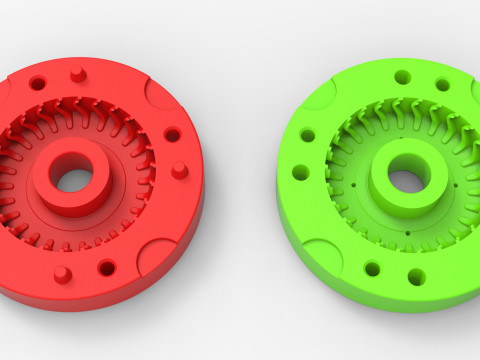

The bottom mold part has 5 special bosses and Top mold part has 5 special holes to guide mold parts in the closed state. Also, there are 4 slots for ***ter opening with a screwdriver or similar instrument.

In the Top mold part are 4 small holes for material injection.

Both mold parts have 4 holes with diameter 6 mm for bolting it in closed state.

Note! Only the mold! This is not a tire!
