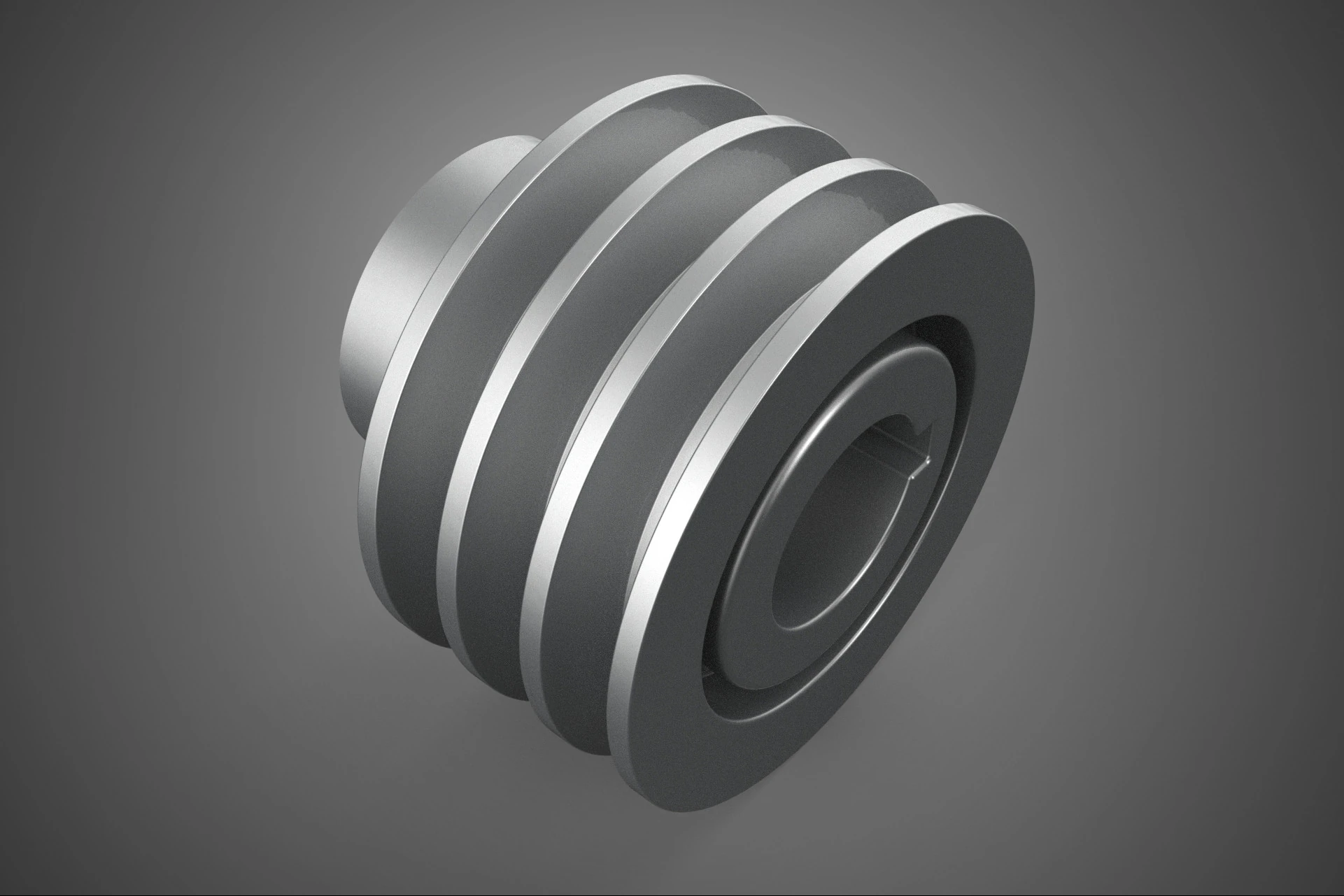

PADRÃO 3 TRÊS TRÊS RANHURAS TRILHA POLIA ROLHA RODA ENGRENAGEM FE Modelo 3D

Descrição

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A **Triple Groove Track Pulley Sheave Wheel Gear** (often abbreviated as a 3-Track Sheave or Multi-Groove Pulley) is a specialized mechanical component utilized extensively in industrial machinery, hoisting systems, and power transmission assemblies. This device functions as a rotating element designed to support movement and change the direction of a taut cable, rope, chain, or, most commonly, to facilitate torque transfer via multiple belts (e.g., V-belts or synchronous timing belts).

### Nomenclature and Configuration

The component integrates several descriptive terms:

1. **Sheave/Pulley/Wheel:** These terms refer to the fundamental mechanical element—a rigid wheel mounted on an axle or bearing, designed for rotational movement. The term "sheave" is generally preferred in block-and-tackle contexts, while "pulley" is common in belt-drive systems.
2. **Standard:** Denotes adherence to established industry specifications and dimensional tolerances, often relating to international standards (e.g., ISO, DIN, or specific V-belt profile standards such as 3L, 4L, 5L, or corresponding sections A, B, C). Standardization ensures interchangeability and predictable kinematic performance.
3. **Triple Groove Track (Three Groove):** This essential feature defines the geometry, indicating the presence of three parallel, circumferential channels machined into the periphery of the wheel. This configuration permits the simultaneous engagement of three independent or interconnected power transmission elements (ropes, cables, or belts).

The use of a triple-groove configuration significantly enhances the system's capacity, offering several advantages over single-groove designs:

* **Increased Power Transmission:** In belt drives, using three belts simultaneously multiplies the effective surface area contact, allowing the system to transmit significantly greater horsepower (HP) or kilowatts (kW) of torque without increasing belt tension to unsafe limits.
* **Enhanced Load Distribution:** In hoisting or rigging applications, three tracks allow the load to be distributed across multiple lines, reducing the strain on any single rope or cable and improving system longevity and safety.
* **Redundancy:** If one belt or rope fails in a multi-track system, the remaining tracks can often maintain operational integrity until maintenance can be performed.

### Design and Material Composition (GEAR FE)

The inclusion of the term "GEAR" in the designation often serves as a functional descriptor, highlighting the component's role in the power transmission kinematics of the overall machine. While many standard triple-groove pulleys are smooth (designed for friction-based V-belts), the term may also imply:

1. **Synchronous Drive:** The grooves are specifically profiled with teeth designed to mesh with a timing belt, ensuring positive engagement and synchronous transmission (common in machinery requiring precise speed ratios).
2. **Inclusion within Geared Systems:** The pulley is an integral part of a mechanical reduction or gearing assembly, such as a winch, hoist, or gearbox output.

The suffix "FE" is widely interpreted within engineering specifications to denote the primary material of construction as **Ferrous**. Typical ferrous materials employed include:

* **Cast Iron (e.g., ASTM A48 Class 30/40):** Preferred for its excellent damping characteristics, dimensional stability, and relative low cost in large-volume production. It provides sufficient strength and wear resistance for standard- to heavy-duty applications.
* **Ductile Iron:** Used when increased strength, ductility, and shock resistance are required, making it suitable for high-stress applications.
* **Steel Alloys:** Utilized in extreme heavy-duty environments or where weight reduction and superior strength-to-weight ratios are necessary, often requiring specific heat treatments (e.g., induction hardening) for enhanced groove track durability.

### Applications

Triple groove sheaves and pulleys are critical components in medium to heavy industrial sectors, including:

* **HVAC Systems:** Used in large blowers, compressors, and pump drives requiring substantial power transmission capacity.
* **Manufacturing Equipment:** Integrated into conveyors, lathes, milling machines, and processing machinery for primary or secondary power transfer.
* **Material Handling:** Employed in heavy industrial hoists, cranes, and block-and-tackle systems where the multiple grooves provide necessary mechanical advantage and load distribution for lifting operations.

KEYWORDS: Pulley, Sheave, Triple Groove, Three Track, V-Belt, Power Transmission, Mechanical Advantage, Ferrous, Cast Iron, Ductile Iron, Standardized Component, Hoisting System, Belt Drive, Synchronous Pulley, Torque Transfer, Kinematics, Industrial Machinery, Load Distribution, Grooved Wheel, Ferrous Material, ASTM A48, V-Belt Profile, High Capacity, Block and Tackle, Reduction Gear, Machine Element, Rotary Component, Axle Mount, Transmission Efficiency, Standard Configuration.
