WG 0001 - Gama completa de rolos multifunções montados com 3 Modelo 3D

Descrição

The documentation package includes the following equipment:
1. WG 0001-200 - mounted multipurpose roller 2.0 m with fixed frame
2. WG 0001-250 - mounted multipurpose roller 2.5 m with fixed frame
3. WG 0001-300 - mounted multipurpose roller 3.0 m with fixed frame

Each equipment has 6 types of rollers:
1. Roller-shredder, with the possibility of filling with water.
2. Hard roller-shredder. Aggressive roller chopper, with the possibility of filling with water.
3. Water filling drum, with the possibility of filling with water.
4. Crosskill. A roller for breaking up clods in the field after plowing.
5. Shredder, for mixing plant residues.

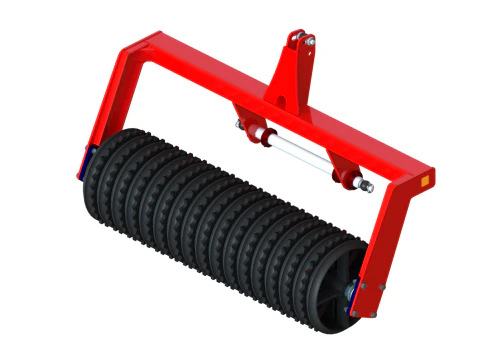

6. Cambridge roller.

This way you get 18 different rolls.

The WG-0001 is a folding roller carrier designed to accommodate various roller types, including Cambridge, Crosskill, and steel rollers. Its robust construction ensures efficient soil compaction, breaking up clods, and leveling the seedbed. Ideal for pre-sowing soil preparation, it enhances seed-to-soil contact, promoting uniform germination. The mounted design allows for easy transport and storage, making it a practical choice for modern farms.

Full SolidWorks 3D assembly and manufacturing documentation (SLDASM + SLDPRT + STEP + Parasolid + CATIA).Ready for modification, prototyping, or production use.
This is a high-quality, engineering-grade 3D model. Designed with precision, the model includes a complete assembly along with fully detailed 2D technical drawings of each component.It is ideal for: Product design and prototyping. Educational and demonstration purposes 3D visualizations or animations CNC manufacturing preparation 3D printing (STL included)

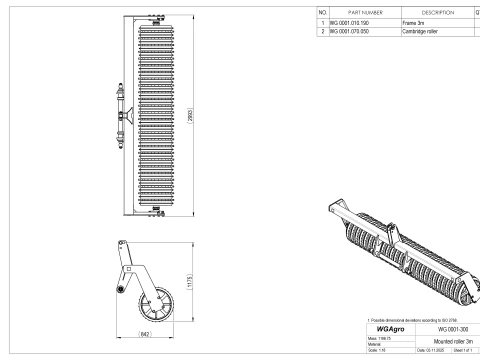

Contents of the package: Full 3D assembly. Separated parts.Detailed dimensions.Material indications.Assembly drawing with exploded view.High-quality STEP (.step), IGES (.iges), STL (.stl) files,  Parasolid (.x_t) and CATIA (.cgr).

Technical Highlights:
Modeled in SolidWorks.
All parts are real-world scaled (millimeters).
Accurate real-world dimensions
High-detail components
Ready for fabrication or simulation
Designed for CNC manufacturing, prototyping, or educational use
Clean parametric structure
Compatible with major CAD software.
Designed with manufacturing feasibility in mind.
Recommended Use:

Technical planning
Custom fabrication
Educational material
Suitable for engineers, farmers, and DIY enthusiasts.
Textures not included. This is a solid CAD model, not polygonal mesh.
Need your own version of this model? I can modify or create new equipment to suit your needs.
