Линия сборки зеркал с рамой из алюминиевого сплава, включая клей SolidWorks, редактируемый 3D Модель

Описание

Aluminum alloy frame fitting mirror assembly line (including glue) SolidWorks editable

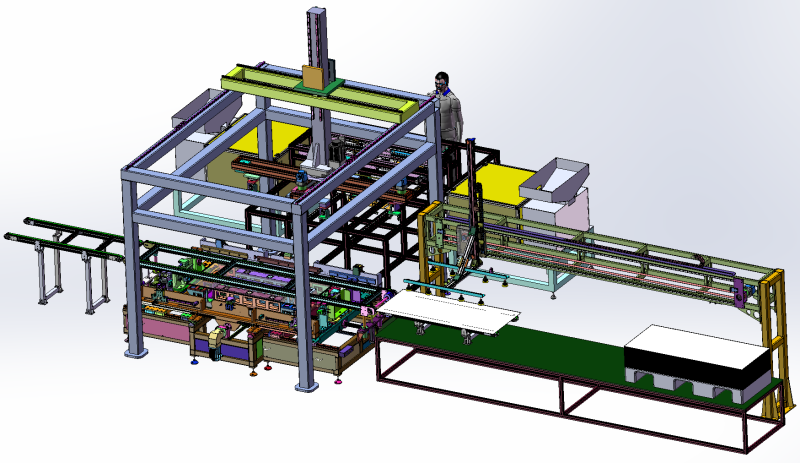

The aluminum alloy frame fitting mirror assembly line is dedicated to the frame dispensing and lens assembly processes, including frame assembly and dispensing functions. The entire line is mainly composed of assembly stations (including chassis), aluminum frame handling components, aluminum alloy frame feeding and dispensing equipment, longitudinal conveyor lines, lens placement stations, and truss handling components. It has high automation and positioning accuracy, and is suitable for production and teaching seminars in professional scenarios.

The following are the main components and descriptions of the assembly line:

1. * * Component Supply System * *: Responsible for the supply of mirror frames, lenses, and other components. The system supports automatic feeding according to preset specifications, and can also be supplemented manually.

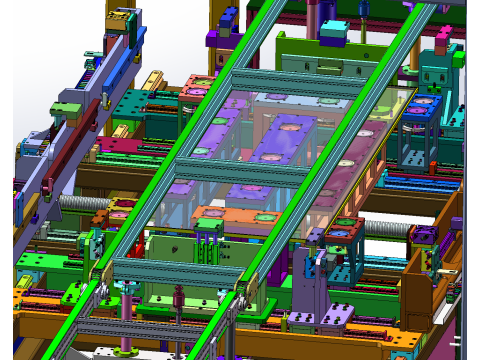

2. Assembly Platform: As the core assembly unit, it can achieve precise positioning and clamping of components, and complete high-precision and high stability assembly operations according to the set program.

3. * * Conveyor System * *: Used to transport components from the supply system to the assembly station and transport the assembled fitting mirrors to the inspection station or cutting point. The system has automated control capabilities and can achieve fast and accurate material flow.
