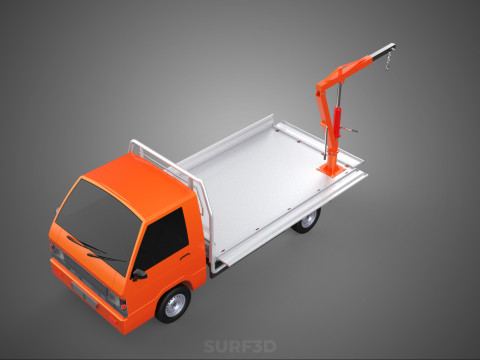

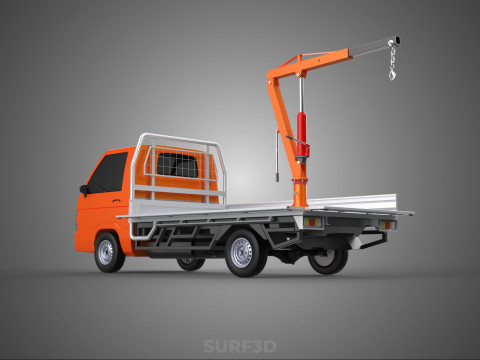

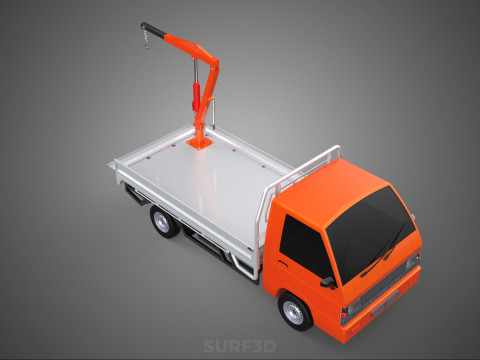

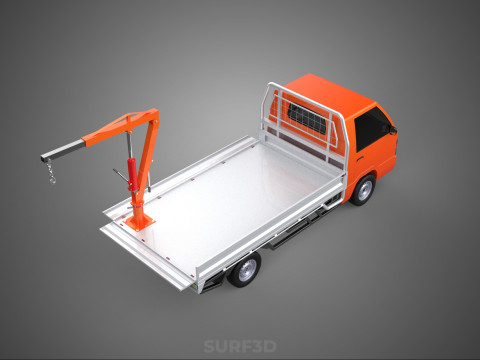

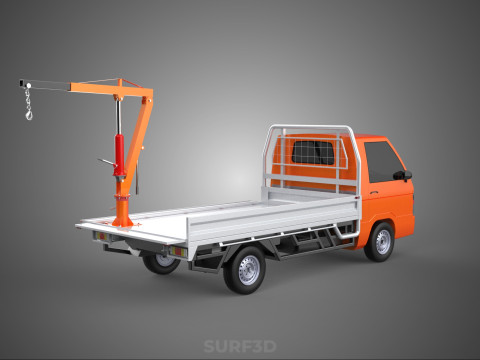

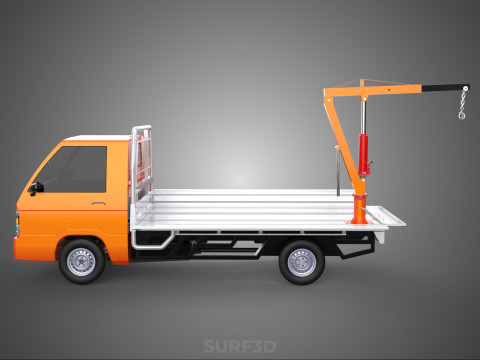

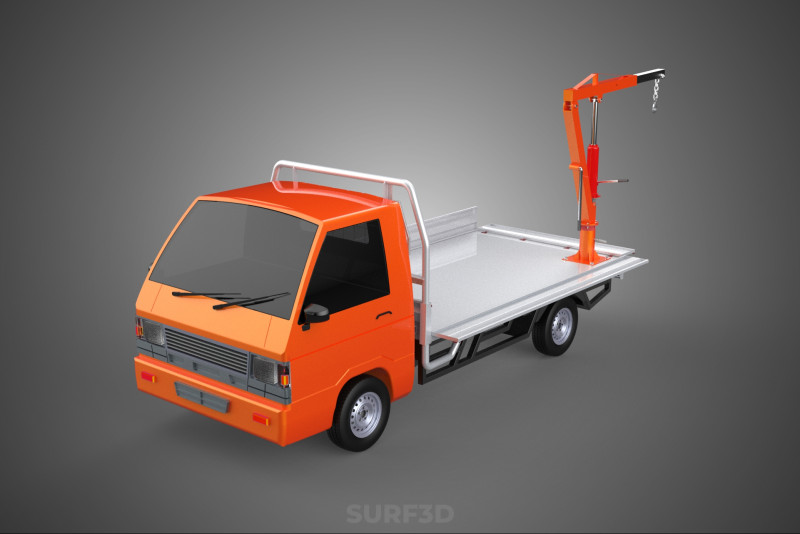

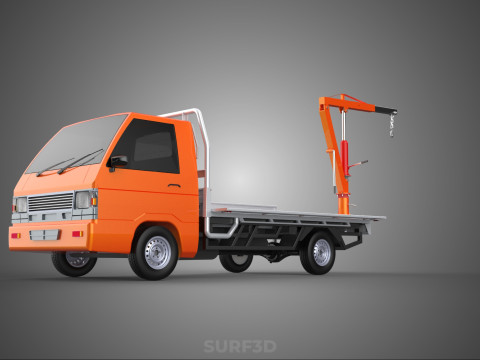

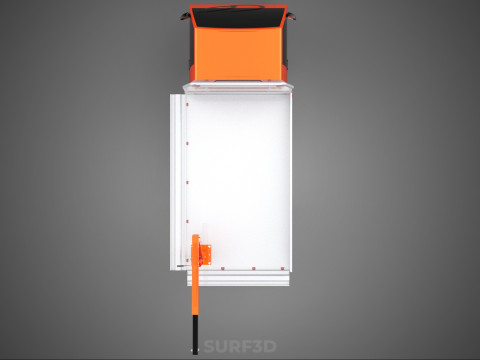

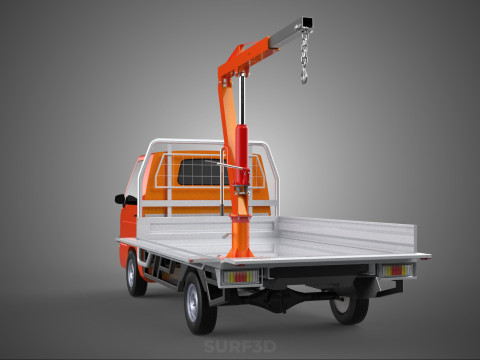

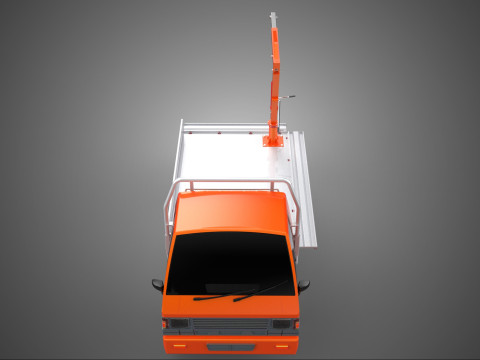

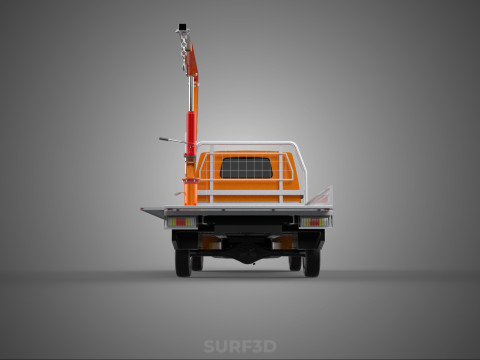

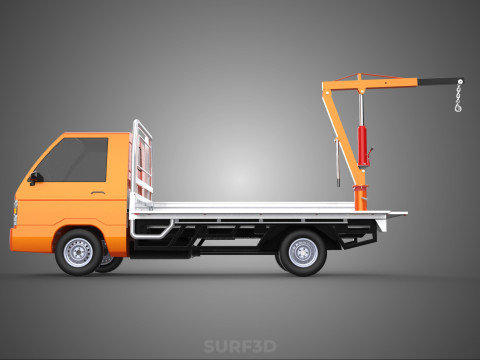

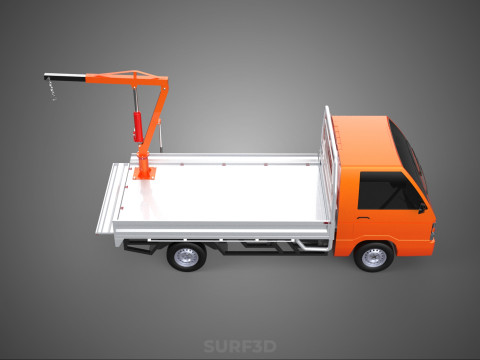

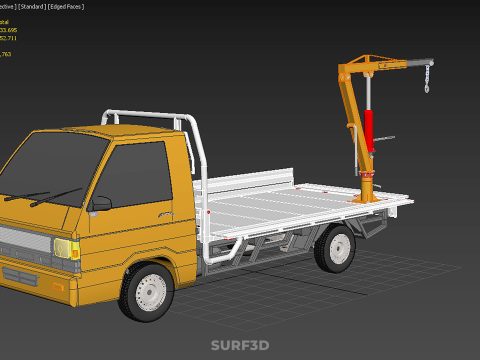

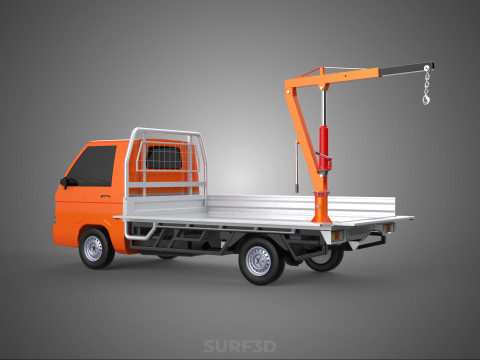

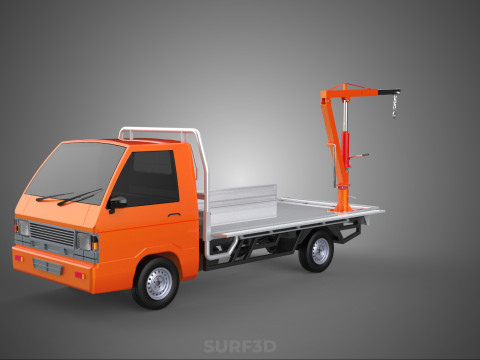

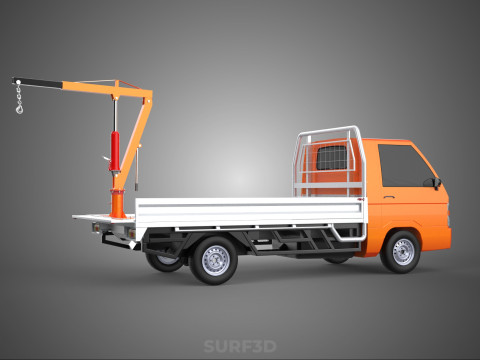

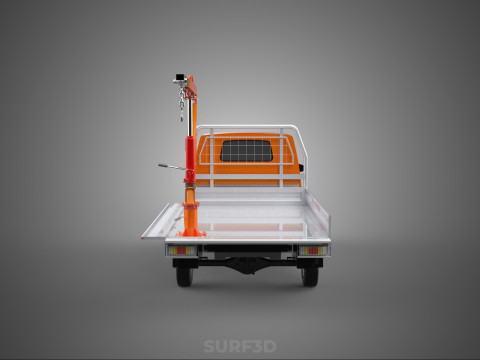

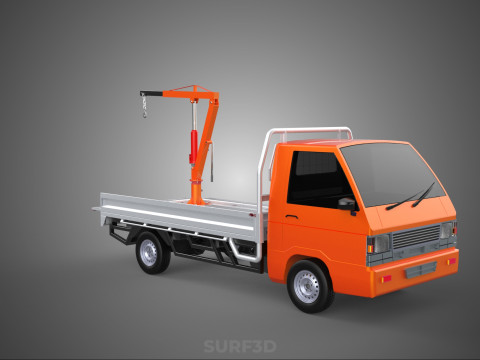

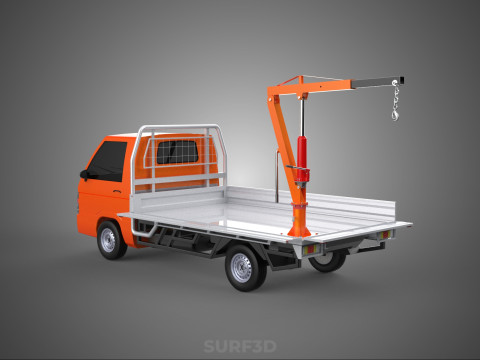

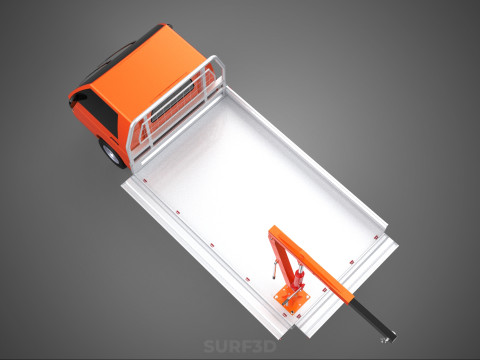

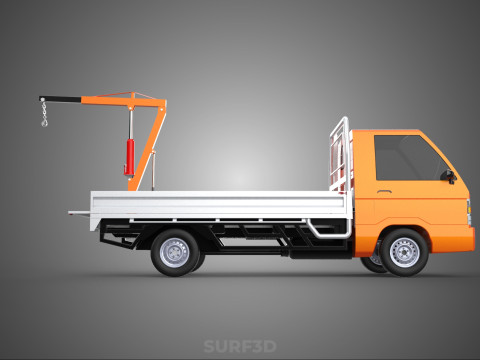

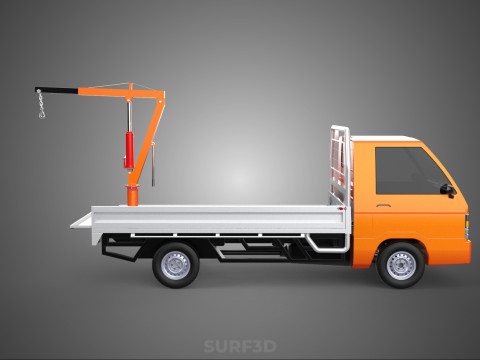

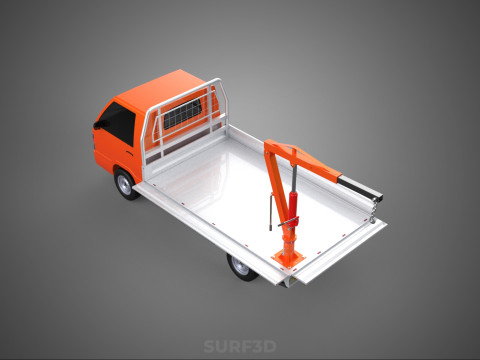

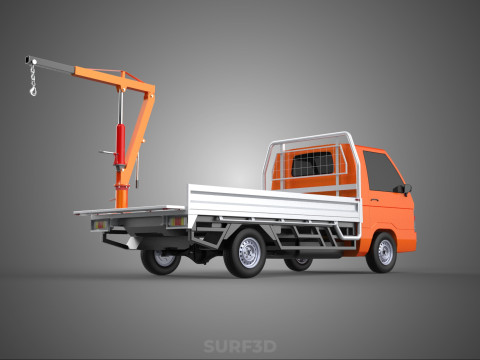

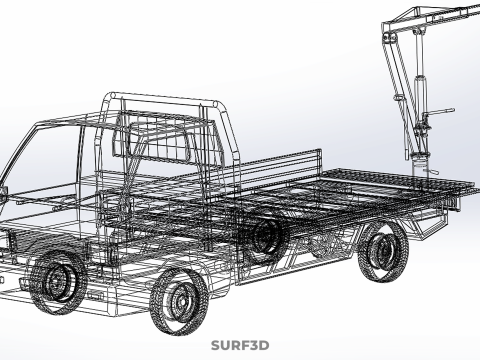

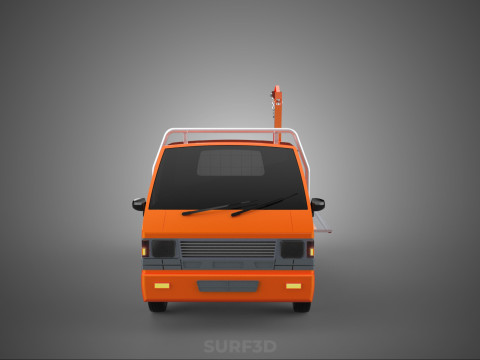

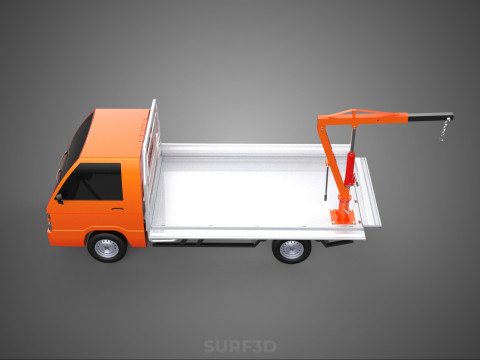

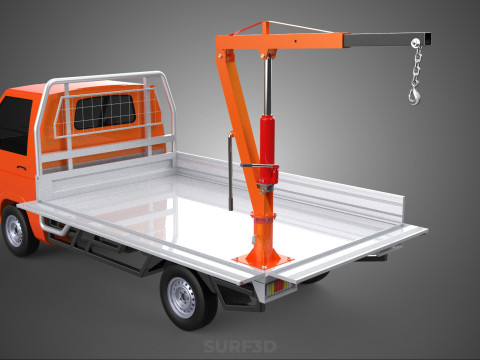

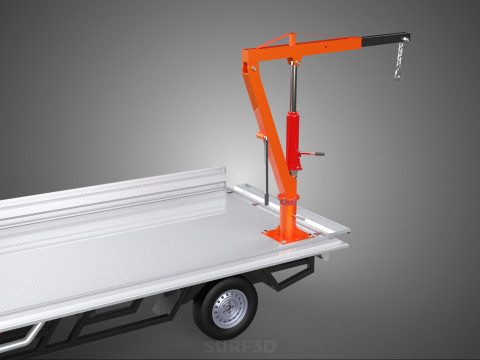

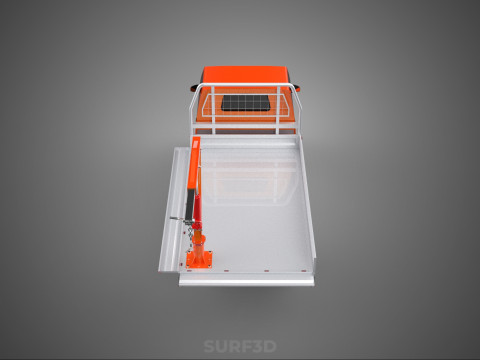

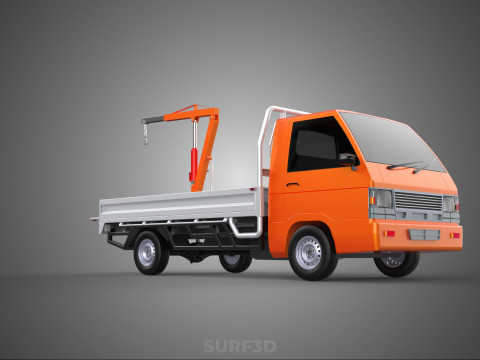

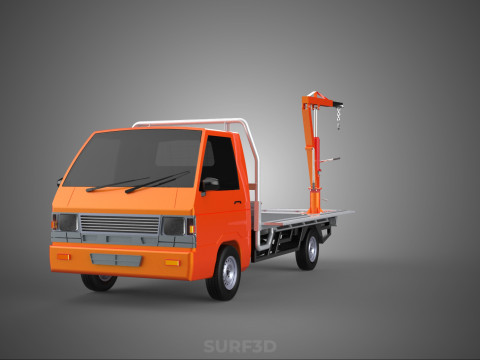

SHIPMENT FOLDABLE HYDRAULIC LIFT JIB CRANE DROPSIDE PICKUP TRUCK 3D Модель

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A Shipment Foldable Hydraulic Lift Jib Crane Dropside Pickup Truck is a highly specialized commercial vehicle designed for the efficient, autonomous, and safe loading, unloading, and transportation of goods, particularly in environments where external lifting equipment is unavailable or impractical. This integrated system combines the inherent maneuverability and cargo capacity of a pickup truck with the heavy-lifting capabilities of a hydraulically operated, collapsible jib crane and the flexible cargo access provided by a dropside bed, rendering it a self-sufficient unit for diverse logistical and operational tasks.

**Base Vehicle: Dropside Pickup Truck**
The foundation of this system is typically a light-to-medium duty pickup truck chassis. The "dropside" feature refers to a cargo bed configuration where the side panels, and sometimes the rear tailgate, can be unlatched and folded down or entirely removed. This design significantly enhances accessibility to the cargo area, facilitating loading and unloading from multiple angles, including direct side access for forklifts or the integrated crane. It also accommodates the transport of oversized or irregularly shaped items that might exceed the standard bed width. Pickup trucks are selected for their balance of payload capacity, fuel efficiency, and compact dimensions, making them particularly suitable for urban deliveries, access to confined construction sites, or operations in rural or off-road environments where larger heavy-duty vehicles may face limitations. The chassis is often reinforced to accommodate the additional weight and operational stresses imposed by the crane.

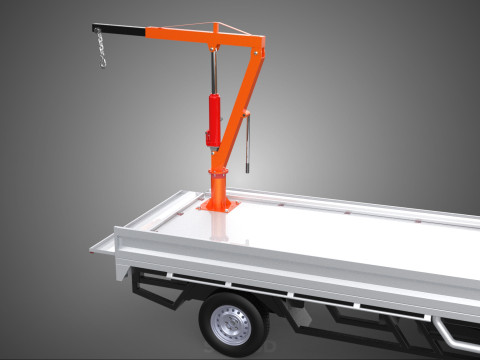

**Lifting Mechanism: Foldable Hydraulic Lift Jib Crane**
The core functional component is the integrated foldable hydraulic lift jib crane, which provides the vehicle with its self-loading and unloading capability.
* **Hydraulic System:** The crane is powered by a hydraulic system, typically driven by the truck's engine via a power take-off (PTO) or, in some configurations, an independent auxiliary power unit. Hydraulic power offers numerous advantages, including precise control, high lifting capacity relative to its compact size, and smooth, consistent operation, which is critical for the safe handling of heavy or delicate loads.
* **Jib Crane Design:** A jib crane consists of a horizontal arm (the jib) extending from a vertical mast. This jib supports a hoisting mechanism, usually a winch with a hook, used to lift and lower loads. These cranes are designed for rotational movement, allowing the operator to swing loads over the truck bed or to an adjacent loading/unloading zone. The operational reach and lifting capacity are primary specifications, tailored to various applications.
* **Foldable Feature:** The "foldable" aspect is crucial for compliance with road regulations, enhanced safety during transit, and operational convenience. When not in use, the jib arm and mast can be articulated and collapsed into a compact, stowed position, typically resting over the truck bed or behind the cab. This design significantly reduces the vehicle's overall height and length, preventing obstruction of the driver's rear view, ensuring adherence to road vehicle dimension limits, minimizing aerodynamic drag during highway travel, and protecting the crane mechanism from environmental elements or potential damage. The folding mechanism usually incorporates robust pivot points and secure locking pins or hydraulic cylinders to ensure stability in the stowed configuration.

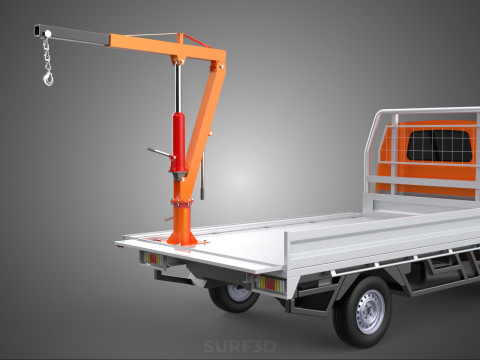

* **Mounting and Stability:** The crane is typically mounted on a reinforced section of the truck's chassis, often at the rear corner or directly behind the cab. To ensure stability during lifting operations, particularly with heavier loads or extended reach, the vehicle is equipped with manually or hydraulically deployable outriggers or stabilizers. These extend outwards and downwards to provide a wider, more stable footprint, preventing the truck from tipping or becoming unbalanced.

**Operational Synergy and Advantages**
The integration of these components creates a highly effective and versatile workhorse:
1. **Self-Sufficiency:** The primary advantage is the vehicle's independence from external lifting equipment, streamlining logistics by eliminating the need to coordinate with forklifts or dedicated cranes at delivery or pickup points.
2. **Versatility:** Capable of handling a wide range of cargo types, from palletized goods and construction materials to machinery, equipment, and bulk items that benefit from side access.
3. **Efficiency:** Significantly reduces loading and unloading times, optimizing delivery schedules and increasing overall operational throughput.
4. **Safety:** Minimizes manual handling of heavy items, thereby reducing the risk of worker injury and cargo damage. The precise control offered by hydraulic systems further enhances safety during lifting operations.
5. **Maneuverability:** Retains much of the agility and access capabilities of a standard pickup truck, making it suitable for congested urban areas, construction sites with limited space, or challenging off-road terrain where larger, dedicated crane trucks might be unsuitable.
6. **Cost-Effectiveness:** Consolidates the functions of a transport vehicle and a lifting device into a single unit, potentially reducing fleet size, labor requirements, and associated operational costs.

**Applications**
Shipment Foldable Hydraulic Lift Jib Crane Dropside Pickup Trucks find extensive utility across various industries:
* **Construction:** Transporting tools, building materials, small machinery, and equipment to job sites, particularly in residential or light commercial construction.
* **Logistics and Delivery:** Delivering heavy parcels, white goods, industrial components, or specialized equipment directly to customer premises or installation sites.
* **Utility Services:** For power companies, telecommunications providers, and municipal services, used for deploying and retrieving poles, transformers, cables, or maintenance equipment.
