Agricultural Wheel hub 5xR16 低聚 3D 模型

This is a high-quality, engineering-grade 3D model of a universal agricultural wheel hub with a pneumatic tire. Designed with precision, the model includes a complete assembly along with fully detailed 2D technical drawings of each component.

The hub can be used in various farm machinery projects, such as:Mechanical seed drillsCultivatorsDisc harrowsUtility trailersCustom agricultural implements

It is ideal for:Product design and prototypingEducational and demonstration purposes3D visualizations or animationsCNC manufacturing preparation3D printing (STL included)

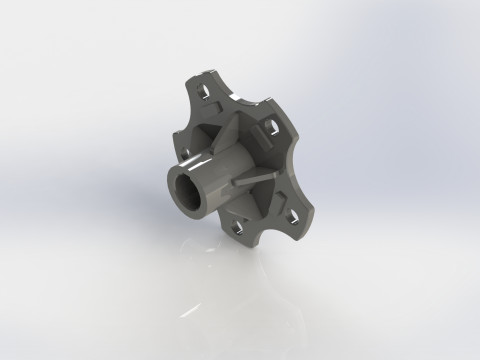

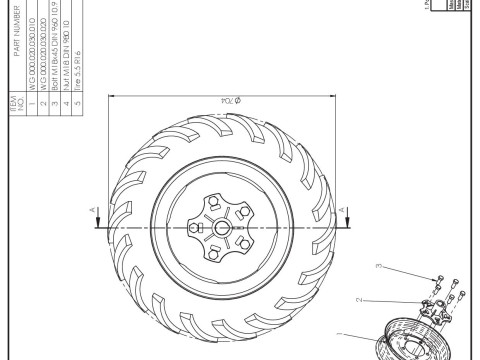

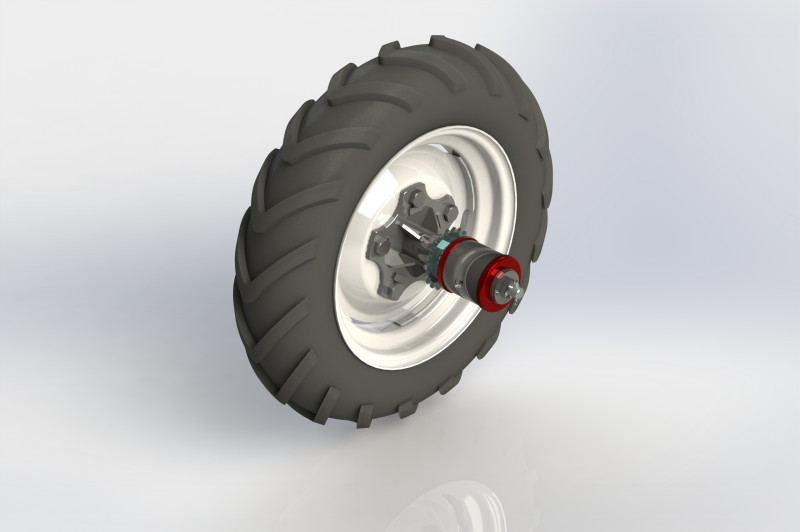

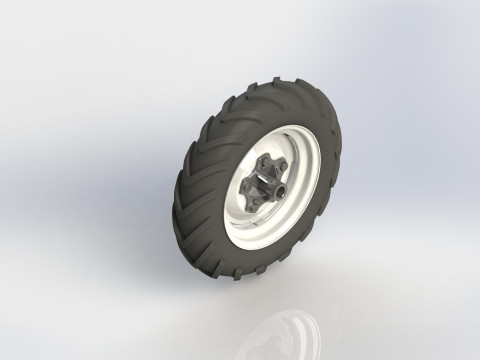

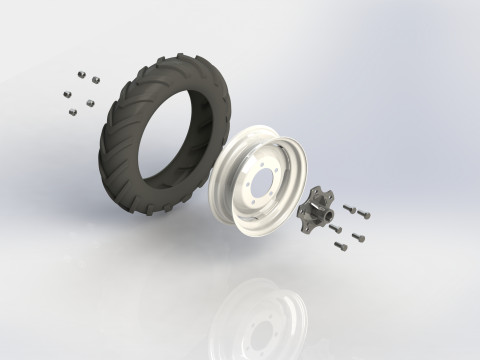

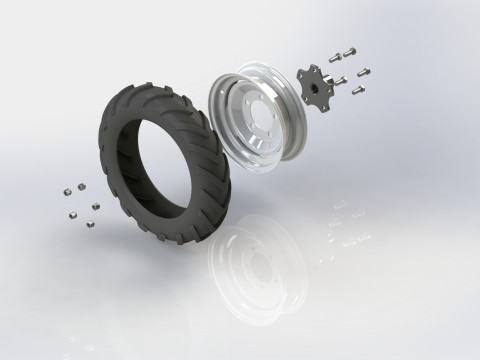

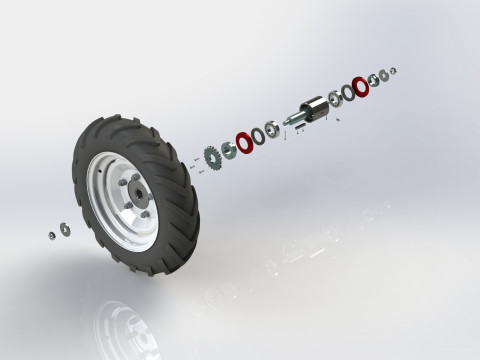

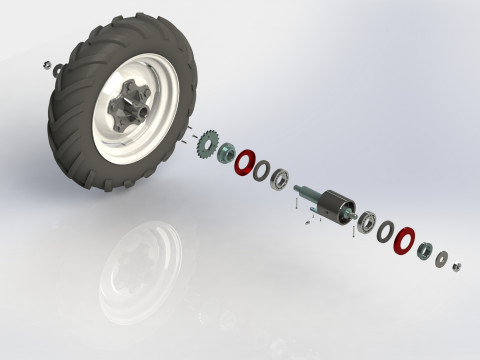

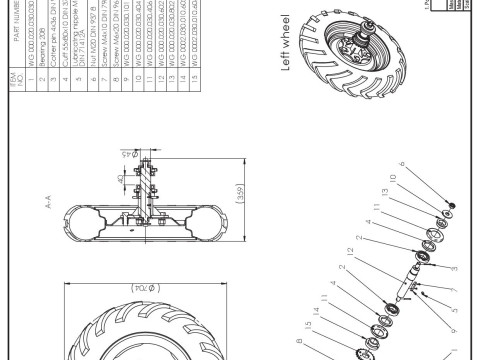

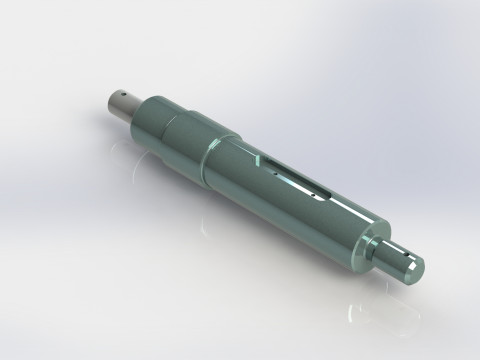

Contents of the package:Full 3D assembly of the hub with wheel and tireSeparated parts (hub, bearing housing, axle bolt, rim, tire)High-quality STEP (.step), IGES (.iges), STL (.stl) filesComplete technical drawings in PDF and DWG format:Detailed dimensionsMaterial indicationsAssembly drawing with exploded view

Technical Highlights:Modeled in SolidWorksAll parts are real-world scaled (millimeters)Assembly readyClean geometry and namingCompatible with major CAD softwareDesigned with manufacturing feasibility in mind
