全自动高速装盒机 包装机 3D 模型

描述

automatic high speed cartoning machine continuous cartoning machine

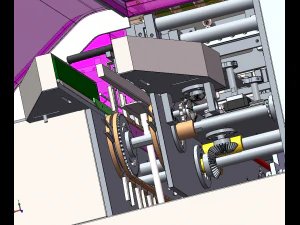

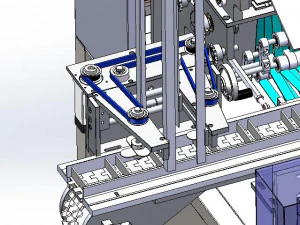

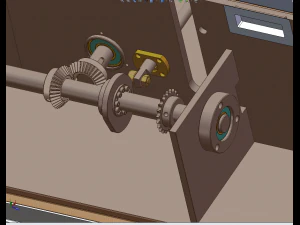

working principle the feeding of automatic cartoning machine is generally divided into three entrances: manual entrance, medicine bottle inlet and machine package box inlet. the whole process from feeding to final packaging and forming can be roughly divided into four stages: the carton is fixed by a guide rail clamp and opened by a push plate. at the same time, there will be two forward moving clips rising from below, blocking the side of the carton from the front and rear direction, so that the box is opened at a right angle and moved forward to the filling area. after filling in the filling area, the mechanism of the machine will fold the ears into the left and right guide rails, and then close the cover. before closing the cover, the mechanism will bend the plug of the carton first, and then a push plate will push the box cover to bend, so that the tongue can be inserted into the box and the lock catch is fastened. the closing action is a key action, which is closely related to the carton structure and the accuracy of machine adjustment. drawing of full automatic high-speed box loading machine (full cam type), with two motors to realize dozens of action cycles, instructions, products are automatically put into the box together: including solidworks 2015 stp xt format, this product is suitable for packaging of pharmaceutical aluminum plastic plate, round bottle, foreign bottle, cosmetics, auto parts, toothpaste, office supplies, poker and other similar items. it can open the carton automatically, pack and seal the box. the machine uses plc to control the photoelectric monitoring of all parts of the action, automatically reject the unqualified items in operation. in case of any abnormality, it can automatically stop the machine and display the reasons, so as to eliminate the fault in time. the machine can be used alone, or linked with the blister packaging machine and its thermosol device or other equipment to form a complete set of production line. main performance and structure features: 1. automatic opening (suction) box, folding instruction manual, blanking, feeding, marking batch number, sealing box, testing and scraping, etc., with stable operation and low noise. 2. plc and man-machine interface automatic control operating system, stepless frequency conversion speed regulation, high degree of automation, easy to understand operation. 3, using international famous brand electrical components, stable and reliable performance. 4, automatic stop function of mechanical overload is adopted to ensure the safety of human and machine. 5, automatically remove the packaging products that are short of packaging materials or instructions, so as to ensure the quality of packaging products. 6, with the functions of fault display, alarm and finished product counting, it is easy to maintain and deal with faults. 7. various automatic feeders and conveying mechanisms can be designed according to customer requirements. 8. hot melt adhesive machine can be used. hot melt glue spraying sealing or hot melt glue brushing device can be designed. 9. it can be connected with aluminum plastic packaging machine, pillow type packaging machine, filling machine, soap making machine, code spraying machine (or supervision code system), labeling machine, online weighing instrument, 3d packaging machine, heat shrinkable packaging machine, strapping machine and other production lines. main technical parameters power supply: ac380v three-phase five wire system power supply 50 hz total power 2.5 kw production capacity main engine running speed: 50-120 boxes / min gas consumption: 20 m3 / h (pressure 0.5-0.8 mpa) 打印准备: 否
