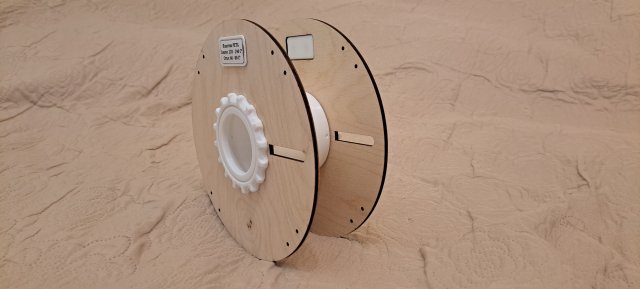

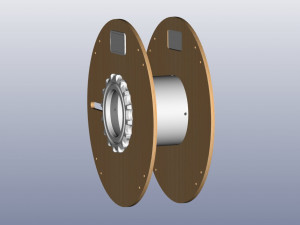

Collapsible reel for plastic V2 3D Принт Модель

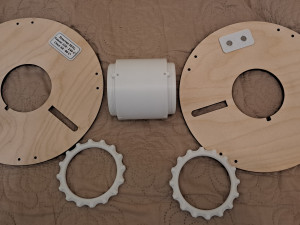

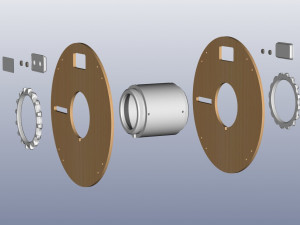

For assembly you need:

Print parts on a 3D printer:
-Platform for signs -- 2 pieces.
-Ring - retainer -- 2 pieces
-The inner part of the coil -- 1 piece.
--------------------------------------------------
Do it yourself or order cutting 4mm plywood according to the drawing: Coil side drawing.DXF. You need to make 2 pieces per reel.
--------------------------------------------------
Print icons on magnetic paper on a regular printer indicating the type of plastic and operating temperatures(ABSen.png, PETGen.png, PLAen.png, print.png)
--------------------------------------------------
You will need to buy round magnets 7 x 2 mm. One coil needs 4 magnets.

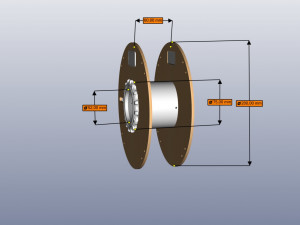

Overall coil diameter: 200 mm
Coil inner diameter: 52 mm
Bar winding diameter: 75 mm

Print settings:
Plastic PETGPLAABS.
Speed ​​60mm/s.
Nozzle <0.5mm
Filling 5-10%.

Write reviews and rate! It will please me :)
