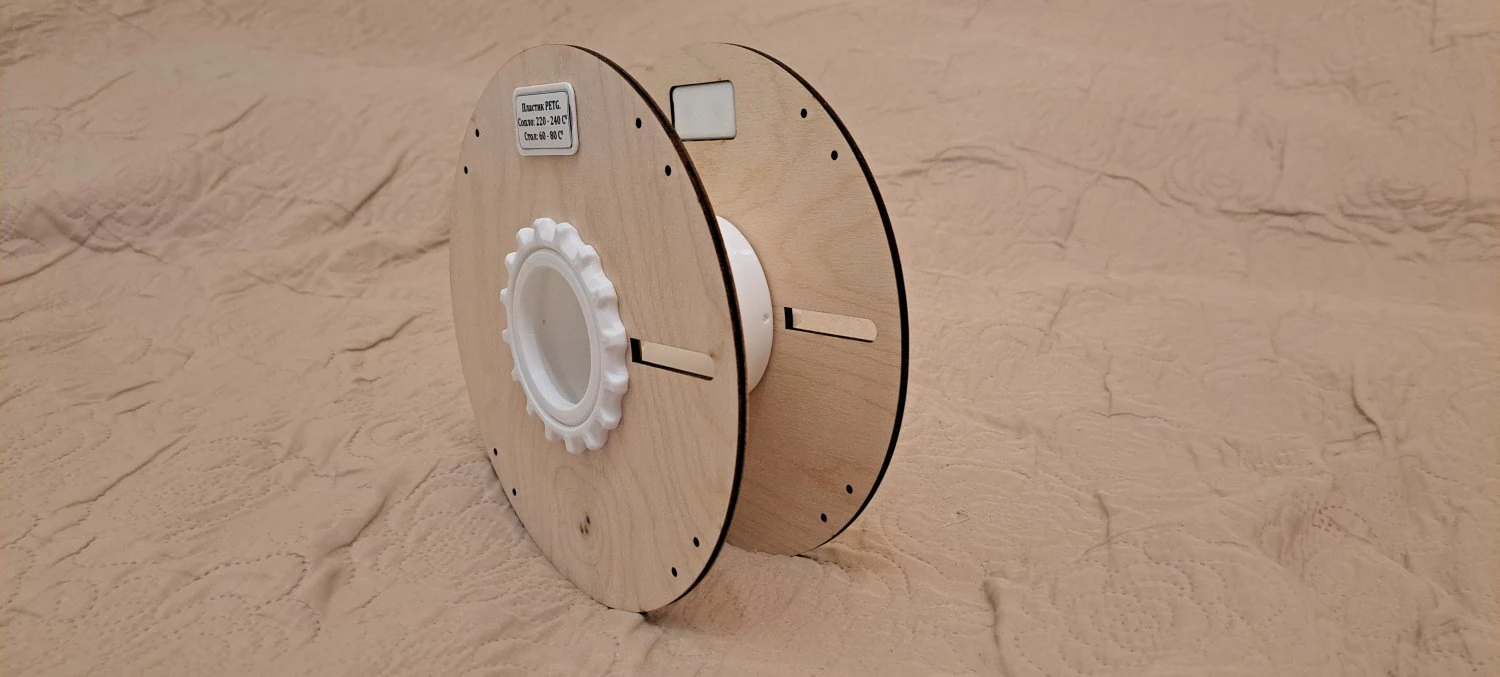

Collapsible reel for plastic V2 3D Print Model
$
5.00 USD
- Request product support by the author
- Available formats:
- Item ID:479176
- Date: 2023-12-05
- Collection:No
- Width in centimeters:20
- Width in millimeters:200
- Height in millimeters:200
- Depth in millimeters:68
- Print Ready:Yes
- 3D Scan:No
- Adult content:No
- PBR:No
- Views:1799
Description

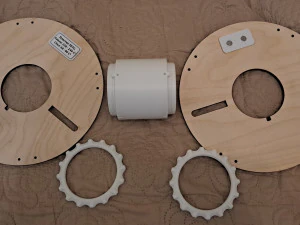

For assembly you need:Print parts on a 3D printer:
-Platform for signs -- 2 pieces.
-Ring - retainer -- 2 pieces
-The inner part of the coil -- 1 piece.
--------------------------------------------------
Do it yourself or order cutting 4mm plywood according to the drawing: Coil side drawing.DXF. You need to make 2 pieces per reel.
--------------------------------------------------

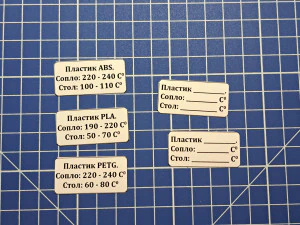

Print icons on magnetic paper on a regular printer indicating the type of plastic and operating temperatures(ABSen.png, PETGen.png, PLAen.png, print.png)
--------------------------------------------------
You will need to buy round magnets 7 x 2 mm. One coil needs 4 magnets.
Overall coil diameter: 200 mm
Coil inner diameter: 52 mm
Bar winding diameter: 75 mm
Print settings:
Plastic PETGPLAABS.
Speed 60mm/s.
Nozzle <0.5mm
Filling 5-10%.
Write reviews and rate! It will please me :)
