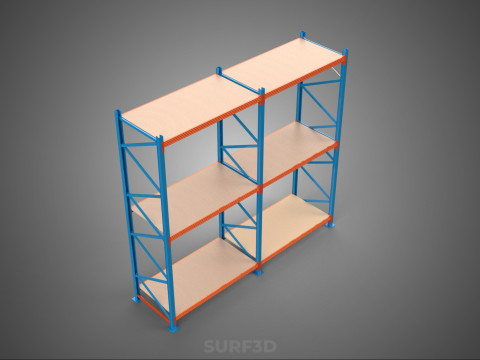

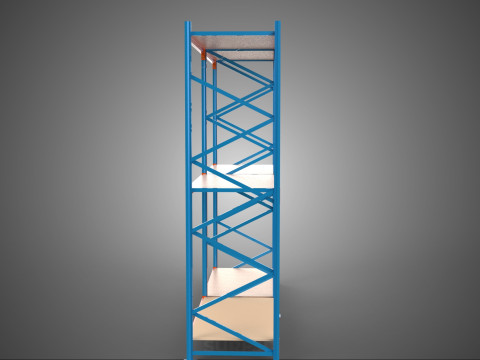

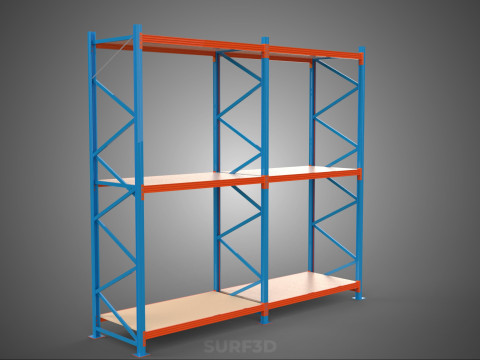

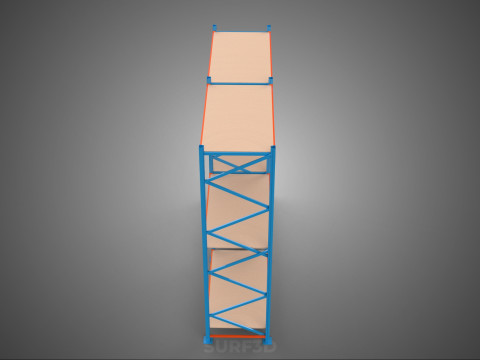

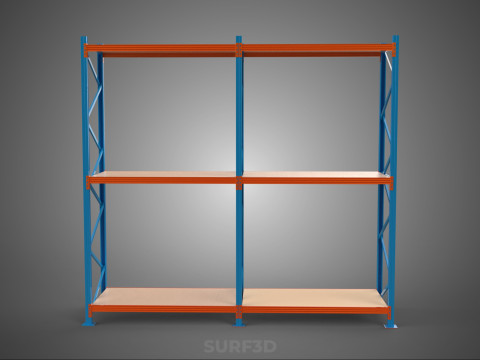

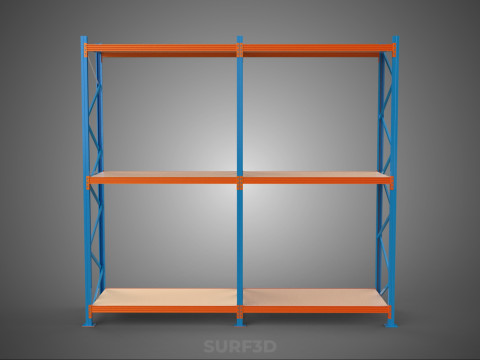

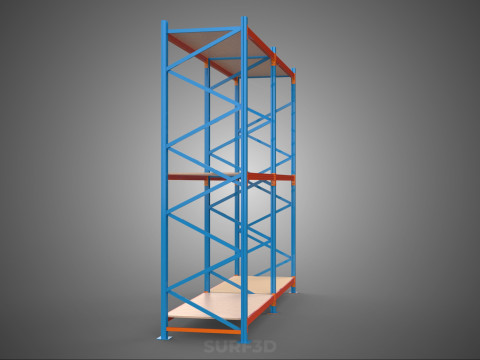

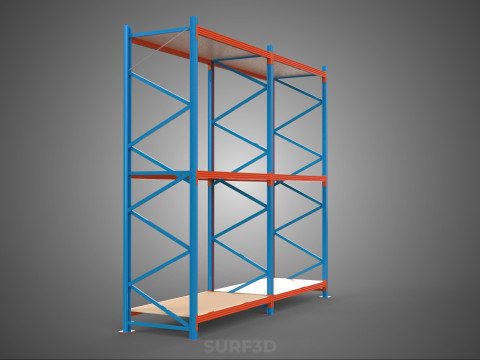

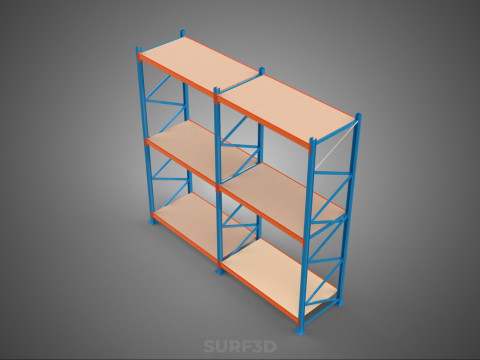

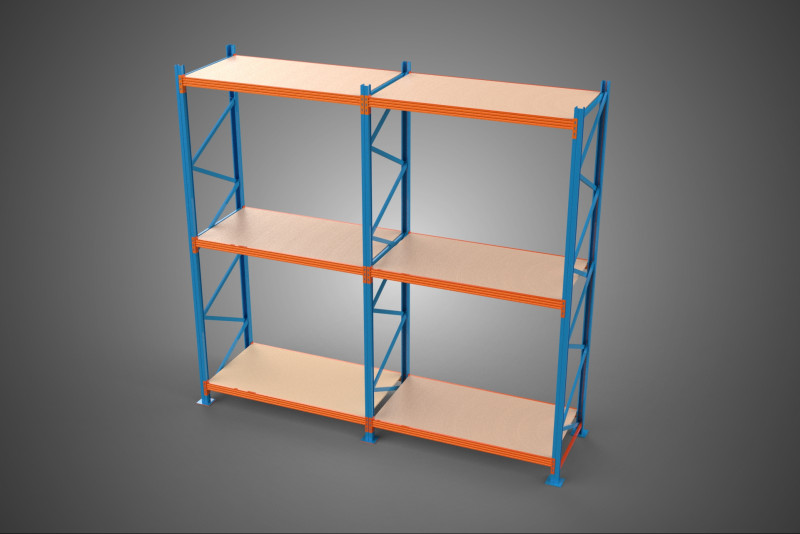

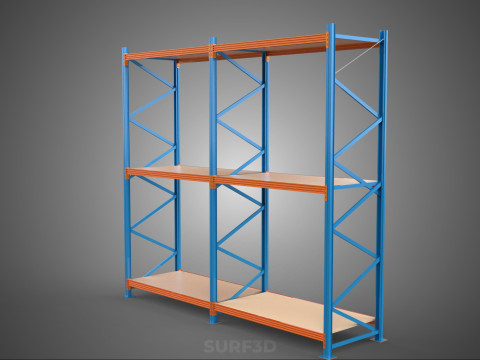

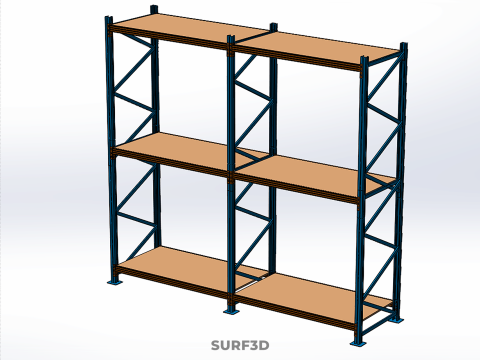

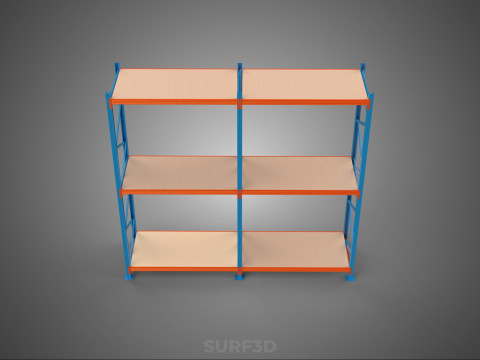

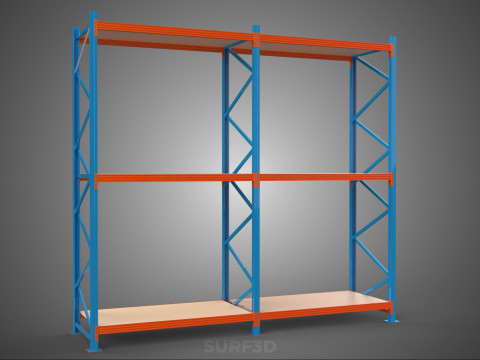

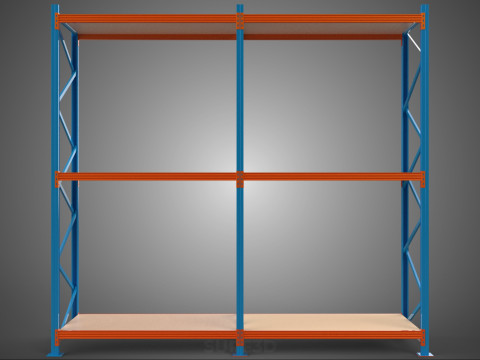

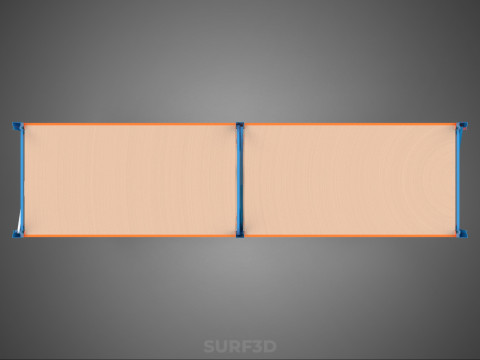

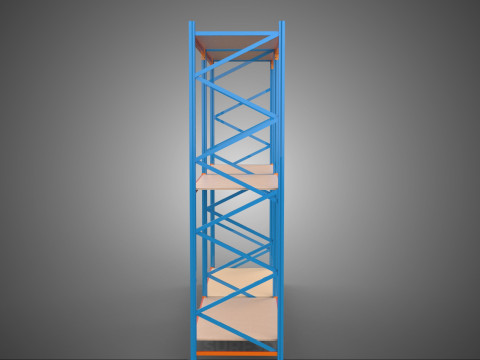

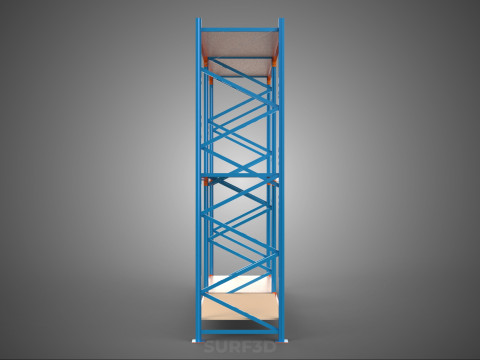

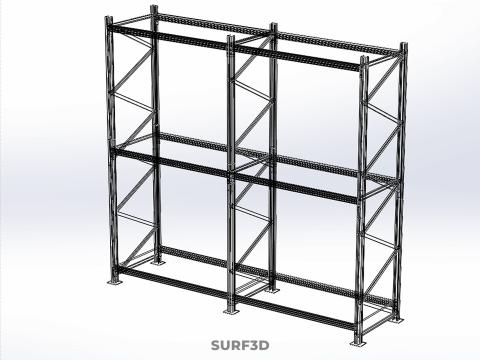

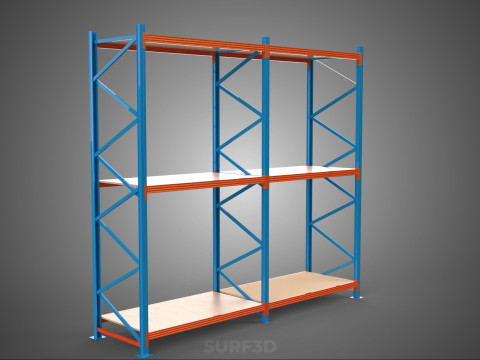

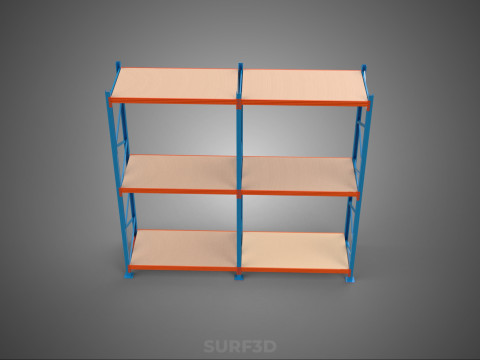

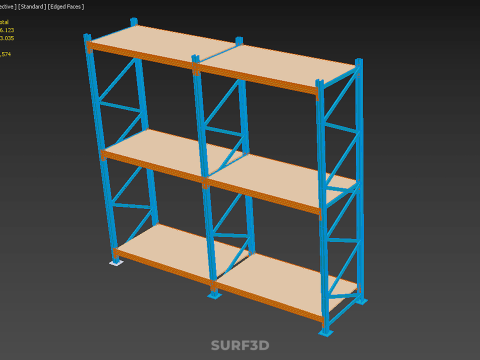

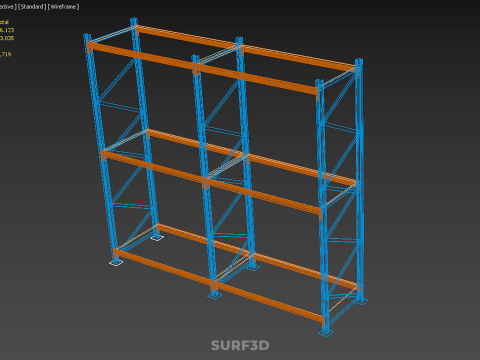

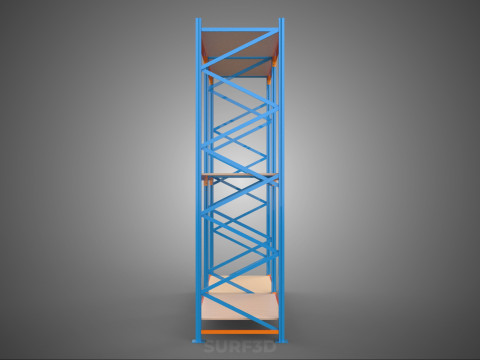

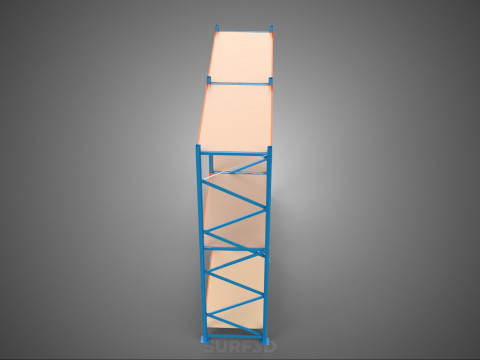

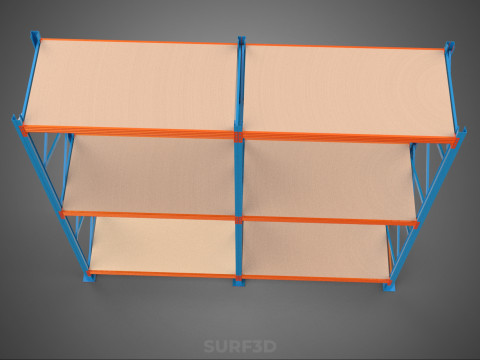

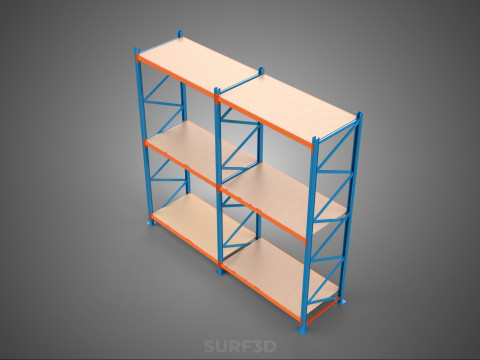

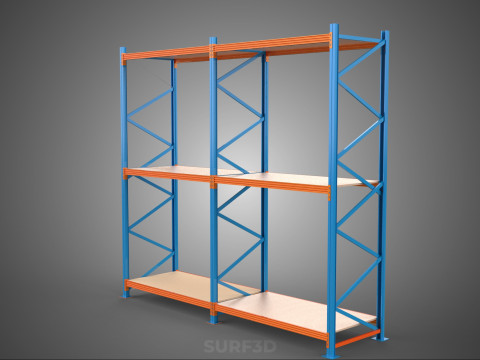

FRAME SHELF WOOD STEEL WAREHOUSE METAL SHELVES STORAGE RACK TRAY 3D Model

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
A "Frame Shelf Wood Steel Warehouse Metal Shelves Storage Rack Tray" describes a versatile and robust industrial storage system, characterized by its modular construction and hybrid material composition. This comprehensive nomenclature delineates a heavy-duty shelving unit primarily designed for commercial, industrial, and logistical environments, particularly warehouses, where efficient and durable storage is paramount.

**Nomenclature Elucidation:**
The composite title precisely defines the system's core attributes:
* **Frame Shelf:** This component highlights the fundamental structural design, consisting of vertical frames (uprights) connected by horizontal beams that support multiple shelf levels. The "frame" denotes the rigid, skeletal structure responsible for bearing static and dynamic loads.
* **Wood Steel:** This term specifies the primary materials employed. "Steel" refers to the high-strength alloy used for the structural framework (uprights, beams, cross-bracing) due to its exceptional durability, rigidity, and load-bearing capacity. "Wood" typically refers to wood-based panels such as particleboard, plywood, or MDF, which serve as decking material for the shelves, often resting upon steel beams. This combination offers a balance of strength, cost-effectiveness, and a solid, flat storage surface.
* **Warehouse:** This designation underscores the primary application environment. Such storage systems are engineered to meet the demanding requirements of industrial warehouses, distribution centers, and manufacturing facilities, including high load capacities, frequent use, and resistance to wear.
* **Metal Shelves:** This specifies an alternative or supplementary material option for the shelving surfaces. Beyond wood, shelves can be constructed entirely from metal, such as solid steel panels, wire mesh decking, or corrugated steel. Metal shelving offers enhanced durability, fire resistance, improved airflow (with wire mesh), and easier cleaning, making it suitable for specific industrial needs or heavier-duty applications.
* **Storage Rack:** This is the overarching classification, identifying the item as a structure specifically designed to organize and hold materials, goods, or equipment in a systematic, multi-level arrangement, thereby optimizing spatial utilization.
* **Tray:** This element suggests a specific functional aspect. It can refer to the system's capability to accommodate standardized storage trays, bins, or containers, facilitating organized storage of small parts or bulk items. Alternatively, it may imply that the shelves themselves possess a raised lip or border, effectively forming a shallow "tray" to contain items and prevent dislodgement.

**Construction and Materials:**
The system's construction typically involves:
1. **Steel Uprights (Frames):** Vertical components, usually cold-rolled or hot-rolled steel, designed for compressive strength. They feature perforations or slots at regular intervals, allowing for adjustable shelf placement.
2. **Steel Beams:** Horizontal members that connect the uprights, forming the perimeter of each shelf level. These beams support the shelving material and distribute the load. Common connection methods include boltless rivet systems or interlocking clips, enabling quick assembly and reconfiguration.
3. **Shelving/Decking:**
* **Wood Decking:** Typically particleboard, plywood, or MDF cut to size, providing a continuous, flat surface. These are economical and suitable for a broad range of uniformly distributed loads.
* **Metal Shelving:** Options include solid steel panels (gauge steel decking), providing extreme durability and ease of cleaning, or wire mesh decking, which enhances visibility, airflow, and sprinkler *********** while preventing dust accumulation.
4. **Footplates/Base Plates:** Steel plates at the base of each upright, providing stability and distributing the rack's weight over a larger floor area. They often include anchor holes for securing the unit to the floor for enhanced safety and stability.
5. **Finishes:** Steel components are commonly finished with powder coating for corrosion resistance, scratch prevention, and aesthetic appeal, or galvanized for superior rust protection in humid or corrosive environments.

**Design and Features:**
* **Modularity and Adjustability:** The design allows for easy expansion in length and height by adding bays and upright extensions. Shelf levels are highly adjustable, typically in 1.5-inch to 3-inch increments, enabling customization for various item sizes and types.
* **Load Capacity:** Engineered for heavy-duty applications, these racks can support significant uniformly distributed loads per shelf, often ranging from several hundred to over a thousand pounds, depending on steel gauge and beam configuration.
* **Stability:** Designed for structural integrity, often incorporating horizontal and diagonal bracing or requiring floor anchoring for taller units to prevent tipping and ensure safety.
* **Accessibility:** The open frame design typically allows for easy manual loading and unloading of items from multiple sides.

**Applications:**
These storage systems are broadly applied in:
* **Warehouses and Distribution Centers:** For bulk storage of inventory, packaged goods, and components.
* **Manufacturing and Assembly Facilities:** Organizing raw materials, work-in-progress, and finished products.
* **Retail Backrooms and Stockrooms:** For inventory overflow and stock management.
* **Garages and Workshops:** Heavy-duty storage for tools, equipment, and parts.
* **Archives and Record Storage:** Providing robust support for heavy document boxes.

**Advantages:**
* **Space Optimization:** Maximizes vertical storage space, significantly increasing storage density within a given footprint.
* **Durability and Longevity:** The combination of steel and robust shelving materials ensures high resistance to wear, impact, and heavy loads, promising an extended operational lifespan.
* **Versatility:** Accommodates a diverse range of item sizes, weights, and types due to adjustable shelving and material options.
