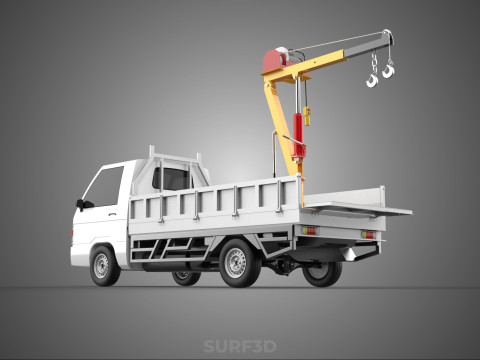

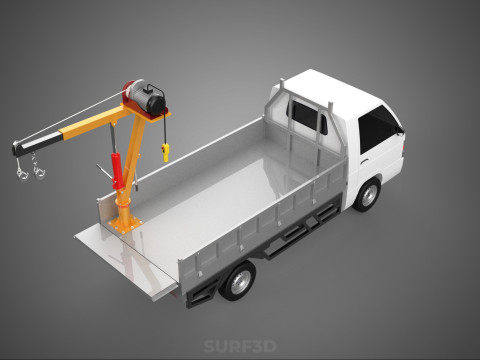

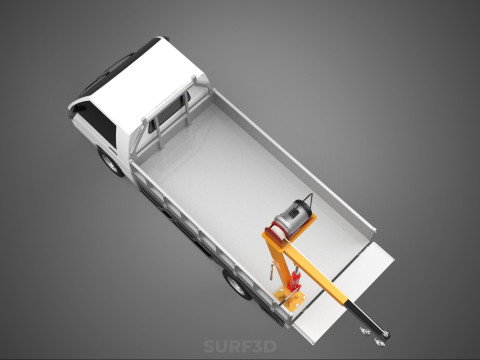

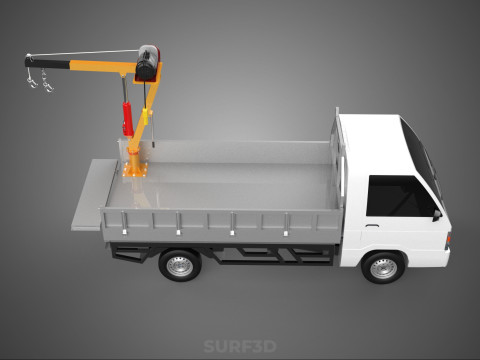

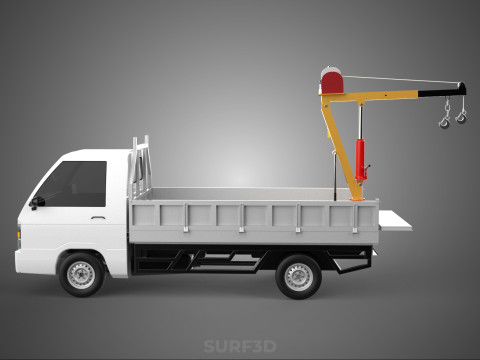

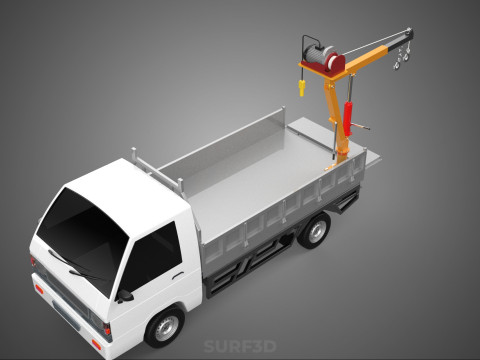

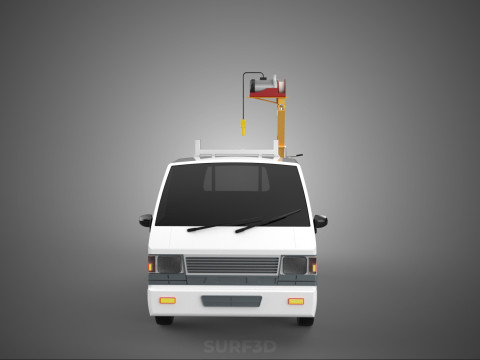

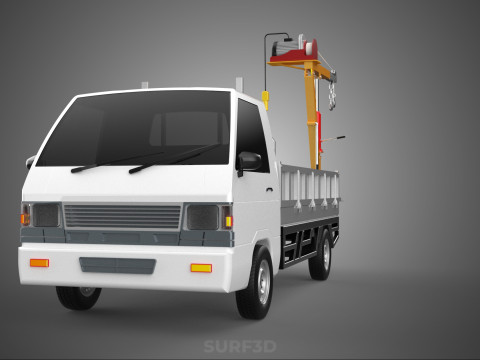

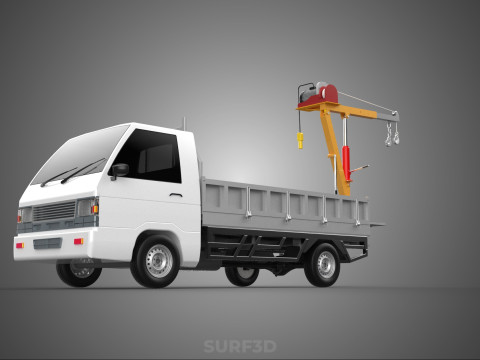

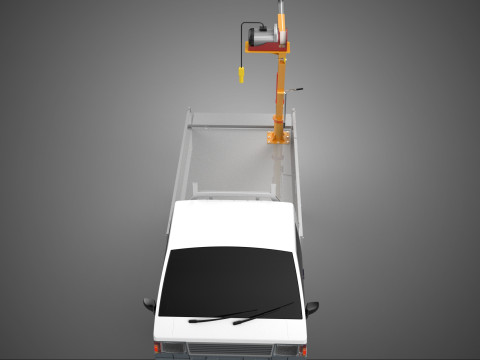

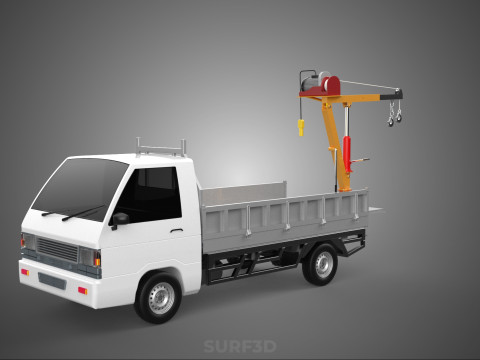

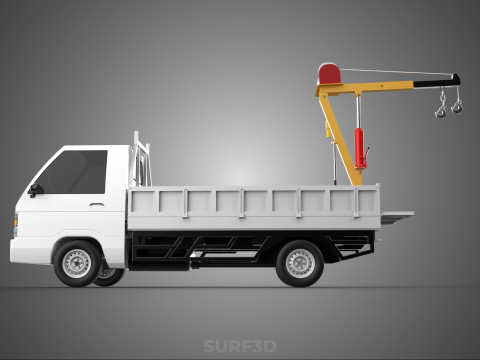

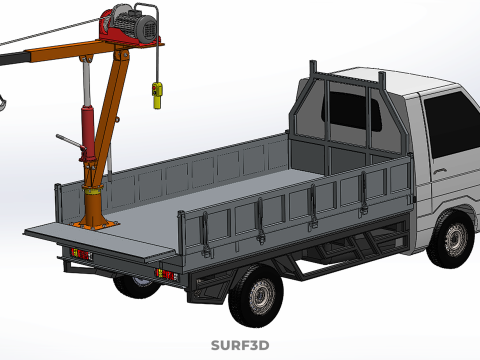

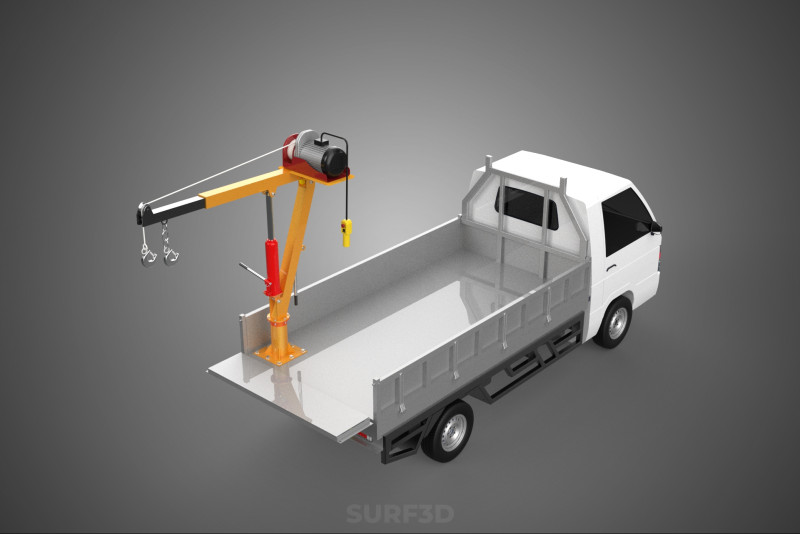

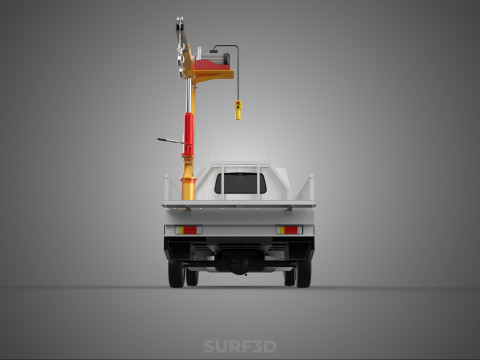

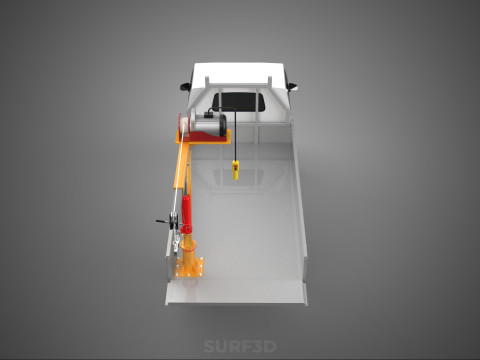

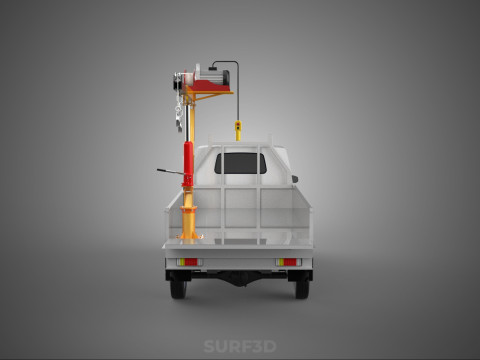

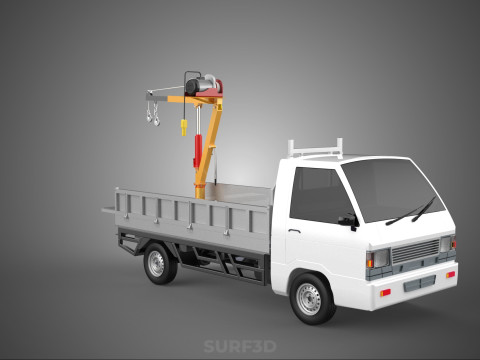

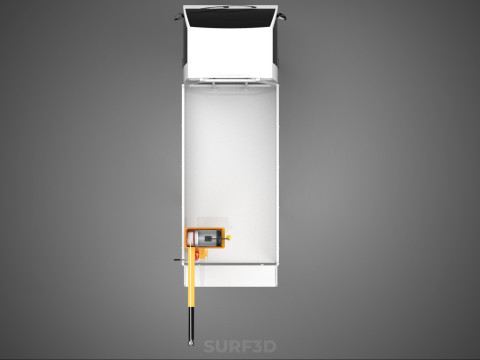

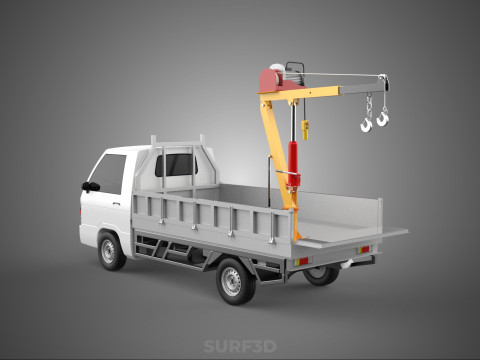

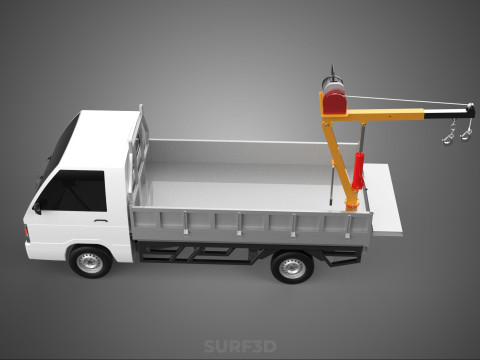

FOLDING TAILGATE BED CRANE HOIST ELECTRIC WINCH PICKUP TRUCK CAR 3D 模型

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and ****ed for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :

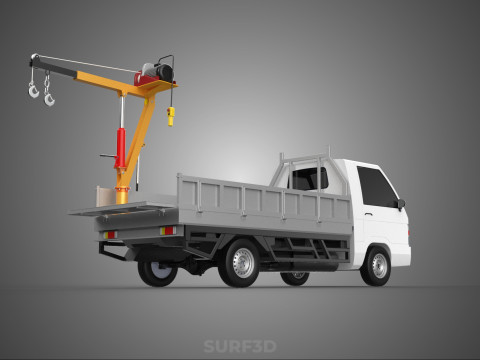

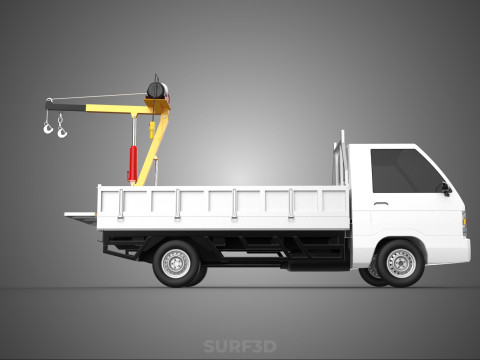

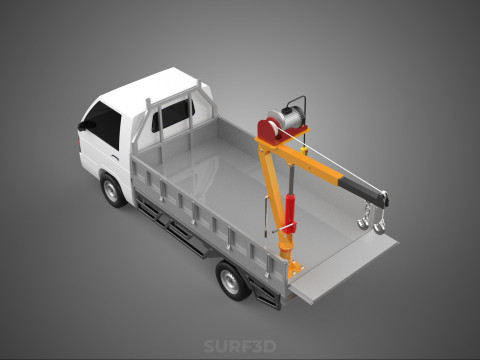

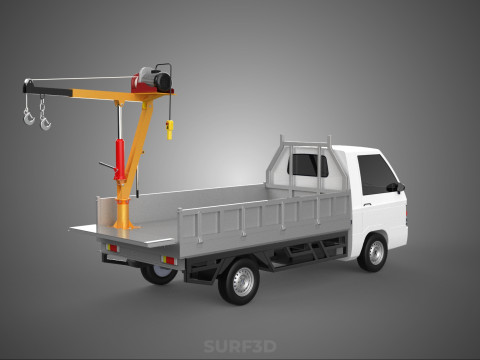

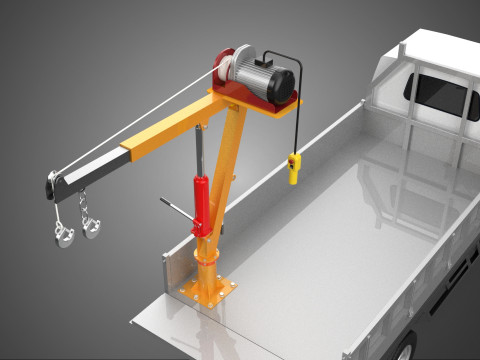

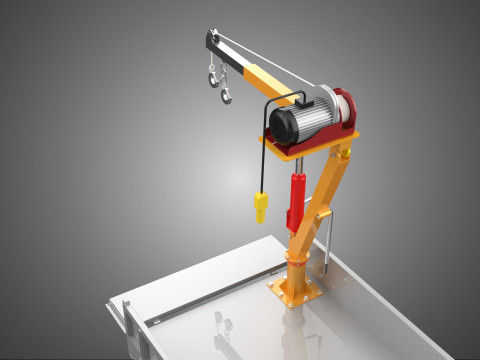

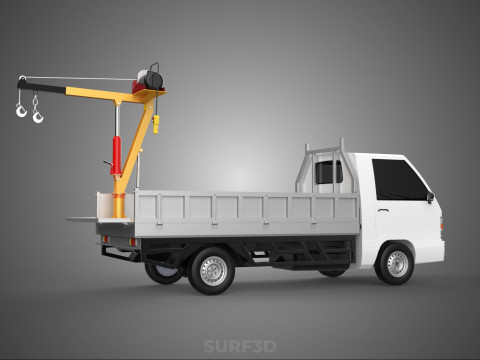

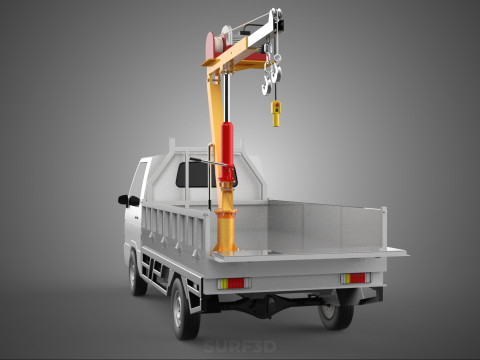

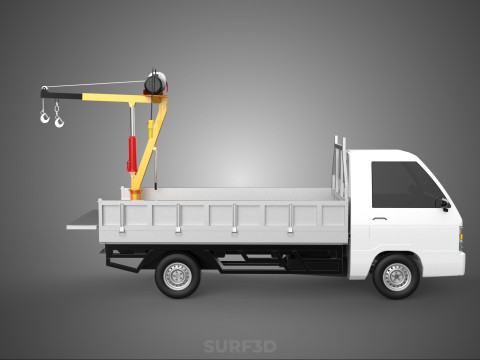

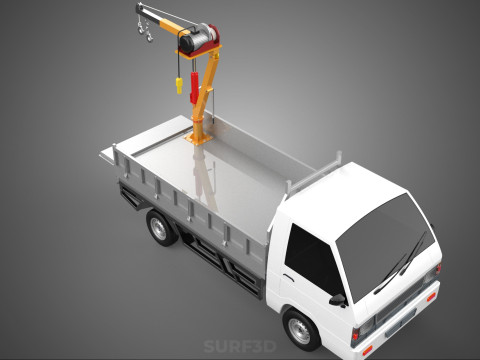

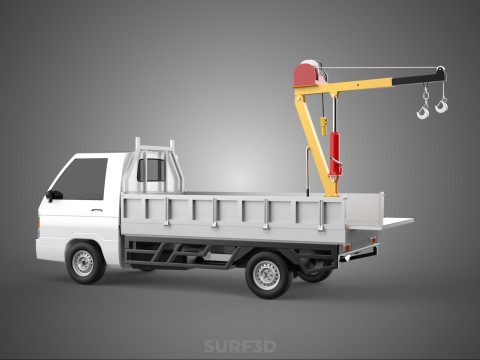

A **folding tailgate bed crane hoist with an electric ***ch** is a specialized, versatile material handling apparatus designed primarily for secure installation on the cargo bed of pickup trucks and similar utility vehicles. It integrates robust mechanical and electrical components to facilitate the efficient and safe lifting, loading, and unloading of heavy, bulky, or ******* objects into and out of the vehicle's bed.

**Purpose and Functionality:**
The primary purpose of this system is to significantly reduce the physical exertion and potential for injury associated with manual handling of substantial payloads. By providing mechanical assistance, it enhances operational efficiency and safety for users across various applications. The apparatus is invaluable for individuals, tradespersons, businesses, and organizations that routinely transport heavy equipment, tools, machinery components, building materials, mobility aids, or other cumbersome items that exceed safe manual lifting capacities.

**Key Components:**
The system typically comprises several interconnected components:

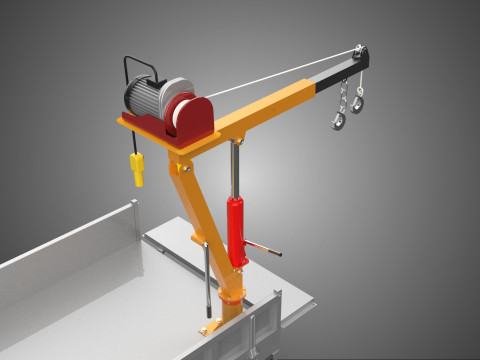

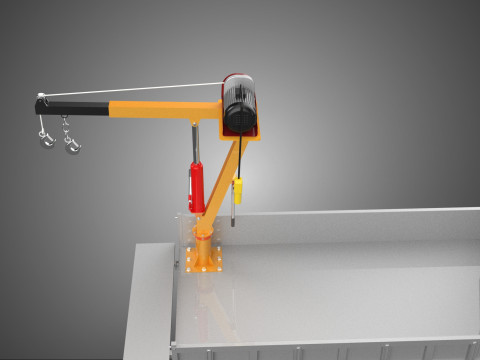

1. **Boom Arm (Crane Arm):** A robust, often telescopic or articulated arm, commonly constructed from high-strength steel or aluminum, designed to extend over the truck bed and pivot to reach objects outside the vehicle's footprint.
2. **Mounting Base:** A sturdy structural base securely affixed to the truck bed floor or frame, usually near the tailgate, providing stability and support for the crane's operations.
3. **Electric ***ch:** The core lifting mechanism, consisting of an electric motor, gear reduction system, and a drum around which a high-strength cable (steel wire rope or synthetic rope) is wound. The ***ch is powered by the vehicle's 12V DC electrical system, enabling controlled upward and downward movement of loads.
4. **Hook:** A heavy-duty hook attached to the end of the ***ch cable, designed for secure attachment to the load.
5. **Control Pendant:** A wired or wireless remote control unit that allows the operator to precisely control the ***ch's lifting and lowering functions, often including an emergency stop button.

**Folding Feature:**
A distinguishing characteristic of this particular crane type is its folding or collapsible design. When not in use, the boom arm and associated structures can be compactly stowed, often folding flat against the truck bed side, collapsing into a more compact form, or being easily detached. This critical feature optimizes available cargo space, improves rear visibility for driving, reduces aerodynamic drag, and allows the vehicle to be operated normally without the crane obstructing daily use or requiring constant removal.

**Operational Mechanism:**
Operation involves extending the boom arm to position the hook over the object to be lifted. Once the load is securely attached, the electric ***ch is activated via the control pendant, lifting the object vertically. After clearing the tailgate or truck bed rails, the boom arm can be manually or, in some advanced models, hydraulically pivoted to s***g the load over the truck bed. The object is then carefully lowered and positioned within the cargo area. The process is reversed for unloading.

**Installation and Power:**
Installation typically involves bolting the crane's mounting base directly to the truck bed or reinforced frame sections, often requiring drilling and reinforcement plates for structural integrity. Some lighter models may offer receiver hitch mounts for quick, temporary attachment. Electrical connection to the vehicle's battery or a dedicated auxiliary power source is essential to power the electric ***ch.

**Applications:**
The versatility of a folding tailgate bed crane makes it suitable for a wide array of applications, including:
* **Construction and Trades:** Lifting generators, air compressors, tools, building materials (e.g., concrete bags, timber), or equipment.
* **Agriculture:** Moving feed bags, small engines, irrigation components, or farm equipment parts.
* **Landscaping:** Loading rocks, bagged soil, trees, or heavy gardening tools.
* **Personal Use:** Transporting heavy recreational gear such as ATVs, motorcycles, large coolers, or mobility scooters for individuals with limited mobility.
* **Automotive:** Handling heavy automotive components like engine blocks, transmissions, or wheels.
* **Delivery Services:** Efficiently loading and unloading heavy packages or specialized freight.

**Advantages:**
Key advantages include significant improvement in occupational safety by minimizing manual lifting, enhanced operational efficiency through faster loading/unloading cycles, and increased versatility for handling diverse load types. The electric ***ch ensures consistent, powerful lifting, while the folding design preserves the utility and aesthetics of the pickup truck when the crane is not actively in use.

**Specifications:**
Specifications vary by model and manufacturer but typically include maximum lifting capacity (e.g., 500 lbs to 2,000 lbs / 227 kg to 907 kg), maximum lift height, boom extension length, rotation angle, and power consumption requirements.

In summary, the folding tailgate bed crane hoist with an electric ***ch is a robust, adaptable, and essential accessory for pickup truck owners requiring reliable mechanical assistance for heavy cargo management.

KEYWORDS: Pickup truck crane, Truck bed hoist, Electric ***ch, Folding crane, Tailgate lift, Material handling, Vehicle hoist, Cargo loading, Heavy lifting, Portable crane, Boom crane, Work truck accessory, Load lifter, DC powered hoist, Truck utility, Load assist system, Vehicle equipment, Mobile crane, Crane davit, ***ch system, Payload management, Safety equipment, Ergonomic loading, Industrial hoist, Commercial truck, Construction equipment, Agricultural tools, Mobility aid, Collapsible crane, 12V hoist
