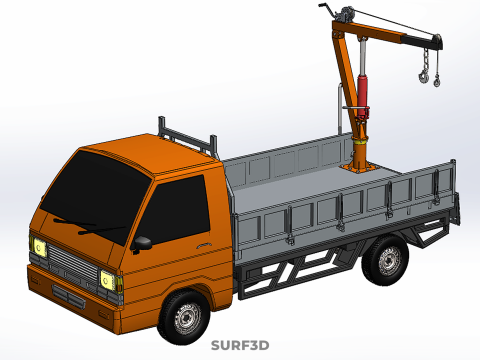

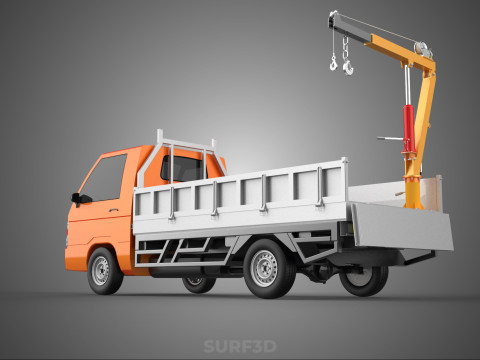

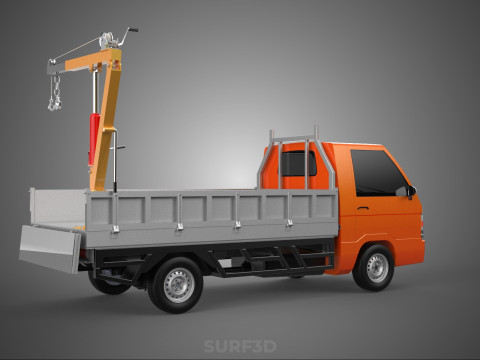

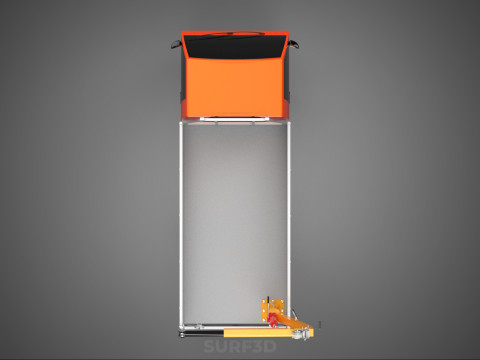

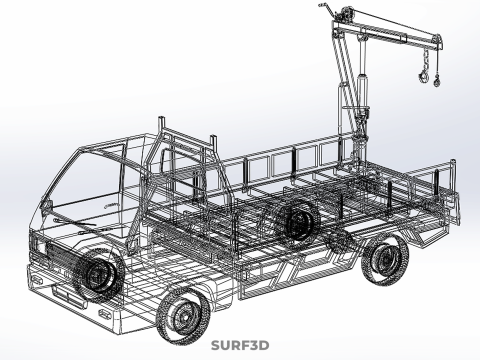

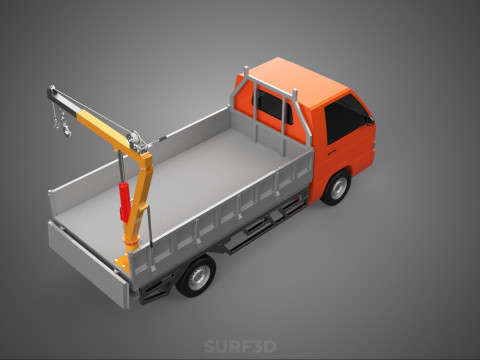

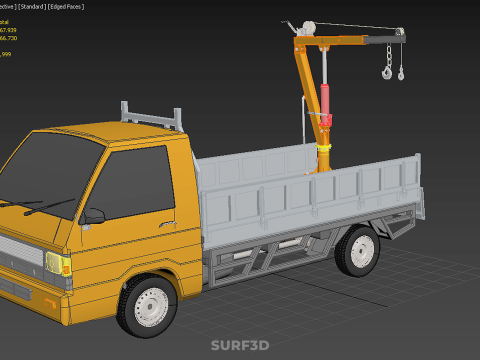

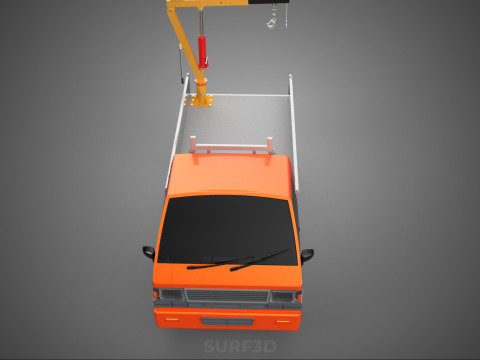

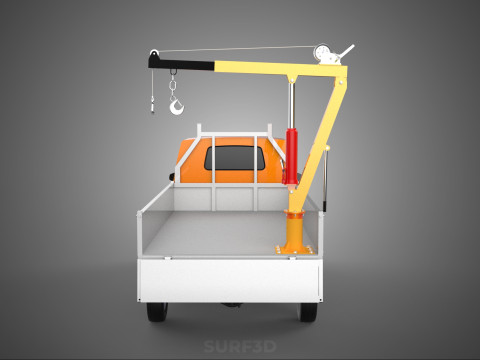

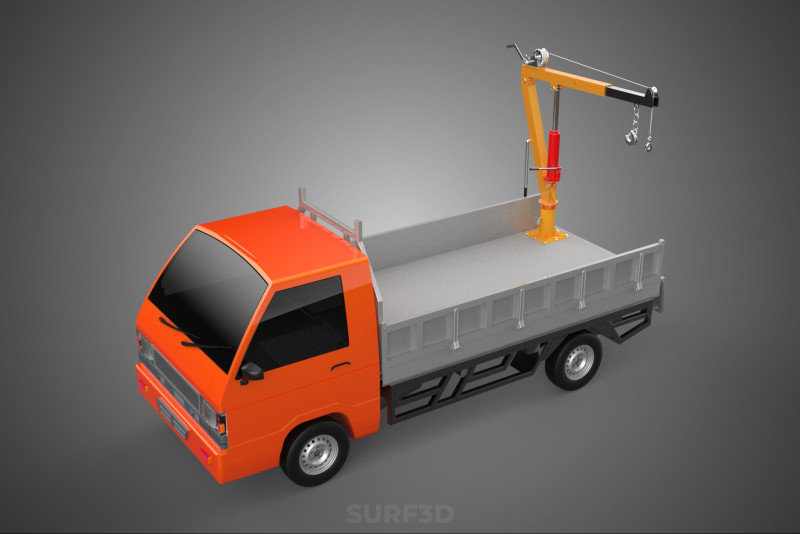

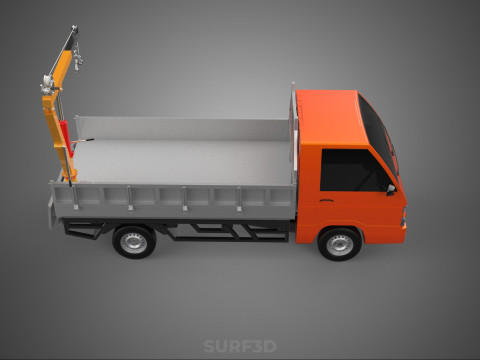

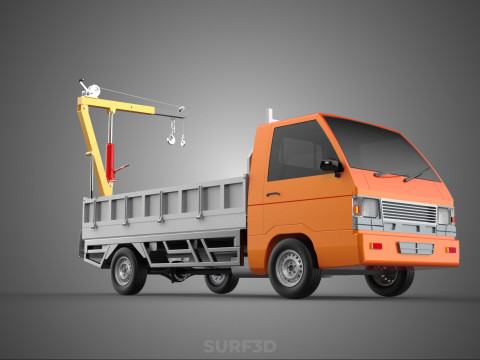

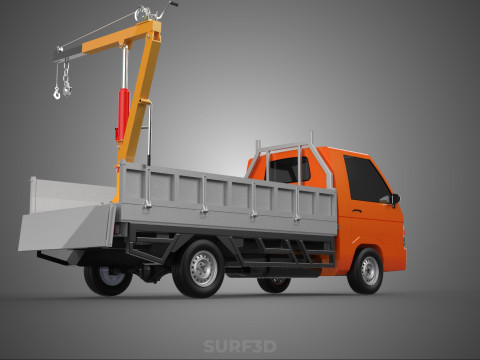

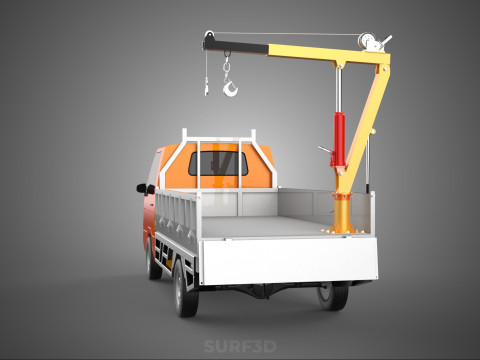

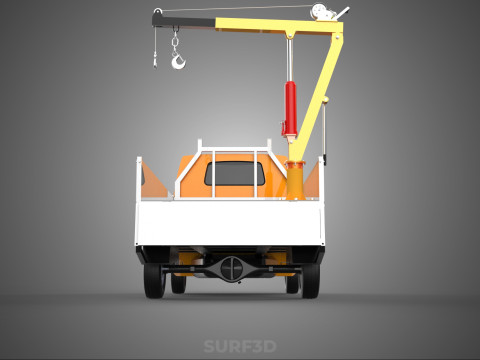

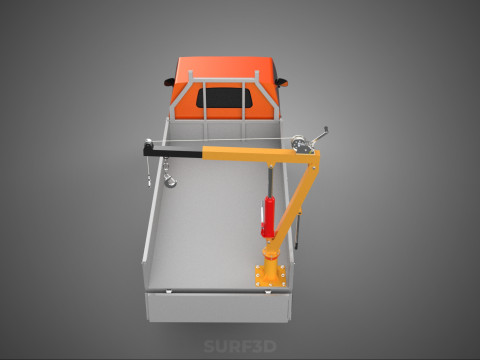

REAR GATE TAILGATE FOLDING CRANE HAND CRANK WINCH TRUCK PICKUP 3D 模型

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :

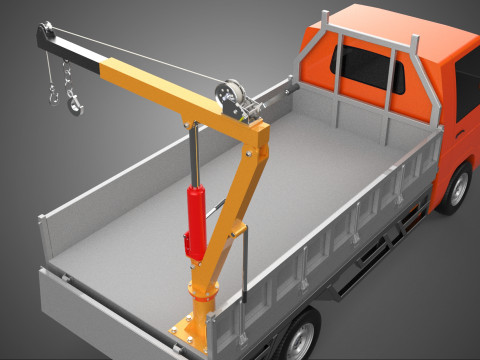

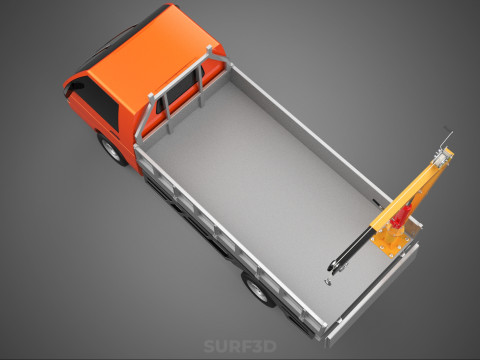

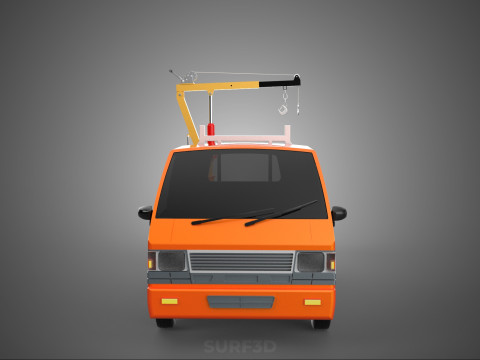

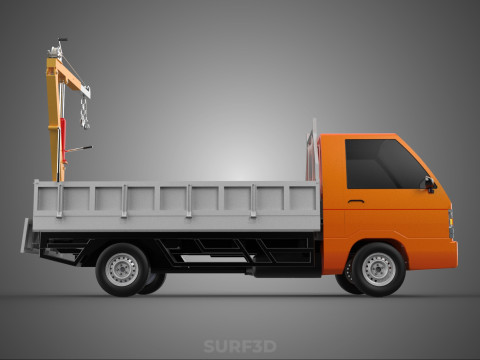

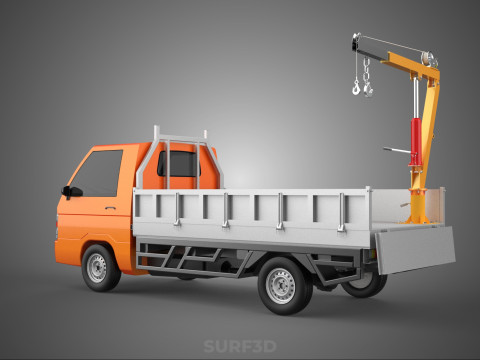

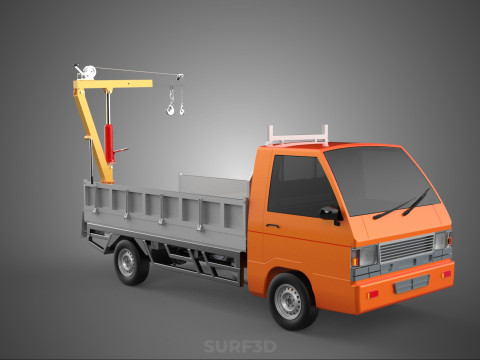

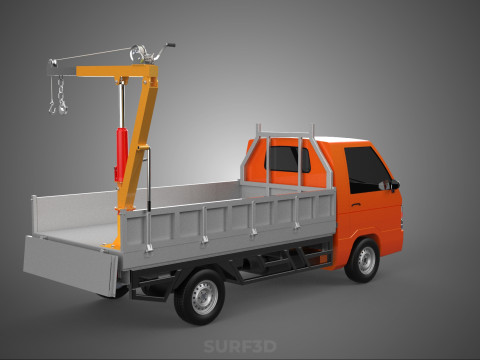

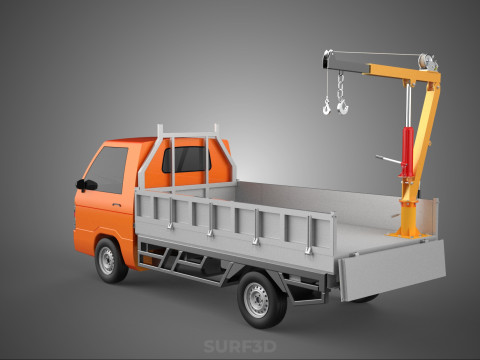

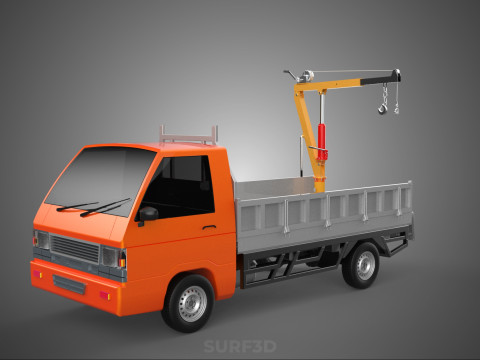

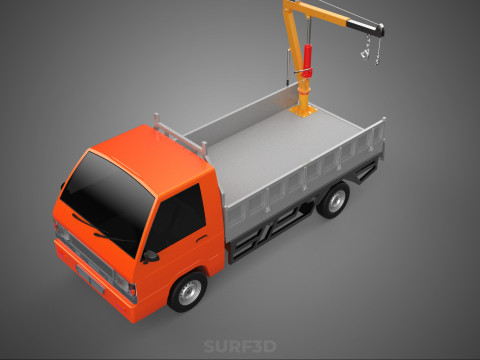

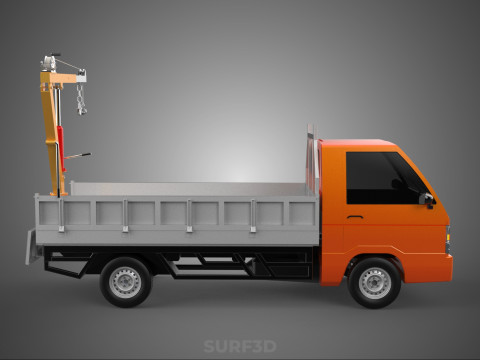

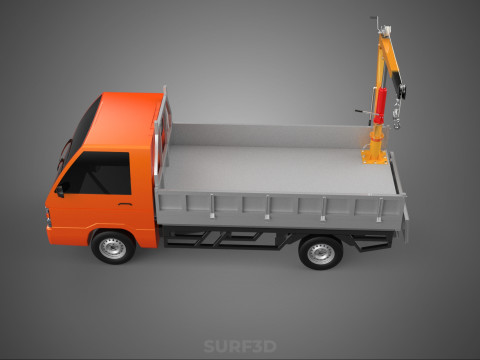

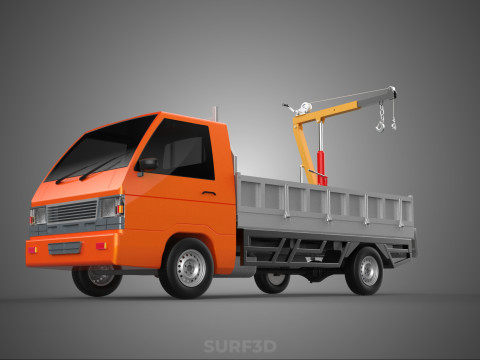

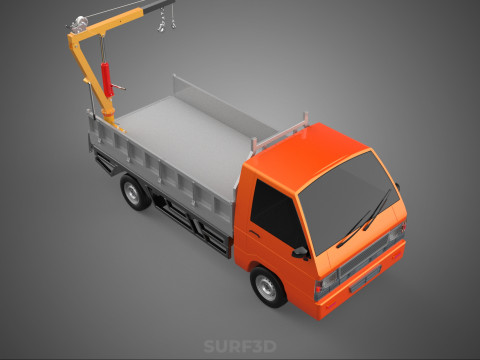

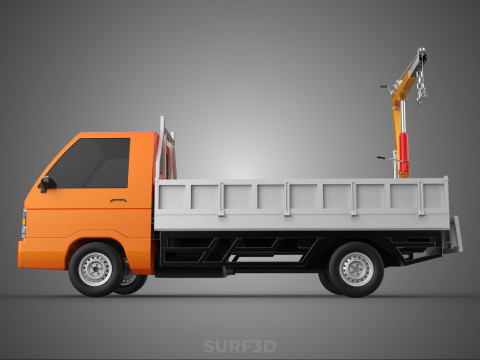

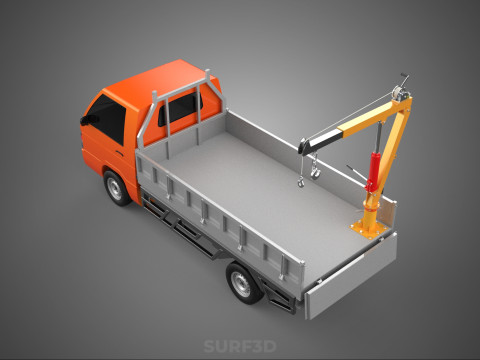

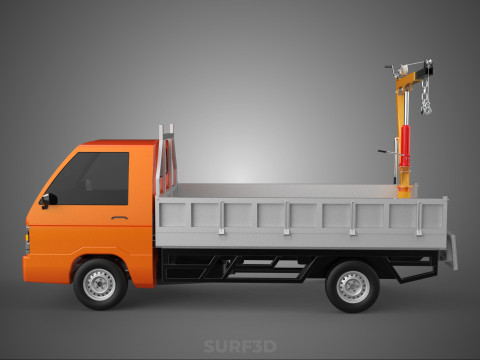

A "Rear Gate Tailgate Truck Pickup with Folding Crane Hand Crank Winch attached" describes a specialized configuration of a light-duty or medium-duty pickup truck, specifically modified to integrate a manually operated lifting apparatus directly onto or in close proximity to its rear tailgate. This system is designed to facilitate the loading and unloading of heavy or cumbersome items into and out of the truck's cargo bed, thereby reducing manual labor and enhancing operational efficiency, particularly in environments where external power sources are unavailable.

**Components and Design:**

1. **Pickup Truck Tailgate/Rear Gate:** The fundamental component is the tailgate, the hinged rear closure of a pickup truck's cargo bed. In this specialized setup, the tailgate or the immediate rear section of the truck bed is often reinforced to withstand the additional stresses imposed by the lifting mechanism and its loads. The tailgate itself may serve as a stable platform for the crane's operations when lowered, or the crane may be mounted directly to the truck's frame or bed structure behind the cab, with its operational range extending over the tailgate.

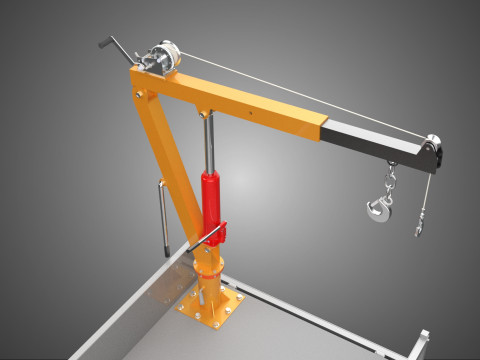

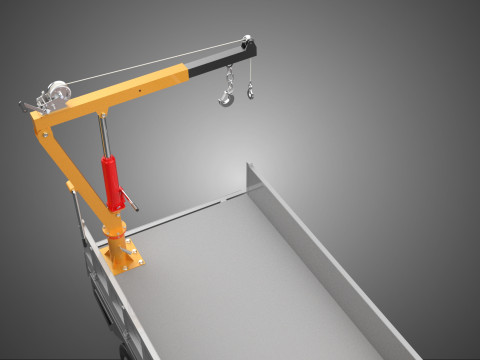

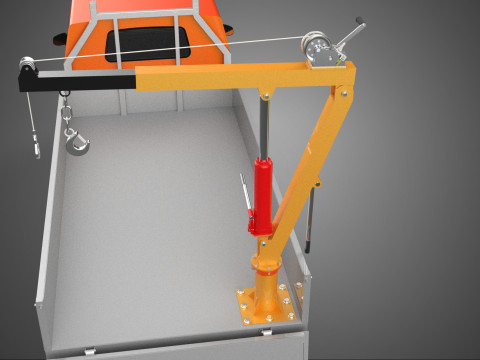

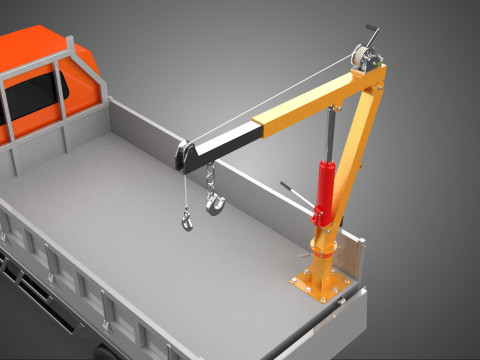

2. **Folding Crane:** This is a compact, articulable lifting device, typically comprising a mast (vertical support) and a boom (horizontal or angled arm) that can be extended or retracted. The "folding" aspect is critical, allowing the crane to be collapsed into a compact form when not in use. This design conserves valuable bed space, reduces the overall vehicle footprint for storage or transit, and maintains the truck's aesthetic and aerodynamic profile. Common folding mechanisms include telescopic booms or hinged sections that pivot and lock into place. The crane's mounting point is engineered to ensure stability during lifting operations, often involving a sturdy base plate or a custom-fabricated support system bolted directly to the truck's frame or a reinforced section of the truck bed.

3. **Hand Crank Winch:** The power source for the lifting action is a manually operated winch. This device consists of a drum around which a cable (wire rope or synthetic rope) is wound, a gear system to provide mechanical advantage, and a hand crank for user input. Hand crank winches are valued for their simplicity, reliability, and independence from electrical or hydraulic power systems. They typically incorporate a braking mechanism, such as a ratchet and pawl system, to secure the load at any desired height and prevent accidental descent. While requiring physical effort from the operator, they offer precise control over the lifting and lowering speed. The winch is usually mounted on the crane's mast or boom, within easy reach of the operator.

**Functionality and Operation:**

To operate the system, the truck is positioned appropriately, and the folding crane is deployed from its stowed position. The boom is extended, and the winch cable, fitted with a hook, is lowered to attach to the item intended for lifting. The operator then uses the hand crank to slowly reel in the cable, raising the load. Once lifted to the desired height, the load can be rotated (if the crane has a swivel base) and swung over the truck bed. The winch is then cranked in the opposite direction to lower the load safely into the cargo area. The reverse process is followed for unloading. After operations, the crane is folded and stowed, ensuring the truck is ready for transport.

**Applications:**

This integrated system is particularly beneficial for individuals or small businesses that frequently transport heavy items but do not require the high lifting capacities or speed of hydraulic cranes. Common users include:
* **Tradespeople:** Plumbers, electricians, HVAC technicians carrying heavy tools, pipes, or equipment.
* **Farmers and Ranchers:** Moving feed sacks, small machinery, or animal care items.
* **Landscapers:** Handling heavy bags of soil, rocks, or small trees.
* **DIY Enthusiasts and Homeowners:** Managing projects involving heavy materials like lumber, concrete blocks, or appliances.
* **Remote Work Sites:** Where access to external power is limited or nonexistent.

**Advantages:**

* **Self-Sufficiency:** Operates without external power, making it ideal for remote or off-grid locations.
* **Cost-Effectiveness:** Generally less expensive to purchase and maintain than powered lifting systems.
* **Space-Saving:** The folding design preserves valuable bed space when the crane is not in use.
* **Precision Control:** Manual operation allows for fine adjustments during lifting and positioning.
* **Enhanced Safety:** Reduces strain and potential injury associated with manual heavy lifting.

**Limitations:**

* **Manual Effort:** Requires physical exertion from the operator, limiting the practical load capacity and speed.
* **Slower Operation:** Significantly slower than electrically or hydraulically powered cranes.
* **Weight Capacity:** Limited by the structural integrity of the truck's frame/bed and the inherent capacity of the manual winch system.

The "Rear Gate Tailgate Truck Pickup with Folding Crane Hand Crank Winch attached" represents a practical, versatile, and independent solution for light-to-medium duty material handling, offering a valuable augmentation to the utility of a standard pickup truck.

KEYWORDS: Pickup truck, Tailgate, Rear gate, Folding crane, Hand crank winch, Material handling, Load lifting, Vehicle accessory, Utility vehicle, Manual operation, Cargo management, Work truck, Portable crane, Boom hoist, Loading aid, Unloading aid, Truck bed crane, Self-sufficient lifting, Small business equipment, Construction aid, DIY equipment, Farm equipment, Off-grid solution, Mechanical advantage, Load capacity, Stowable crane, Accessory mount, Heavy lifting, Winch system, Mobile lifting
