automatic assembly equipment for motor parts Model 3D

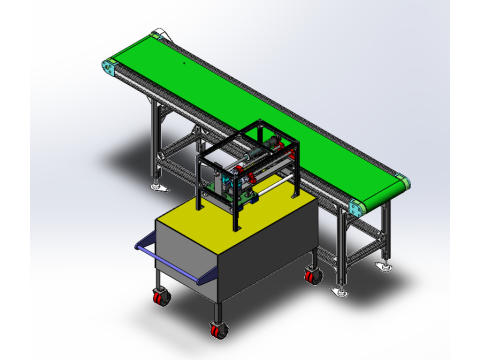

a complex motor parts automatic assembly line equipment, this complete set of non-standard equipment drawings are using solidworks the main function of the design is to assemble all the motors and spare parts, and finally realize unmanned operation at the end of the finished product blanking. the internal design principle is divided into: vibrating plate feeding, feeding, clamping, assembling, handling, turning, locking screws, installing spring, taking and laying materials, and conveying finished products. the feeding part of the vibrating plate is made of belt and water fixture plate in this way, you just need to put the products on the fixture and transport them through the conveyor belt. the clamping manipulator will clamp and assemble the products. after finishing, the fixture will work in circulation. the structure of this set of drawings is very complex and has great learning value. i hope you will download it. don't miss the opportunity. Siap Cetak: Tidak
