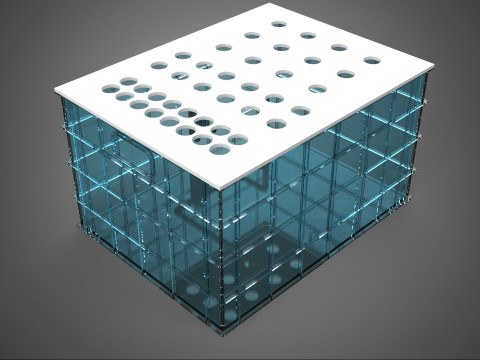

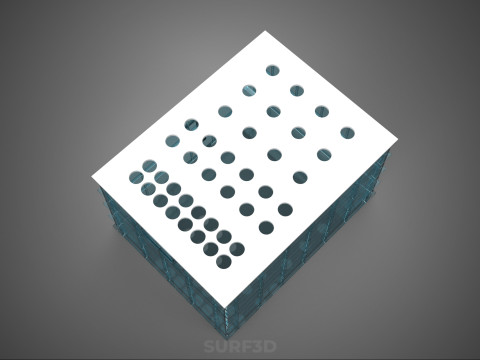

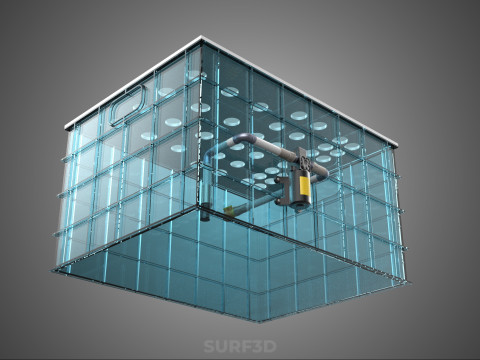

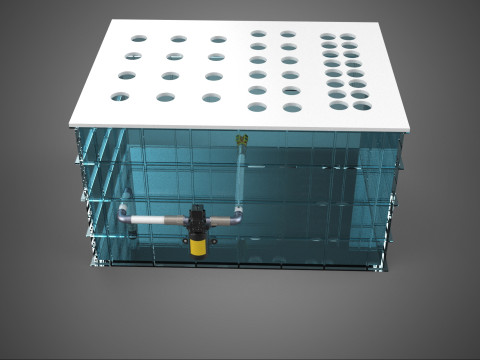

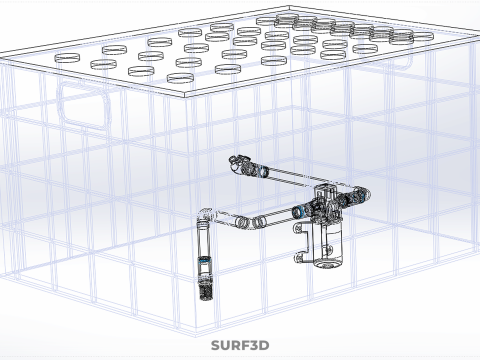

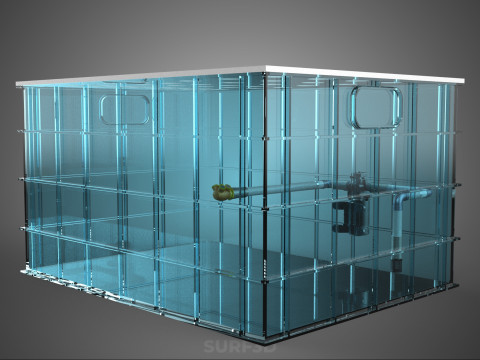

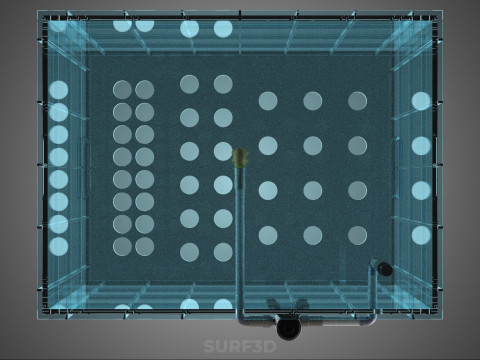

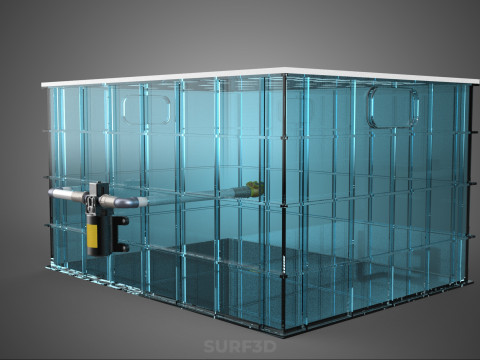

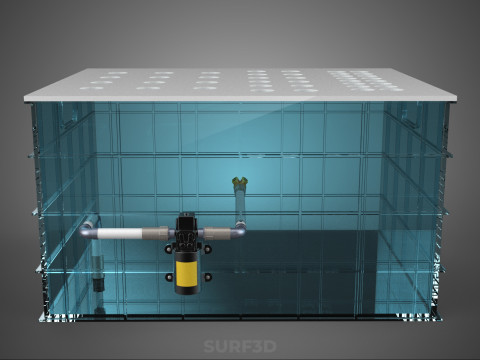

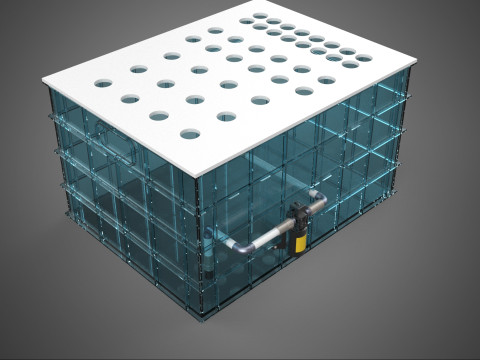

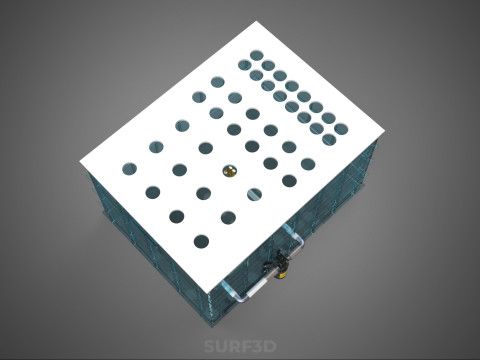

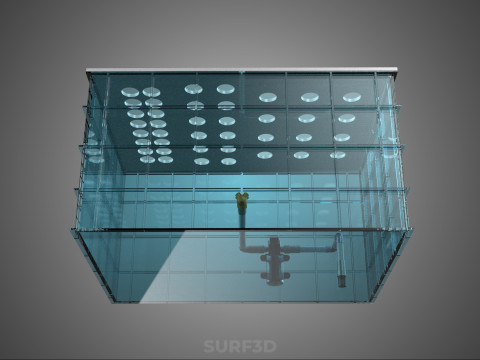

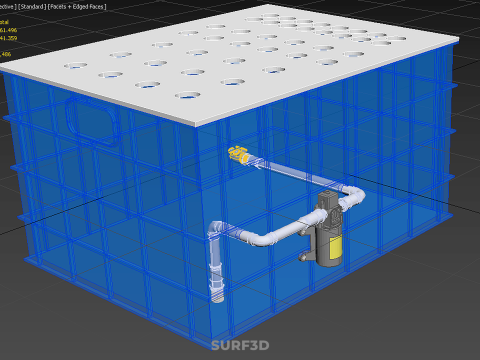

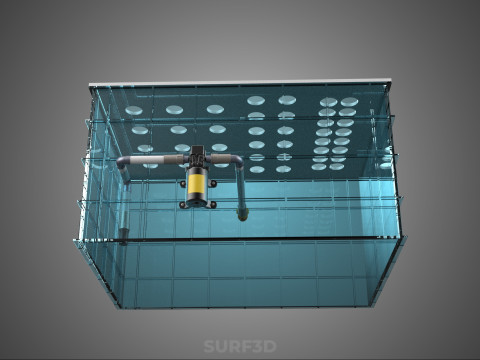

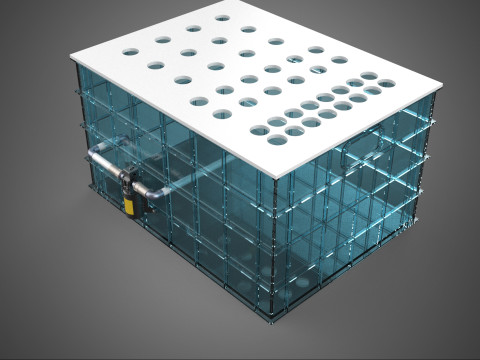

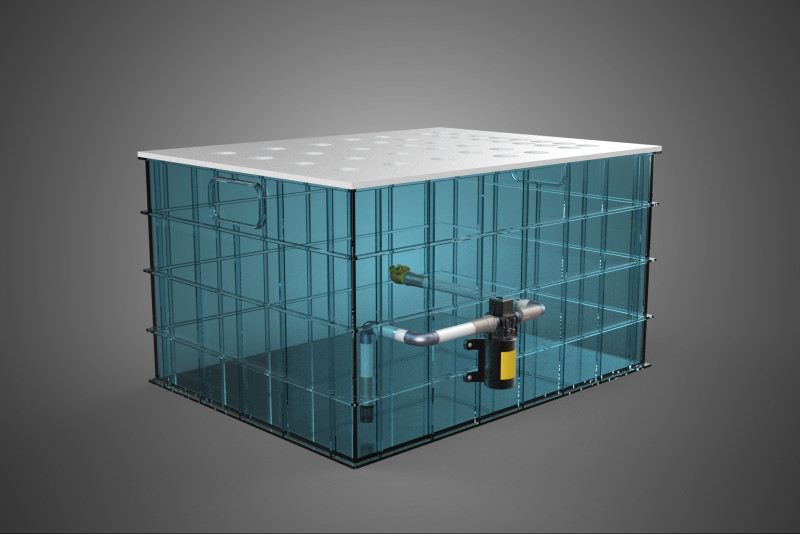

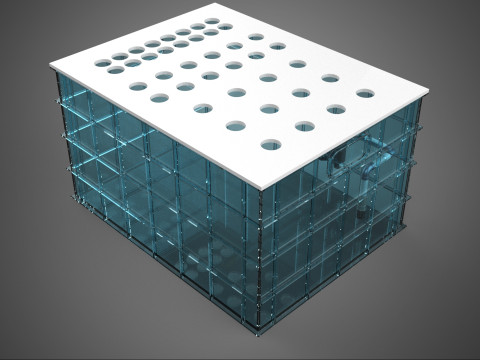

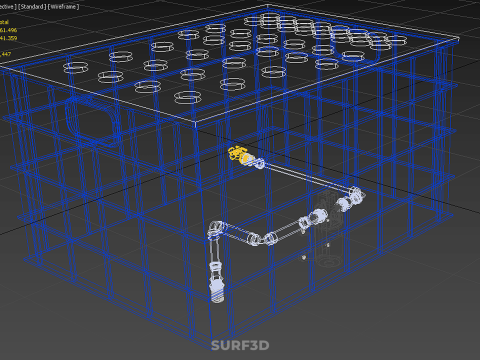

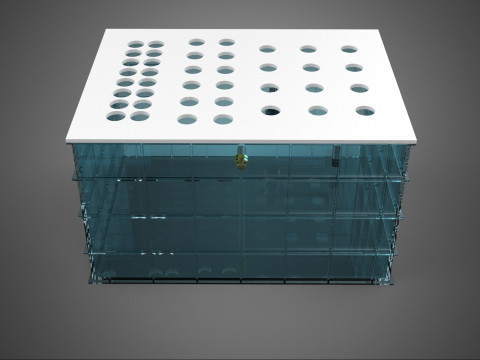

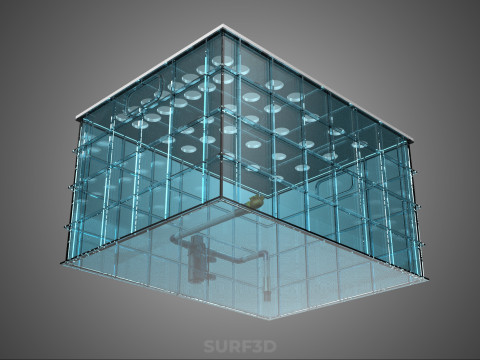

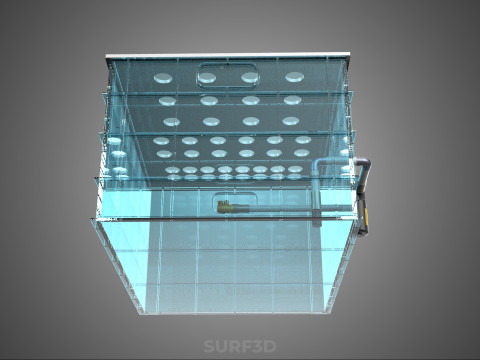

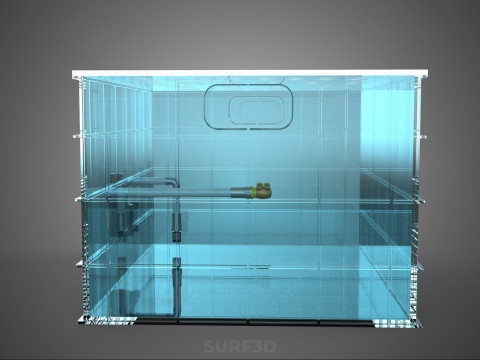

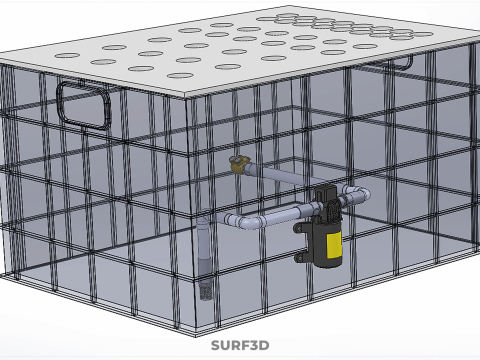

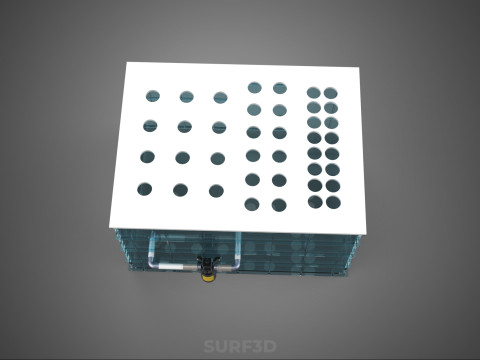

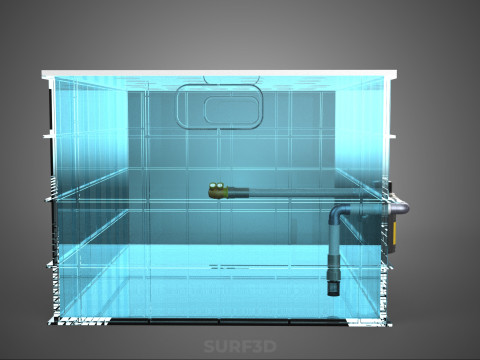

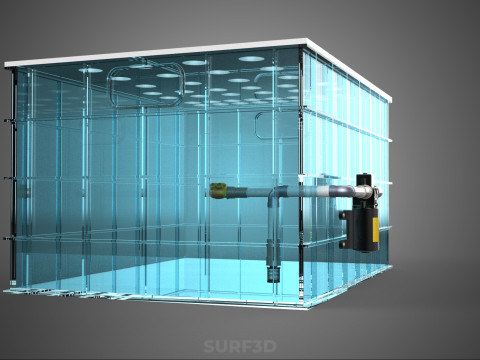

GRID ARRAY TANAMAN HIDROPONIK AEROPONIK STASIUN POMPA KABUT SPRAYER Model 3D

Deskripsi

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :
The **Grid Array Plants Hydroponic Aeroponic Station** is a highly specialized apparatus utilized in Controlled Environment Agriculture (CEA) designed for high-density plant cultivation. This integrated station leverages a hybrid approach, combining the systemic nutrient delivery stability of hydroponics with the advanced root oxygenation and efficiency of true aeroponics. The core functionality relies on a dedicated **Mist Pump Sprayer** system to atomize nutrient solutions directly onto the root structures of plants housed within a modular, often vertical, grid array architecture.

### Methodology and Principle

The system operates as a transition between passive hydroponic support (such as Deep Water Culture or nutrient reservoirs located directly beneath the array) and high-pressure aeroponics (HPA). The primary goal is the optimized delivery of necessary macro and micronutrients alongside maximizing gaseous exchange within the root zone (rhizosphere).

**Aeroponic Component:** True aeroponics is defined by the pressurized delivery of a nutrient fog or mist, where nutrient droplets are typically atomized to a size range of 5 to 50 micrometers (µm). Droplets within this size range ensure efficient nutrient uptake and minimize root dehydration while maximizing oxygen availability. The pressurized misting cycle is often intermittent, governed by environmental sensors (e.g., psychrometrics, root moisture levels) and programmed logic controllers (PLCs) to maintain optimal environmental conditions within the array modules.

**Hydroponic Integration:** While primarily aeroponic during active spraying phases, the system often incorporates a reservoir or catch basin beneath the grid array. This secondary function allows for collection and recirculation of unabsorbed solution, ensuring resource conservation and continuous monitoring of electrical conductivity (EC) and pH levels. In some hybrid designs, a static or shallow layer of solution may be retained, offering a safeguard against critical pump or nozzle failure (a form of limited emergency Deep Water Culture support).

### Structural Architecture: The Grid Array Station

The **Grid Array Station** refers to the standardized, scalable physical structure designed for optimal spatial efficiency.

1. **Modularity and Density:** The array is constructed using non-reactive, food-grade materials (typically PVC or high-density polyethylene) structured into precise geometrical grids. These grids hold the plant support structures (e.g., net pots or collars) at predetermined spacing, facilitating high plant density per square meter, particularly critical in vertical farm applications where stacking maximizes yield volume.
2. **Root Environment Management:** The root chambers within the grid array are sealed or semi-sealed environments, necessary to maintain the high humidity levels (near 100% relative humidity) required for aeroponic mist dispersal and to exclude ambient light, preventing algal growth.
3. **Scalability:** The modular design allows stations to be linked horizontally or stacked vertically (tiered systems), integrating seamlessly with HVAC, climate control, and monitoring infrastructure.

### The Mist Pump Sprayer System

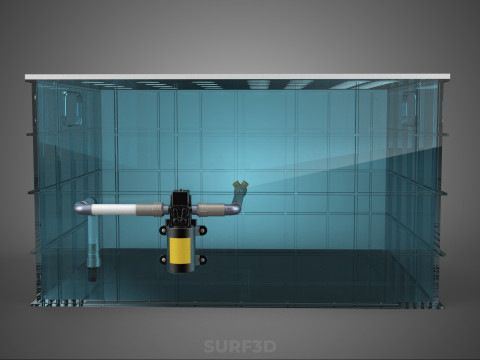

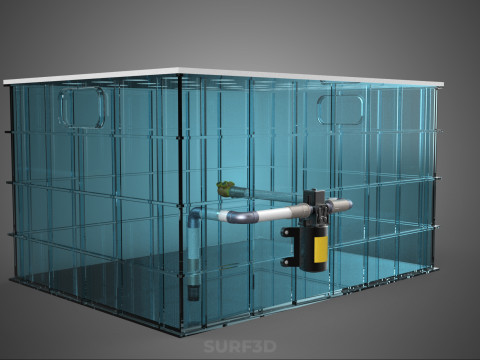

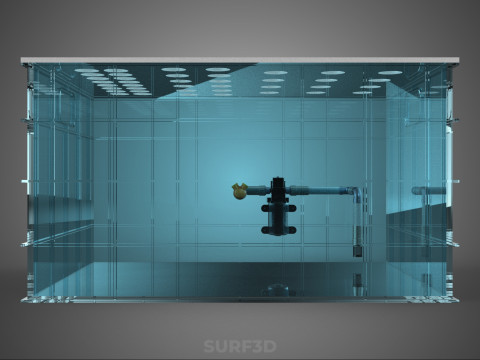

The efficacy of the station is intrinsically linked to the performance of the **Mist Pump Sprayer**. This sub-system is responsible for generating and delivering the nutrient mist under high pressure.

1. **Pump Mechanism:** Typically, a positive displacement pump, such as a high-pressure diaphragm pump (often rated between 60 to 100+ PSI), is employed. The pump must be rated for continuous duty and corrosion resistance, handling complex mineral solutions without degradation.
2. **Atomization:** The pump forces the nutrient solution through specialized **sprayer nozzles**. These nozzles are engineered to create a micro-mist, relying on extremely fine apertures to achieve the required droplet size for optimal root uptake. Nozzle selection is critical; larger droplets (above 100 µm) often lead to saturation rather than true atomization, promoting anaerobic conditions and reducing overall system efficiency.
3. **Delivery Network:** A robust network of high-pressure tubing connects the pump to the grid array chambers, ensuring uniform pressure distribution across all sprayers within the station, preventing differential nutrient delivery that could stunt growth in localized areas.

### Operational Advantages

The integrated Grid Array Station offers several advantages over conventional farming and simpler hydroponic methods:

1. **Precision and Efficiency:** Water and nutrient consumption are dramatically reduced due to closed-loop recirculation and high root absorption rates.
2. **Maximized Oxygenation:** The finely dispersed mist significantly increases oxygen availability to the roots, accelerating growth cycles and minimizing the risk of root rot (Pythium) compared to submerged systems.
3. **High Yield Density:** The grid array design facilitates maximizing yield within a minimal footprint.

KEYWORDS: Aeroponics, Hydroponics, Controlled Environment Agriculture, CEA, Vertical Farming, Grid Array, Mist Pump Sprayer, High Pressure Aeroponics, HPA, Nutrient Film Technique, Deep Water Culture, Atomization, Micron Droplets, Positive Displacement Pump, Root Zone, Rhizosphere, Spatial Efficiency, Plant Density, Recirculation, Nutrient Solution, Electrical Conductivity, pH Monitoring, Modularity, Automation, Precision Agriculture, Closed-Loop System, Plant Factory, Growth Cycle, Pump Failure Safeguard.
