WG 0003 - Rangkaian lengkap 3 garu putar Model 3D

WG 0003 - Rangkaian lengkap 3 garu putar Model 3D catia, iges, x_t, sldprt, step, stl, Dari WorkGadgetAgro

The documentation package includes the following equipment:

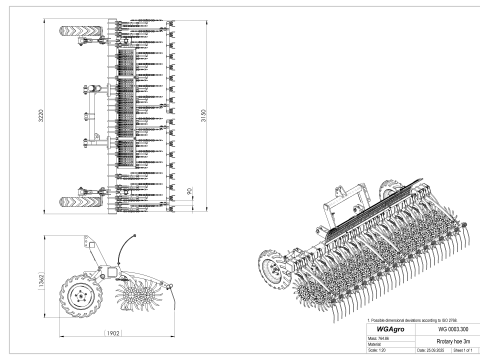

1. WG0003.300 – rotary harrow with a fixed frame, 3.0 m working width
2. WG0003.450 – rotary harrow with a fixed frame, 4.5 m working width

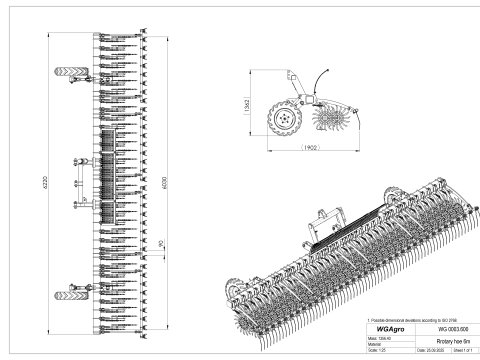

3. WG0003.600 – rotary harrow with a fixed frame, 6.0 m working width

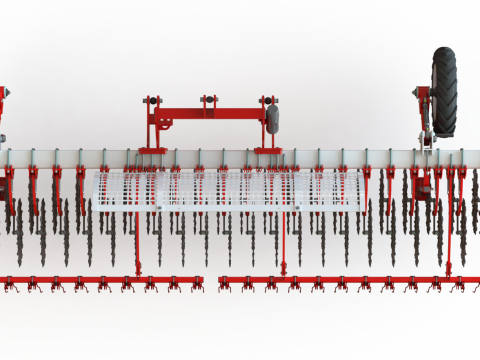

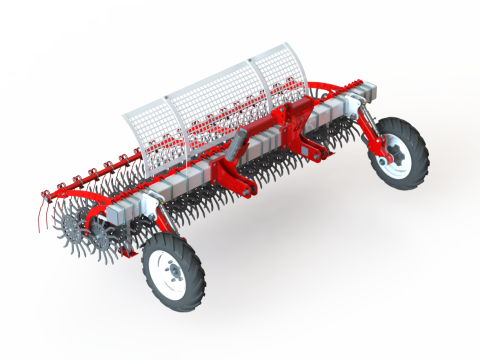

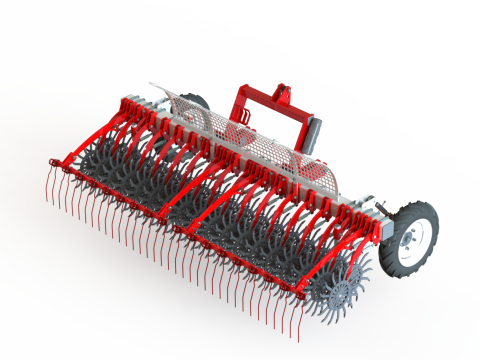

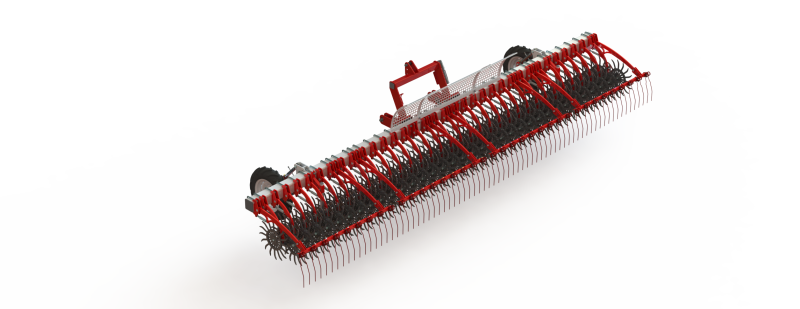

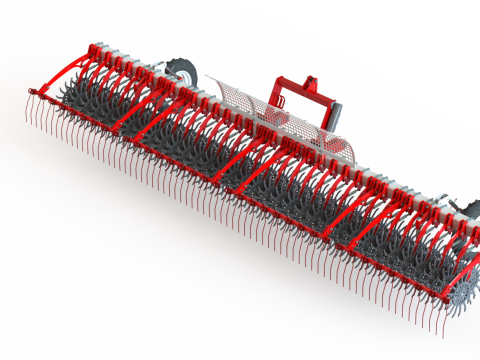

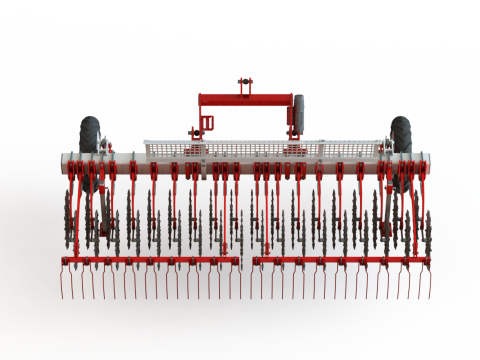

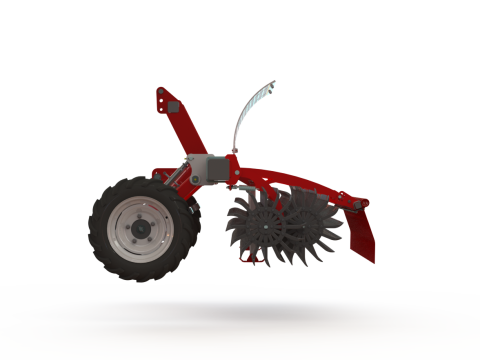

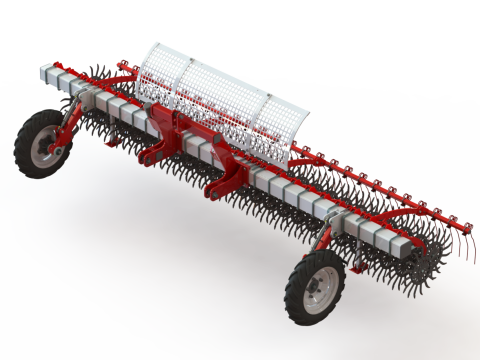

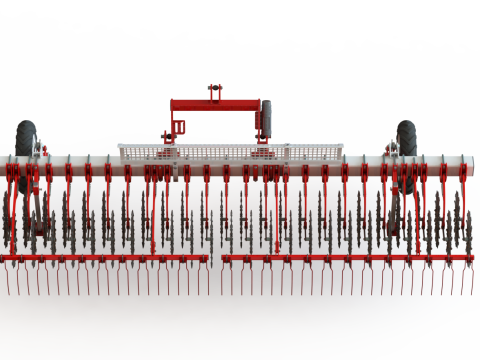

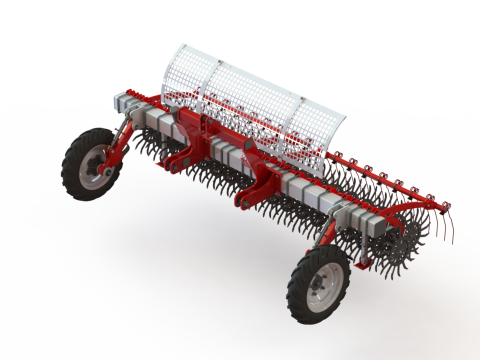

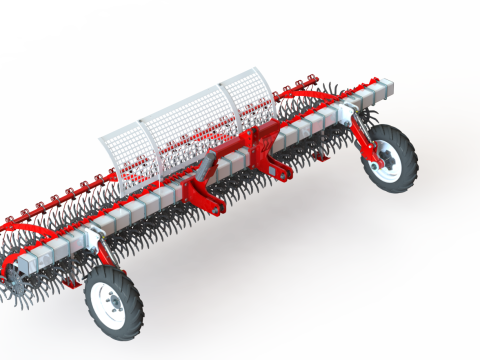

The rotary harrow is designed for effective soil preparation before and after sowing. Its rotating working bodies efficiently destroy the soil crust, improve aeration, and promote uniform seed germination. Suitable for various crops, including cereals and row crops, it ensures high-quality soil cultivation. The robust construction and reliable components guarantee long-term performance even in challenging field conditions.

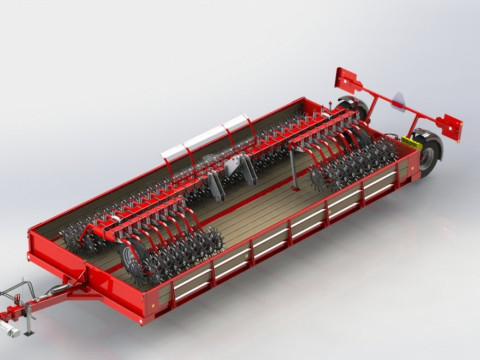

For transporting units on public roads, we recommend using our development – WG 0027 – Conveyor

Full SolidWorks 3D assembly and manufacturing documentation (SLDASM + SLDPRT + STEP).Ready for modification, prototyping, or production use.
This is a high-quality, engineering-grade 3D model. Designed with precision, the model includes a complete assembly along with fully detailed 2D technical drawings of each component.It is ideal for: Product design and prototyping. Educational and demonstration purposes 3D visualizations or animations CNC manufacturing preparation 3D printing (STL included)

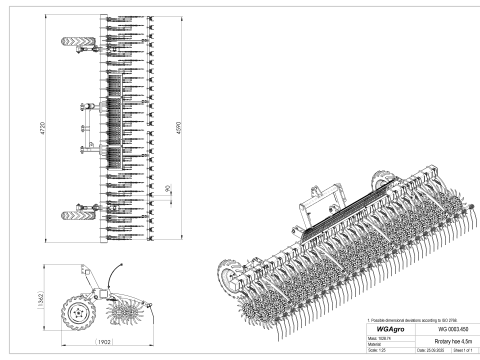

Contents of the package: Full 3D assembly. Separated parts.Detailed dimensions.Material indications.Assembly drawing with exploded view.High-quality STEP (.step), IGES (.iges), STL (.stl) files,  Parasolid (.x_t) and CATIA (.cgr).

Technical Highlights:
Modeled in SolidWorks.
All parts are real-world scaled (millimeters).
Accurate real-world dimensions
High-detail components
Ready for fabrication or simulation
Designed for CNC manufacturing, prototyping, or educational use
Clean parametric structure
Compatible with major CAD software.
Designed with manufacturing feasibility in mind.
Recommended Use:

Technical planning
Custom fabrication
Educational material
Suitable for engineers, farmers, and DIY enthusiasts.
Textures not included. This is a solid CAD model, not polygonal mesh.
Need your own version of this model? I can modify or create new equipment to suit your needs.
