2-speed gearbox 3D 프린트 모델

SALE ENDS
$
3.97
가지고 있는 아이템 $0.00 크레딧. 크레딧 구입
- 이용 가능한 포맷: Autodesk 3DS MAX (.max) 3.74 MBAutodesk 3DS MAX (.max) 2.87 MBIGES (.iges) 3.56 MBAgisoft Photoscan (.ply) 1.57 MBSolidWorks (.sldprt) 4.63 MBSTEP (.step) 2.68 MBStereolithography (.stl) 5.03 MB
- 컬렉션:No
- 프린트 준비:
- 3D 스캔:No
- 성인용 콘텐츠:No
- PBR:No
- 조회:4118
- 날짜: 2023-07-31
- 아이템 ID:457076

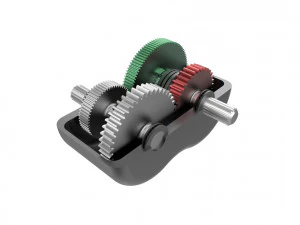

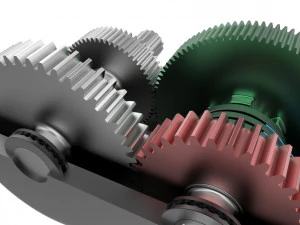

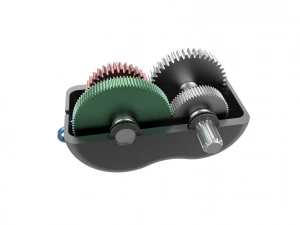

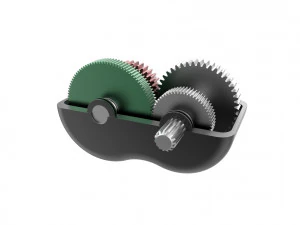

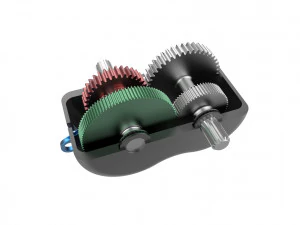

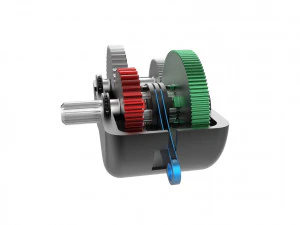

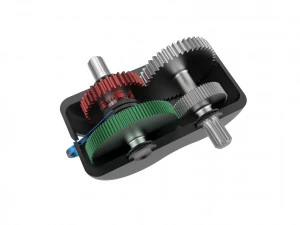

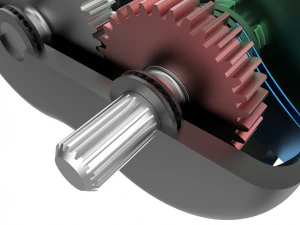

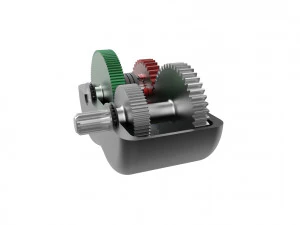

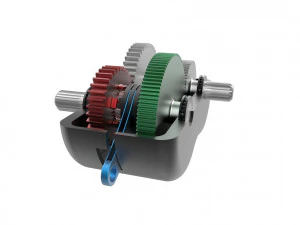

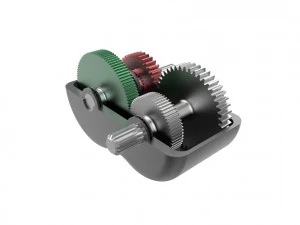

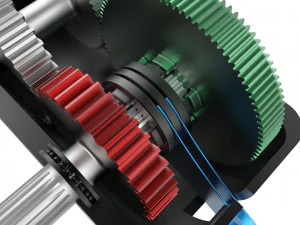

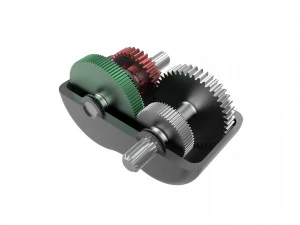

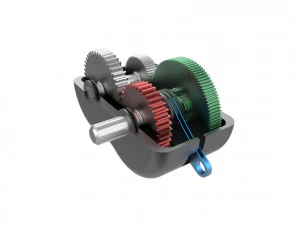

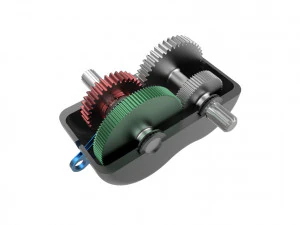

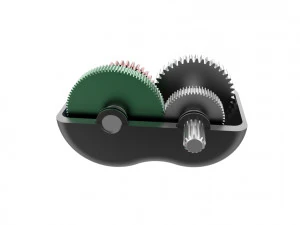

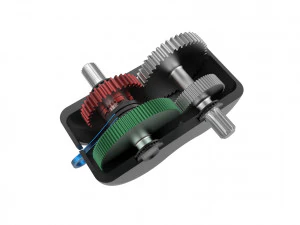

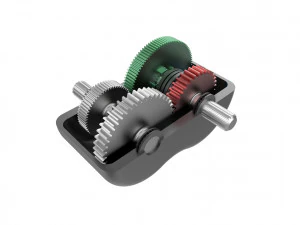

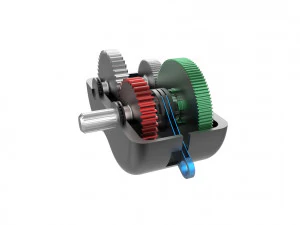

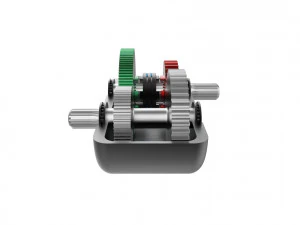

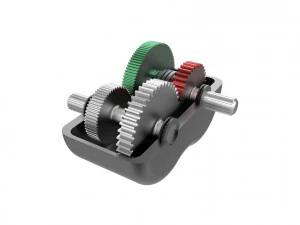

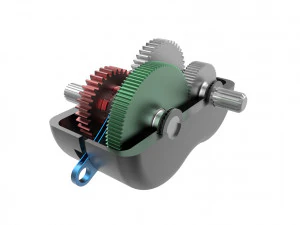

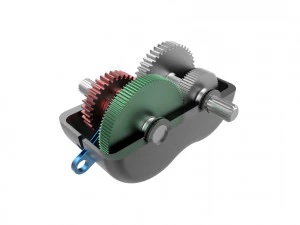

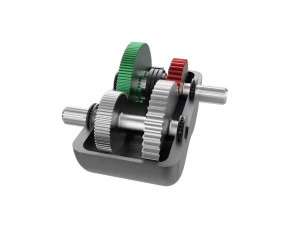

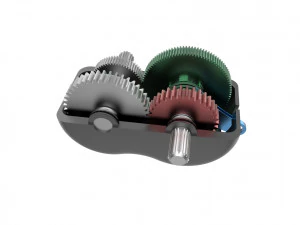

This is my gearbox whitch consists of a 2 sets of gears. Motion comes from the top shaft which has the gears casted on it. upper 2 gears are connected with the lower ones and are continiously transfering motion. The lower gears are mounted on bearings and then on the other shaft,,, (these gears are spinning freely when in neutral). in the middle of the two geras there is a clutch which is controled by a lever. if we mode the shaft on the one side, it connects with the gear and transfers the motion to the shaft and finally we get the output power... This gearbox acts as a reducer with the first combination (z1=60 m=1 z2=100 m=1) and as an icreaser with the second combination (z3=45 m=2 z4=35 m=2)
더 보기다른 포맷이 필요하세요?
다른 포맷이 필요하시면, 새로운 지원 티켓을 열어 요청하세요. 저희는 3D 모델을 다음으로 변환할 수 있습니다: .stl, .c4d, .obj, .fbx, .ma/.mb, .3ds, .3dm, .dxf/.dwg, .max. .blend, .skp, .glb. 우리는 3D 장면을 변환하지 않습니다 .step, .iges, .stp, .sldprt와 같은 형식도 포함됩니다.!
다른 포맷이 필요하시면, 새로운 지원 티켓을 열어 요청하세요. 저희는 3D 모델을 다음으로 변환할 수 있습니다: .stl, .c4d, .obj, .fbx, .ma/.mb, .3ds, .3dm, .dxf/.dwg, .max. .blend, .skp, .glb. 우리는 3D 장면을 변환하지 않습니다 .step, .iges, .stp, .sldprt와 같은 형식도 포함됩니다.!
2-speed gearbox 3D 프린트 모델 max, max, iges, ply, sldprt, step, stl, 발신 AGDesign
aluminum lever solidworks gears bearing motion shaft reducer gearbox tooth transfer 2012 manual clutch transmission vehicle hobby diy mechanical parts이 아이템에 대한 코멘트 없음.
