Система розсувних панелей - 2x10 Лоу-полі 3D Модель

Опис

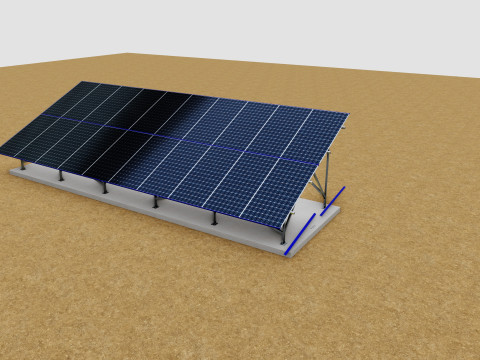

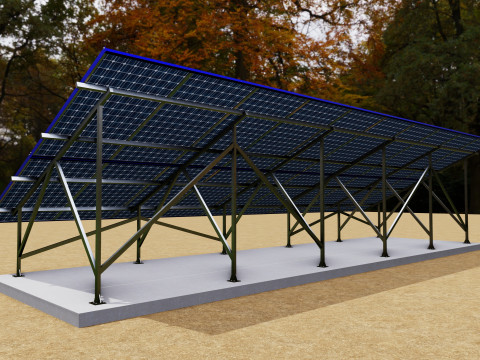

Sliding Panel System-2x10 Panel Layout

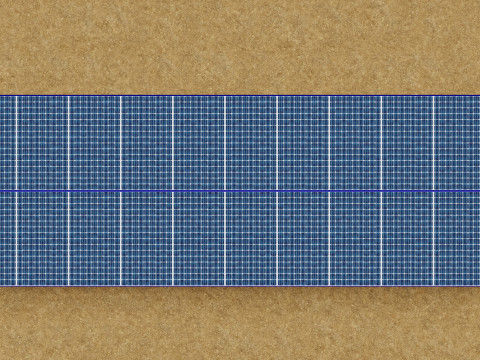

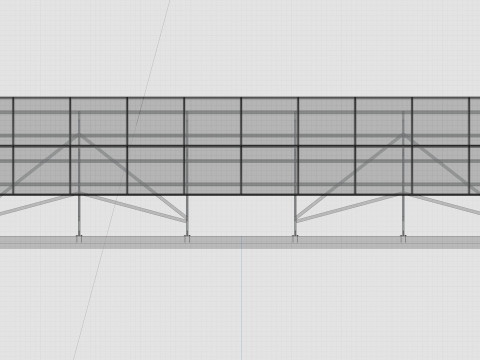

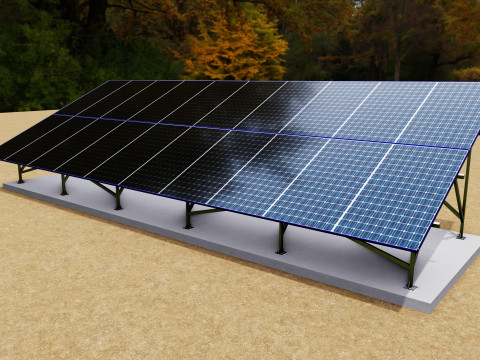

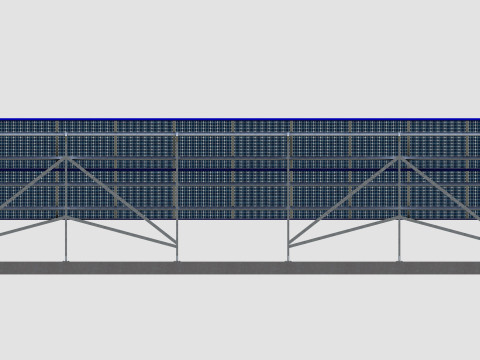

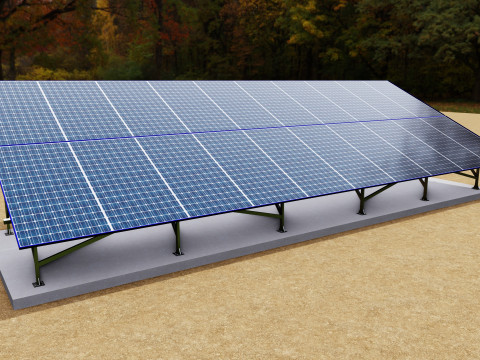

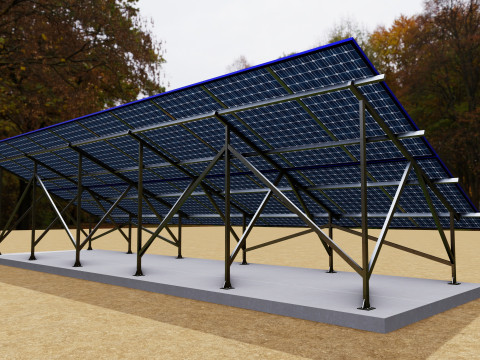

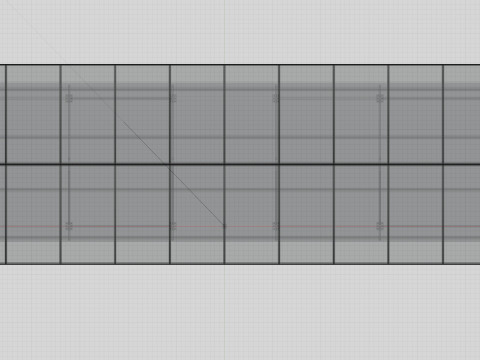

2x10 Vertical Panel Layout

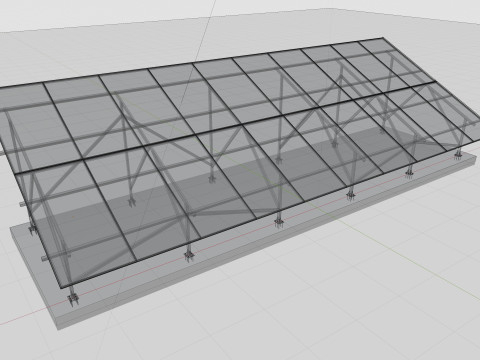

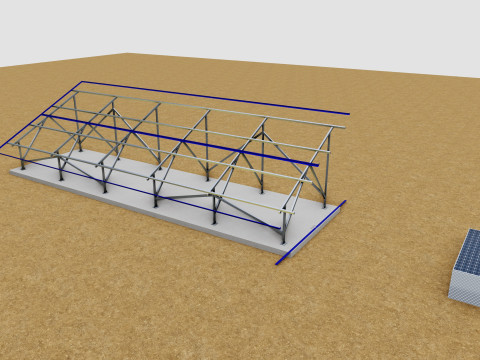

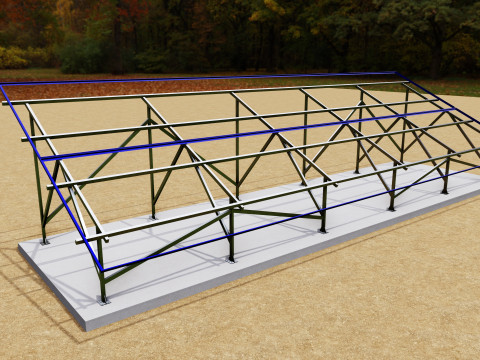

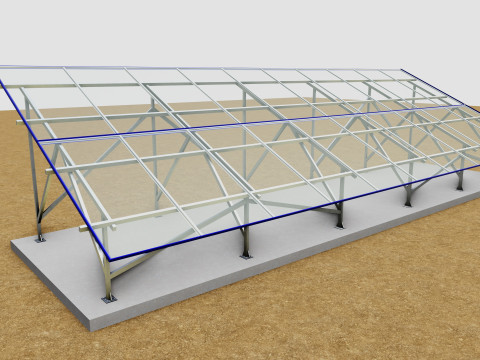

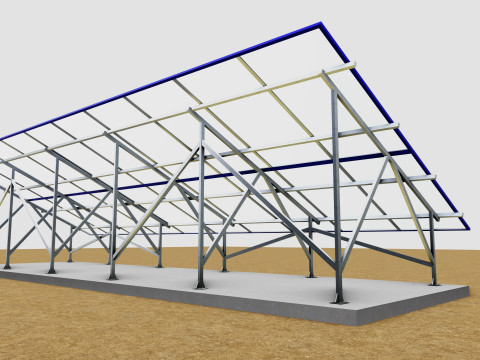

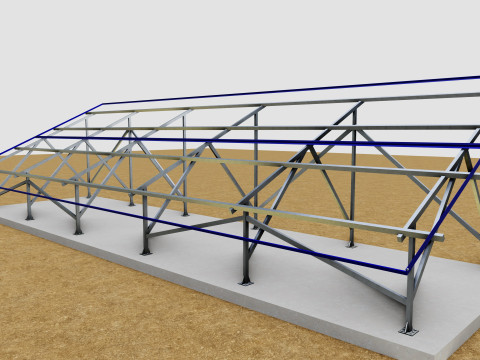

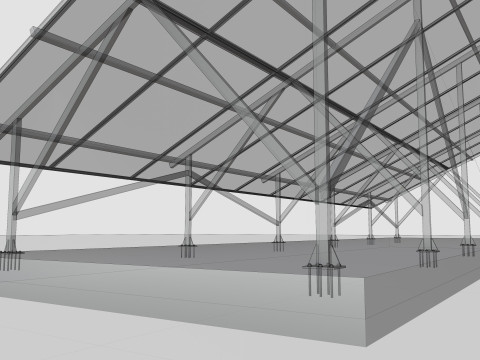

The construction design was created using only welded connections.

Aluminum clamps were not used to secure the solar panels to the structure.

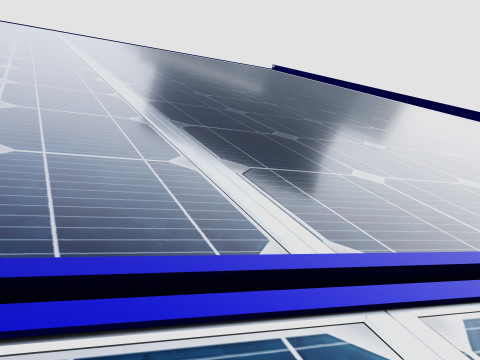

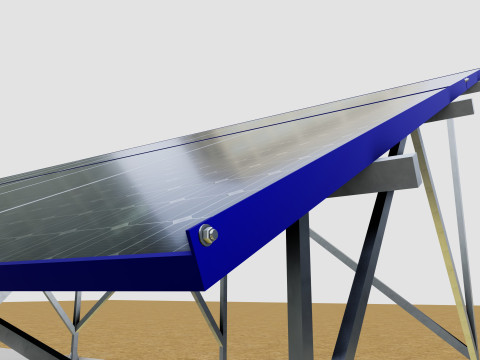

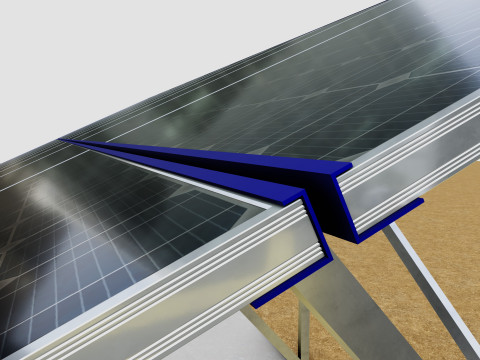

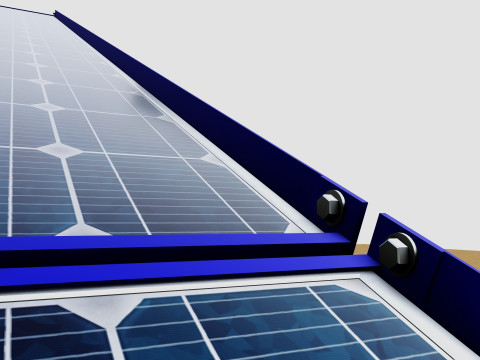

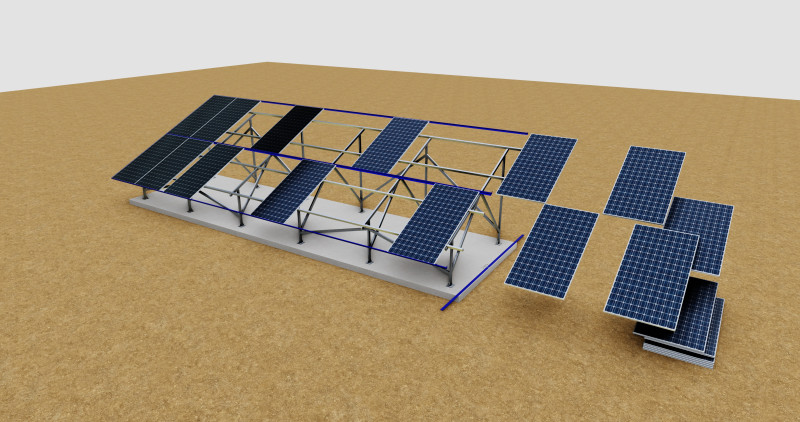

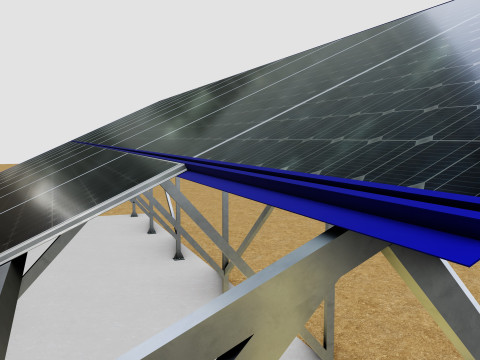

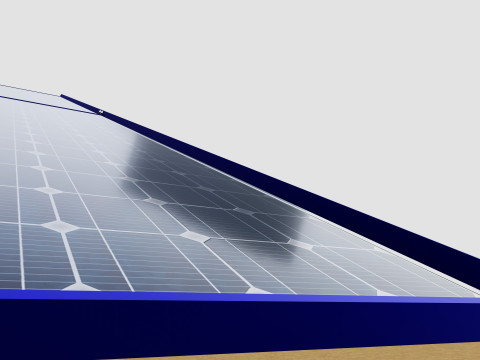

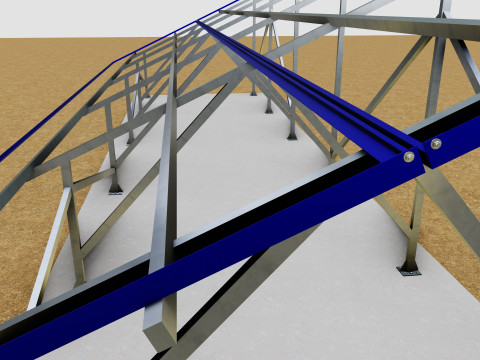

A sliding system was used as an alternative to aluminum clamps. The panels were designed to be mounted by sliding them into channels designed to grip the panels.

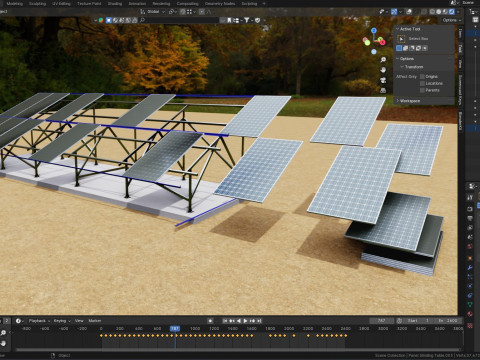

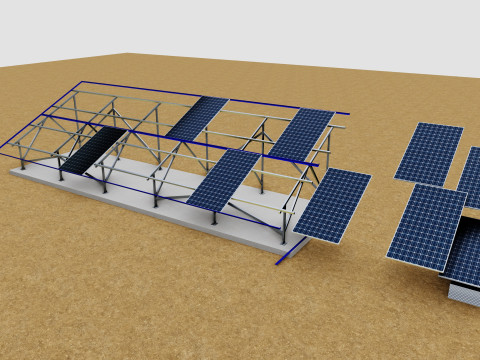

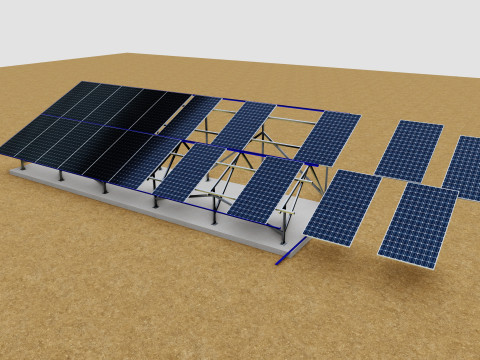

The same model is offered in two versions. The first, a fixed version, shows the finished assembly and is not animated. The second version features an animation that simply demonstrates how to install the solar panels.

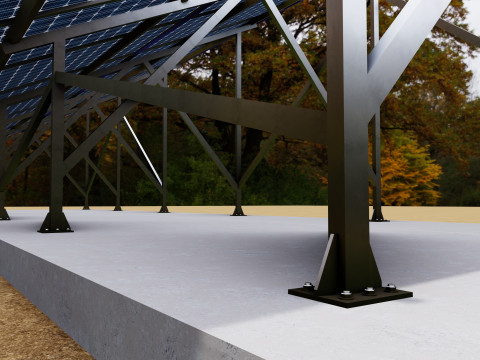

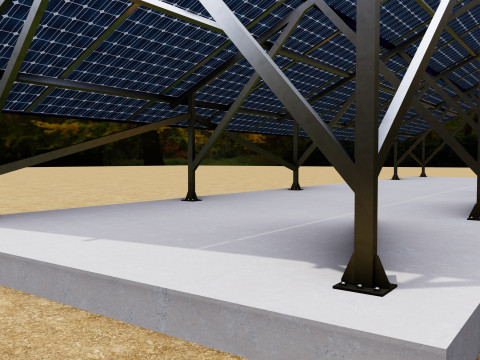

Ground Connection Type; With Anchor Plate

Panel Dimensions : 2279 x 1134 x 35 mm

Panel Power : 590Wp

1 solar panel steel construction produces 11,80 kWp power in 1 hour

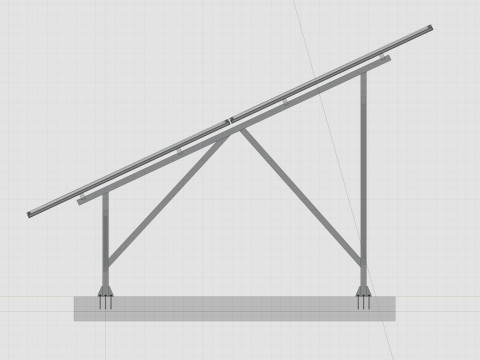

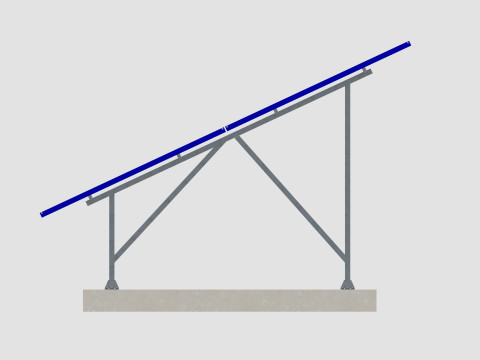

Vertical angle of panel 25°

HDRI has been downloaded free of charge from the Poly Haven site. There is no charge for HDRI. HDRI can be downloaded with the model or other HDRI files can be used from the Poly Haven site with different fees or free of charge.

Used HDRItiergarten_4k

All models are 1/1 real world scale.

Exported formats;
- dae
- fbx
- obj

Animation has not been added to exported formats. There is no animation in formats other than Blender.

Animation can be added to dae-fbx-obj formats upon request after purchase.

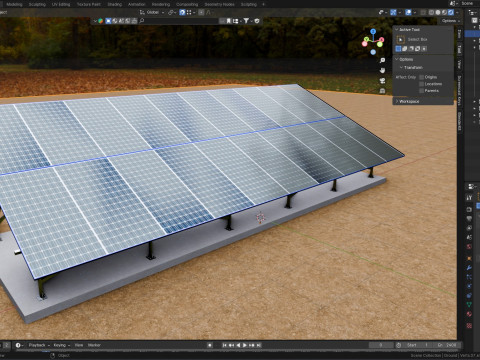

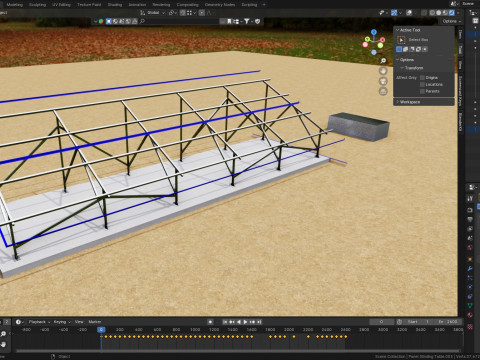

Prepared With BLENDER Version 4.0.1

Polygons : 23805

Vertices : 37672

Objects : 221
