火炮集束火箭上的 9N235 杀伤人员子弹药 3D 打印模具 3D 模型

描述

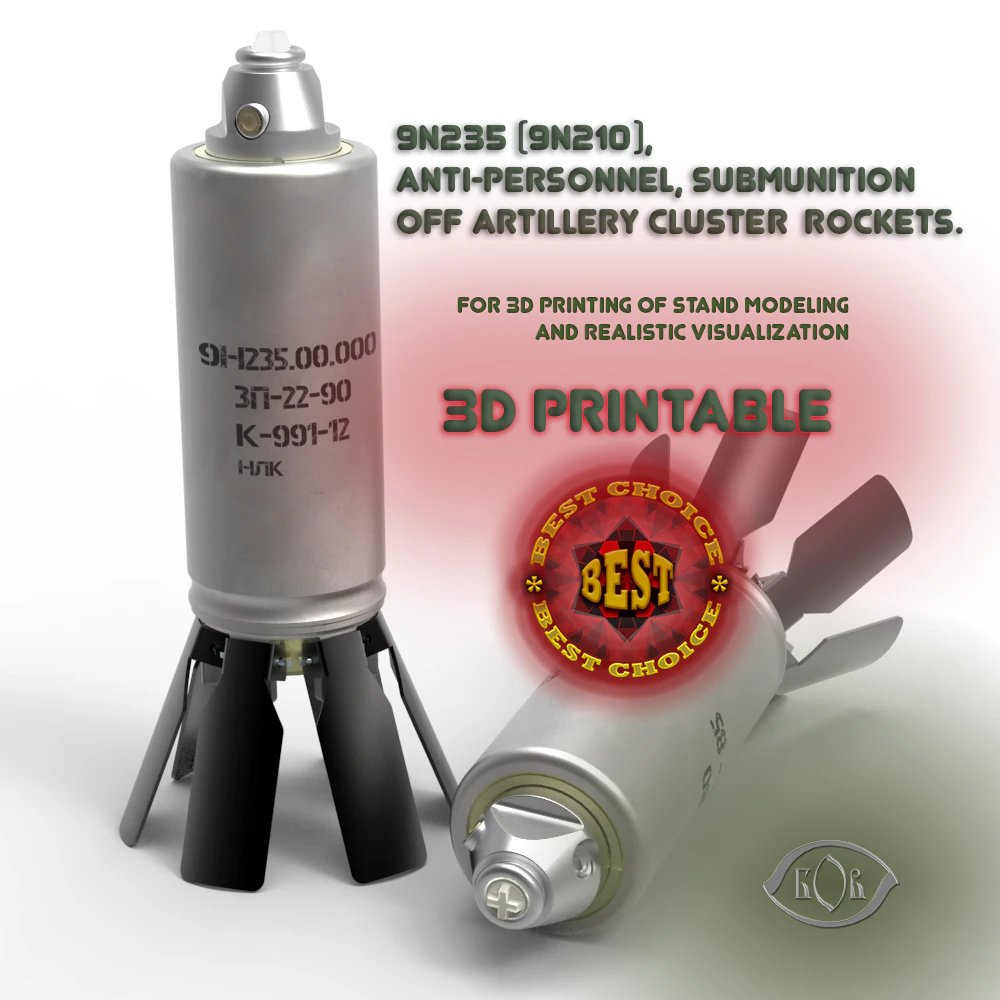

I present a 3D model of 9N235 (9N210) Anti-Personnel, submunition off artillery cluster rockets. Training stand model (mockup).

Historical (technical) Background:
This is the (USSR) 9N235 (9H235), a High-Explosive Fragmentation , Anti-Personnel, submunition,
9N indicating artillery submunition with a double-skinned body containing preformed fragments oftwo sizes.
The submunition has a nose Point-Detonating, direct impact 9Z246Mbv fuze with a 2min Self-Destruct timing.
The submunition contains 396 chopped steel rod pre-formed fragments between the inner and outer submunition casings held within a black plastic liner.
Two sizes of chopped steel rod are found in the submunition, the smaller size (0.5g) being mainly for use against personnel and the larger size (4.5g) for use against lightly armoured vehicles or material.
The 9N235 is externally identical to the 9N210.

Dimensions of the assembled model 263(270) x 65(117)mm. - original size.The model is made in SolidWorks. It is intended primarily for 3D printing stand model - training model,
for use as a visual aid and is not a complete copy of the external forms of the original product.
Although it does display all the basic external elements. The model is adapted for the possibility of 3D printing and subsequent assembly of the product layout.
All moving external elements remain movable ( stabilizers).
The kit contains both assemblies - compact and operational (combat simulation)
The model is assembled, contains files of all conditional parts (STL) in high-polygonal version to obtain qualitatively smooth forms.
Additionally, the set contains all files for obtaining high-quality realistic visualization with close-ups (smooth lines, selected surfaces for applying materials or textures),
texture files are texture inscriptions to be applied to surfaces.(see rendering examples).
In addition to solid model file formats, converted high detail polygonal file formats are additionally provided.

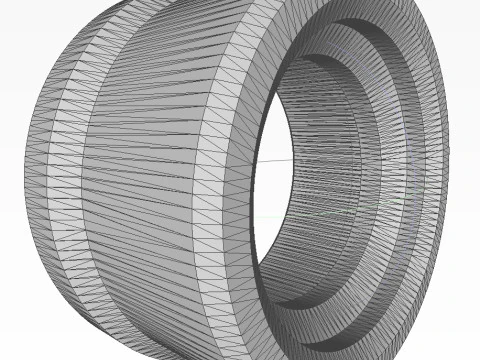

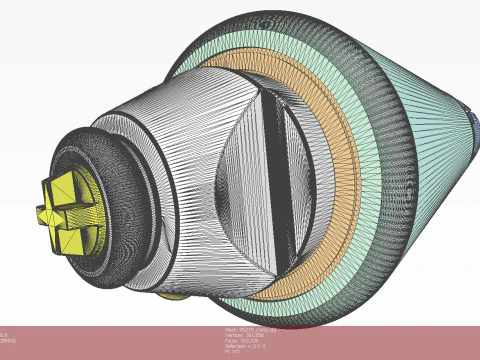

Mesh:
Vertices 381316
Faces 762644
(obj)
Please rate and write a review about this model.
If you have any questions, please message me.
Thank you.
