9H24 fragmentation submunition 3D printable moulage 3D Model
- Request product support by the author
- Available formats:
- Item ID:552531
- Date: 2025-01-22
- Polygons:937960
- Vertices:468966
- Animated:No
- Textured:Yes
- Rigged:No
- Materials:No
- Low-poly:No
- Collection:No
- UVW mapping:No
- Plugins Used:No
- Print Ready:No
- 3D Scan:No
- Adult content:No
- PBR:No
- AI Training:No
- Geometry:Polygonal
- Unwrapped UVs:Unknown
- Views:1674
Description

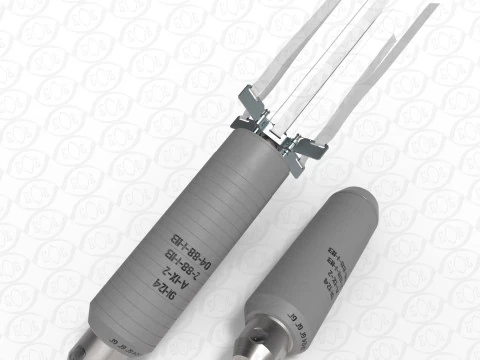

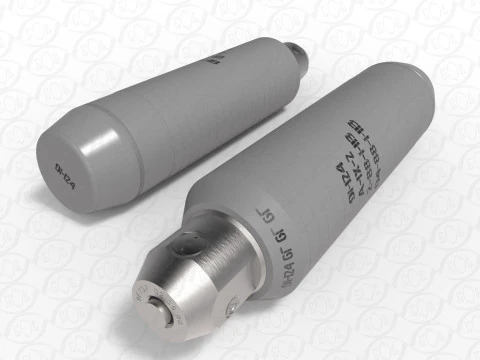

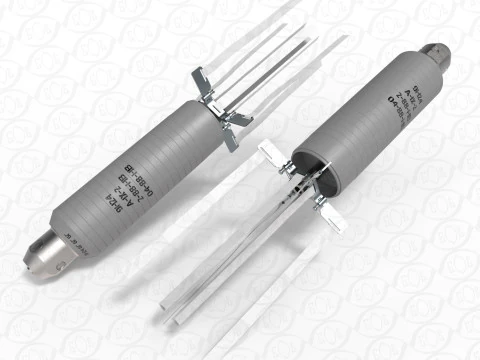

9N24 high explosive fragmentation submunition. For 9M79-1 missile with 9N123K cluster warhead of the “Tochka-U” missile system (ballistic missile).
Tactical and technical characteristics
The 9H24 cluster munition has the following characteristics:
- Weight: 7.45 kg
- Weight of explosive: 1.45 kg
- Explosive material: A-IX-2
- Approximate number of fragments: 316
- Average weight of a fragment: 7 g.

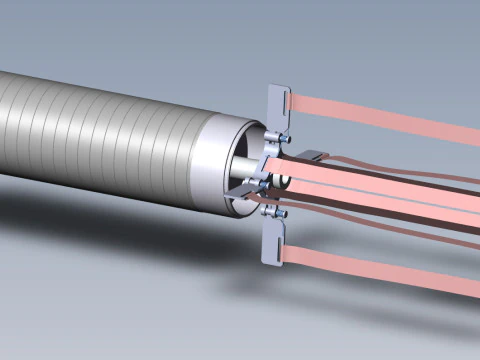

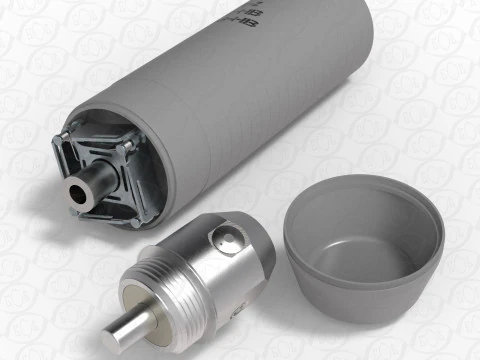

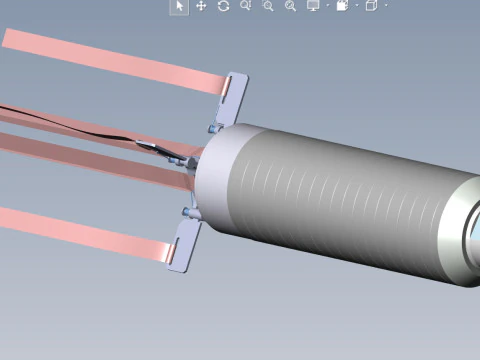

The 9N123K cluster warhead of the 9M79-1 missile of the Tochka-U tactical missile system opens at an altitude of about 2250 meters, scattering 50 cluster warheads of high-explosive fragmentation action - 9N24 submunitions. The submunitions ejects about 316 pieces of fragments upon explosion. The warhead has a 9E237 contact fuze, which is activated when the warhead is ejected from the warhead container. The warhead is stabilized into a vertical position in flight by attached nylon straps. The fuze is triggered upon impact with a hard surface (ground, etc.) at an angle of contact between 25° and 90°. The fuze has a self-destruct function, which should guarantee the detonation of the warhead in 32...60 seconds after ejection from the container. This munition was actively and indiscriminately used by the Russian Federation in 2022 during the invasion of Ukraine. It was responsible for the massacre of civilians at the railway station in Kramatorsk city.

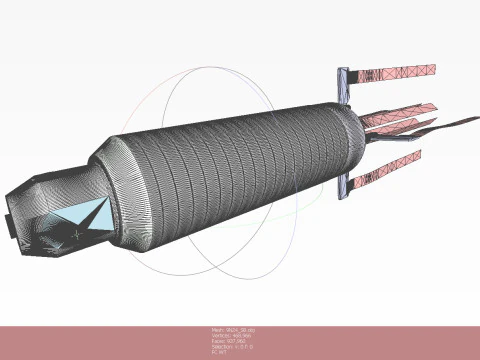

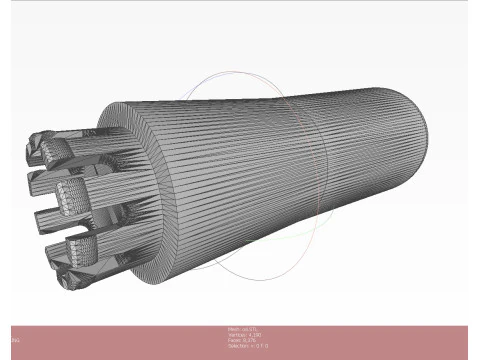

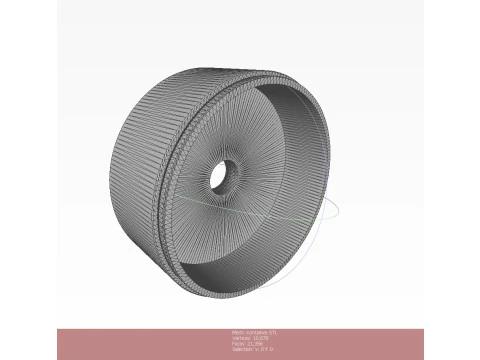

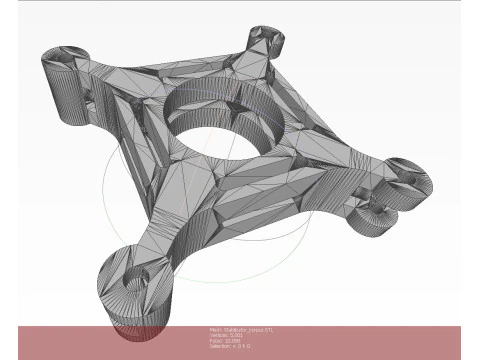

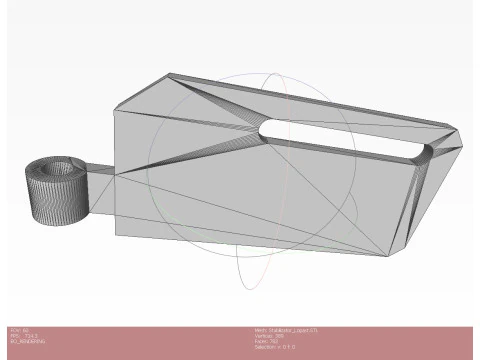

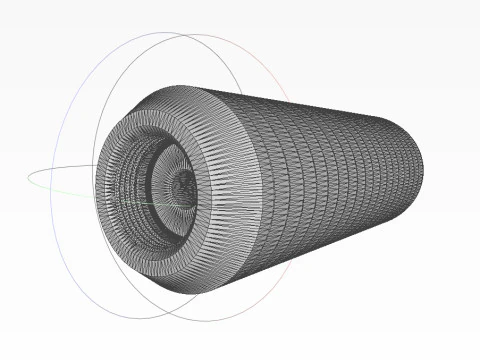

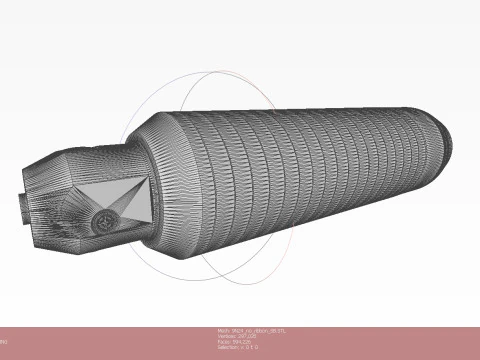

Mesh:
Vertices 468966
Faces 937960

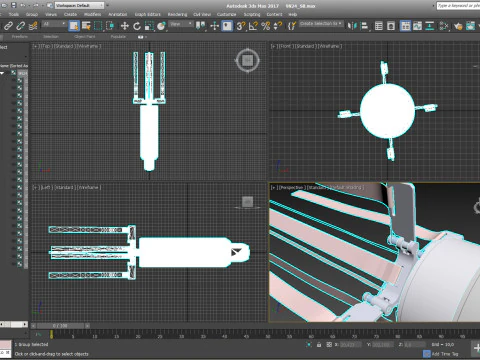

(9N24_SB.obj)
Please rate and write a review about this model. If you have any questions, please feel free to email me. Thank you.
Always willing to consider YOUR suggestions on price!
Print Ready: NoNeed more formats?
If you need a different format, please send us a Conversion Request. We can convert 3D models to: .stl, .c4d, .obj, .fbx, .ma/.mb, .3ds, .3dm, .dxf/.dwg, .max. .blend, .skp, .glb. Free Format ConversionWe do not convert 3d scenes and solid formats such as .step, .iges, .stp, .sldprt etc!
